HOW TO READ CONFIGURATION DIAGRAMS
TSB Revision
CONFIGURATION DIAGRAMS
80A-3

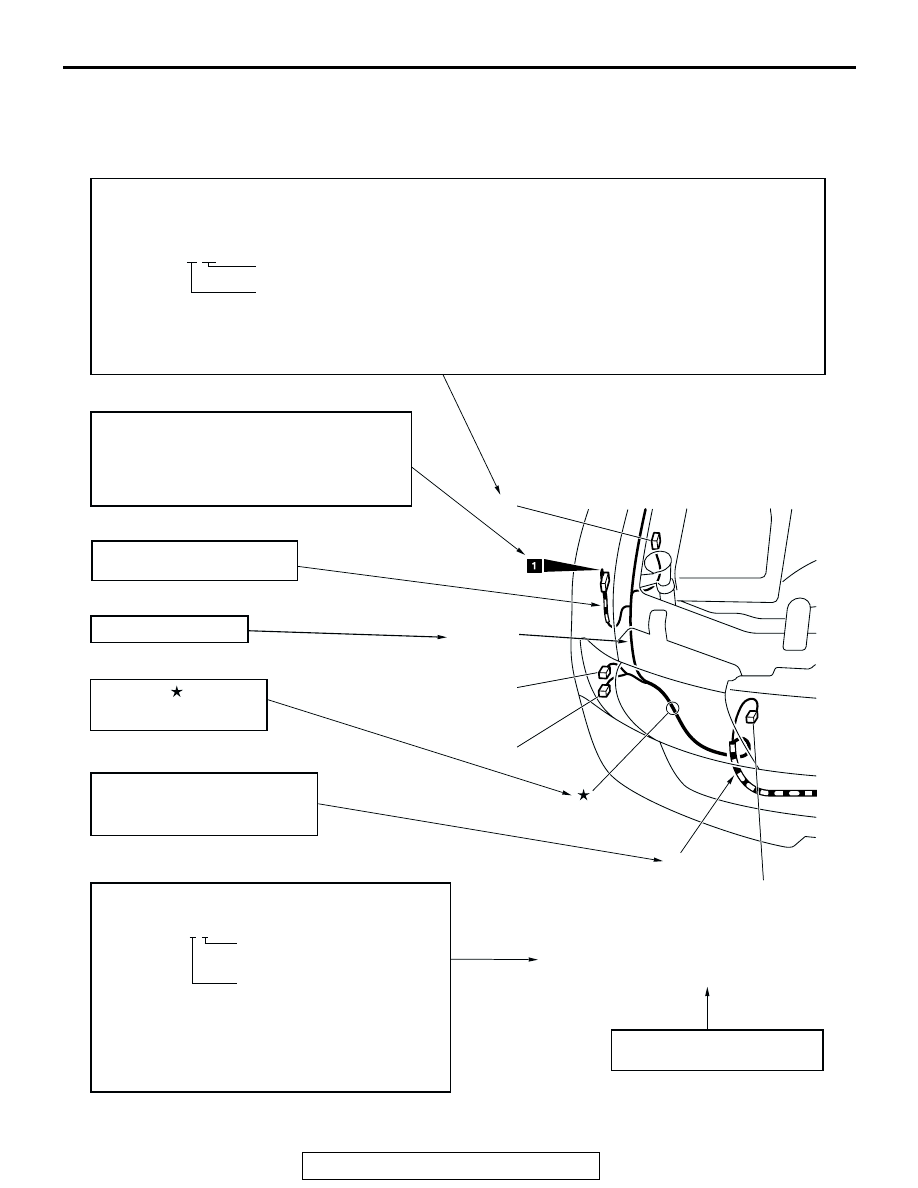

HOW TO READ CONFIGURATION DIAGRAMS
M1801000200395

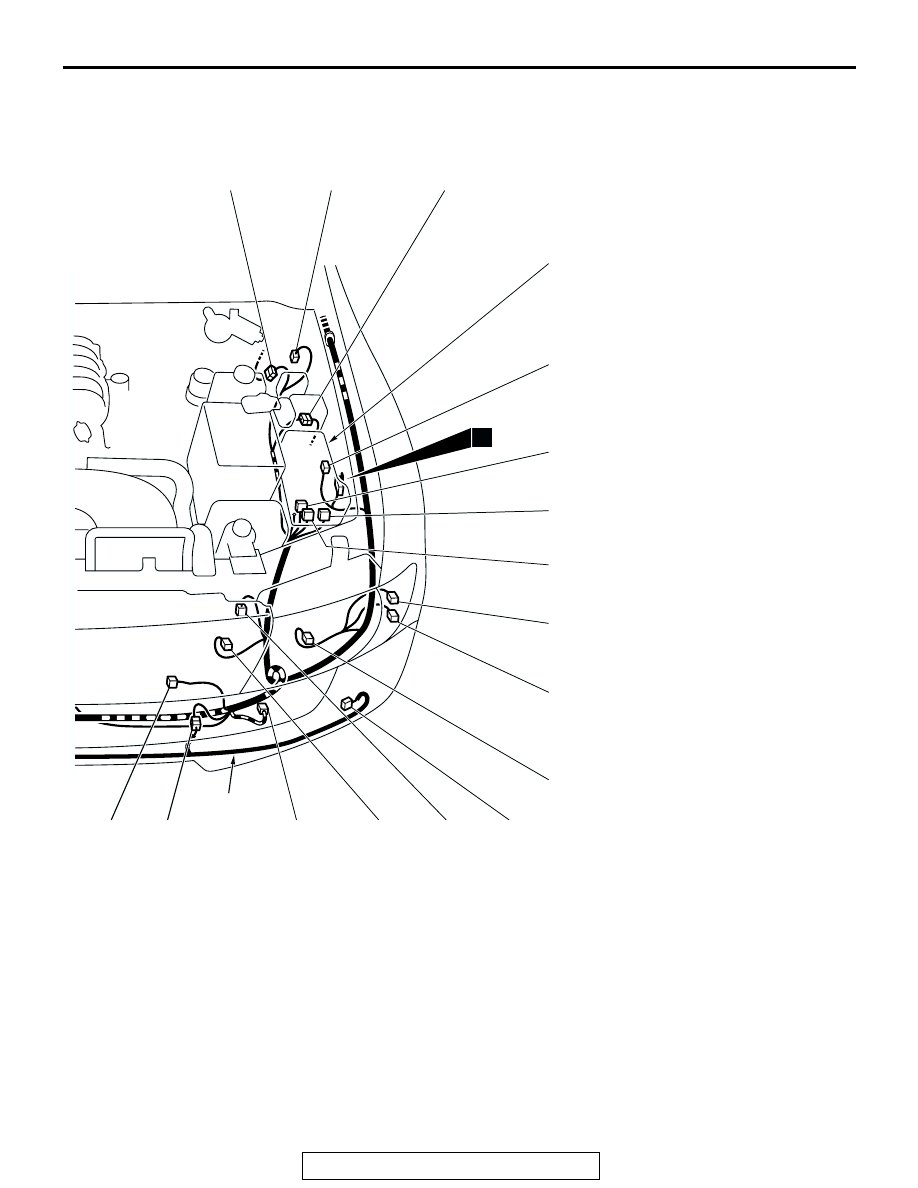

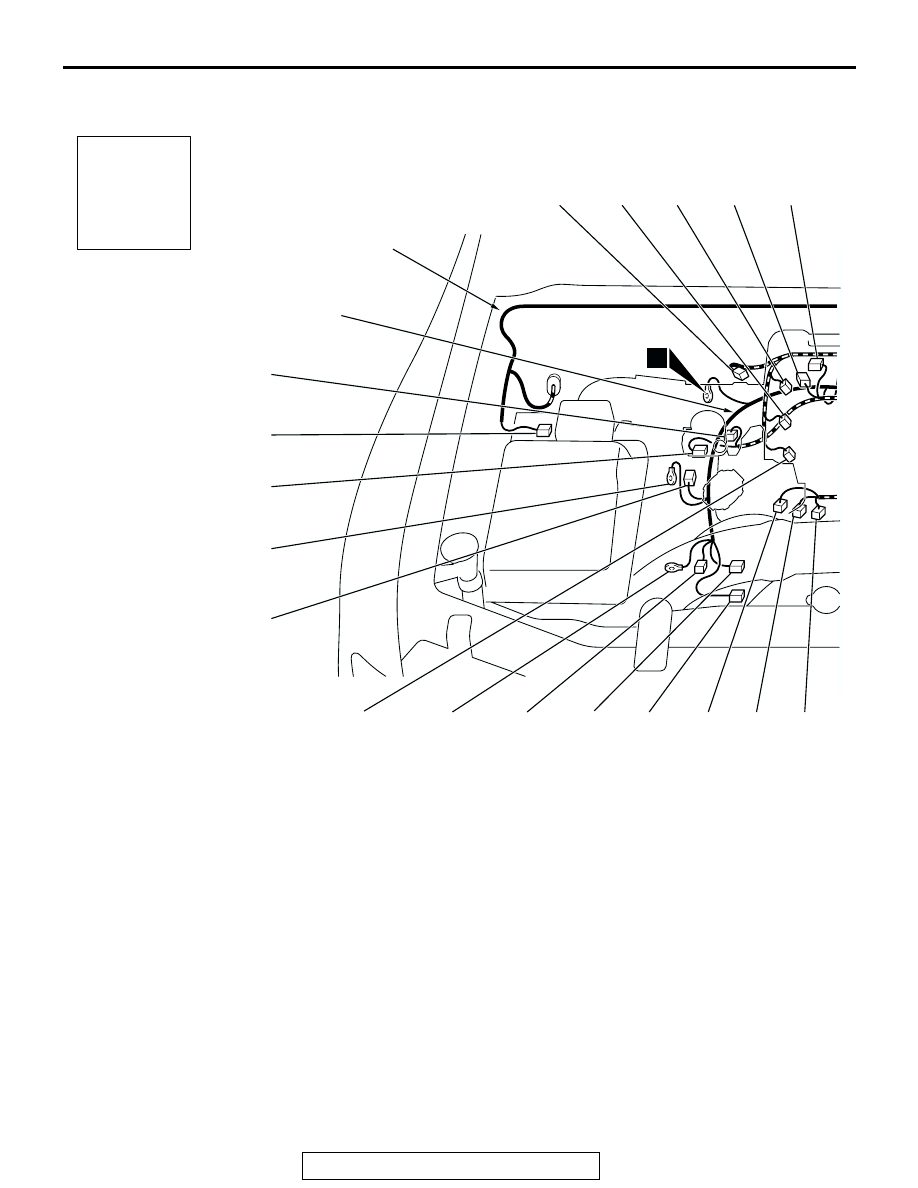

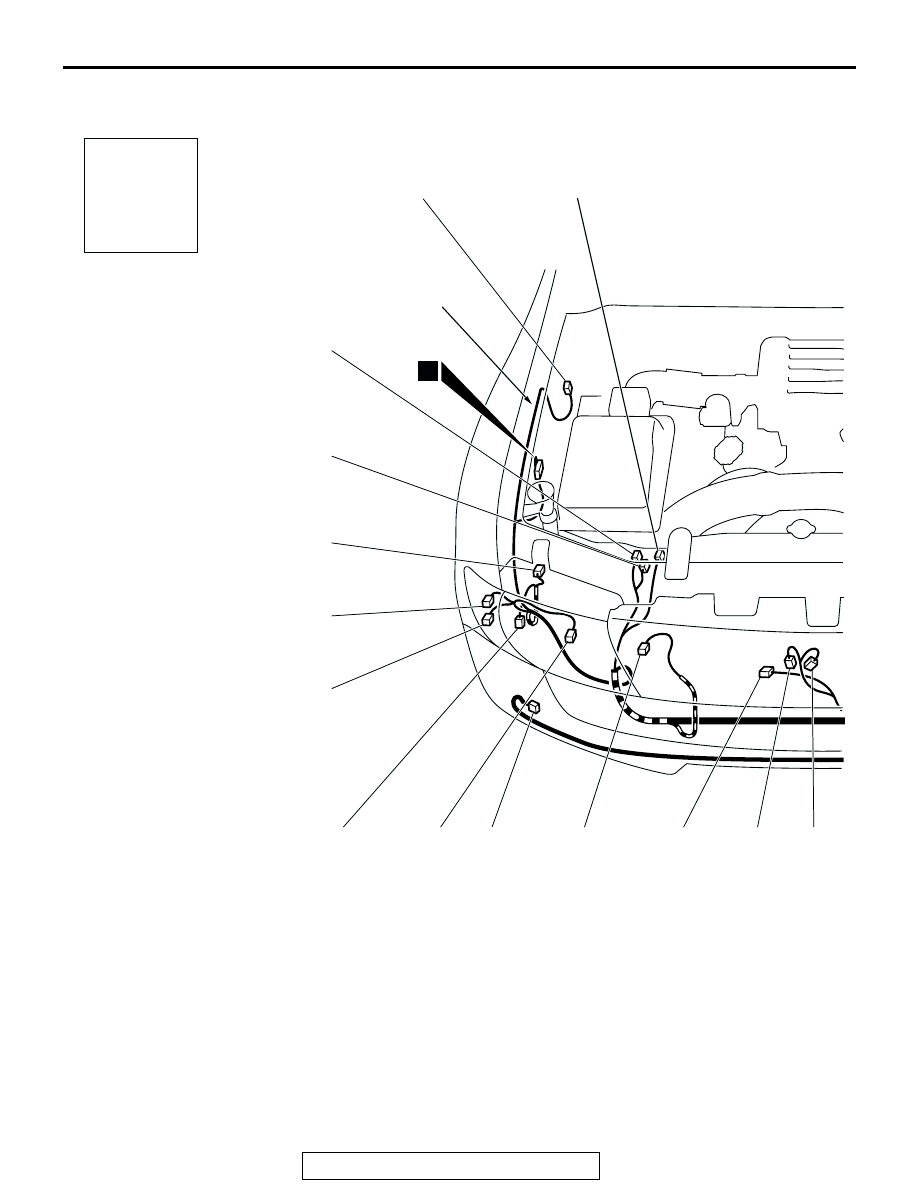

The wiring harness diagrams clearly show the connector locations and harness routines at each site on
actual vehicles.
ACX01846
A-16
Y
A-17
A-18
A-19
Denotes connector No.
The same connector No. is used throughout the circuit diagrams to facilitate connector location searches.
The first alphabetical symbol indicates the location site of the connector and a number that follows is the unique number.
Numbers are assigned to parts in clockwise order on the diagram.
Example: A-19
Number specific to connector (serial number)
Connector location site symbol
A: ENGINE COMPARTMENT
F: FRONT FLOOR AND ROOF
B: ENGINE
G: REAR FLOOR AND UNDER FLOOR
C: TRANSMISSION
H: DOOR
D: DASH PANEL
I: BACK DOOR
E: FLOOR CONSOLE
Denotes ground point.
Same ground number is used throughout circuit
diagrams to facilitate search of ground point.
Refer to GROUP 70 SINGLE PART INSTALLATION
POSITION - GROUND MOUNTING LOCATIONS
for details of ground points.
Denotes a section covered by a
corrugated tube.
Denotes the color of the corrugated
tube (If not specified, it is black.)
R: Red
Y: Yellow
The number of connector pins and the connector color
(except milk white)* are shown for ease of retrieval.
Example: (2-B)
Connector color
(milk white if no color is indicated)
Number of connector pins
*: Typical connector colors
B: Black
BR: Brown
Y: Yellow
V: Violet
L: Blue
O: Orange
G: Green
GR: Gray
R: Red
NONE: Milk white
A-16 (1) HORN (LOW)
A-17 (3-GR) HEADLIGHT (LOW:RH)
A-18 (2-B) HEADLIGHT (HIGH:RH)
A-19 (2) DUAL PRESSURE SWITCH
Indicates the device to which the
connector is connected.
The mark shows the
standard mounting position
of wiring harness.
AF
Denotes harness name.
FRONT
WIRING
HARNESS
