         vehicle is at normal riding height.

      *  Steering wheel must be centered with wheels in straight ahead

         position. If required, shorten one tie rod adjusting sleeve

         and lengthen opposite sleeve (equal amount of turns). See

         Fig. 2.

      *  Wheel bearings should have the correct preload and lug nuts

         must be tightened to manufacturer’s specifications. Adjust

         camber, caster and toe-in using this sequence. Follow

         instructions of the alignment equipment manufacturer.

CAUTION: Do not attempt to correct alignment by straightening parts.

         Damaged parts must be replaced.

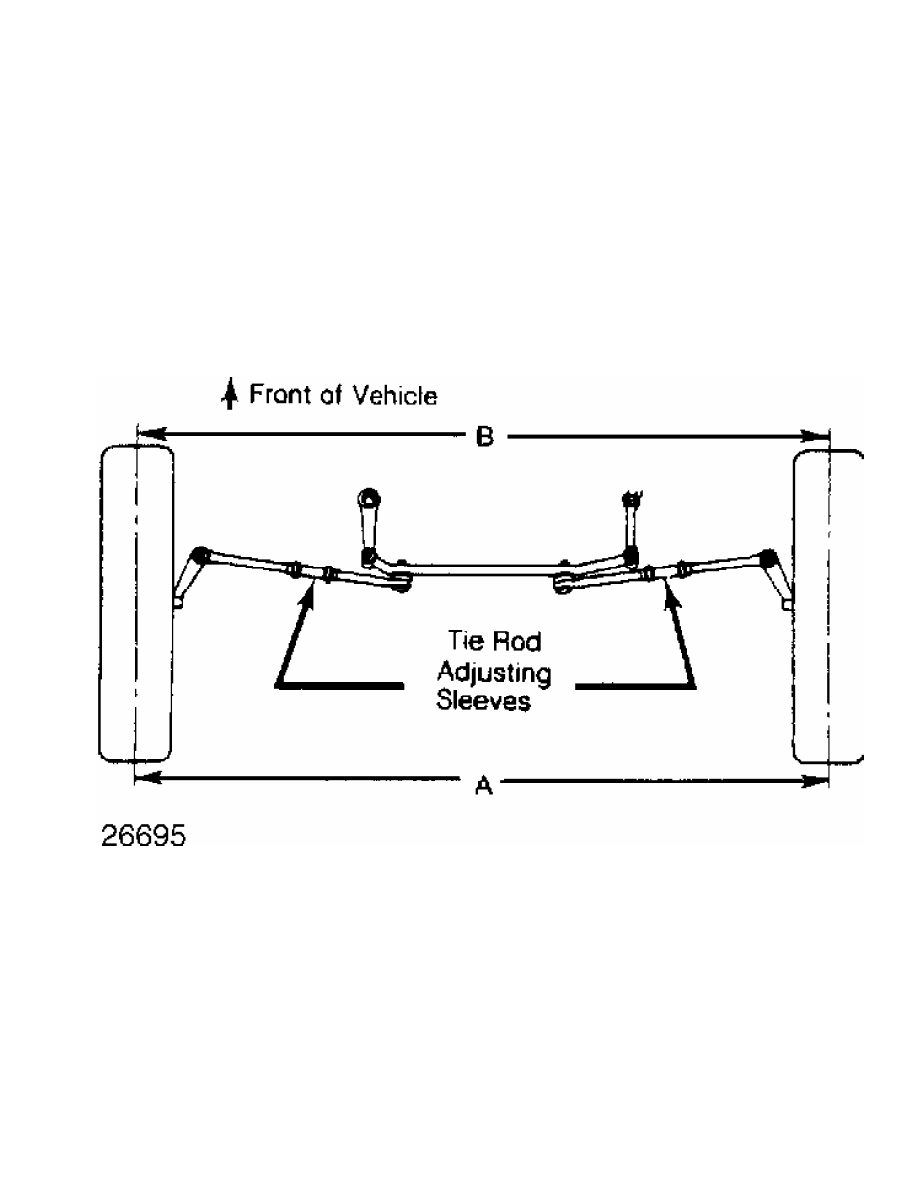

Fig. 2:  Adjusting Tie Rod Sleeves (Top View)

         CAMBER

         1) Camber is the tilting of the wheel, outward at either top

or bottom, as viewed from front of vehicle. See  Fig. 3.

         2) When wheels tilts outward at the top (from centerline of

vehicle), camber is positive. When wheels tilt inward at top, camber

is negative. Amount of tilt is measured in degrees from vertical.

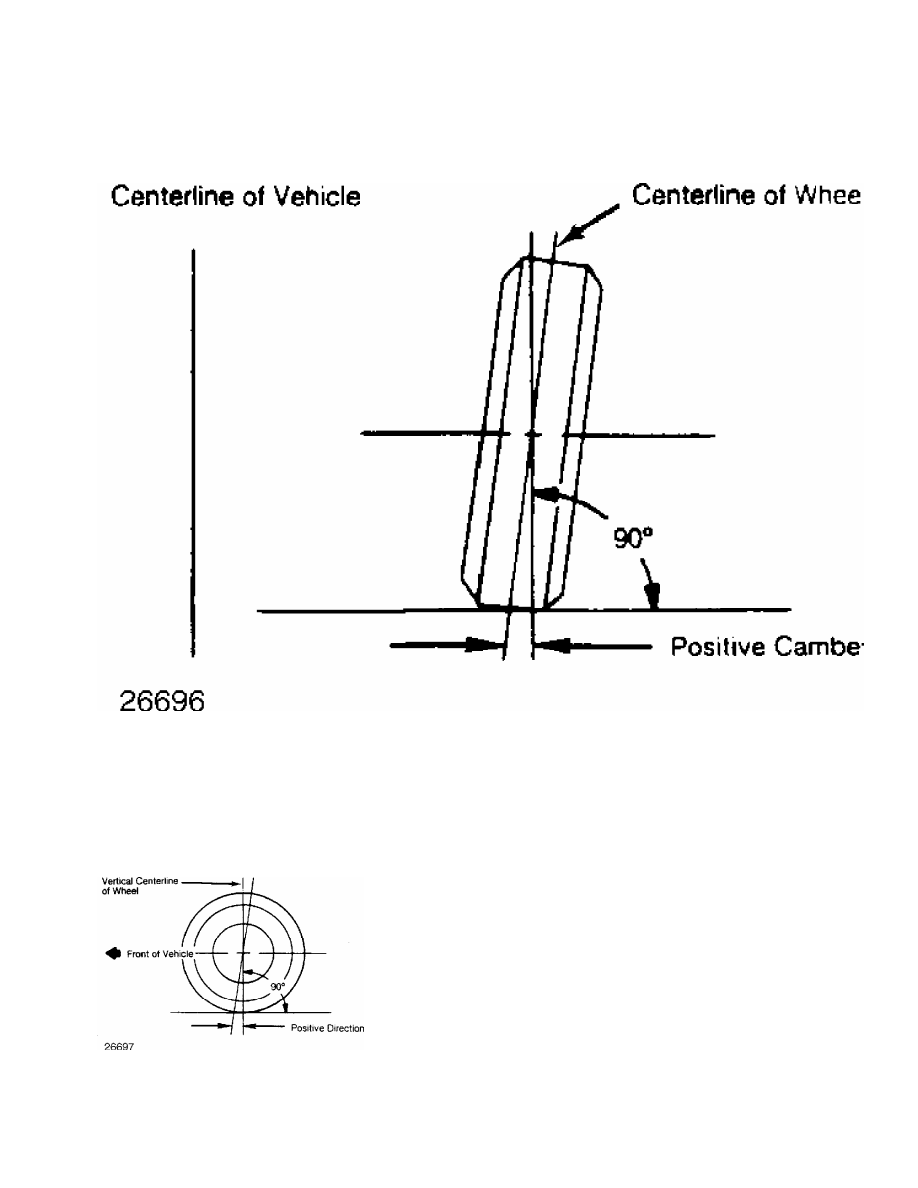

Fig. 3:  Determining Camber Angle

         CASTER

         1) Caster is tilting of front steering axis either forward or

backward from vertical, as viewed from side of vehicle. See  Fig. 4.

         2) When axis is tilted backward from vertical, caster is

positive. This creates a trailing action on front wheels. When axis is

tilted forward, caster is negative, causing a leading action on front

wheels.

Fig. 4:  Determining Caster Angle

         TOE-IN ADJUSTMENT

         Toe-in is the width measured at the rear of the tires

subtracted by the width measured at the front of the tires at about

spindle height. A positive figure would indicate toe-in and a negative

figure would indicate toe-out. If the distance between the front and

rear of the tires is the same, toe measurement would be zero. To

adjust:

         1) Measure toe-in with front wheels in straight ahead

position and steering wheel centered. To adjust toe-in, loosen clamps

and turn adjusting sleeve or adjustable end on right and left tie

rods. See Figs. 2 and 5.

         2) Turn equally and in opposite directions to maintain

steering wheel in centered position. Face of tie rod end must be

parallel with machined surface of steering rod end to prevent binding.

          3) When tightening clamps, make certain that clamp bolts are

positioned so there will be no interference with other parts

throughout the entire travel of linkage.

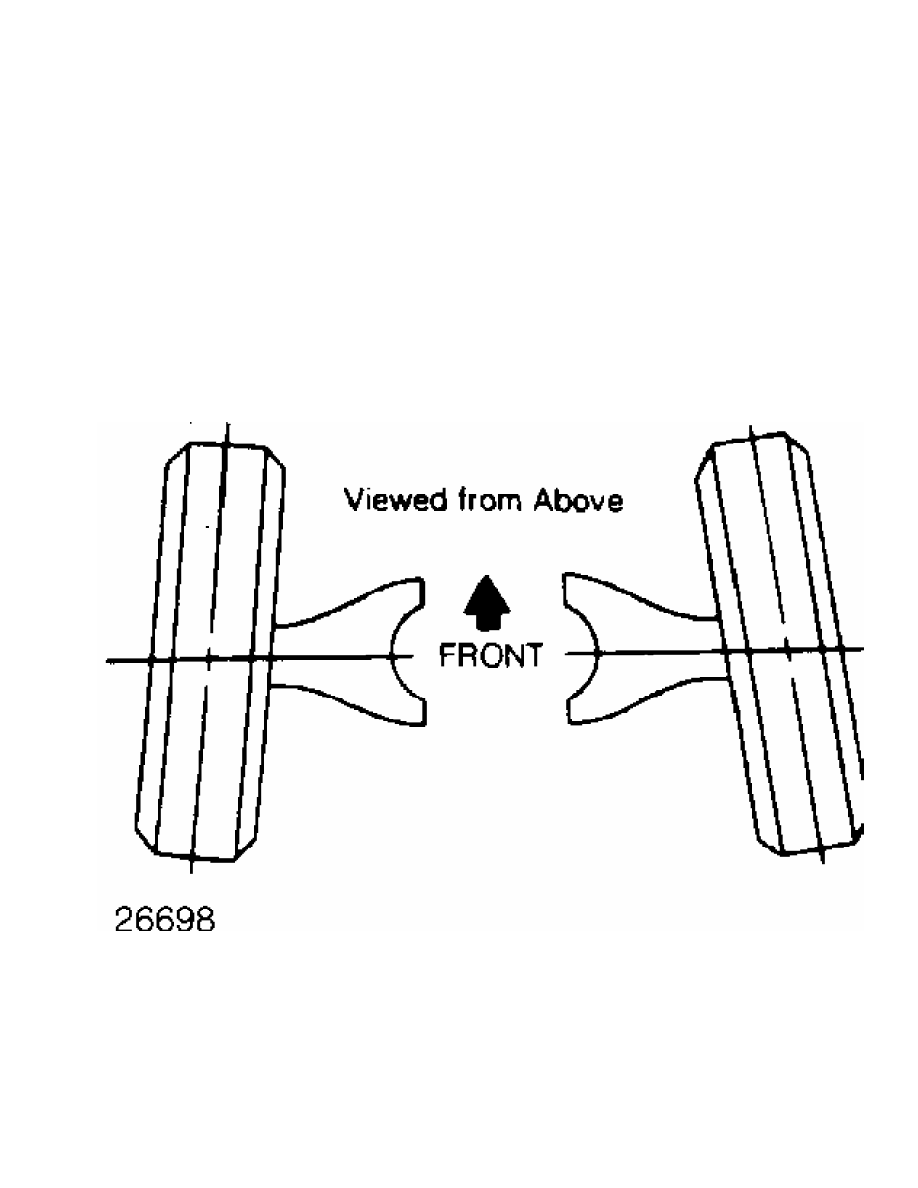

Fig. 5:  Wheel Toe-In (Dimension A Less Dimension B)

         TOE-OUT ON TURNS

         1) Toe-out on turns (turning radius) is a check for bent or

damaged parts, and not a service adjustment. With caster, camber, and

toe-in properly adjusted, check toe-out with weight of vehicle on

wheels.

         2) Use a full floating turntable under each wheel, repeating

test with each wheel positioned for right and left turns. Incorrect

toe-out generally indicates a bent steering arm. Replace arm, if

necessary, and recheck wheel alignment.

         STEERING AXIS INCLINATION

         1) Steering axis inclination is a check for bent or damaged

parts, and not a service adjustment. Vehicle must be level and camber

should be properly adjusted. See Fig. 6.

         2) If camber cannot be brought within limits and steering

axis inclination is correct, steering knuckle is bent. If camber and

steering axis inclination are both incorrect by approximately the same

amount, the upper and lower control arms are bent.

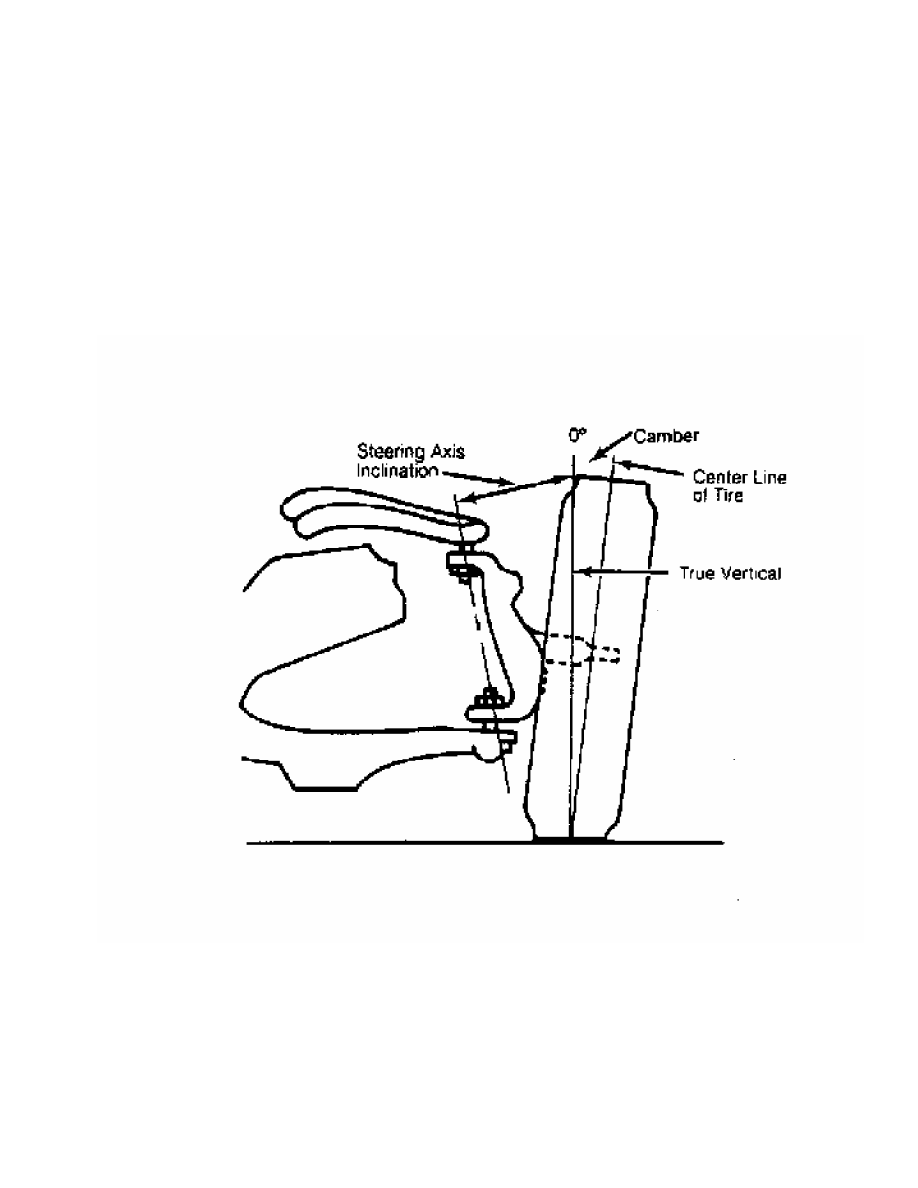

Fig. 6:  Checking Steering Axis Inclination
