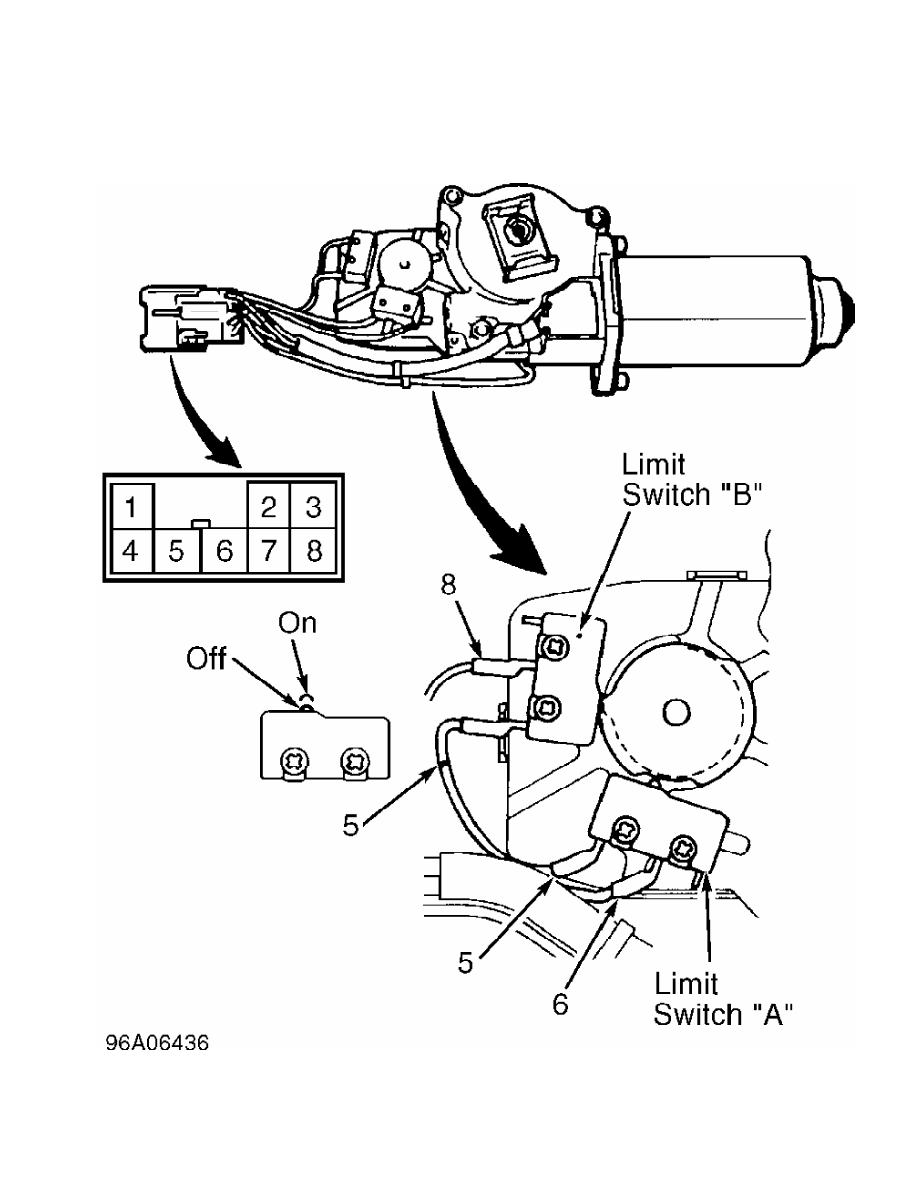

Fig. 6:  Inspecting Sun Roof Limit Switches (3000GT)

Courtesy of Mitsubishi Motor Sales of America

         SUN ROOF SWITCH

         Using ohmmeter, check continuity between selected switch

terminals. See Fig. 7, 8, 9 or 10. Replace switch as necessary.

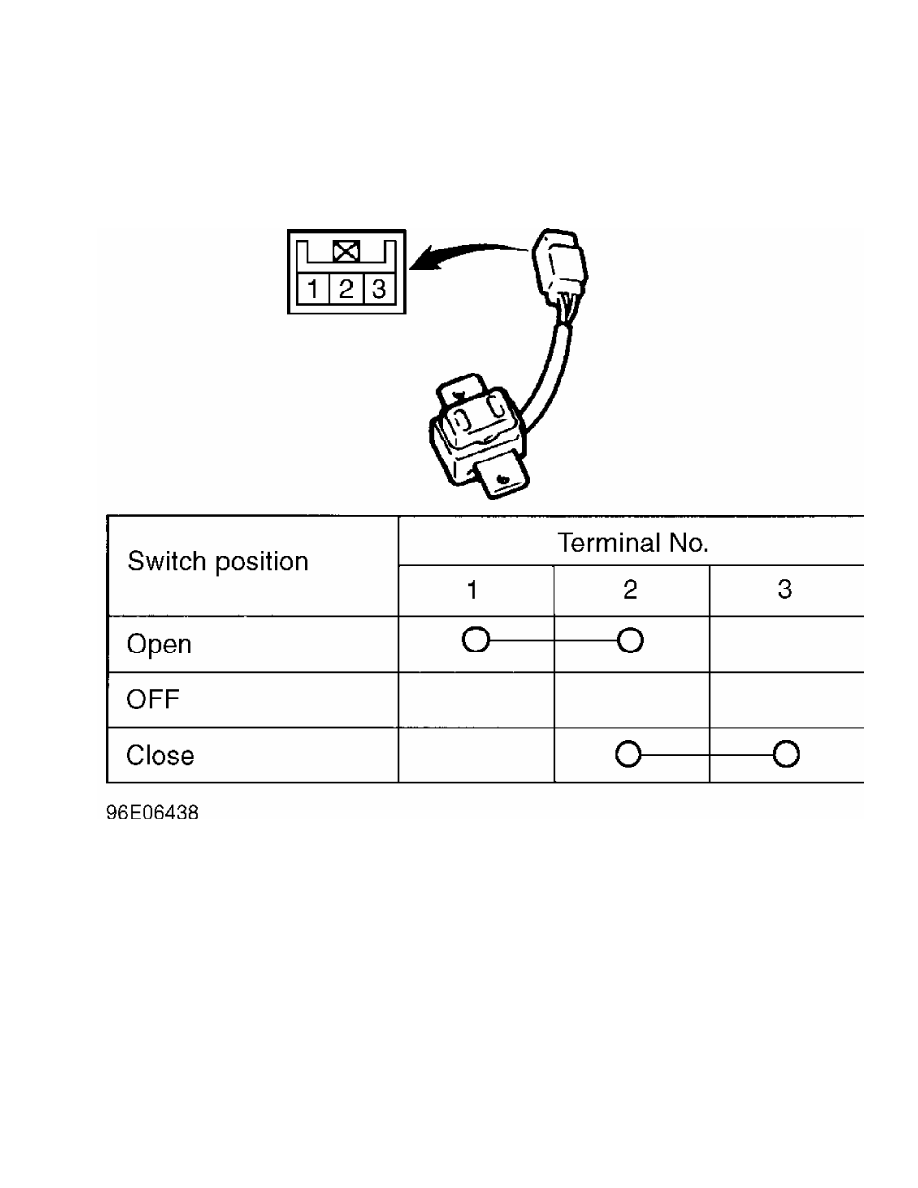

Fig. 7:  Inspecting Sun Roof Switch Continuity (Eclipse & 3000GT)

Courtesy of Mitsubishi Motor Sales of America

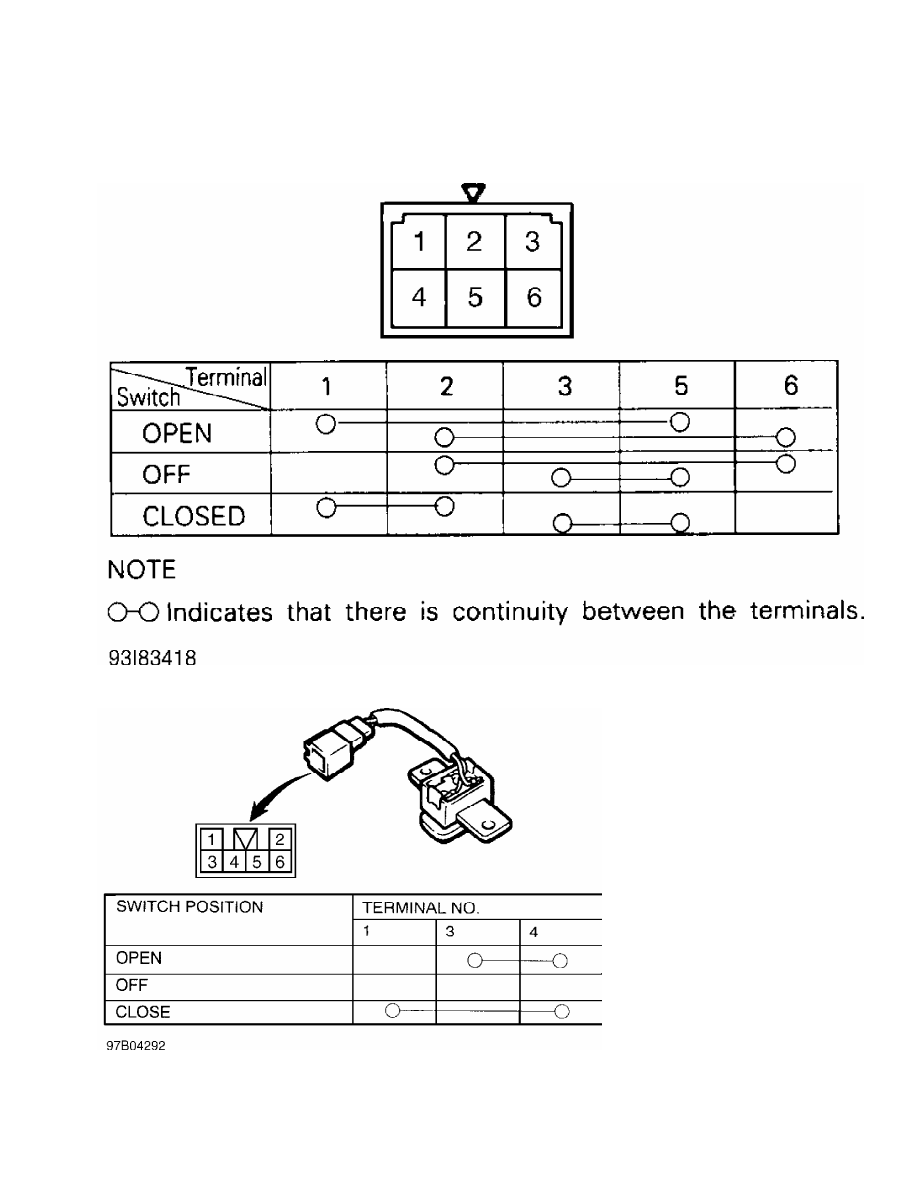

Fig. 8:  Inspecting Sun Roof Switch Continuity (Galant)

Courtesy of Mitsubishi Motor Sales of America

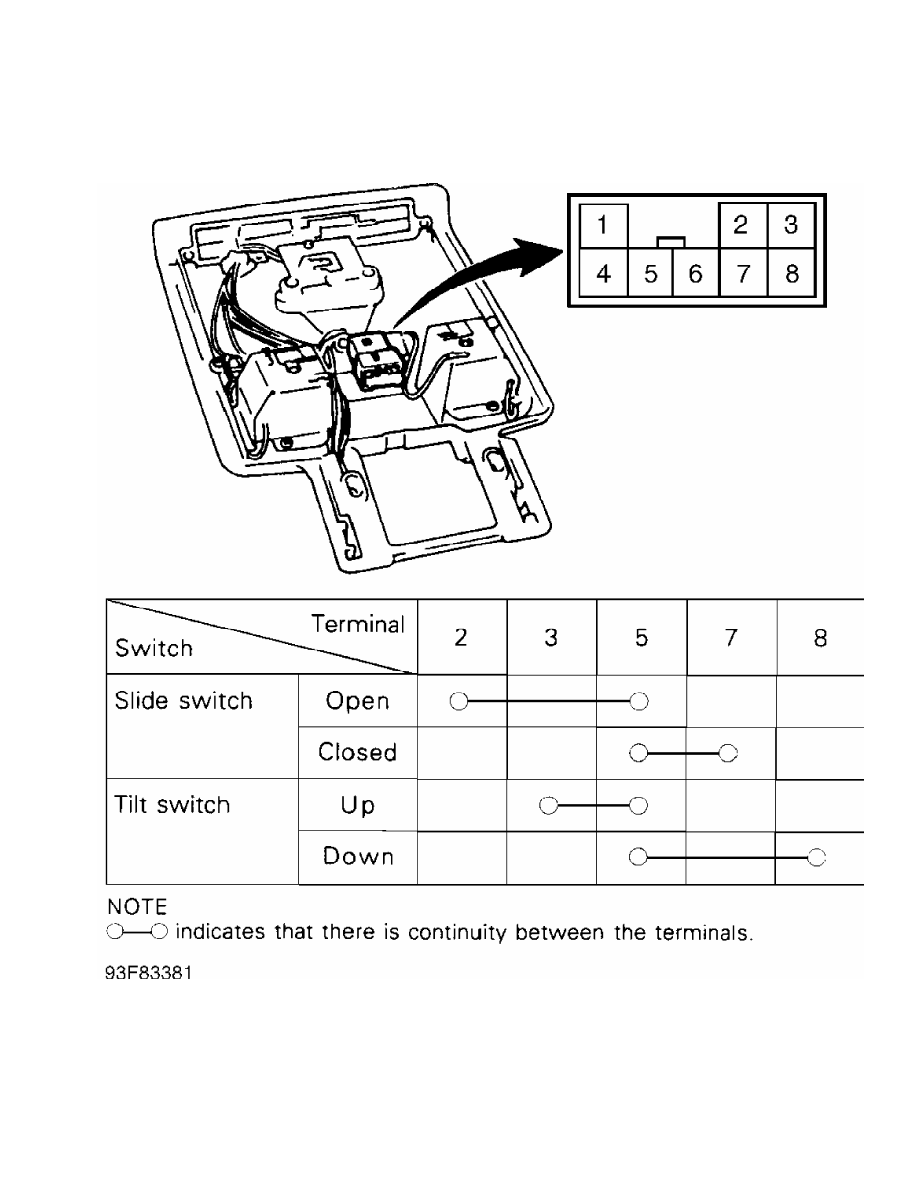

Fig. 9:  Inspecting Sun Roof Switch Continuity (Montero)

Courtesy of Mitsubishi Motor Sales of America

Fig. 10:  Inspecting Sun Roof Switch Continuity (Montero Sport)

Courtesy of Mitsubishi Motor Sales of America

         MOTOR ROTATION SENSOR CHECK (3000GT)
