Mitsubishi Montero (1998+). Manual - part 268

  Front Up  .........................................  1 & 3

  Front Down  .......................................  1 & 2

  Front Middle (ON)  .............................  1, 2 & 3

  Rear Up  ..........................................  4 & 6

  Rear Down  ........................................  4 & 5

  Rear Middle (ON)  ..............................  4, 5 & 6

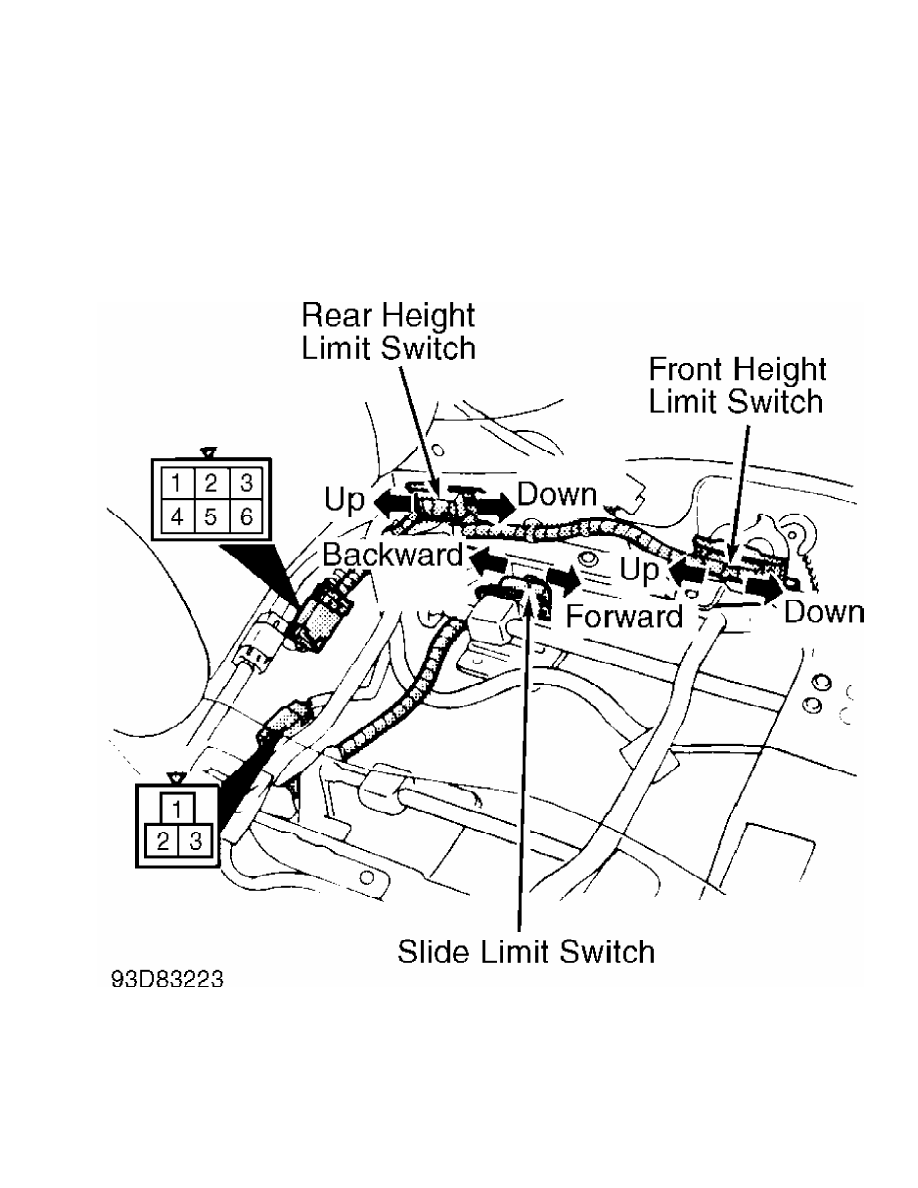

Fig. 2:  Identifying Limit Switch Connectors (3000GT)

Courtesy of Mitsubishi Motor Sales of America

         LUMBAR/SIDE ADJUSTMENT SWITCH

         3000GT

         Remove switch from center console. Using ohmmeter, check

continuity of switch. See

LUMBAR/SIDE ADJUSTMENT SWITCH CONTINUITY TABLE (3000GT) . See Fig. 3.

Replace switch if continuity is not as specified.

LUMBAR/SIDE ADJUSTMENT SWITCH CONTINUITY TABLE (3000GT)

Switch                                      Check Continuity

Position                                    Between Pins No.

Lumbar Support

  Push  ......................................  2 & 3; 5 & 7

  Off  ...........................................  2, 3 & 5

  Release  ...................................  2 & 5; 3 & 7

Side Support

  Spread  ....................................  1 & 2; 7 & 8

  Off  ...........................................  1, 2 & 8

  Close  .....................................  1 & 7; 2 & 8

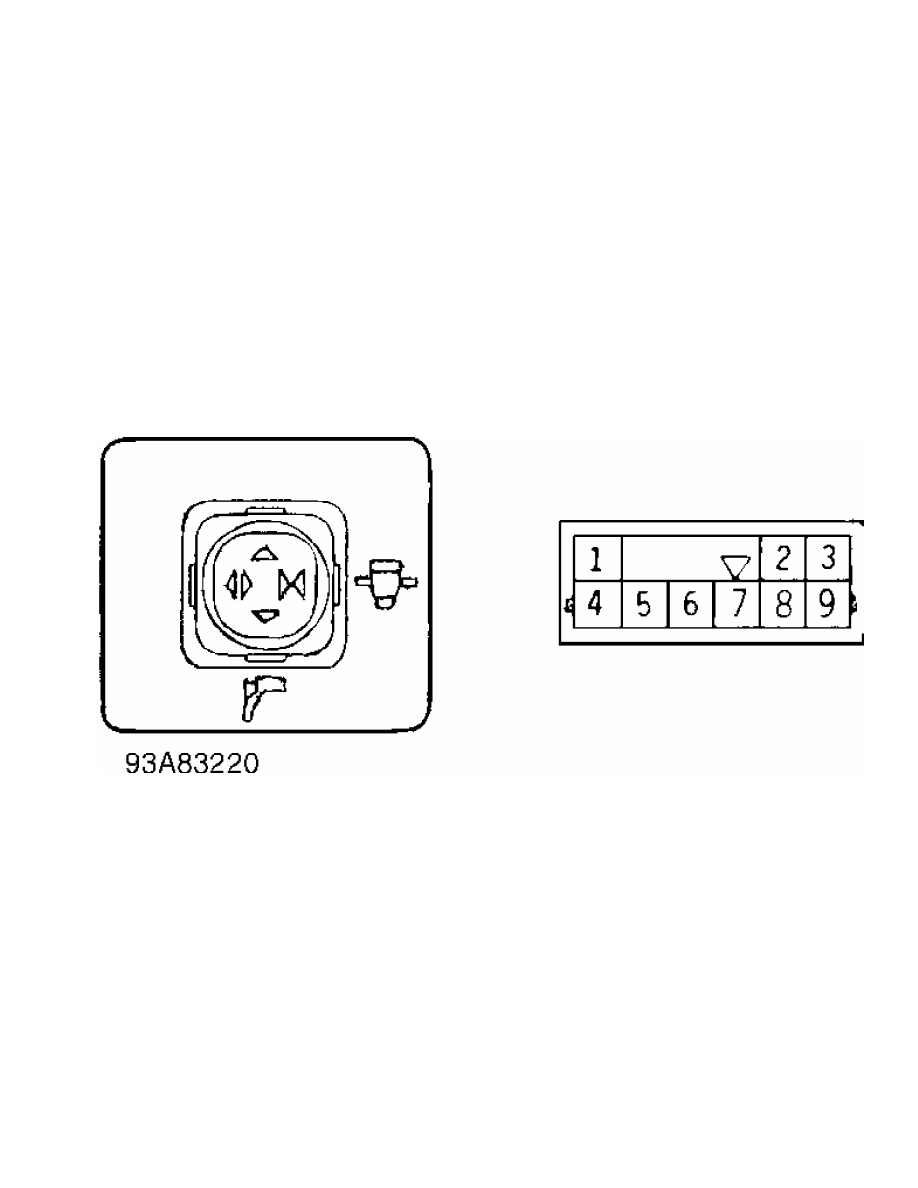

Fig. 3:  Identifying Lumbar/Side Adjustment Switch Terminals (3000GT)

Courtesy of Mitsubishi Motor Sales of America

         POWER SEAT MOTORS

         Eclipse, Galant & Montero

         Disconnect each motor harness connector. Connect 12-volt

power supply to motor connector terminals. Reverse power supply leads

to reverse direction of motor operation. Motor should operate freely

and smoothly. If any motor does not operate correctly, replace power

seat adjuster assembly. Motors cannot be replaced individually.

         3000GT

         Disconnect each motor harness connector. To access lumbar and

side support motor harness connectors, remove seatback panel. Connect

12-volt power supply to motor connector terminals. Reverse power

supply leads to reverse direction of motor operation. Motor should

operate freely and smoothly. If any motor does not operate correctly,

replace power seat adjuster assembly or seatback assembly. Motors

cannot be replaced individually.

         POWER SEAT SWITCH

         Eclipse & 3000GT

         Disconnect power seat switch harness connector. Using

ohmmeter, check continuity of switch. See

POWER SEAT SWITCH CONTINUITY TABLE (ECLIPSE & 3000GT) . See Fig. 4.

Replace switch if continuity is not as specified.

POWER SEAT SWITCH CONTINUITY TABLE (ECLIPSE & 3000GT)

Switch                                      Check Continuity

Position                                    Between Pins No.

Slide Switch

  Forward  ..................................  2 & 3; 4 & 14

  Backward  .................................  1 & 4; 3 & 14

Front Height Switch

  Up  .....................................  9 & 10; 11 & 14

  Down  ...................................  8 & 11; 10 & 14

Rear Height Switch

  Up  ......................................  6 & 12; 7 & 14

  Down  ....................................  5 & 7; 12 & 14

All Switches Off  ............  No Continuity, All Terminals

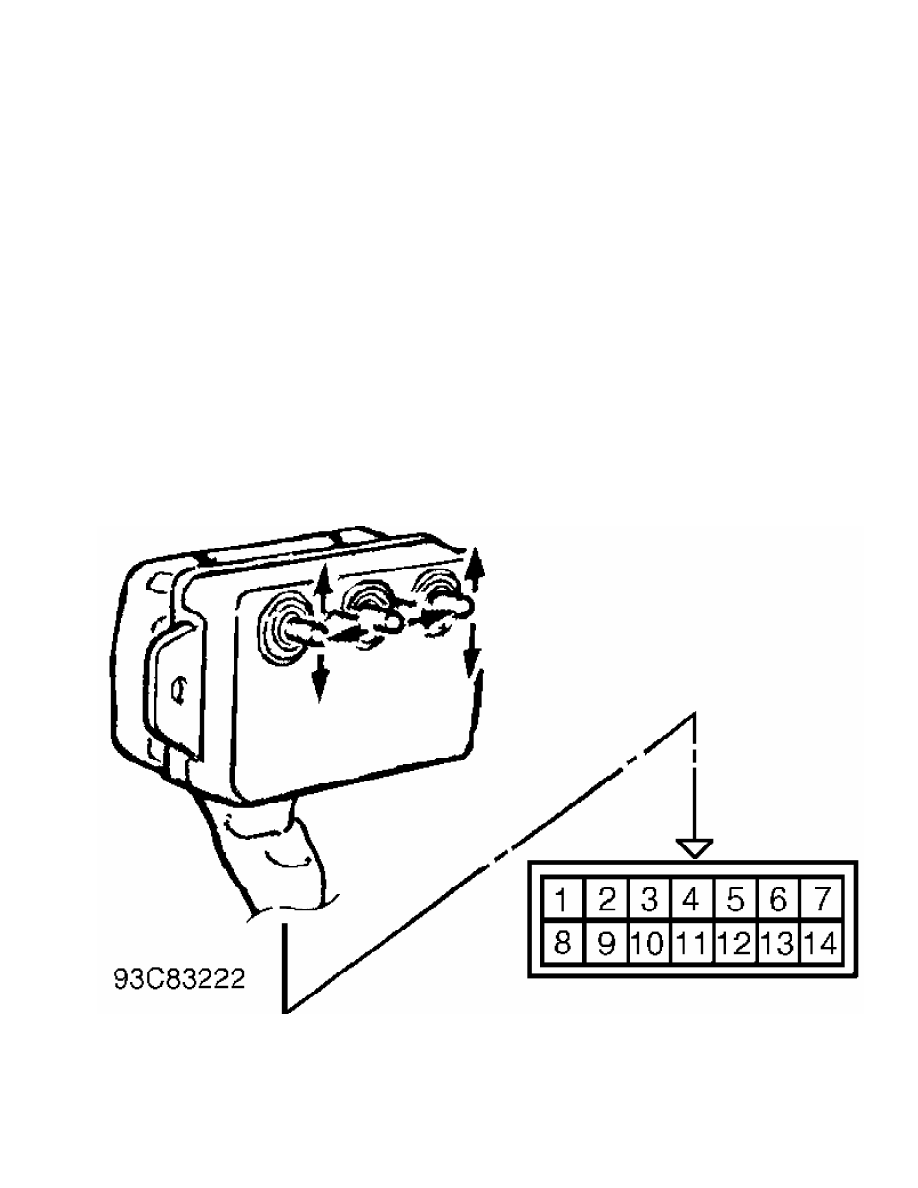

Fig. 4:  Identifying Power Seat Switch Terminals (Eclipse & 3000GT)

Courtesy of Mitsubishi Motor Sales of America

         Galant

         Disconnect power seat switch harness connector. Using

ohmmeter, check continuity of switch. See

POWER SEAT SWITCH CONTINUITY TABLE (GALANT) . See Fig. 5. Replace

switch if continuity is not as specified.

POWER SEAT SWITCH CONTINUITY TABLE (GALANT)

Switch                                      Check Continuity

Position                                    Between Pins No.

Driver’s & Passenger’s Seat

  Front Height Switch

    Up  ..................................  11 & 14; 13 & 22

    Down  ................................  12 & 13; 14 & 22

  Rear Height Switch

    Up  ..................................  17 & 18; 15 & 22

    Down  ................................  15 & 19; 17 & 22

  Slide Switch

    Forward  ................................  1 & 4; 3 & 22

    Backward  ...............................  2 & 3; 4 & 22

  Reclining Switch

    Forward  .............................  16 & 21; 20 & 22

    Backward  ............................  16 & 20; 21 & 22

  All Switches

    Off  ..................  1 & 4; 2 & 3; 11 & 14; 12 & 13;

                               15 & 19; 16, 20 & 21; 17 & 18

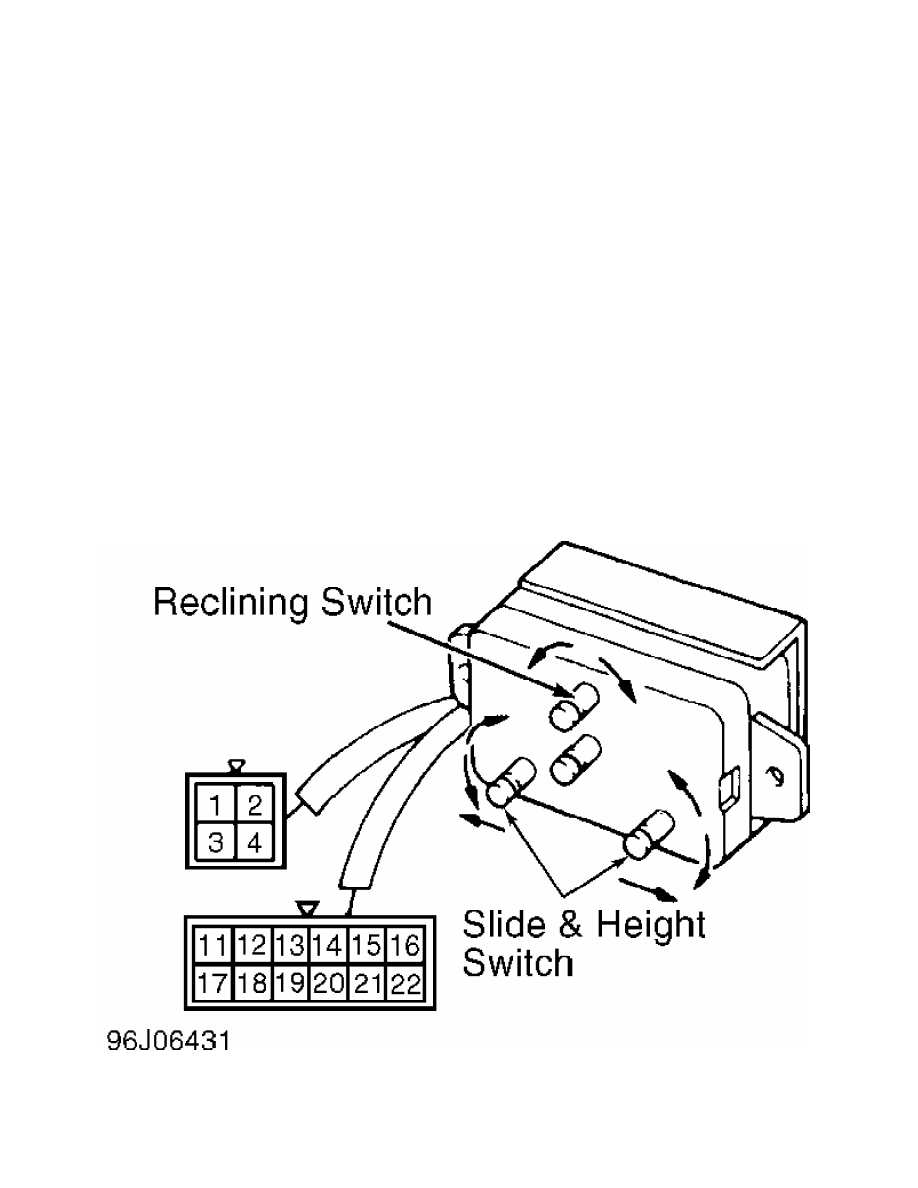

Fig. 5:  Identifying Power Seat Switch Terminals (Galant)

Courtesy of Mitsubishi Motor Sales of America

         Montero

         Disconnect power seat switch harness connector. Using
