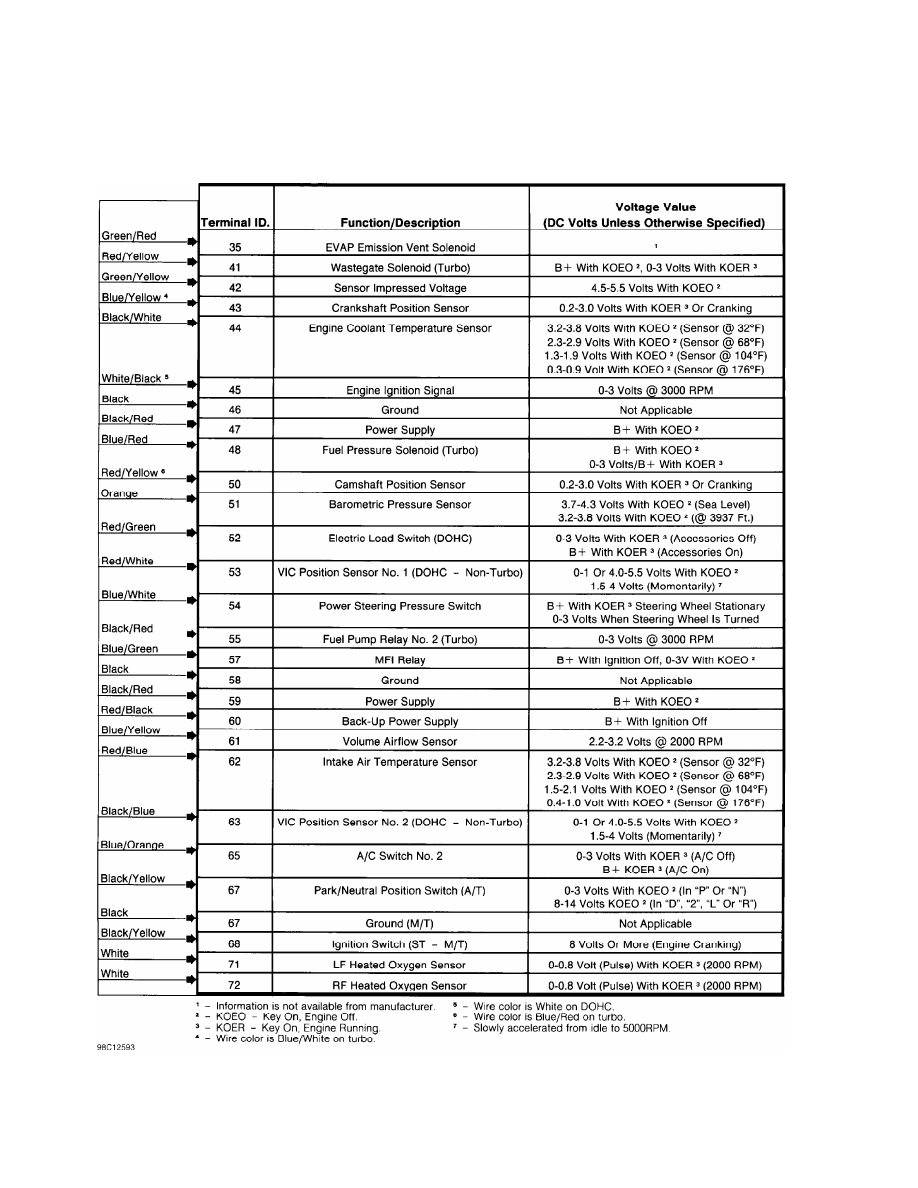

Fig. 23:  Pin Voltage Chart (3000GT - 2 Of 3)

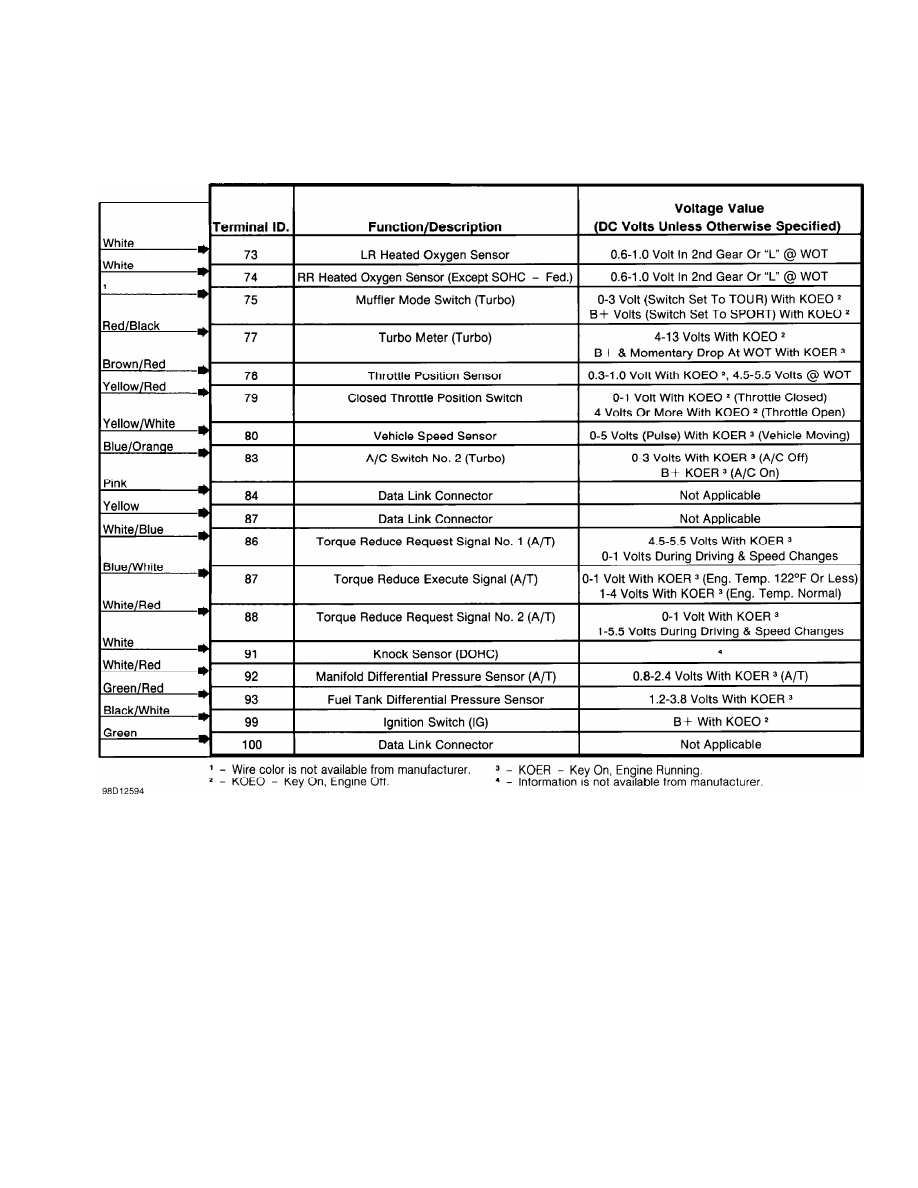

Fig. 24:  Pin Voltage Chart (3000GT - 3 Of 3)

K - SENSOR RANGE CHARTS

1998 Mitsubishi Montero

         1998 ENGINE PERFORMANCE

         Mitsubishi - Sensor Operating Range Charts

         Diamante, Eclipse, Galant, Mirage, Montero, Montero Sport,

         3000GT

         INTRODUCTION

         Sensor operating range information can help determine if a

sensor is out of calibration. An out-of-calibration sensor may not set

a diagnostic trouble code, but it may cause driveability problems. For

sensors not listed in this article, see G - TESTS W/CODES article.

NOTE:    Unless stated otherwise in test procedure, perform all

         voltage tests using a Digital Volt-Ohmmeter (DVOM) with a

         minimum 10-megohm input impedance. For connector terminal

         identification, see TERMINAL IDENTIFICATION in

         G - TESTS W/CODES article.

ENGINE COOLANT TEMPERATURE (ECT) SENSOR RESISTANCE TABLE ( 1)

Application & Temperature



F (



C)                       Ohms

Diamante, & Eclipse Turbo & 2.4L

  32 (0)  .......................................  5100-6500

  68 (20)  ......................................  2100-2700

  104 (40)  ......................................  900-1300

  176 (80)  .......................................  260-360

Eclipse 2.0L Non-Turbo

  77 (25)  ....................................  9000-11,000

  212 (100)  ......................................  600-800

Galant, Mirage & Montero Sport

  68 (20)  ......................................  2100-2700

  176 (80)  .......................................  260-360

Montero & 3000GT

  32 (0)  ............................................  5800

  68 (20)  ...........................................  2400

  104 (40)  ..........................................  1100

  176 (80)  ...........................................  300

(1) - Check resistance across ECT sensor terminals.

INTAKE AIR TEMPERATURE (IAT) SENSOR RESISTANCE TABLE

Application & Temperature



F (



C)                       Ohms

Diamante, & Eclipse Turbo & 2.4L (1)

  32 (0)  .......................................  5300-6700

  68 (20)  ......................................  2300-3000

  104 (40)  .....................................  1000-1500

  176 (80)  .......................................  300-420

Eclipse 2.0L Non-Turbo (2)

  77 (25)  ....................................  9000-11,000

  212 (100)  ......................................  600-800

Galant, Mirage 1.8L & Montero Sport (1)

  68 (20)  ......................................  2300-3000

  176 (80)  .......................................  300-420

Mirage 1.5L (2)

  68 (20)  ......................................  2300-3000

  176 (80)  .......................................  300-420

Montero & 3000GT (1)

  32 (0)  ............................................  6000

  68 (20)  ...........................................  2700

  176 (80)  ...........................................  400

(1) - IAT sensor is incorporated in airflow sensor assembly.

      Check resistance between IAT sensor terminals No. 5

      and 6. See Figs. 1-4.

(2) - Check resistance across IAT sensor terminals No. 1

      and 2. See Figs. 1-4.

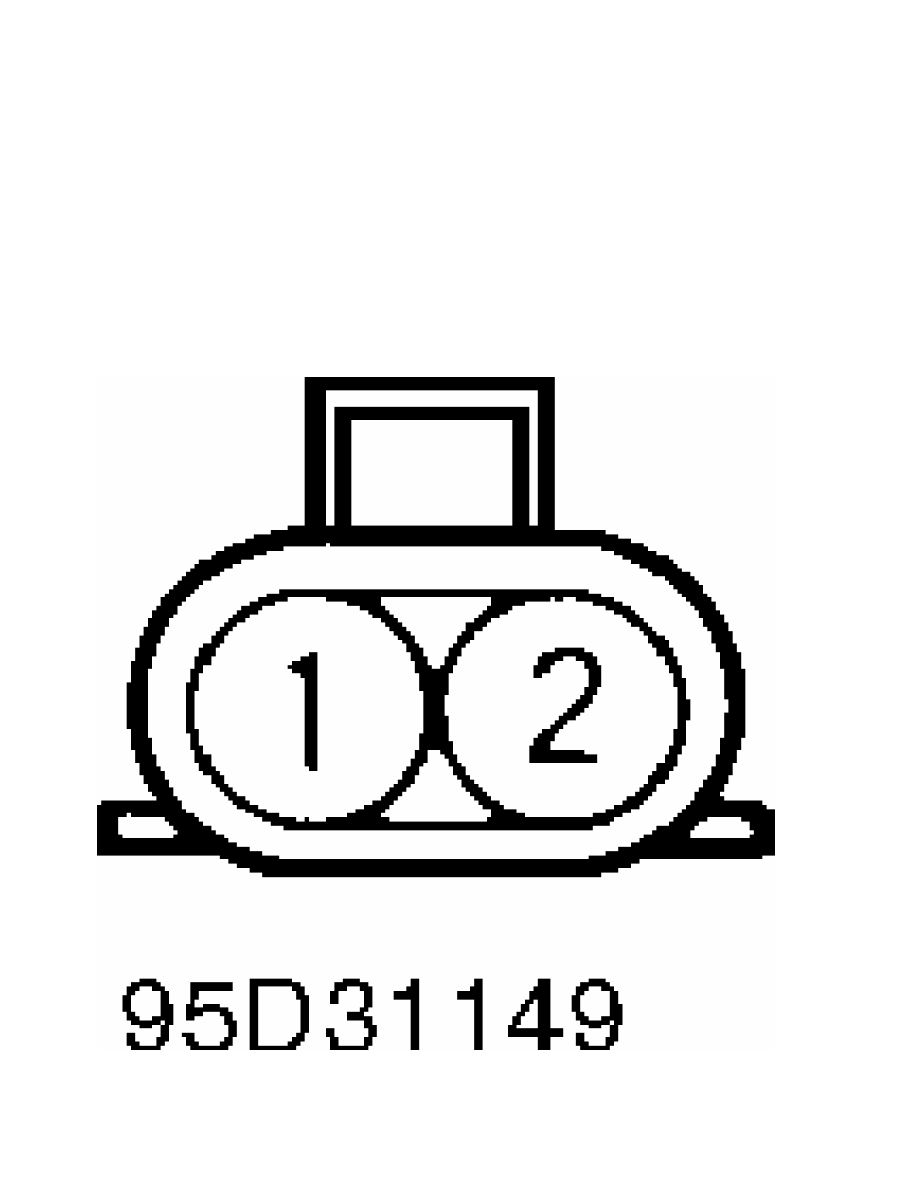

Fig. 1:  IAT Sensor Terminals (Eclipse 2.0L Non-Turbo)

Courtesy of Mitsubishi Motor Sales of America
