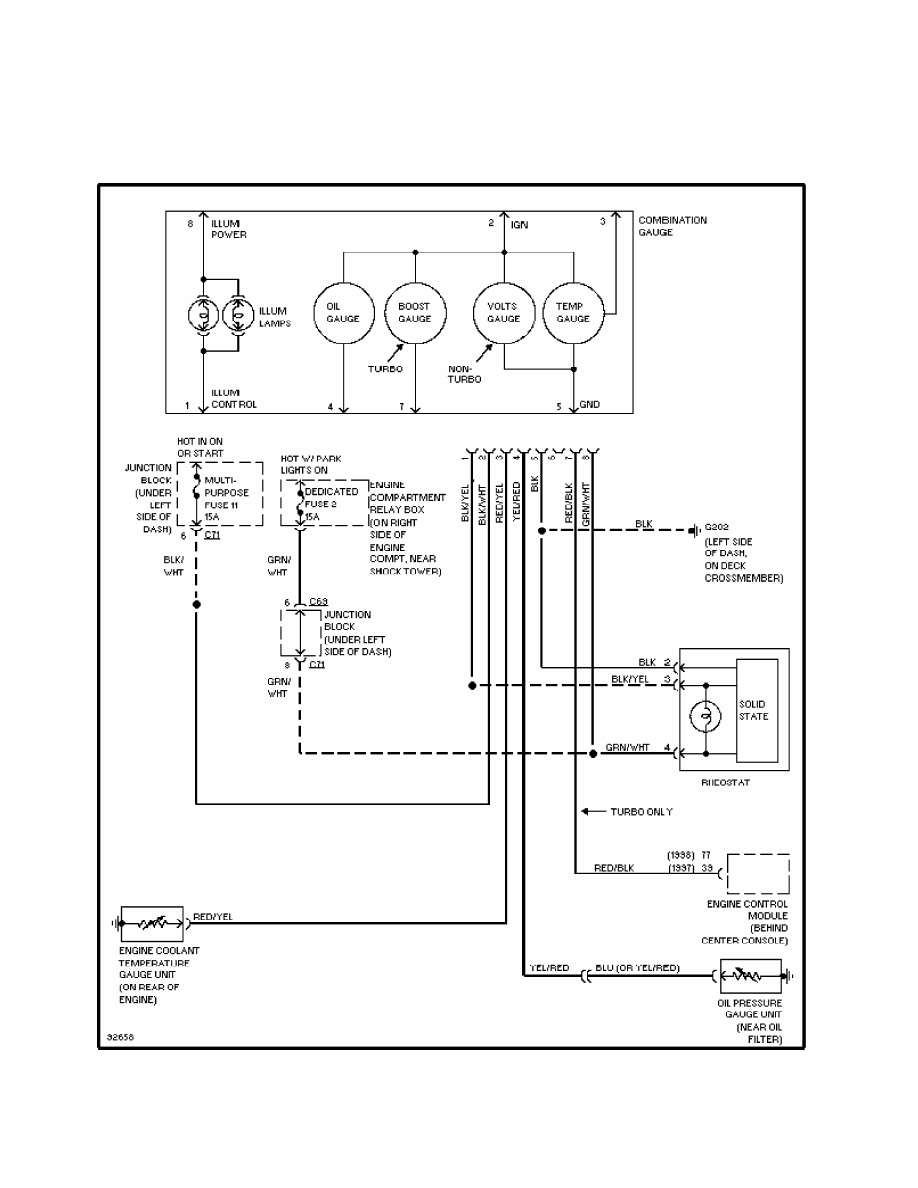

Fig. 59:  Instrument Cluster Wiring Diagram (3000GT - 3 Of 3)

J - PIN VOLTAGE CHARTS

1998 Mitsubishi Montero

         1998 ENGINE PERFORMANCE

         Mitsubishi - Pin Voltage Charts

         Diamante, Eclipse, Galant, Mirage, Montero, Montero Sport,

         3000GT

         INTRODUCTION

NOTE:    Unless stated otherwise in testing procedures, perform all

         voltage tests using a Digital Volt-Ohmmeter (DVOM) with a

         minimum 10-megohm input impedance. Voltage readings may vary

         slightly due to battery condition or charging rate.

         Pin voltage charts are supplied to reduce diagnostic time.

Checking pin voltages at the PCM connector determines whether it is

receiving and transmitting proper voltage signals. Diagnostic charts

may also help determine if PCM harness is shorted or open.

         TEST PROCEDURE

CAUTION: Shorting positive DVOM lead between connector terminal and

         ground could damage vehicle wiring, sensor and PCM.

         1) If necessary, remove Powertrain Control Module (PCM) to

access harness connector. For PCM location, see PCM LOCATION table.

Leave PCM connectors connected.

         2) Using DVOM, backprobe terminals. Connect positive DVOM

lead to appropriate PCM terminal. Connect negative DVOM lead to PCM

ground terminal. For PCM terminal identification, see appropriate

chart. See Figs. 1-24.

         3) All measurements are applicable to vehicle at normal

operating temperature at sea level. Unless otherwise noted, engine is

idling when specification requires engine running. Ensure transmission

shift selector is in Neutral or Park (as applicable). If DVOM displays

measurement that is not within specification, see G - TESTS W/CODES

article.

PCM LOCATION TABLE

Application                                         Location

Eclipse 2.0L Non-Turbo  ............  In Front of Left Front

                                                 Strut Tower

Mirage & Montero Sport  ..............  Behind Right Side Of

                                Instrument Panel (Glove Box)

Montero  ...........................  Right Front Kick Panel

All Others  .........................  Behind Center Console

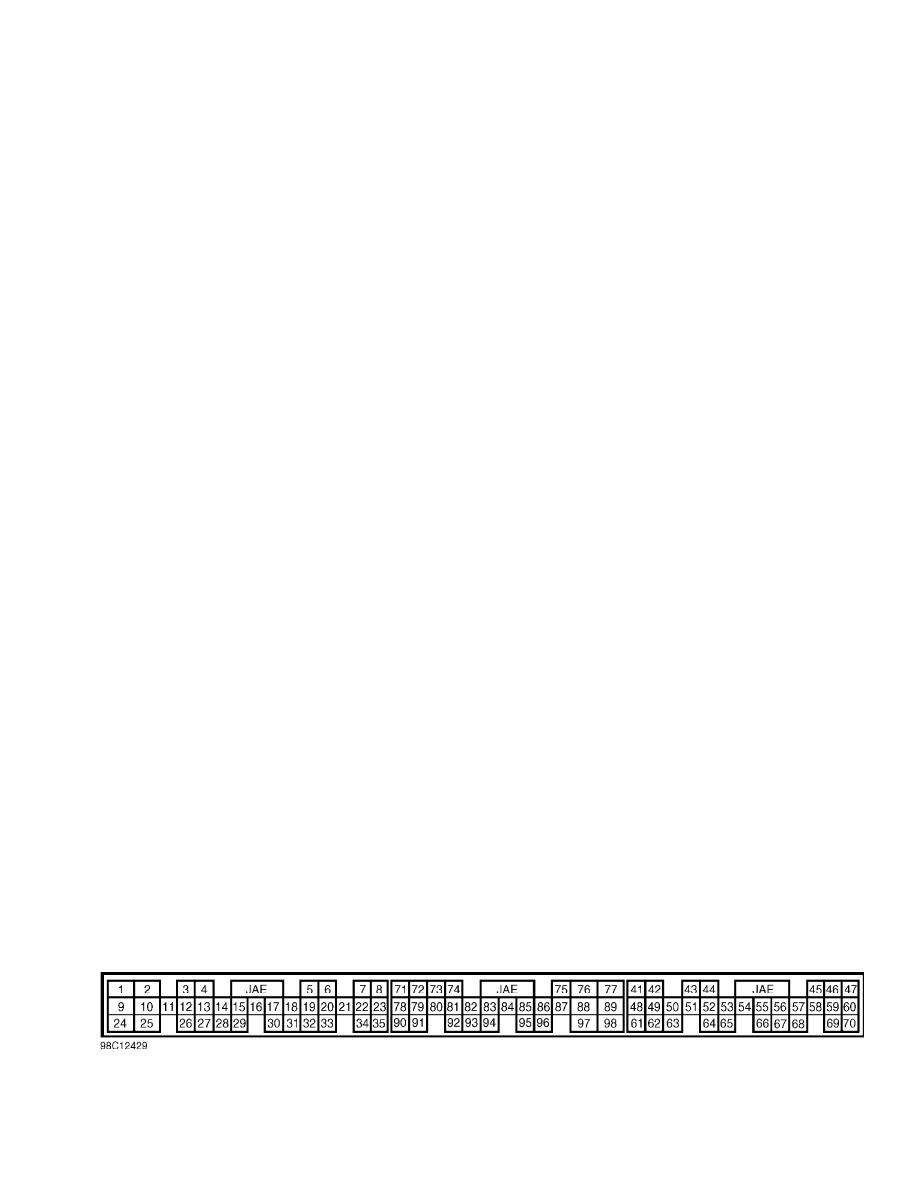

Fig. 1:  Identifying PCM Terminals (Diamante)

Courtesy of Mitsubishi Motor Sales of America

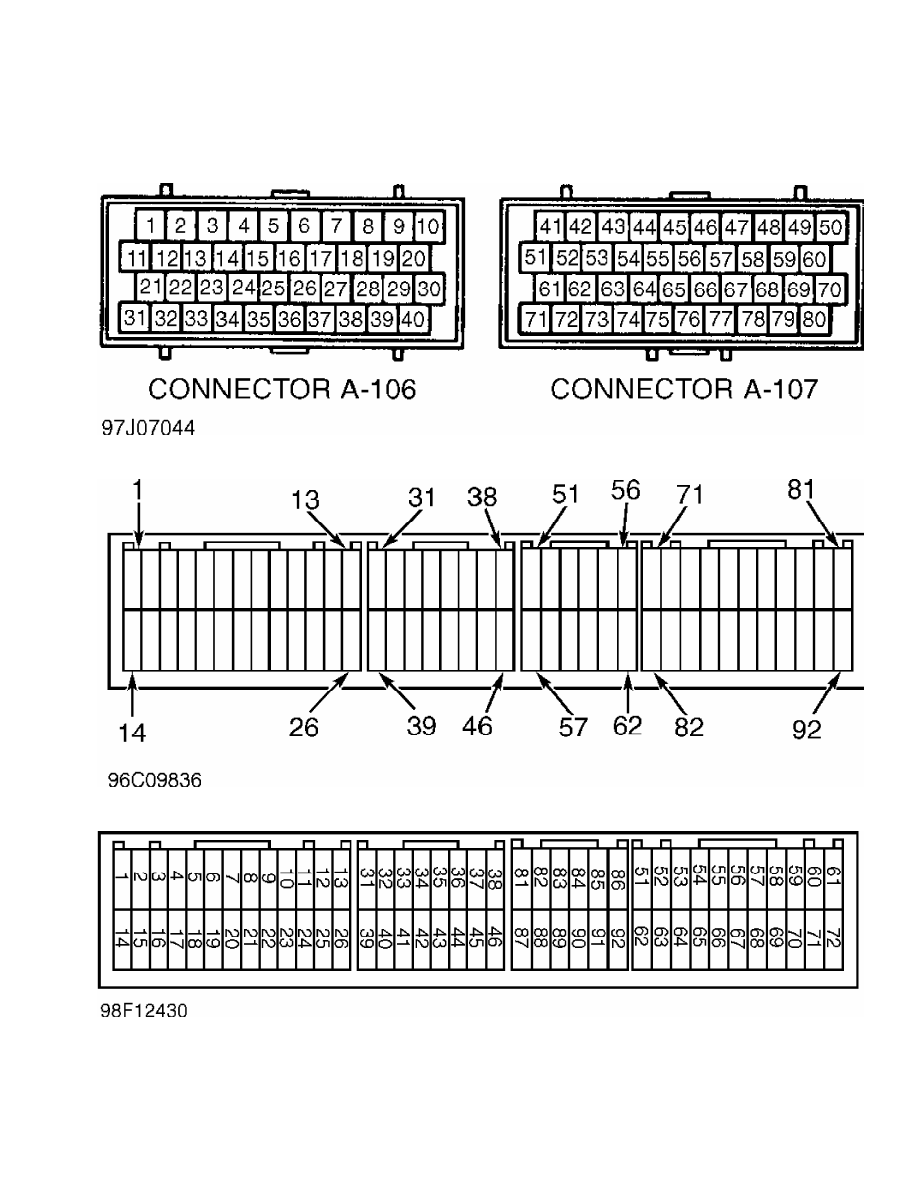

Fig. 2:  Identifying PCM Terminals (Eclipse 2.0L Non-Turbo)

Courtesy of Mitsubishi Motor Sales of America

Fig. 3:  Identifying PCM Terminals (Eclipse 2.0L Turbo & 2.4L & Mirage

Courtesy of Mitsubishi Motor Sales of America

Fig. 4:  Identifying PCM Terminals (Galant)

Courtesy of Mitsubishi Motor Sales of America

Fig. 5:  Identifying PCM Terminals (Montero, Montero Sport & 3000GT)

Courtesy of Mitsubishi Motor Sales of America

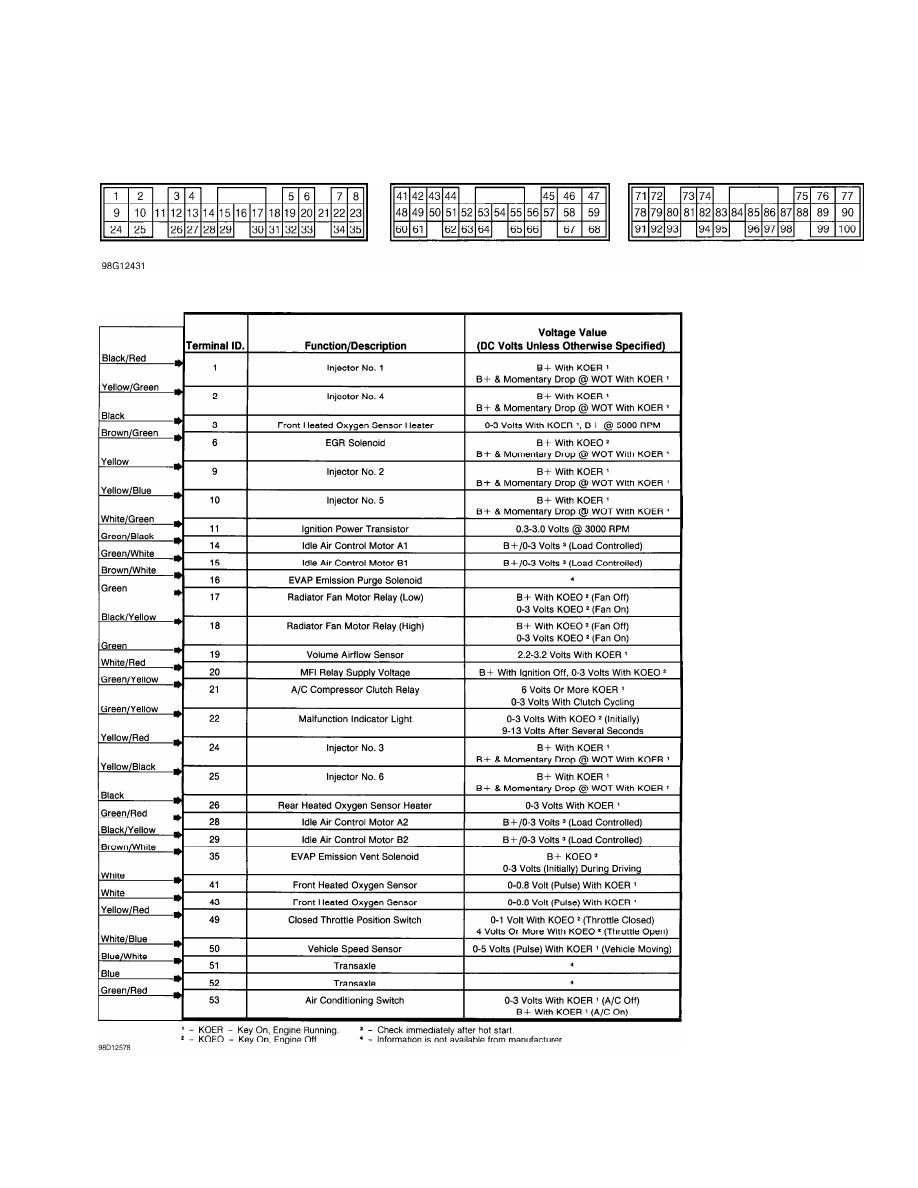

Fig. 6:  Pin Voltage Chart (Diamante - 1 Of 2)
