Mitsubishi Montero (1998+). Manual - part 208

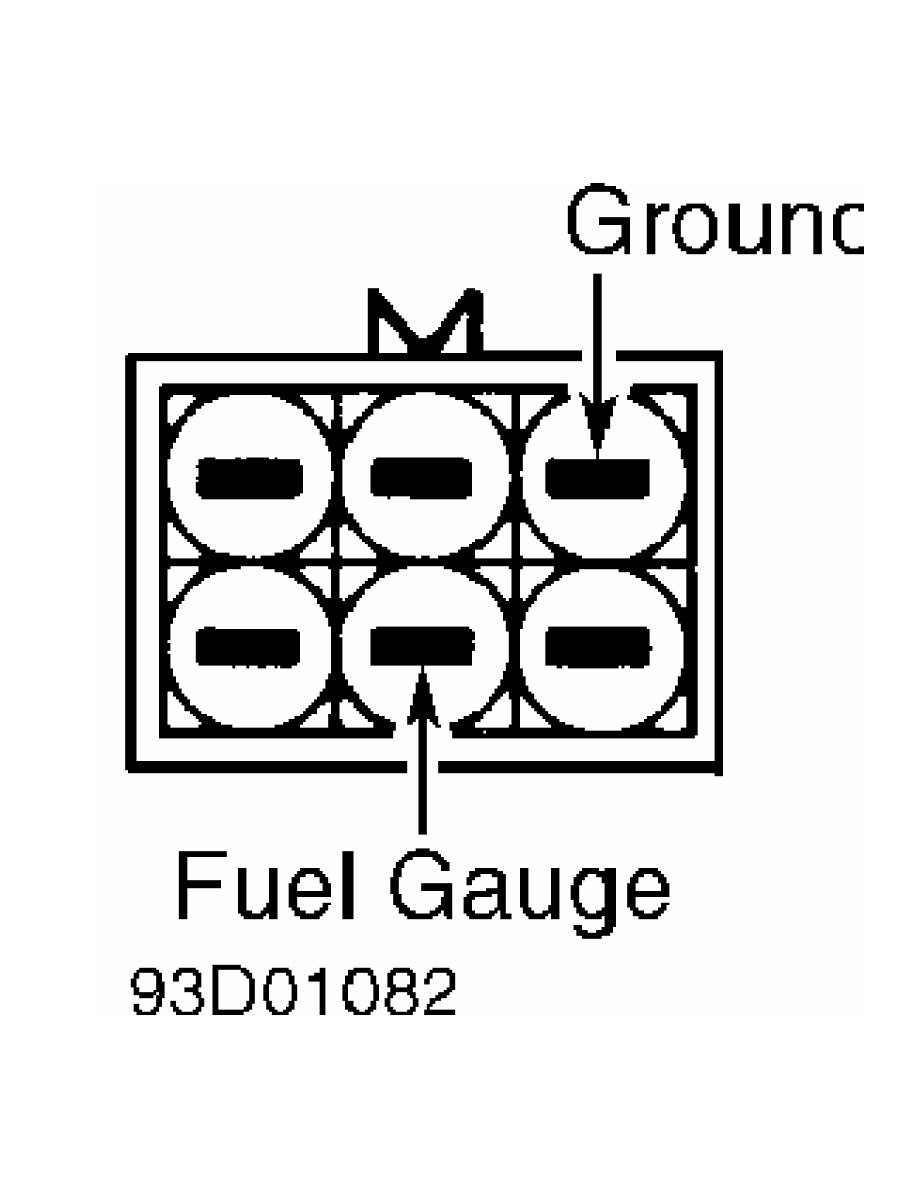

Fig. 9:  Identifying Fuel Gauge Test Connections (3000GT)

Courtesy of Mitsubishi Motor Sales of America

NOTE:    Fuel gauge resistance test must be completed with instrument

         panel cluster removed. Use ohmmeter for all measurements. If

         resistance is extremely low, a short may exist in coil. If

         resistance is extremely high, a broken wire or similar

         problem may exist in gauge.

         Resistance Test

         1) Remove instrument cluster. See  INSTRUMENT CLUSTER under

REMOVAL & INSTALLATION. On 3000GT, remove air distribution duct and

combination gauges.

         2) On all models, check resistance between appropriate

terminals of instrument cluster or combination gauges. See  Fig. 10,

11, 12, 13, 14, 15 or 16. See FUEL GAUGE RESISTANCE SPECIFICATIONS

table. If resistance readings are not as specified, replace fuel

gauge.

FUEL GAUGE RESISTANCE SPECIFICATIONS TABLE



Application             (1) Terminals                   Ohms

Eclipse  ...............  "A" & "B"  ..............  219-279

Eclipse  ...............  "A" & "C"  ..............  102-152

Eclipse  ...............  "B" & "C"  ..............  112-132

Galant  ................  "A" & "B"  ...................  99

Galant  ................  "A" & "C"  ..................  262

Galant  ................  "B" & "C"  ..................  163

Mirage  ................  "A" & "B"  ................  80-98

Mirage  ................  "A" & "C"  ..............  173-211

Mirage  ................  "B" & "C"  ...............  93-113

Montero  ...............  No. 4 & 8  ..............  104-127

Montero  ...............  No. 4 & 6  ..............  132-162

Montero  ...............  No. 6 & 8  ................  71-87

Montero Sport  .........  "A" & "B"  ...................  85

Montero Sport  .........  "A" & "C"  ..................  107

Montero Sport  .........  "B" & "C"  ..................  192

3000GT  ................  "A" & "B"  ..................  254

3000GT  ................  "A" & "C"  ..................  101

3000GT  ................  "B" & "C"  ..................  153

(1) - For terminal locations, see Fig. 10, 11, 12, 13, 14,

      15 or 16.

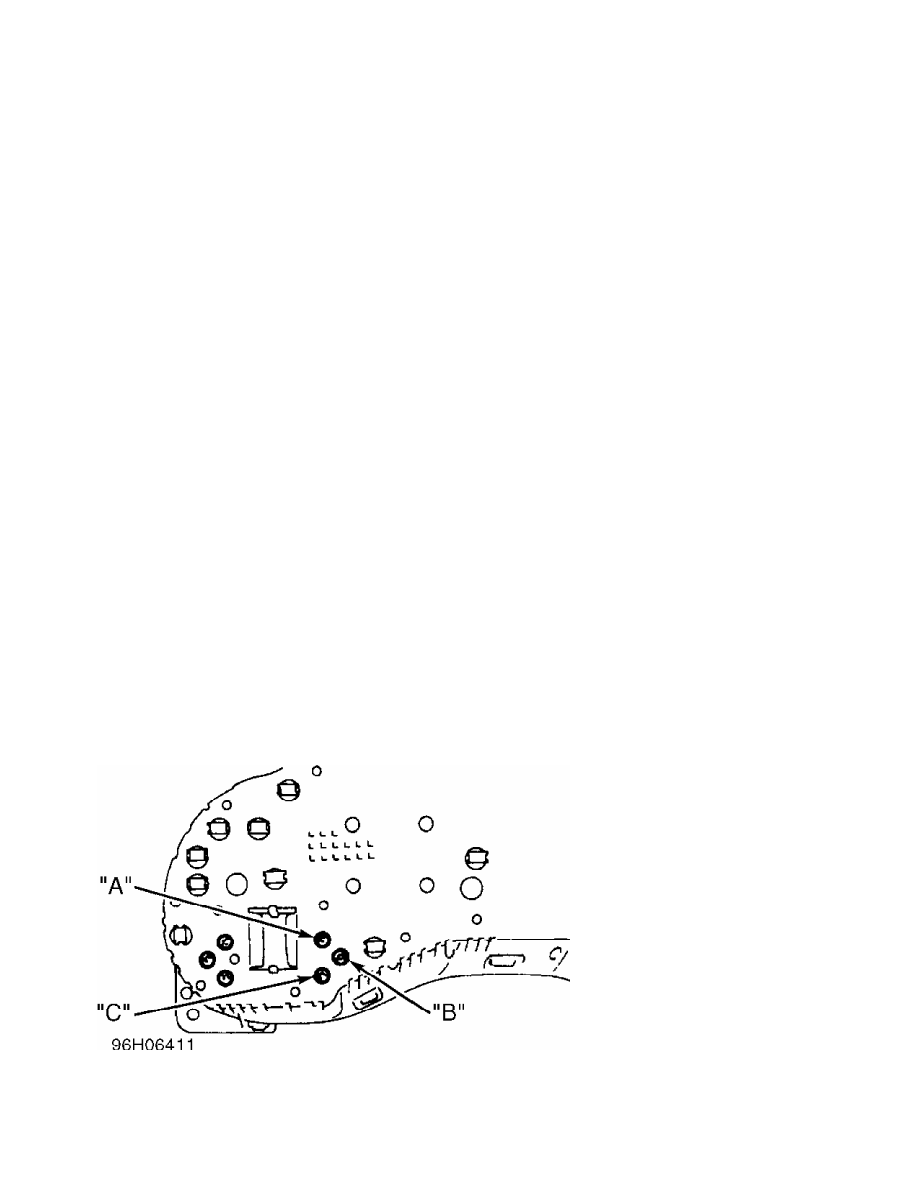

Fig. 10:  Identifying Instrument Panel Fuel Gauge Resistance Check

Terminals (Eclipse)

Courtesy of Mitsubishi Motor Sales of America

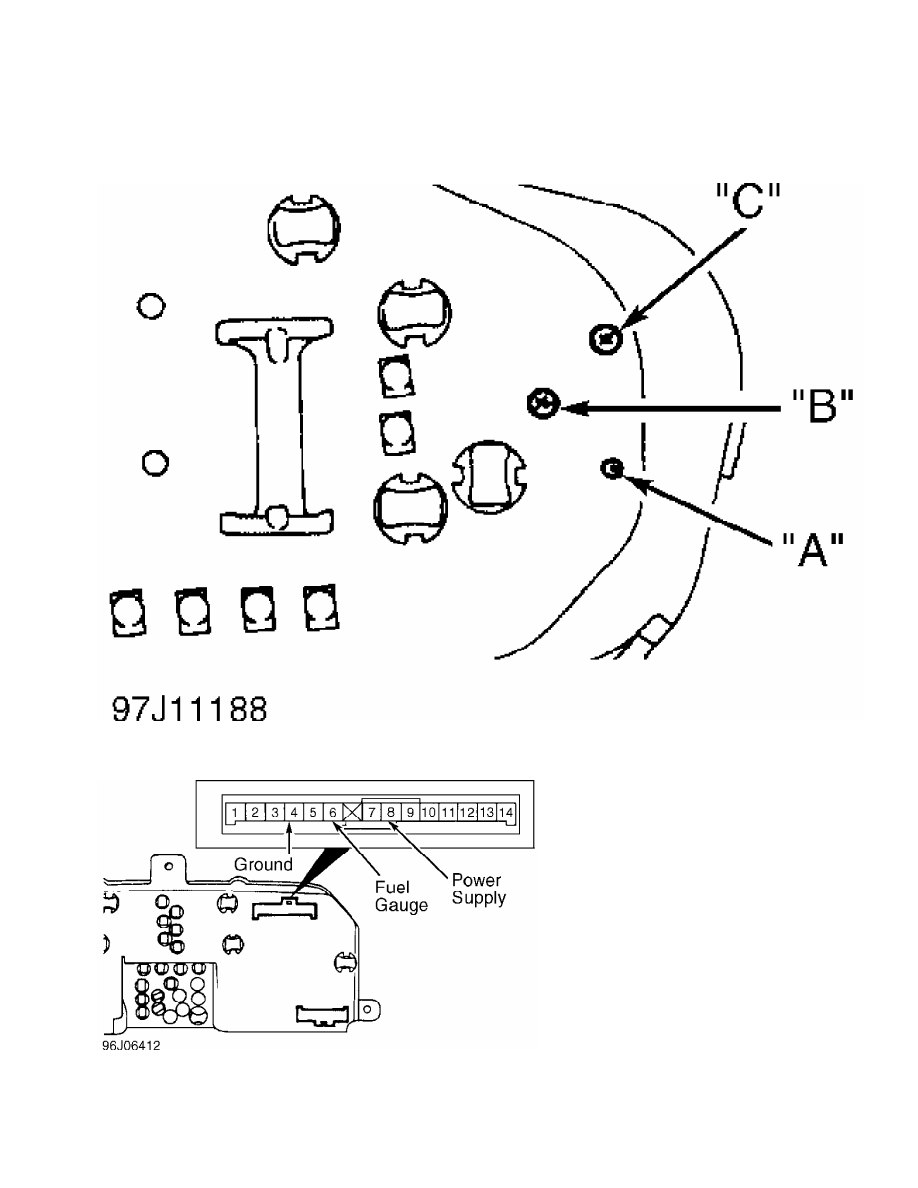

Fig. 11:  Identifying Instrument Panel Fuel Gauge Resistance Check

Terminals (Galant)

Courtesy of Mitsubishi Motor Sales of America

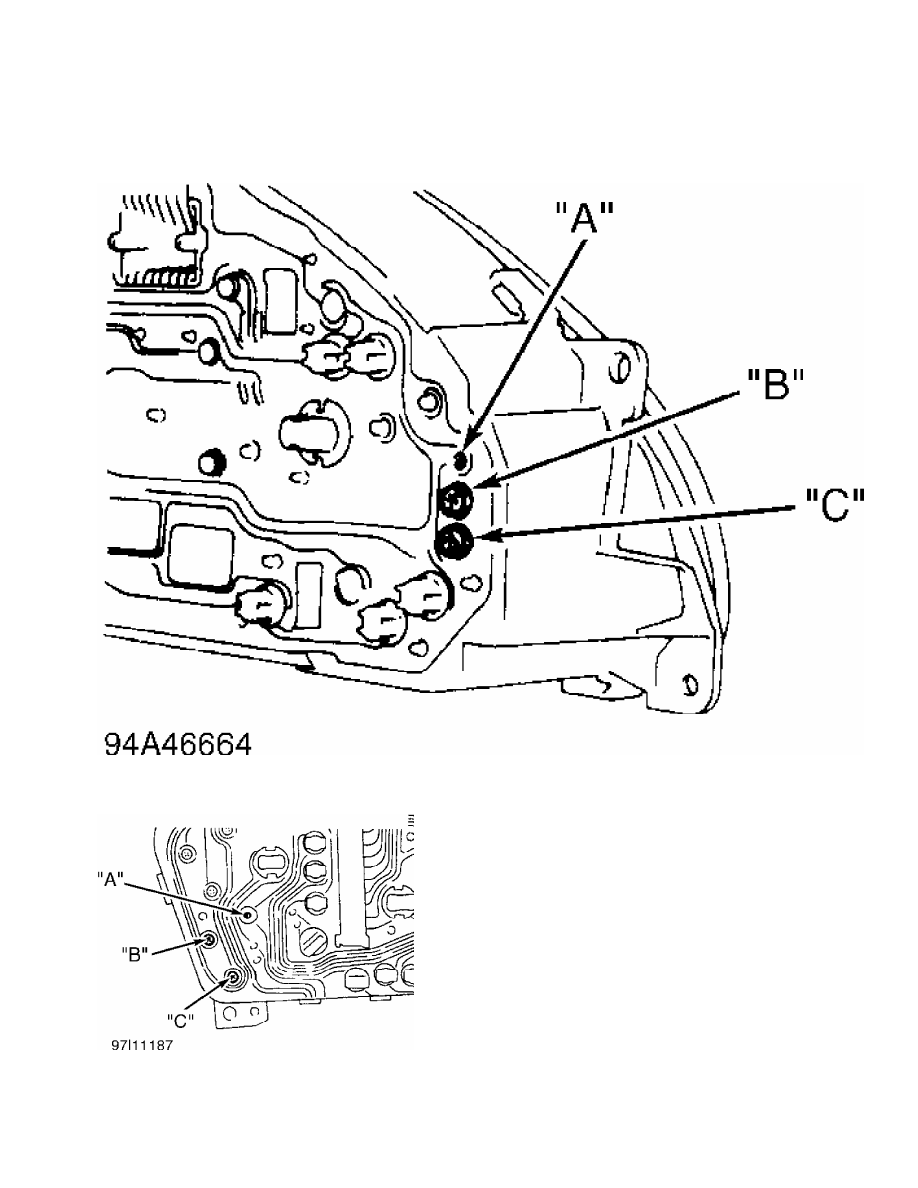

Fig. 12:  Identifying Instrument Panel Fuel Gauge Resistance Check

Terminals (Mirage - With Tachometer)

Courtesy of Mitsubishi Motor Sales of America

Fig. 13:  Identifying Instrument Panel Fuel Gauge Resistance Check

Terminals (Mirage - Without Tachometer)

Courtesy of Mitsubishi Motor Sales of America

Fig. 14:  Identifying Instrument Panel Fuel Gauge Resistance Check

Terminals (Montero)

Courtesy of Mitsubishi Motor Sales of America
