      *  Check idle air control (DC) motor (if applicable).

      *  Check idle air control (stepper) motor (if applicable).

      *  Check for fuel injector malfunction.

      *  Check for power transistor malfunction (if applicable).

      *  Check A/C switch and power relay (if applicable).

      *  Check for PCM malfunction.

      *  Ensure electrical harness, connectors and wires are not

         broken, bent or loose.

         ENGINE SURGES

      *  Check engine coolant temperature sensor.

      *  Check EGR control solenoid valve (if applicable).

      *  Check fuel pressure.

      *  Check for fuel injector malfunction.

         DETONATION OR KNOCKING

      *  Check for knock sensor malfunction (if applicable).

      *  Check volume airflow sensor.

      *  Check for engine cooling system problems.

      *  Check fuel quality.

      *  Check intake air temperature sensor.

      *  Check barometric pressure sensor (if applicable).

      *  Check manifold absolute pressure sensor (if applicable).

      *  Check ignition coil.

      *  Check power transistor (if applicable).

      *  Check for EGR system malfunction.

         POOR FUEL MILEAGE

      *  Check intake air temperature sensor.

      *  Check engine coolant temperature sensor.

      *  Check barometric pressure sensor (if applicable).

      *  Check manifold absolute pressure sensor (if applicable).

      *  Check ignition switch.

      *  Check throttle position sensor.

      *  Check camshaft position sensor.

      *  Check crankshaft position sensor.

      *  Check power steering oil pressure switch (if applicable).

      *  Check A/C switch and power relay (if applicable).

      *  Check park/neutral position switch (A/T).

      *  Check heated oxygen sensor.

      *  Check volume airflow sensor.

      *  Check fuel pressure.

      *  Check for SFI system malfunction.

      *  Check idle air control (DC) motor (if applicable).

      *  Check idle air control (stepper) motor (if applicable).

      *  Check for fuel injector malfunction.

      *  Check for power transistor malfunction (if applicable).

         INTERMITTENTS

         INTERMITTENT PROBLEM DIAGNOSIS

         Intermittent fault testing requires duplicating circuit or

component failure to identify problem. These procedures may lead to

computer setting a Diagnostic Trouble Code (DTC) which may help in

diagnosis.

         If problem vehicle does not produce DTCs, monitor voltage or

resistance values using a DVOM while attempting to reproduce

conditions causing intermittent fault. A status change on DVOM

indicates a fault has been located.

         Use a DVOM to pinpoint faults. See J - PIN VOLTAGE CHARTS

article. When monitoring voltage, ensure ignition switch is in ON

position or engine is running. Ensure ignition switch is in OFF

position when monitoring circuit resistance. Status changes on DVOM

during test procedures indicate area of fault.

         TEST PROCEDURES

         Intermittent Simulation

         To reproduce conditions creating an intermittent fault, use

following methods:

      *  Lightly vibrate component.

      *  Heat component.

      *  Wiggle or bend wiring harness.

      *  Spray component with water mist.

      *  Remove/apply vacuum source.

         Monitor circuit/component voltage or resistance while

simulating intermittent fault. If engine is running, monitor for

diagnostic trouble codes. Use test results to identify a faulty

component or circuit.

HEATER SYSTEM

1998 Mitsubishi Montero

         1998 AIR CONDITIONING & HEAT

         Mitsubishi - Heater System

         Montero

         * PLEASE READ THIS FIRST *

WARNING: To avoid injury from accidental air bag deployment, read and

         carefully follow all SERVICE PRECAUTIONS and DISABLING &

         ACTIVATING AIR BAG SYSTEM procedures in AIR BAG RESTRAINT

         SYSTEM article.

         DESCRIPTION

         Heater assembly is located in passenger compartment. A heater

control valve is used to regulate coolant flow and heat output. Heater

assembly contains heater core, heater control valve, air ducts, blower

motor and intake ducts. See Fig. 1. Heater systems are blend-air type.

         OPERATION

         Heater and fresh air operations are controlled by control

knobs and/or levers, which regulate airflow source, temperature

setting, airflow direction and blower speed.

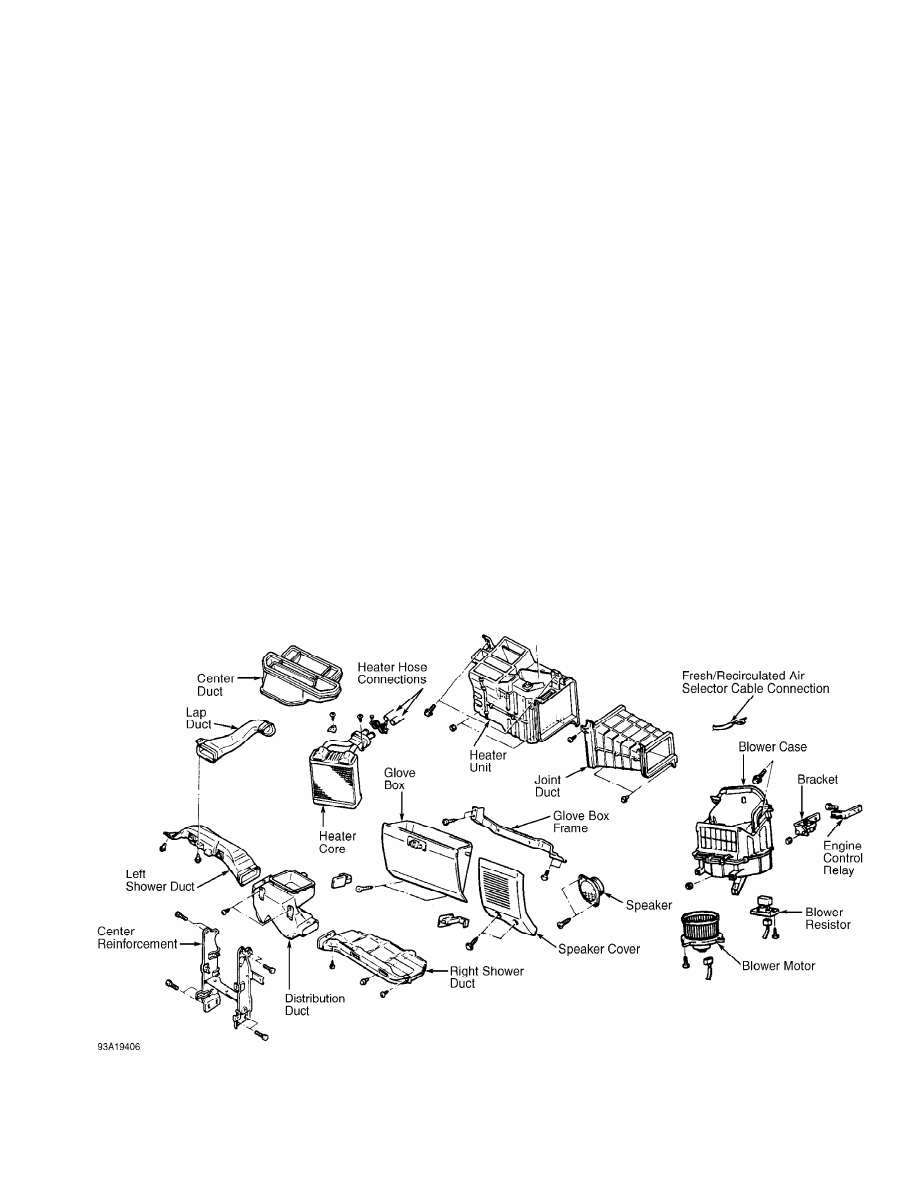

Fig. 1:  Exploded View Of Front Heater System Components

Courtesy of Mitsubishi Motor Sales of America.

         FRONT AIR SELECTOR LEVER

         This lever is used to select source of airflow. With lever at

fresh air setting, outside air is allowed to enter and/or pass through

heater. With lever at recirculated air setting, air is recirculated

inside passenger compartment.

         FRONT BLOWER SWITCH

         Front blower switch controls fan speeds to regulate amount of

airflow. Fan speed increases as switch is turned/moved to far right.

         COOL AIR BY-PASS KNOB

         With heater in floor, defrost/floor or defrost mode, turning

knob to far left allows cool air to enter passenger compartment

through center vent.

         FRONT MODE SELECTOR KNOB/LEVER

         Depending on position selected, airflow can be directed to

different areas of passenger compartment. Airflow selection

capabilities include individual areas or a combination of windshield,

upper body, knee and/or foot area.

         TEMPERATURE CONTROL

         Temperature control is adjusted by moving control lever or

turning control knob to left or right. Temperature control cable opens

and closes heater control valve, which determines heat output. Highest

heat setting is attained when lever/knob at far right position. With

temperature lever/knob at cool setting, ambient air is used for

ventilating.

         ADJUSTMENTS

         FRONT FRESH/RECIRCULATED AIR SELECTOR CABLE

         Place air selector lever at recirculated air setting. Press

damper lever inward, in direction of arrow. See  Fig. 2. Connect inner

wire of fresh/recirculated air selector cable to damper lever. Secure

outer wire of selector cable with clip.

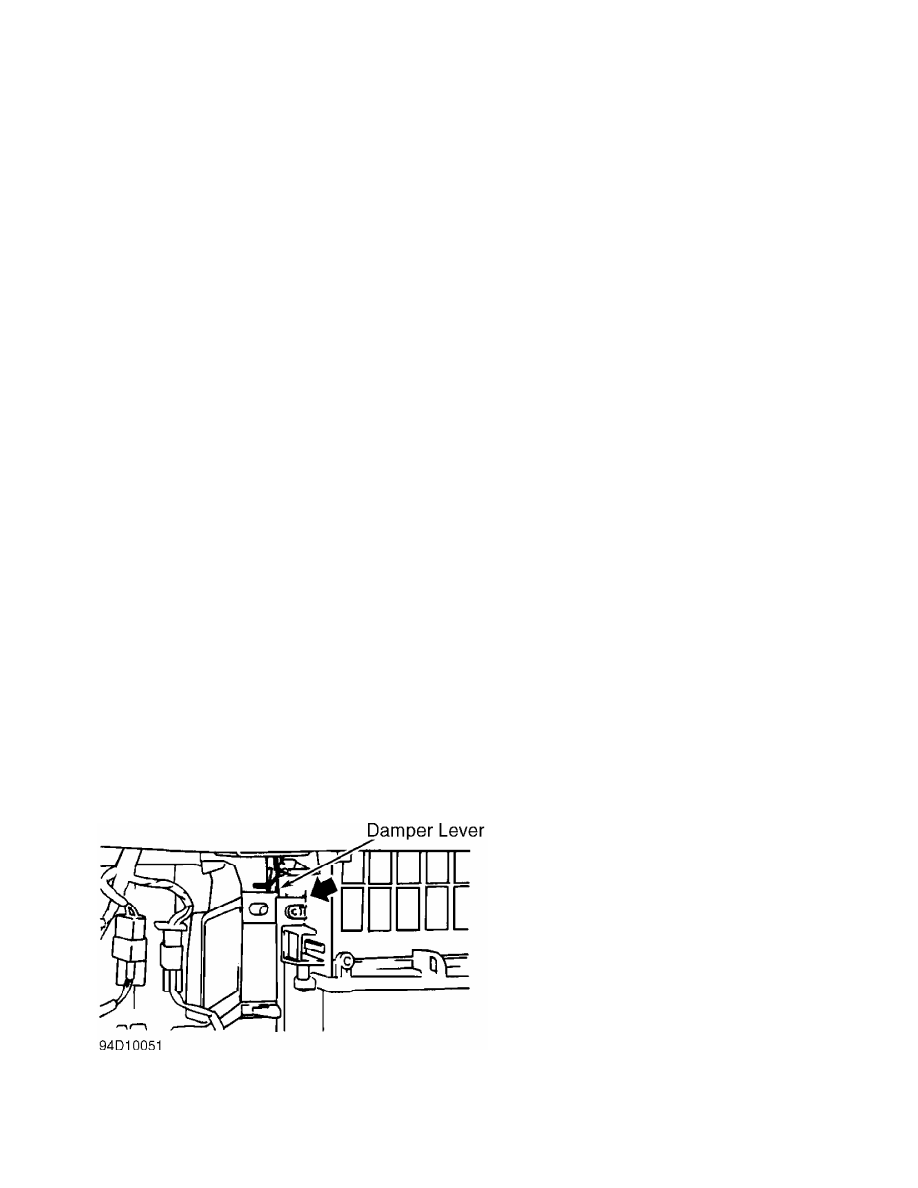

Fig. 2:  Adjusting Front Fresh/Recirculated Air Selector Cable

Courtesy of Mitsubishi Motor Sales of America.

         FRONT MODE SELECTOR CABLE
