Outside Air Temperature Sensor          Below left headlamp.

Park/Neutral Position Sensor            On left side of transmission.

Throttle Position Sensor                On throttle body.

Vehicle Speed Sensor (VSS)              On transmission tailshaft.

Volume Airflow Sensor                   In air cleaner duct (includes

                                        intake air temperature sensor

                                        & barometric pressure sensor).

         SOLENOIDS & SOLENOID VALVES

Component                               Component Location

ABS Hydraulic Unit (w/Built-In

 Solenoid Valve)                        In right rear corner of engine

                                        compartment.

Cruise Control Actuator (w/Built-In

 Control Valve & Release Valve)

 (Calif.)                               In right rear of engine

                                        compartment.

Cruise Control Actuator (w/Built-In

 Control Valve & Release Valve)

 (Federal)                              In left rear of engine

                                        compartment.

EGR Solenoid                            In right rear of engine

                                        compartment.

ELC 4-Speed Automatic Transmission

 Control Solenoid                       Inside transmission.

Evaporative Emission Purge Solenoid     On front of engine.

Evaporative Emission Ventilation

 Solenoid                               In left rear of engine

                                        compartment.

Solenoid Valves "A" & "B"               In right side of engine

                                        compartment.

         SWITCHES

Component                               Component Location

A/T Fluid Temperature Switch            On left side of transmission.

Brake Fluid Level Switch                In brake master cylinder

                                        reservoir.

Center Differential Lock Detection

 Switch                                 On transfer case.

Center Differential Lock Operation

 Detection Switch                       On transfer case.

Dual Pressure Switch                    On high pressure line, on

                                        receiver-drier.

Engine Coolant Temperature Switch       Top right front of engine.

Free Wheel Engage Switch                Right side of engine

                                        compartment.

High Range/Low Range Detection Switch   On transfer case.

Low Range Operation Detection Switch    On transfer case.

Oil Pressure Switch                     Lower left front of engine.

Parking Brake Switch                    At base of parking brake

                                        lever.

Power Steering Pressure Switch          On power steering pump.

Rear Differential Lock Detection

 Switch                                 Under rear of vehicle, on

                                        differential.

Reed Switch                             Integral with speedometer.

Seat Belt Switch                        On driver-side seat belt

                                        buckle.

Stoplight Switch                        On bracket, above brake pedal.

2WD/4WD Detection Switch                On transfer case.

4WD Operation Detection Switch          On transfer case.

         MISCELLANEOUS

Component                               Component Location

Amplifier                               Under center console, below

                                        floor.

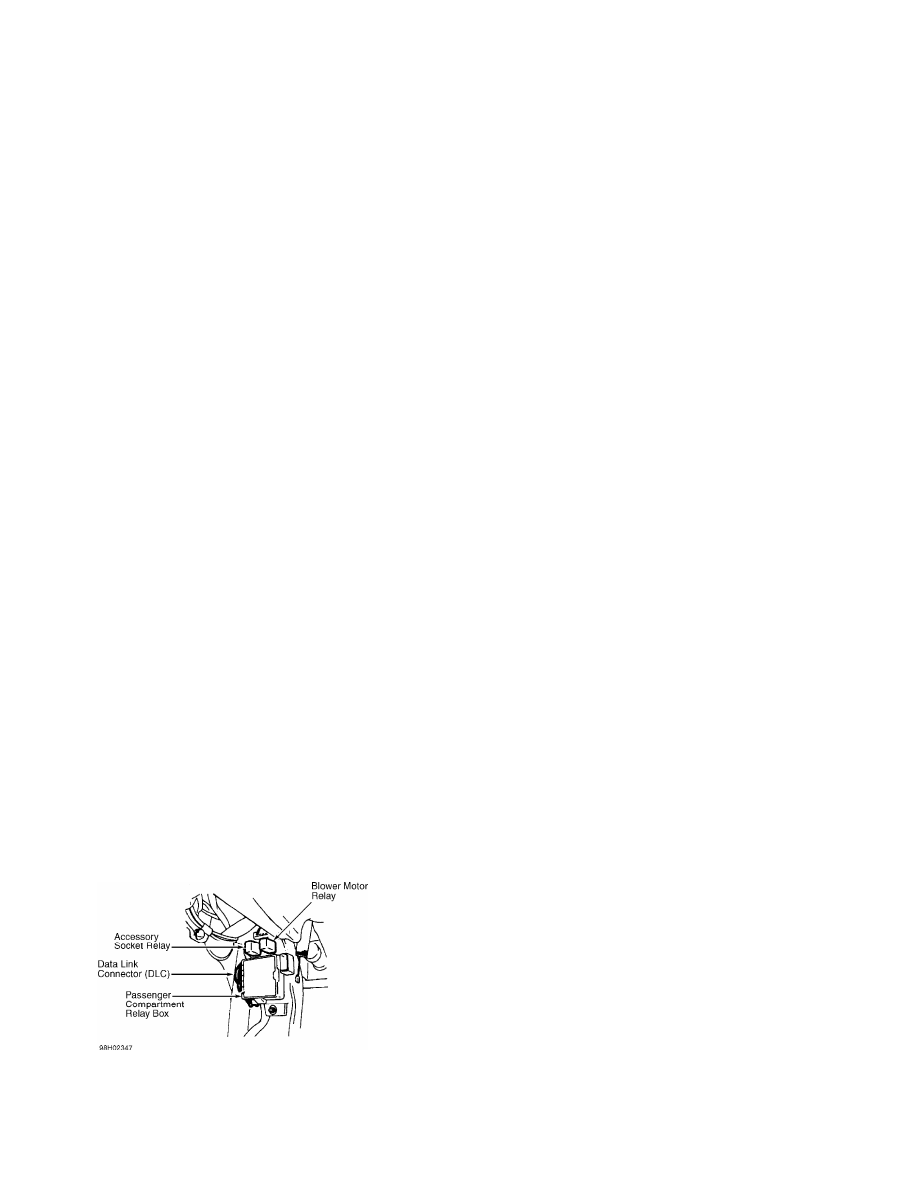

Data Link Connector (DLC)               Behind left side of dash,

                                        near relay box.

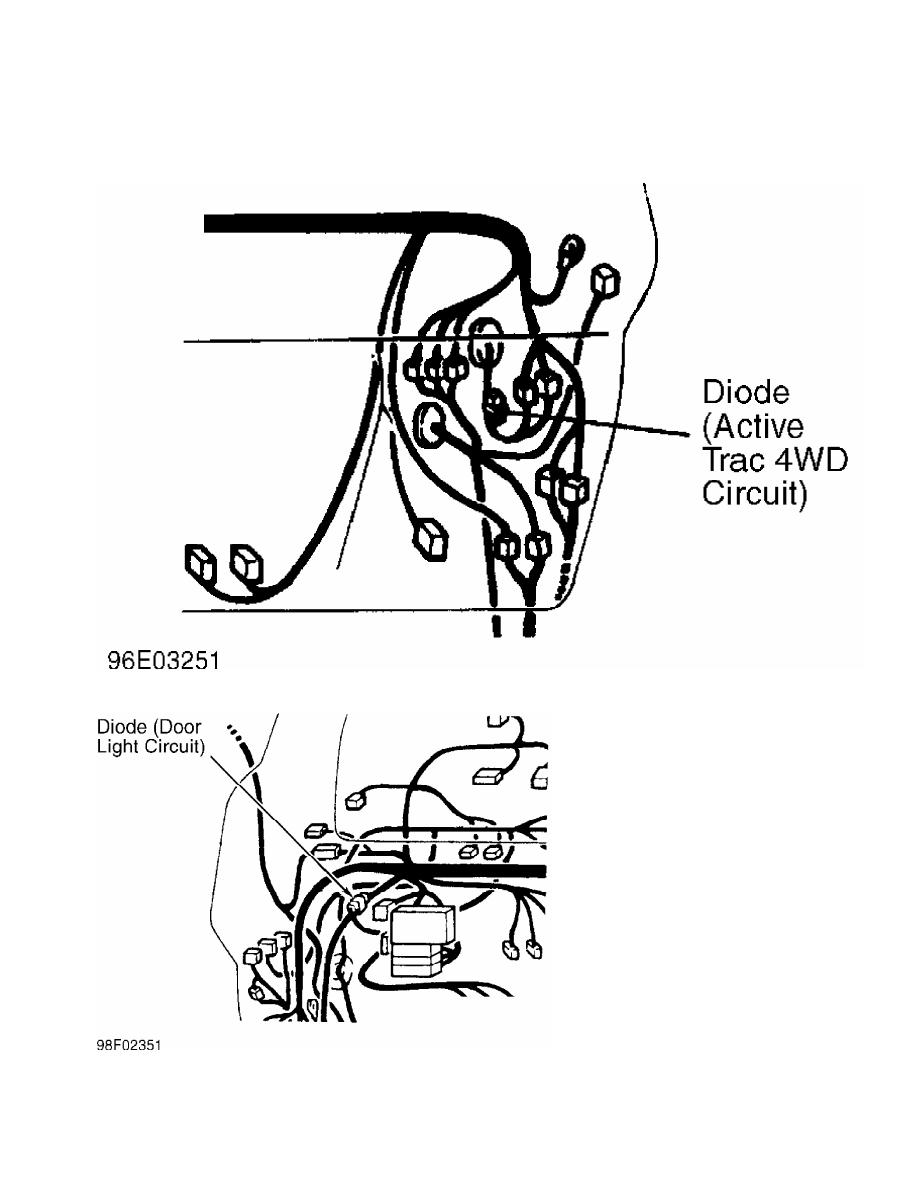

Diode (Active Trac 4WD Circuit)         Behind right side of dash,

                                        taped to harness.

Diode (Door Light Circuit)              Behind left side of dash,

                                        taped to harness.

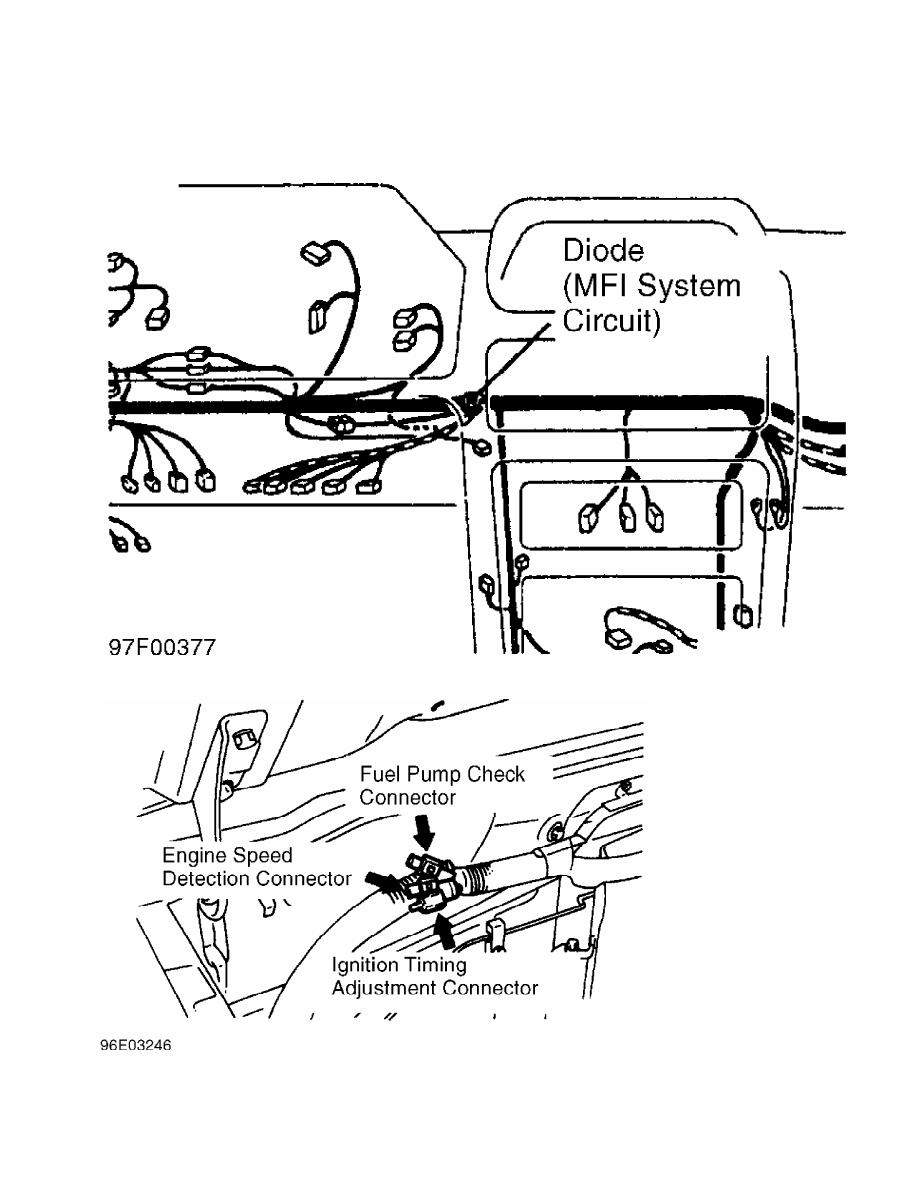

Diode (MFI System Circuit)              Behind center of dash,

                                        taped to harness.

Engine Speed Detection Connector        Taped to wiring harness, on

                                        right side of firewall.
