Mitsubishi Montero (1998+). Manual - part 116





         When engine is off, fuel vapors are vented into charcoal

canister. When engine is warmed to normal operating temperature and

running at speeds greater than idle, PCM energizes purge control

solenoid valve, allowing vacuum to purge valve.

         Canister vapors are then drawn through solenoid valve into

intake manifold for burning. Purge control solenoid valve remains

closed during idle and engine warm-up to reduce HC (hydrocarbons) and

CO (carbon monoxide) emissions.

         POSITIVE CRANKCASE VENTILATION (PCV) VALVE

         PCV valve operates in closed crankcase ventilation system.

Closed crankcase ventilation system consists of PCV valve, oil

separator, breather and ventilation hoses.

         PCV valve is a one-way check valve located in valve cover.

When engine is running, manifold vacuum pulls PCV valve open, allowing

crankcase fumes to enter intake manifold. If engine backfires through

intake manifold, PCV valve closes to prevent crankcase combustion.

         SELF-DIAGNOSTIC SYSTEM

NOTE:    PCM diagnostic memory is retained by direct power supply

         from battery. Memory is not erased by turning off ignition,

         but it will be erased if battery or PCM is disconnected.

         Self-diagnostic system monitors input and output signals

through the Data Link Connector (DLC). Diagnostic Trouble Codes (DTCs)

can only be read using a scan tester. For additional information, see

G - TESTS W/CODES article.

         Malfunction Indicator Light (MIL)

         MIL (CHECK ENGINE light) comes on when ignition is turned on.

MIL remains on for several seconds after engine has started. If an

abnormal input signal occurs, MIL comes on and code is stored in

memory. If an abnormal input signal returns to normal, PCM turns MIL

off, but code remains stored in memory until it is cleared. If

ignition is turned on again, MIL will not come on until PCM detects

malfunction during system operation.

ELECTRICAL COMPONENT LOCATOR

1998 Mitsubishi Montero

         1998 ELECTRICAL COMPONENT LOCATION

         Mitsubishi - Electrical Component Location

         Montero

         SAFETY PRECAUTION

WARNING: When working on vehicles equipped with Supplemental Restraint

         System (SRS), never apply electrical voltage to the system.

         This could cause the SRS (air bag) to be deployed.

         BUZZERS, RELAYS & TIMERS



Component                               Component Location



ABS Motor Relay                         In right rear of engine

                                        compartment, in ABS relay box.

ABS Valve Relay                         In right rear of engine

                                        compartment, in ABS relay box.

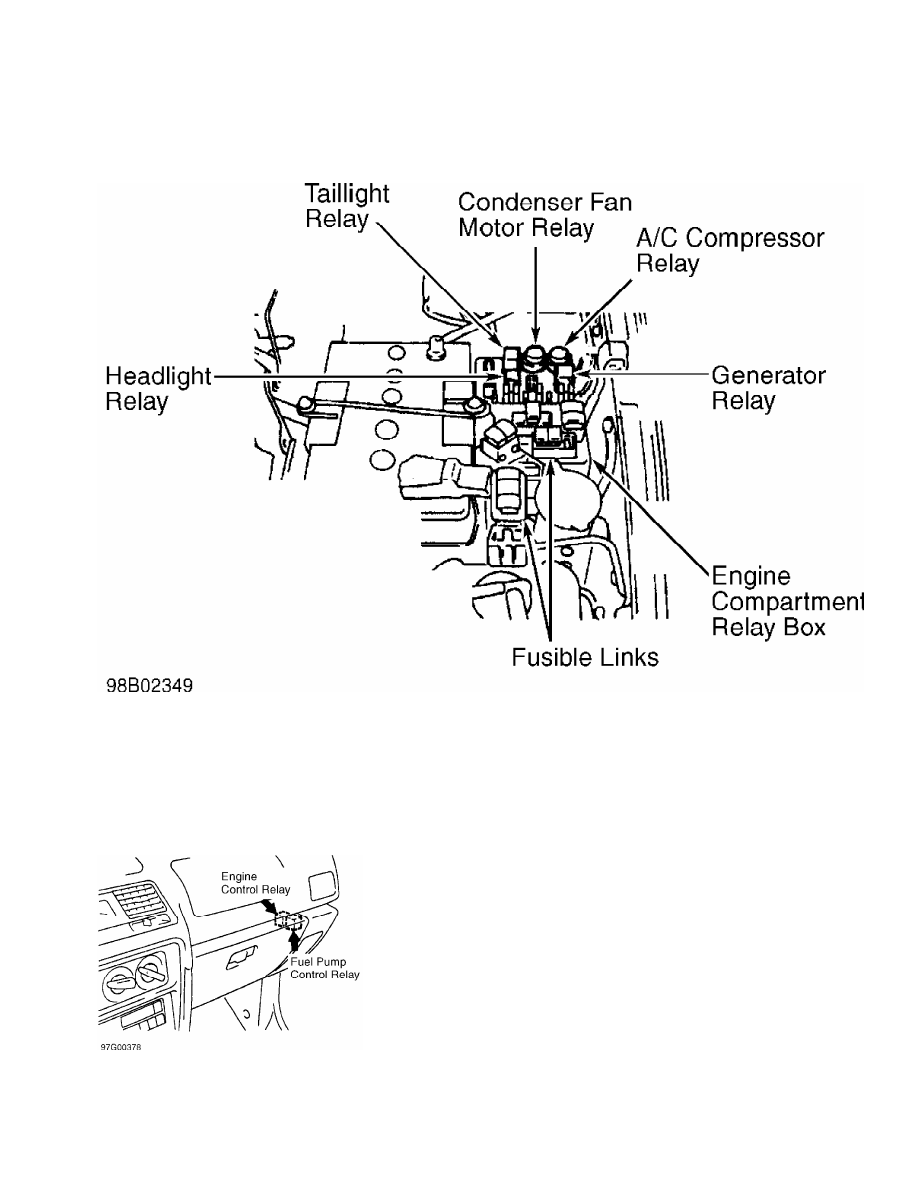

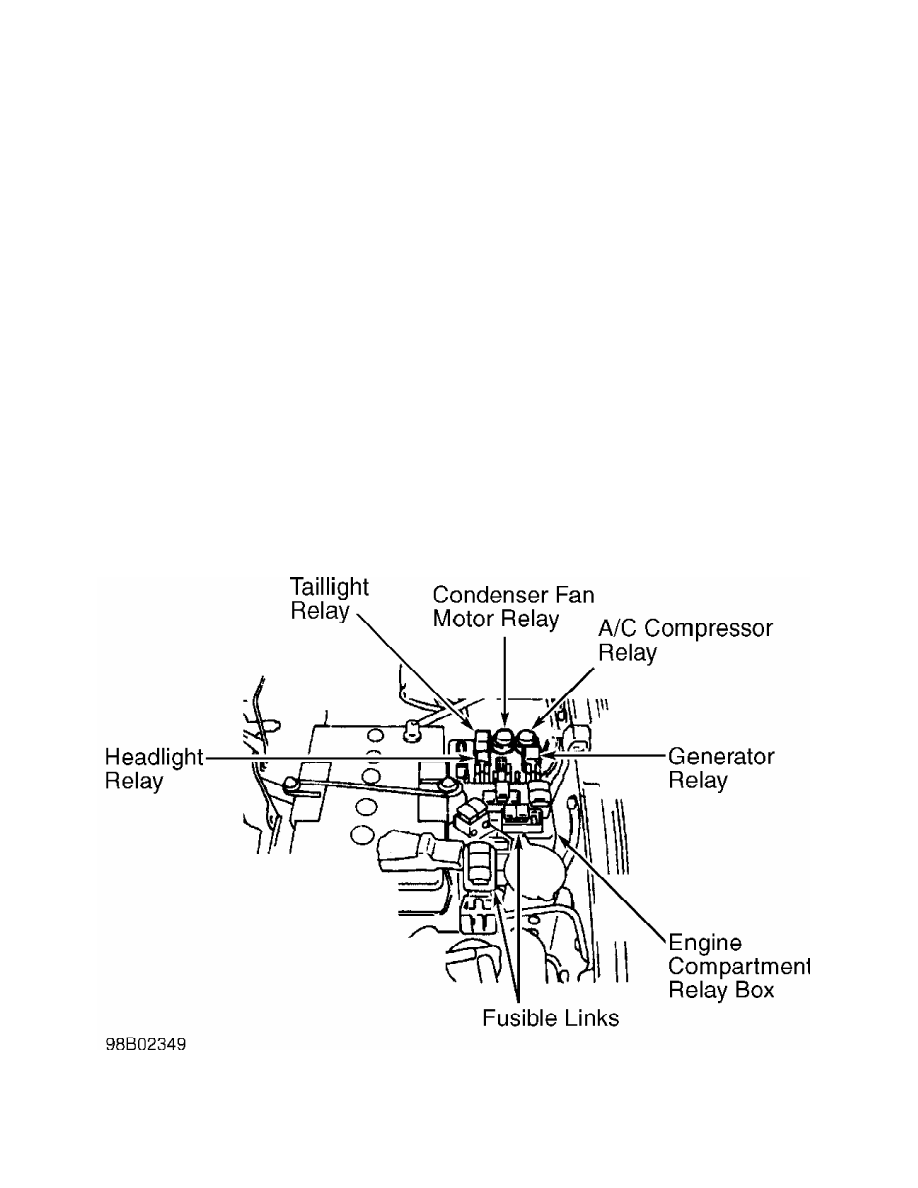

A/C Compressor Relay                    In engine compartment

                                        relay box.

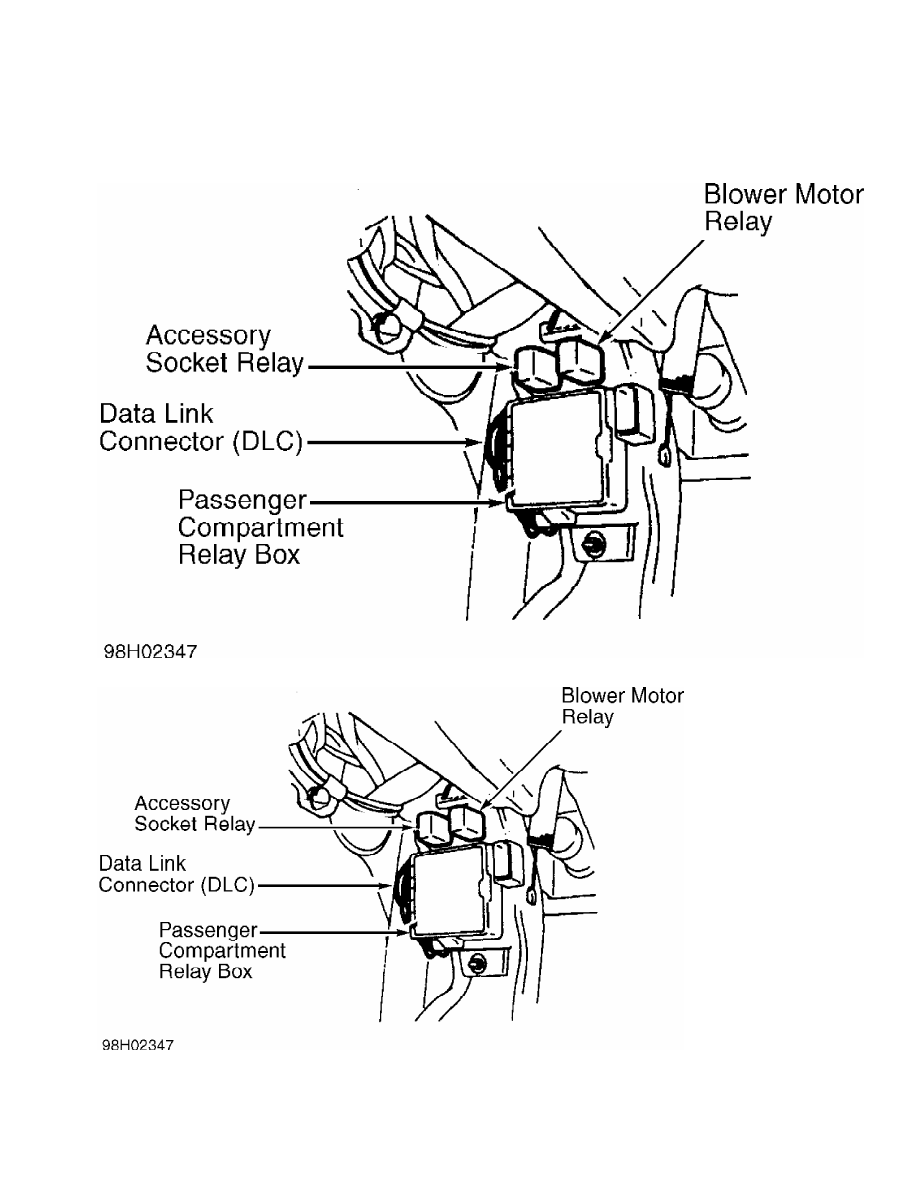

Accessory Socket Relay                  On junction block.

Blower Motor Relay                      On junction block.

Buzzer Assembly                         Behind center of dash.

Condenser Fan Motor Relay               In engine compartment

                                        relay box.

Defogger Relay                          In passenger compartment

                                        relay box.

Defogger Timer                          Behind left side of dash.

Door Lock Relay                         On bracket, behind left side

                                        of dash.

Engine Control Relay                    Behind right side of dash,

                                        above ECM.
