         * PLEASE READ THIS FIRST *

WARNING: Deactivate air bag system before performing any service

         operation. See AIR BAG RESTRAINT SYSTEMS article. Do not

         apply electrical power to any component on steering column

         without first deactivating air bag system. Air bag may

         deploy.

         ACTUATOR

         Removal & Installation

         Disconnect cruise control cable from link. Disconnect

actuator wiring connector. Remove vacuum pump and vacuum pump bracket.

Remove actuator and actuator bracket. To install, reverse removal

procedure.

         CRUISE CONTROL ECU

         Removal & Installation

         Cruise control ECU is located behind center of dash panel.

Remove center trim panel and radio or radio plug bezel. Remove control

unit. To install, reverse removal procedure.

         CRUISE CONTROL SWITCH

         Removal & Installation

         Remove lower steering column cover. Disconnect electrical

connectors. Remove screws attaching cruise control switch to steering

column. Remove switch. To install, reverse removal procedure.

         INSTRUMENT CLUSTER

         Removal & Installation

         Disconnect negative battery cable. Remove cluster cover.

Disconnect speedometer cable. Remove instrument cluster. To install,

reverse removal procedure.

         WIRING DIAGRAMS

Fig. 38:  Cruise Control System Wiring Diagram

D - ADJUSTMENTS

1998 Mitsubishi Montero

         1998 ENGINE PERFORMANCE

         Mitsubishi - On-Vehicle Adjustments

         Diamante, Eclipse, Galant, Mirage, Montero, Montero Sport,

         3000GT

         ENGINE MECHANICAL

         Before performing any on-vehicle adjustments to fuel or

ignition system, ensure engine mechanical condition is okay (i.e.,

engine compression).

         VALVE CLEARANCE

         VALVE ADJUSTMENT

NOTE:    All models use hydraulic valve lifters. Adjustment is not

         required.

         CHECKING HYDRAULIC VALVE LIFTERS

         1) Warm engine to normal operating temperature. Remove valve

cover. Position cylinder No. 1 at TDC on compression stroke. On 4-

cylinder engines, check intake rockers on cylinders No. 1 and 2. Check

exhaust rockers on cylinders No. 1 and 3. On V6 engines, check intake

rockers on cylinders No. 1, 5 and 6. Check exhaust rockers on

cylinders No. 1, 2 and 3.

         2) Push downward on end of rocker arm, above lash adjuster.

Rotate crankshaft 360 degrees. On 4-cylinder engines, check intake

rockers on cylinders No. 3 and 4. Check exhaust rockers on cylinders

No. 2 and 4. On V6 engines, check intake rockers on cylinders No. 2, 3

and 4. Check exhaust rockers on cylinders No. 4, 5 and 6. If lash

adjuster is normal, it will feel solid.

         3) If lash adjuster moves downward easily when pushed,

replace adjuster. If lash adjuster feels soft or spongy, air has

probably entered lash adjuster. If this occurs, check engine oil

level. If engine oil level is okay, check oil screen and oil screen

gasket for damage.

         4) After repairing cause of air ingestion, warm engine to

operating temperature. Drive vehicle at low speed for approximately 5

minutes. Turn engine off for a few minutes.

         5) Restart engine and drive at low speed for approximately 5

minutes. Repeat this step several times for about one hour. This helps

remove air from engine oil.

         IGNITION TIMING

NOTE:    Perform all checks with engine at normal operating

         temperature, cooling fan and accessories off, transmission

         in Park or Neutral, and front wheels in straight-ahead

         position. Ignition timing check procedure for Eclipse 2.0L

         non-turbo not available from manufacturer at time of

         publication.

         Diamante

         1) Ignition timing is controlled by Powertrain Control Module

(PCM) and is not adjustable. Manufacturer provides procedure for

checking timing. DO NOT attempt to adjust ignition timing by rotating

distributor.

         2) Start engine and warm engine until engine temperature

coolant is 176-203 F (80-95 C). Turn engine off. Insert a paper clip

in engine speed detection connector terminal No. 3. See  Fig. 1.

Connect a primary voltage detection-type tachometer to paper clip.

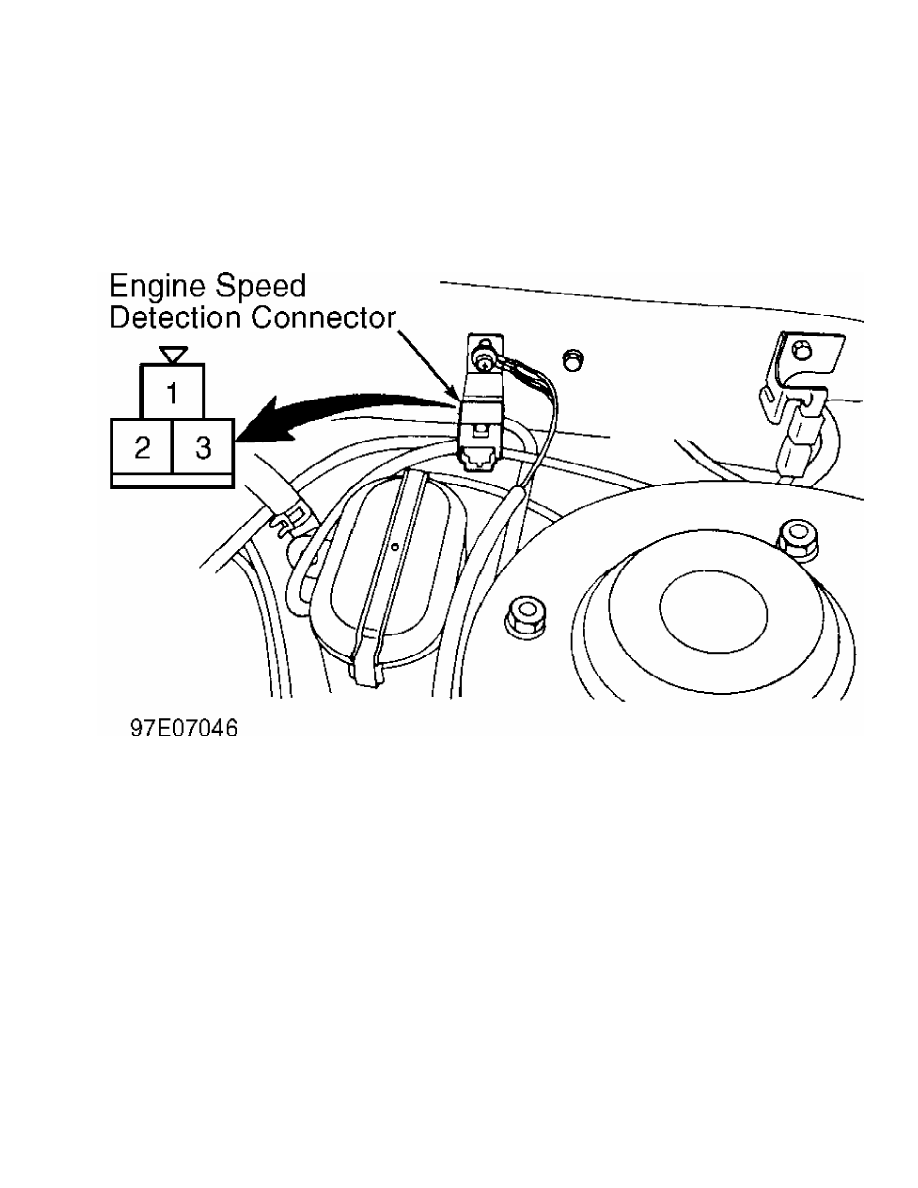

Fig. 1:  Locating Engine Speed Detection Connector (Diamante)

Courtesy of Mitsubishi Motor Sales of America

         3) Install a timing light. Start engine and allow it to idle.

Ensure engine curb idle speed is about 700 RPM. Curb idle speed is

automatically controlled by Idle Air Control (IAC) system. If curb

idle speed is not as specified, see DTC P0505 in G - TESTS W/CODES

article.

CAUTION: MFI system actuator test must be cancelled or test will

         continue to run for 27 minutes. Driving vehicle under this

         condition may damage engine.

         4) Turn engine off. Connect scan tool to Data Link Connector

(DLC). DLC is located below left side of dash, near steering column.

See Fig. 2. Start engine and allow it to idle. Using scan tool, select

MFI SYSTEM ACTUATOR TEST, then select item 17 (BASIC IGNITION TIMING).

Press "Y" and read basic ignition timing value. See

IGNITION TIMING SPECIFICATIONS table. If basic ignition timing is

within specification, go to next step. If basic ignition timing is not

within specification, cancel MFI system actuator test. See DTC P0335

in G - TESTS W/CODES article.

         5) Read actual ignition timing value. If actual ignition

timing is not within specification, cancel MFI system actuator test.

See DTC P0335 in G - TESTS W/CODES article.
