 Does Not Illuminate

   (Cruise Control Operation Normal)  ..................  12

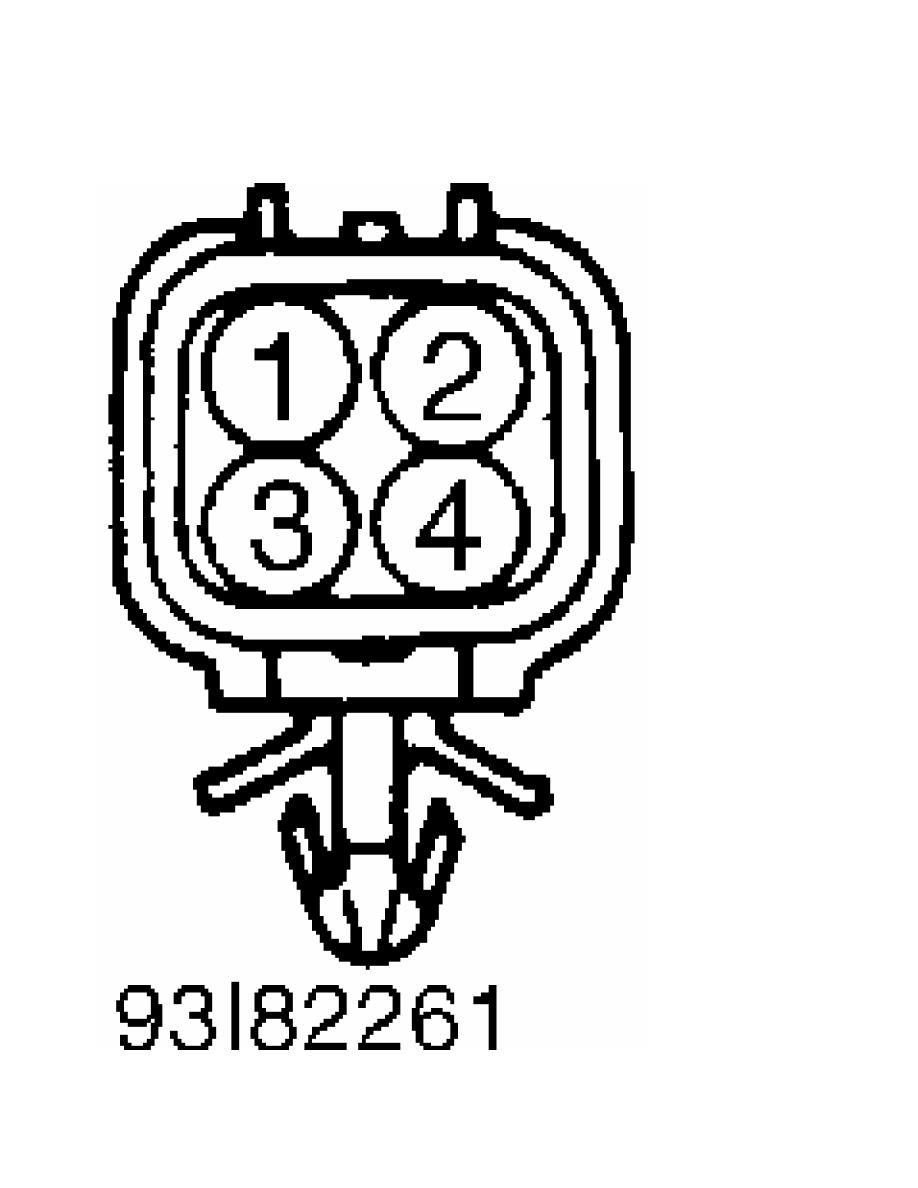

Fig. 4:  Identifying Cruise Control Circuit Connector Terminals:

IOD Or Storage Connector (A-09X)

Courtesy of Mitsubishi Motor Sales of America

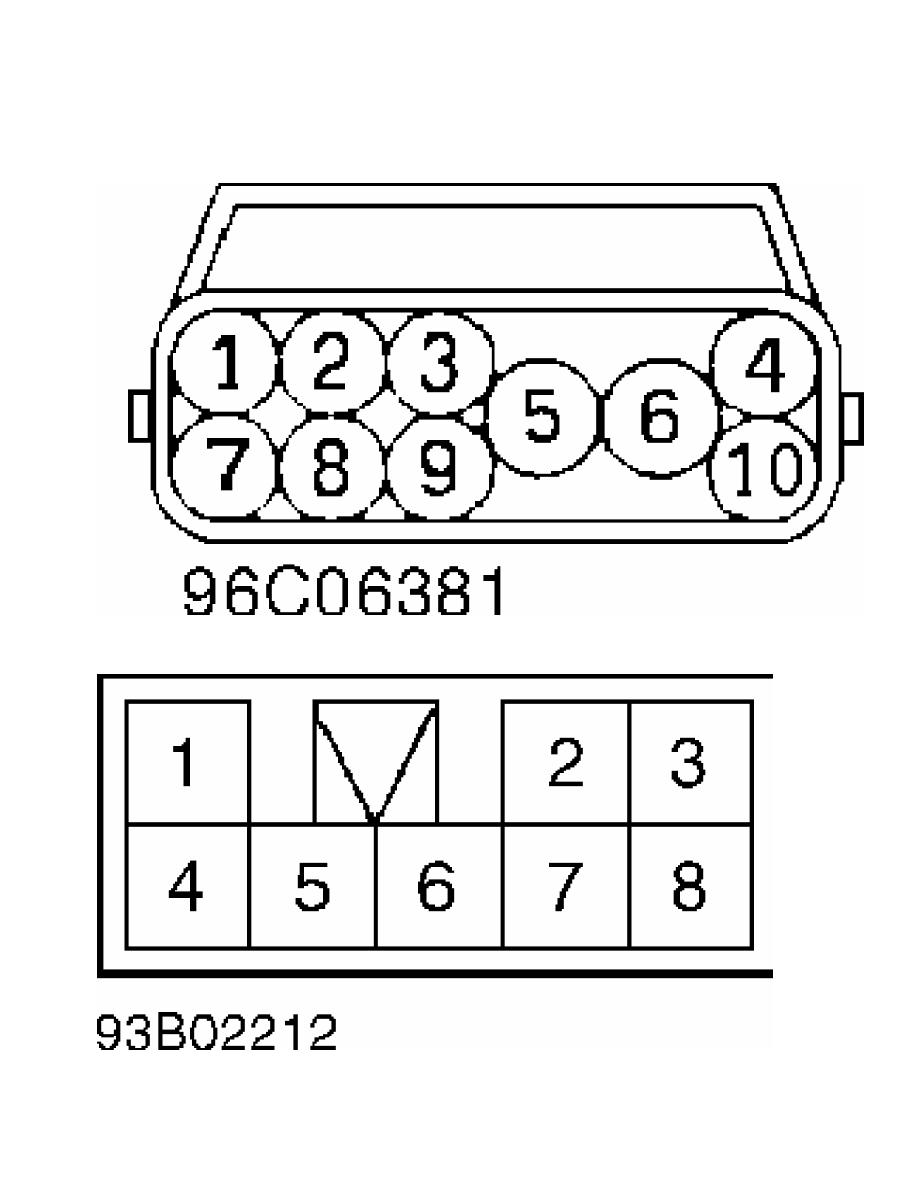

Fig. 5:  Identifying Cruise Control Circuit Connector Terminals:

Cruise Control Actuator Connector (A-57 Or A-95)

Courtesy of Mitsubishi Motor Sales of America

Fig. 6:  Identifying Cruise Control Circuit Connector Terminals:

Vacuum Pump Connector (A-105)

Courtesy of Mitsubishi Motor Sales of America

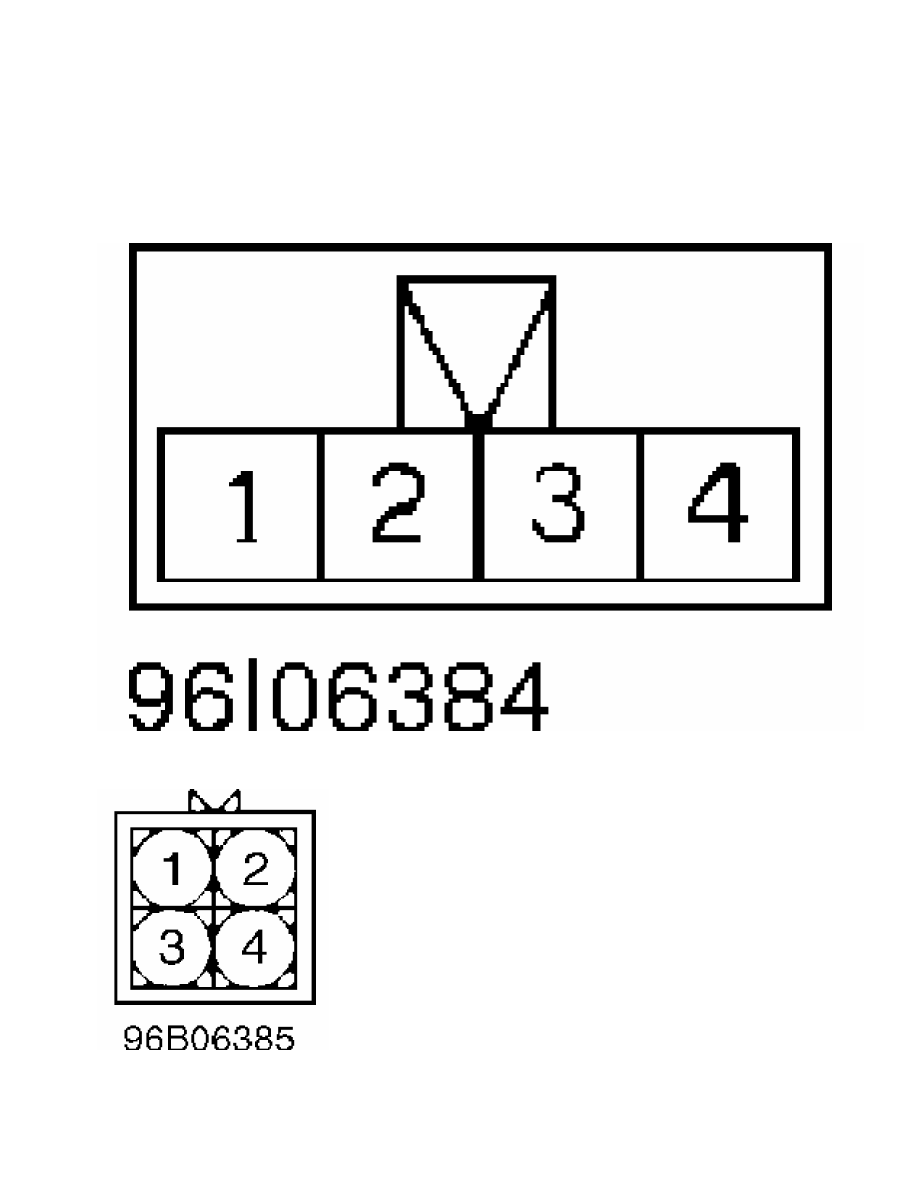

Fig. 7:  Identifying Cruise Control Circuit Connector Terminals:

Park/Neutral Switch Connector (B-08)

Courtesy of Mitsubishi Motor Sales of America

Fig. 8:  Identifying Cruise Control Circuit Connector Terminals:

Cruise Control Main Switch Connector (C-01)

Courtesy of Mitsubishi Motor Sales of America

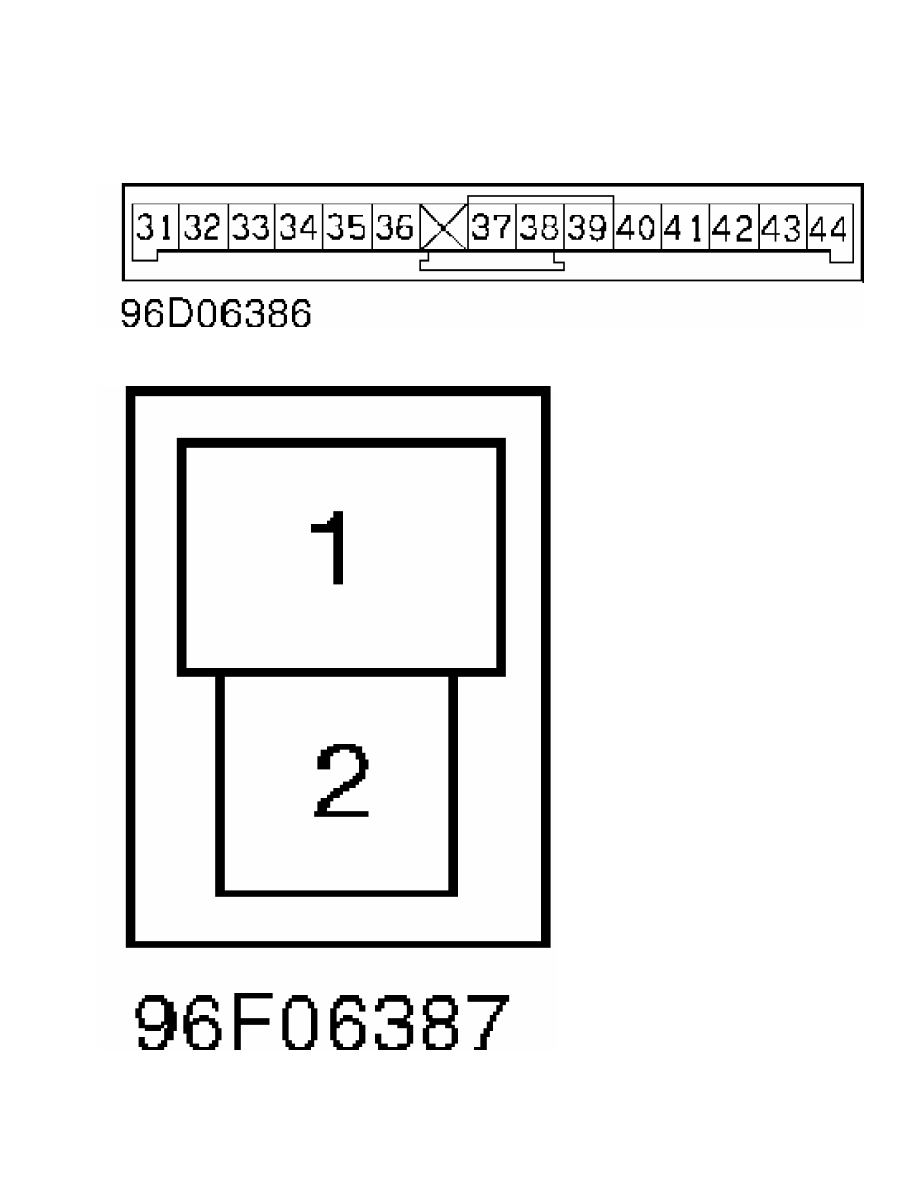

Fig. 9:  Identifying Cruise Control Circuit Connector Terminals:

Combination Meter Connector (C-04)

Courtesy of Mitsubishi Motor Sales of America

Fig. 10:  Identifying Cruise Control Circuit Connector Terminals:

Combination Meter Connector (C-06)

Courtesy of Mitsubishi Motor Sales of America
