Mitsubishi Montero (1998+). Manual - part 64

except Eclipse 2.0L non-turbo and Montero. On Eclipse 2.0L non-turbo,

resistance should not exceed 8000 ohms. On Montero, resistance should

not exceed 26,000 ohms.

         SPARK PLUGS

SPARK PLUG TYPE TABLE

Application (1)                              Nippondenso No.

1.5L (VIN A)  ...................................  W16EPR-11

1.8L (VIN C)  ...................................  K16PR-U11

2.0L (VIN F)  .........................  W20ETR-L8 Or W20EPR

2.0L (VIN Y)  ..................................  ( 2) RC9YC5

2.4L (VIN G)  ...................................  K16PR-U11

3.0L

  (VIN H)  .......................................  W16EPR11

  (VIN J, K & P)  ..............................  PK20PR-P11

3.5L

  (VIN P)  ......................................  PK20PR-11

  (VIN M)  .....................................  PK16PR-P11

(1) - See A - ENGINE/VIN ID article for VIN information.

(2) - Champion Spark Plug.

SPARK PLUG SPECIFICATIONS TABLE

Application        (1) Gap In. (mm)    Torque Ft. Lbs. (N.m)

Diamante  .......  .039-.043 (1.0-1.1)  .....  15-21 (20-30)

Eclipse 2.0L

  Non-Turbo  ....  .048-.053 (1.2-1.4)  ...........  20 (28)

  Turbo  ........  .028-.031 (.7-.8)  .............  18 (25)

All Others  .....  .039-.043 (1.0-1.1)  ...........  18 (25)

(1) - DO NOT adjust gap on Platinum spark plugs.

         FIRING ORDER

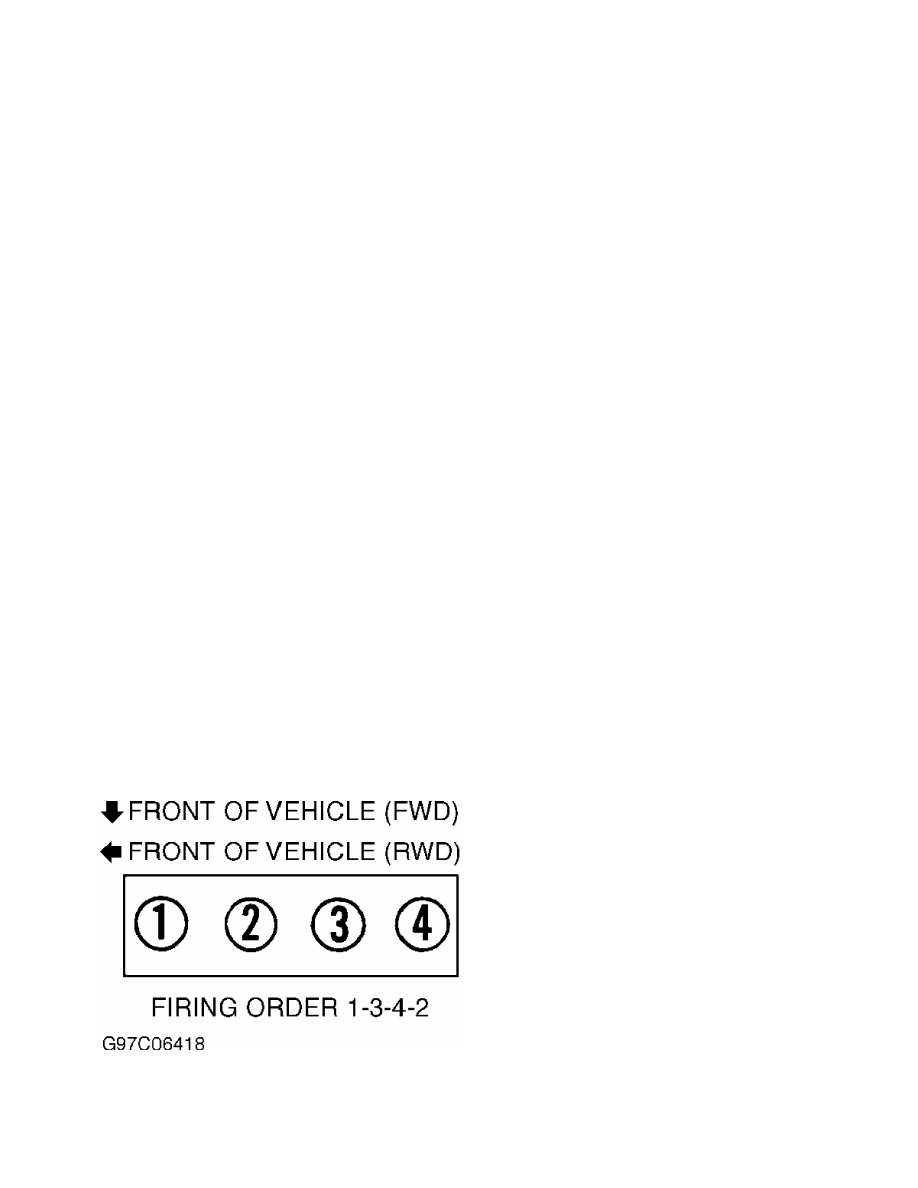

Fig. 1:  Firing Order Firing Order (4-Cylinder)

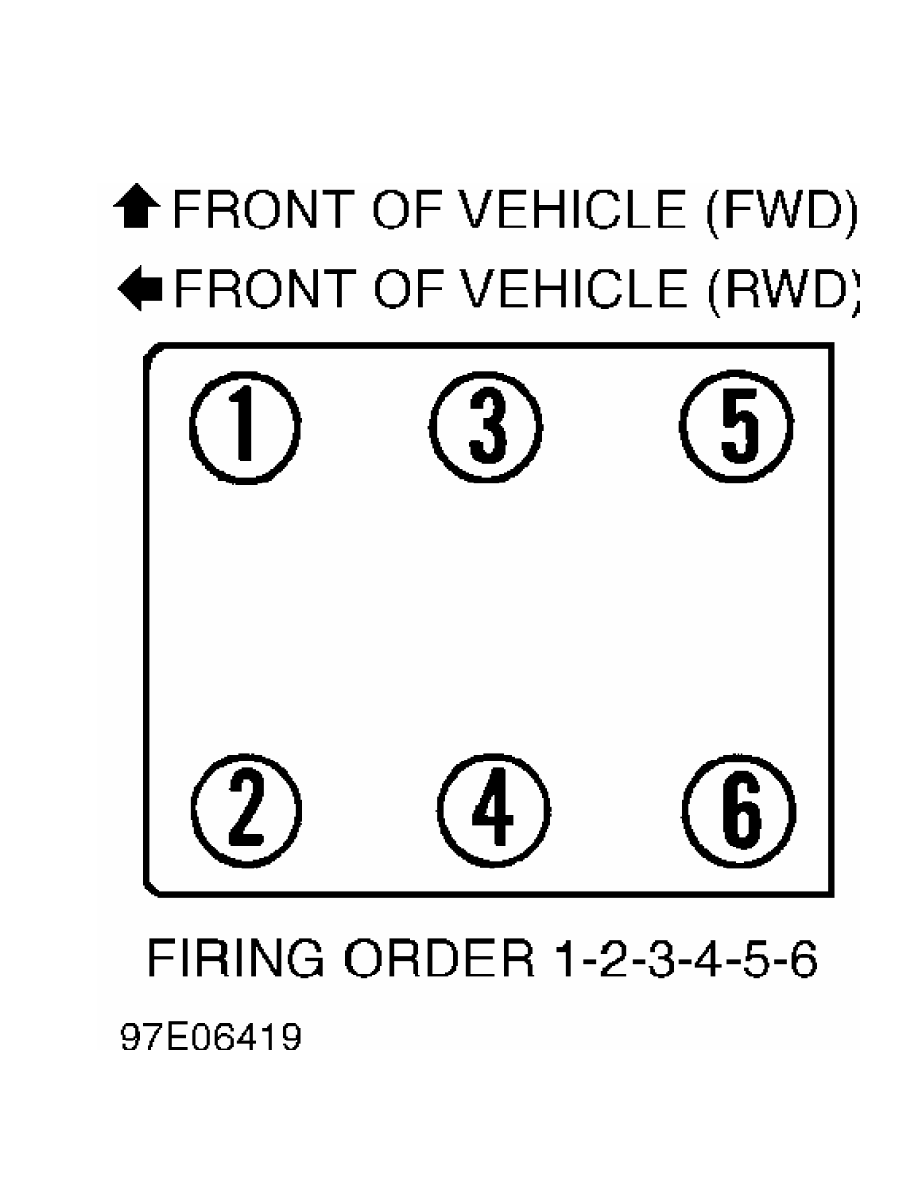

Fig. 2:  Firing Order Firing Order (V6)

         IGNITION TIMING

IGNITION TIMING (Degrees BTDC @ RPM) TABLE

Application            (1) Basic          (2) (3) (4) Actual

1.5L  .............  2-78@ 650-750  ..........  10 @ 600-800

1.8L  .............  2-8 @ 600-800  ...........  5 @ 600-800

2.0L

  Non-Turbo  ...........  (5)  ........................  (5)

  Turbo  ..........  2-8 @ 650-850  ...........  8 @ 650-850

2.4L  .............  2-8 @ 650-850  ..........  10 @ 650-850

3.0L  .............  2-8 @ 600-800  ..........  15 @ 600-800

3.5L  .............  2-8 @ 600-800  ..........  15 @ 600-800

(1) - With ignition timing adjustment connector grounded or

      vacuum hose (farthest from distributor) disconnected.

(2) - With ignition timing adjustment connector ungrounded

      or vacuum hose (farthest from distributor) connected.

(3) - If vehicle altitude is more than 2300 feet above sea

      level, actualtiming may be advanced (5 degrees).

(4) - Actual ignition timing is approximate and may

      fluctuate plus or minus 7 degrees.

(5) - Ignition timing is NOT adjustable.

         FUEL SYSTEM

         FUEL PUMP

REGULATED FUEL PRESSURE TABLE

                     At Idle w/Vacuum     At Idle w/o Vacuum

Application            psi (kg/cm



)             psi (kg/cm



)

Eclipse 2.0L

  Non-Turbo  ............  (1)  ...........  47-50 (3.3-3.5)

  Turbo  .............  33 (2.3)  .........  42-45 (3.0-3.5)

3000GT Turbo  ........  34 (2.4)  .........  43-45 (3.0-3.1)

All Other Models  ....  38 (2.7)  .........  47-50 (3.3-3.5)

(1) - Information is not available from manufacturer at time

      of publication.

         IDLE SPEED

IDLE SPEED SPECIFICATIONS TABLE

Application               Curb Idle               Basic Idle

1.5L & 1.8L  ............  600-800  ...............  650-750

2.0L

  Non-Turbo  ............  700-900  ...................  ( 1)

  Turbo  ................  650-850  ...............  700-800

2.4L  ...................  650-850  ...............  700-800

3.0L & 3.5L  ............  600-800  ...............  650-750

(1) - Information is not available from manufacturer at time

      of publication.

         INJECTOR RESISTANCE

INJECTOR RESISTANCE TABLE

Application                                             Ohms

Non-Turbo

  Eclipse 2.0L  .....................................  11-15

  Except Eclipse 2.0L  ..............................  13-16

Turbo  ................................................  2-3

         THROTTLE POSITION (TP) SENSOR

TP SENSOR SPECIFICATIONS TABLE

Application                                        (1) Volts

Eclipse 2.0L Non-Turbo  ...............................  ( 2)

All Others  ........................................  .4-1.0

(1) - At idle.

(2) - Information is not available from manufacturer at time

      of publication.
