Mitsubishi Montero (1998+). Manual - part 1

3.5L V6

1998 Mitsubishi Montero

         1997-98 ENGINES

         Mitsubishi 3.5L V6

         Diamante, Montero

         * PLEASE READ THIS FIRST *

NOTE:    Minimal information is available from manufacturer. For

         repair procedures not covered in this article, see

         ENGINE OVERHAUL PROCEDURES - GENERAL INFORMATION  article

         in the GENERAL INFORMATION section.

         REMOVAL & INSTALLATION

NOTE:    Use appropriate illustrations to aid in removal and

         installation. See Figs. 1-9.

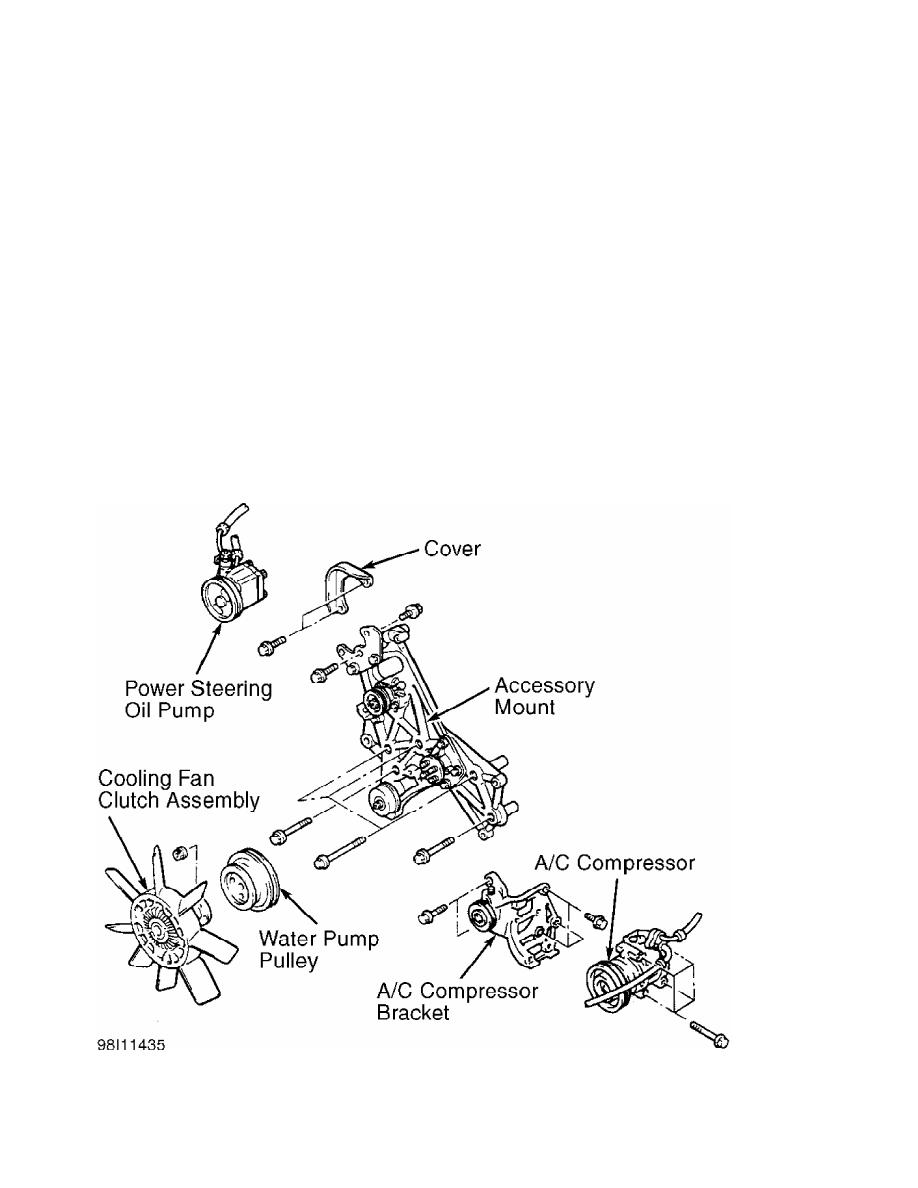

Fig. 1:  Accessories & Mounting (Montero)

Courtesy of Mitsubishi Motor Sales of America.

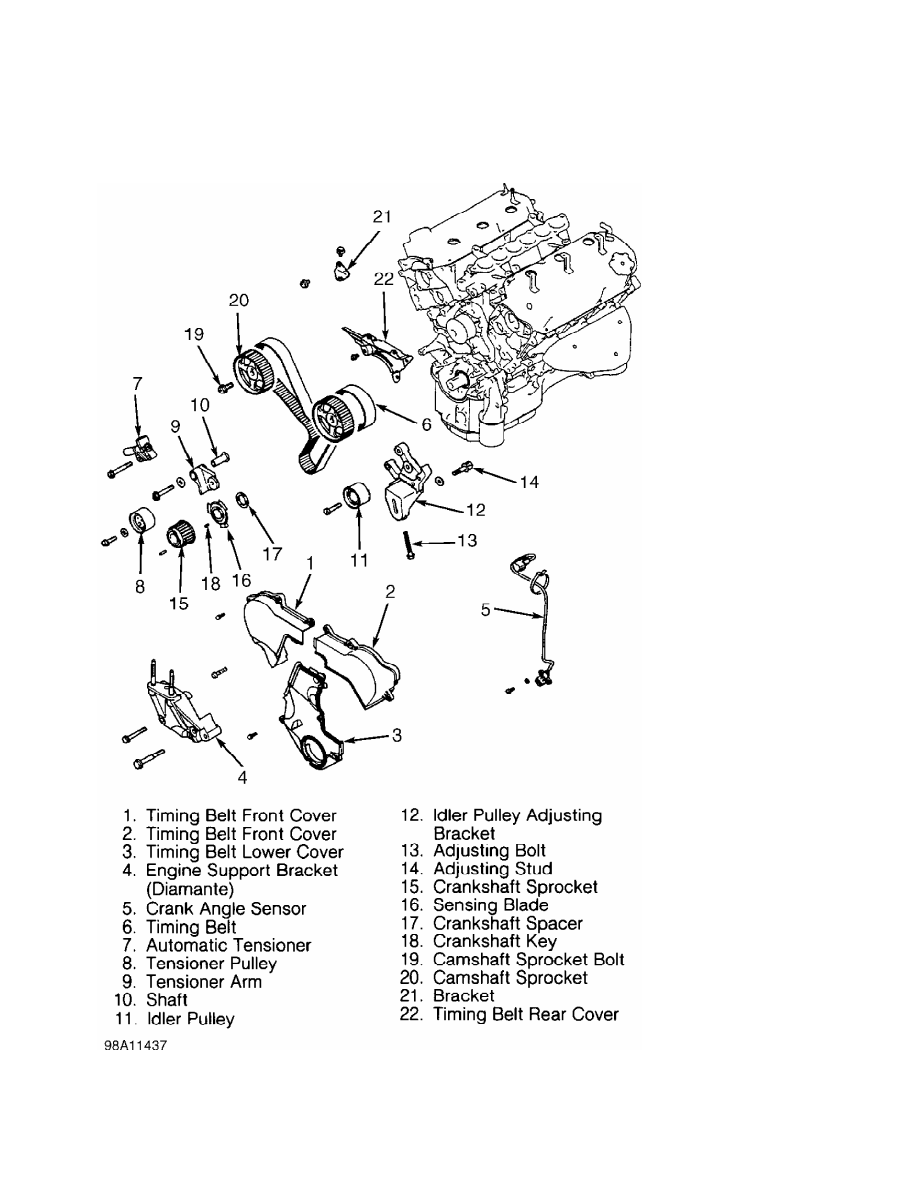

Fig. 2:  Timing Belt Components

Courtesy of Mitsubishi Motor Sales of America.

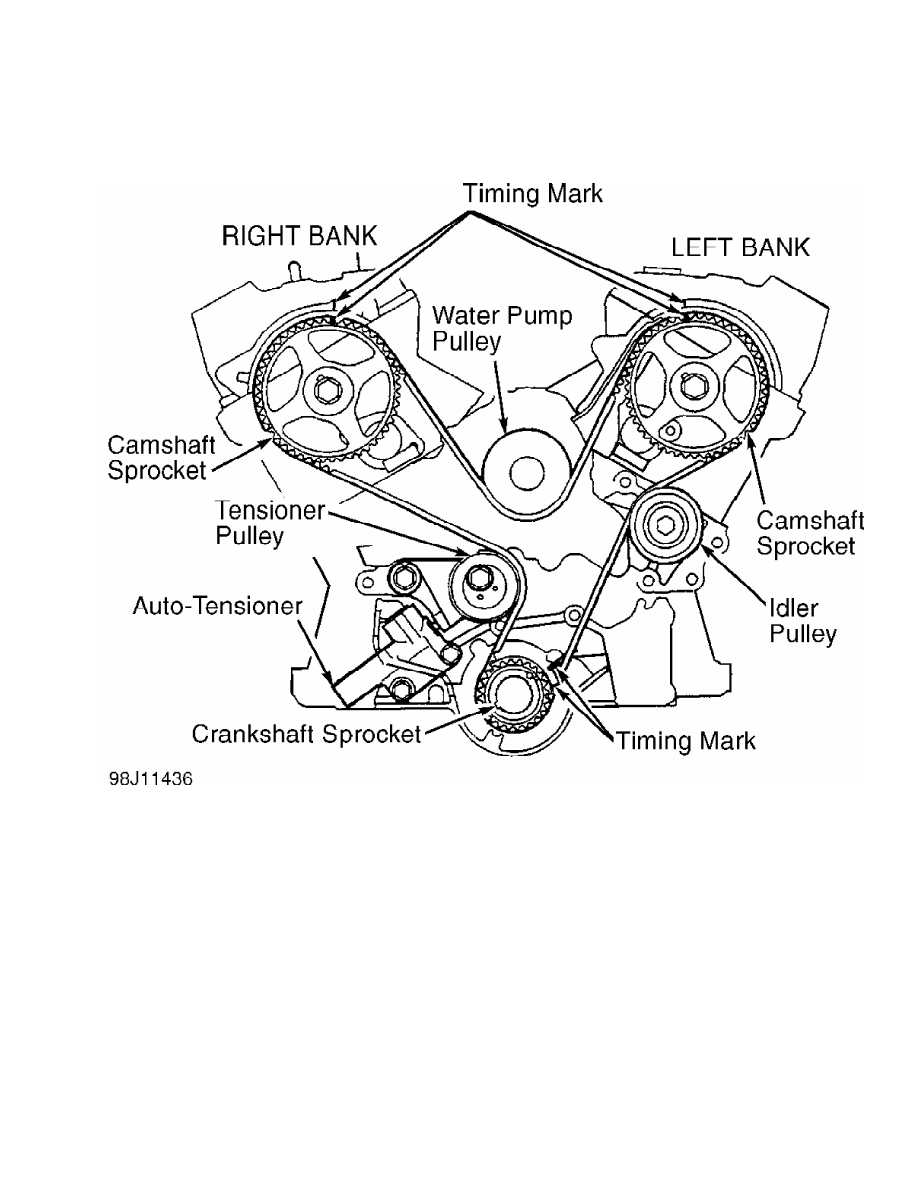

Fig. 3:  Camshaft & Crankshaft Timing Marks

Courtesy of Mitsubishi Motor Sales of America.

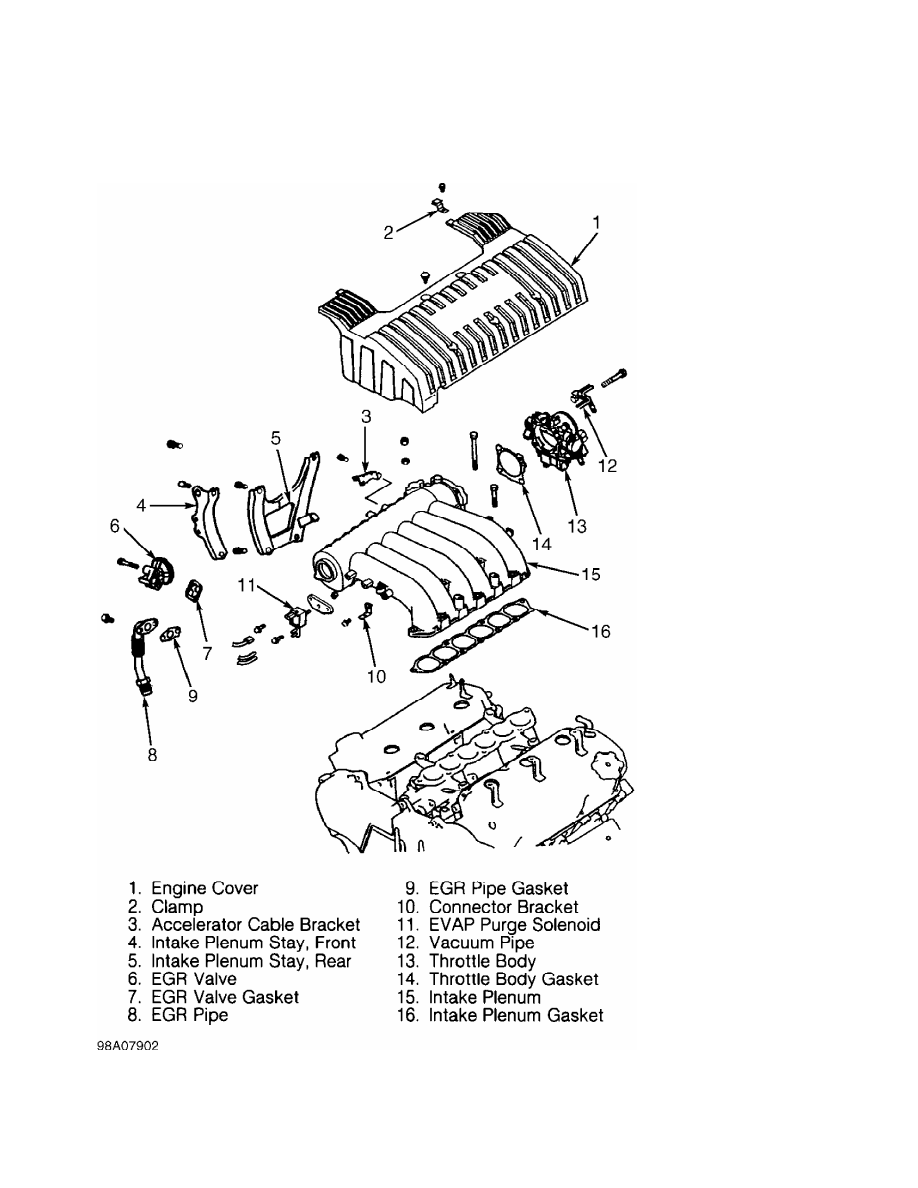

Fig. 4:  Intake Manifold & Components (Diamante)

Courtesy of Mitsubishi Motor Sales of America.
