Mitsubishi Montero (1991+). Manual - part 332

WIRING DIAGRAMS



1991 Mitsubishi Montero

         1991 Wiring Diagrams

         Mitsubishi

         Montero

         IDENTIFICATION

         COMPONENT LOCATION MENU

COMPONENT LOCATIONS TABLE

Component                              Figure No. (Location)

A/C RELAYS  ..........................  4 (C 12), 4 (A-B 15)

A/C SYSTEM  .................................  4 (A-C 12-15)

ALTERNATOR  ...................................  1 (B-C 1-2)

ALTERNATOR RELAY  ...............................  1 (C 1-2)

AUTO FREE-WHEELING HUB CONTROL UNIT  .............  3 (D 11)

BACK DOOR LOCK SW  ...............................  7 (B 27)

BACK-UP LT SW (M/T)  .............................  7 (A 26)

BATTERY  ..........................................  1 (A 1)

BLOWER SWITCH  .................................  4 (A-B 12)

BUZZER  ..........................................  5 (E 17)

CARGO LIGHT  .....................................  6 (A 23)

CIG LIGHTER  .....................................  3 (E 11)

CLOCK  ...........................................  3 (E 11)

COLUMN SW  .....................................  5 (A-E 19)

CRUISE CONTROL SYSTEM  ......................  4 (D-E 13-15)

DEFOGGER  ......................................  7 (C-D 27)

DIAG CONNECTION  ..................................  2 (E 7)

DIMMER CONTROL SWITCH  ............................  3 (E 8)

DIR FLASHER  .....................................  5 (C 16)

DIR SWITCH  ......................................  5 (C 19)

DOME LT  ...............................  6 (A 23), 7 (A 24)

DOOR LOCK SYSTEM  ...........................  6 (D-E 21-23)

DOOR SWITCHES  .........................  5 (D 17), 6 (C 23)

FRONT WIPER SYSTEM  ...........................  5 (A 16-17)

FUEL GAUGE UNIT  .................................  6 (C 22)

FUEL PUMP  ........................................  2 (C 4)

FUSE BLOCK  ....................................  3 (C 9-10)

HAZARD FLASHER  ..................................  5 (C 16)

HAZARD SW  .......................................  5 (B 16)

HEAD LIGHT WASHER RELAY  .......................  5 (C-D 17)

HEATER RELAY  ....................................  4 (A 12)

HORN SWITCH  .....................................  5 (E 19)

IGNITION COIL  ....................................  2 (E 4)

IGNITION SW  .....................................  3 (A 11)

ILLUMINATION LIGHTS  ............................  3 (D-E 8)

INHIBITOR SW  .....................................  3 (A 9)

INSTRUMENT CLUSTER  ............................  6 (A-D 20)

KEY REMINDER SW  .................................  5 (E-17)

LIGHT CONTROL RELAY  .............................  5 (E 19)

LIGHT SWITCH  ....................................  5 (D 19)

MAIN FUSE LINKS  ................................  1 (A 1-2)

METER UNIT  ......................................  6 (E 20)

MPI CONTROL RELAY  ................................  2 (B 4)

MPI CONTROL UNIT  ...............................  2 (A 4-7)

NOISE FILTER  .....................................  2 (E 6)

OVERDRIVE CONTROL RELAY  ..........................  3 (A 8)

OVERDRIVE SWITCH  .................................  3 (A 8)

PARKING BRAKE SWITCH  ............................  6 (A 21)

POWER TRANSISTOR  .................................  2 (D 4)

POWER WINDOWS  ..............................  7 (B-E 24-26)

RADIO (PARTIAL)  ...............................  3 (D-E 10)

REAR BLOWER SWITCH  ..............................  4 (D 12)

REAR WIPER  ....................................  5 (D-E 16)

SEAT BELT WARNING TIMER  .........................  5 (D 18)

STARTER  ..........................................  1 (C 3)

STOP LIGHT SWITCH  .....................  4 (E 13), 5 (C 16)

SUB FUSE LINKS  ...................................  1 (A 3)

SUNROOF  ......................................  7 (A 24-25)

WIPER SWITCH  ..................................  5 (A-B 19)

         WIRING DIAGRAMS

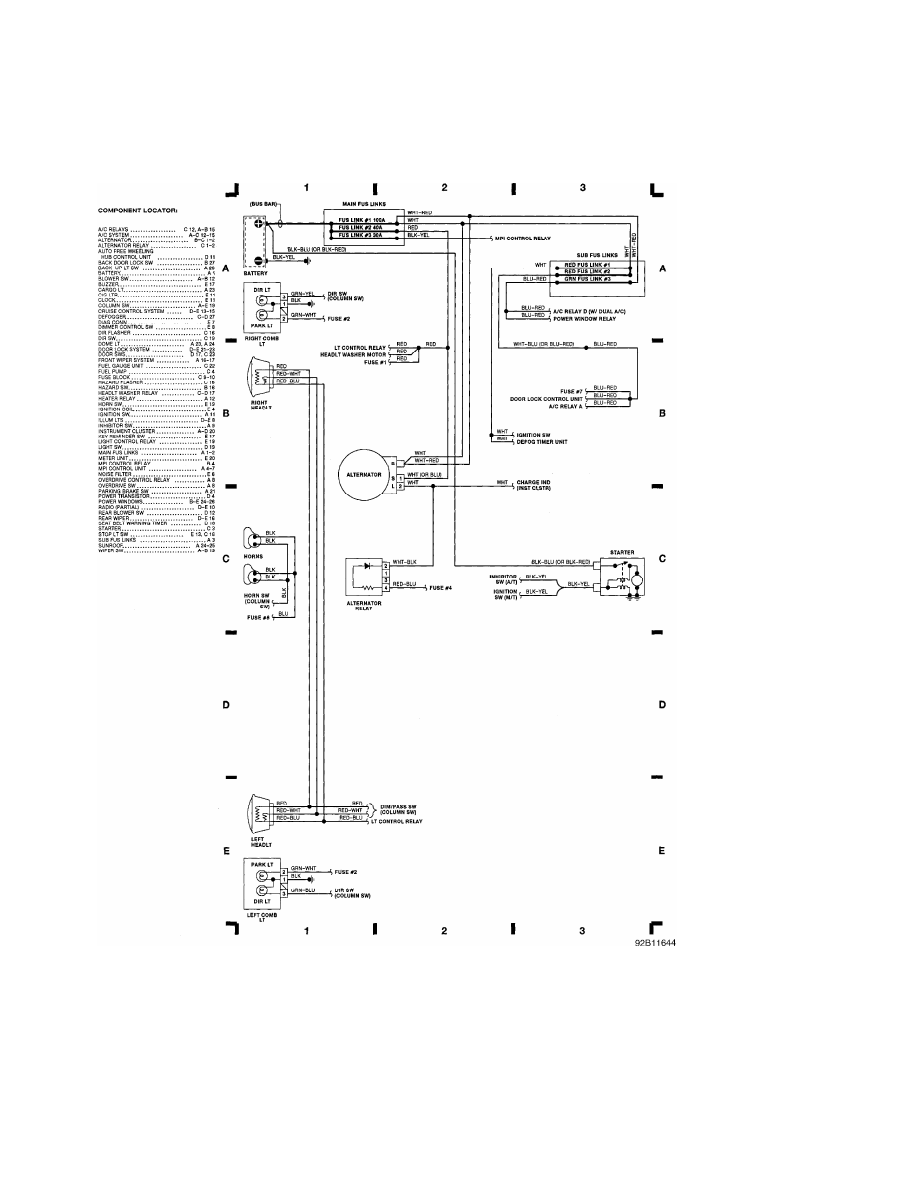

Fig. 1:  Engine Compt, Headlights, (Grid 1-3)

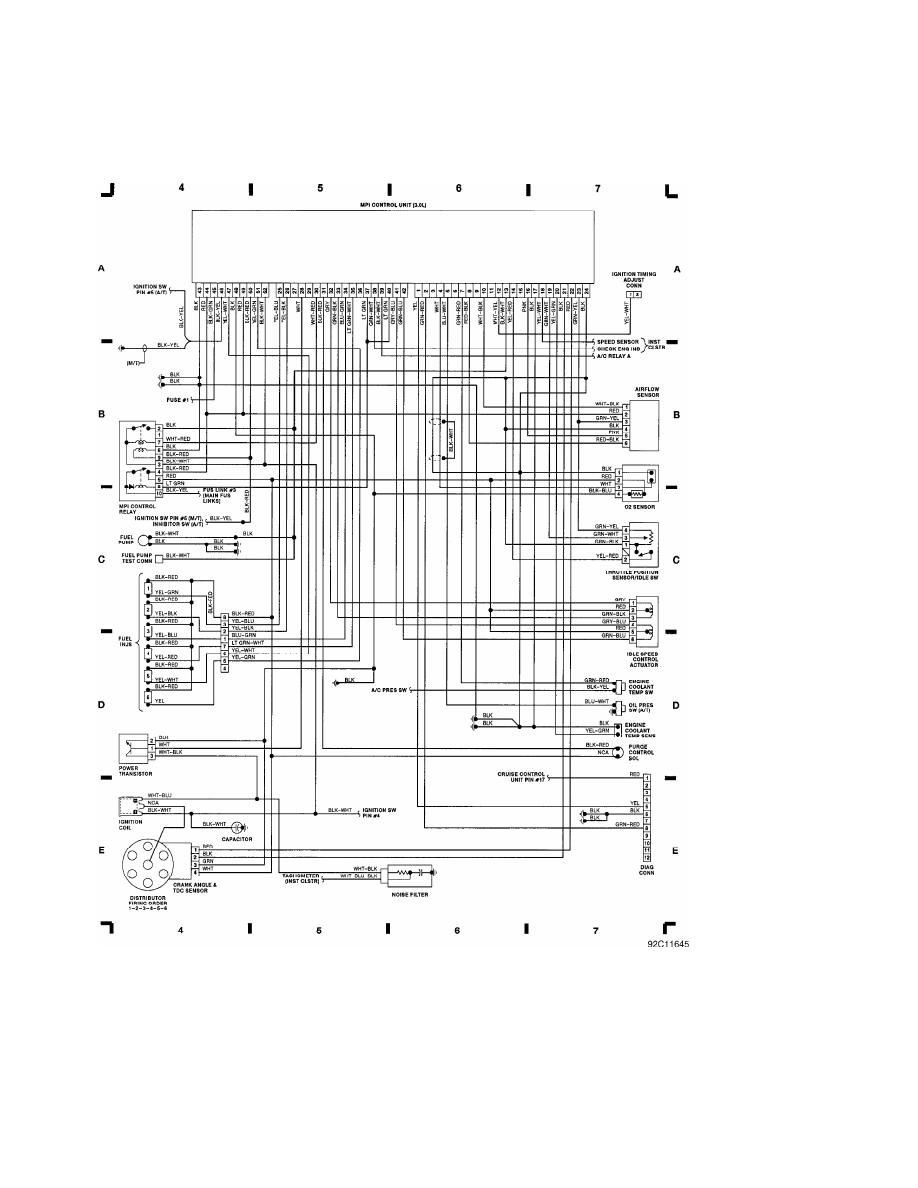

Fig. 2:  Computer Engine Control (3.0L) (Grid 4-7)
