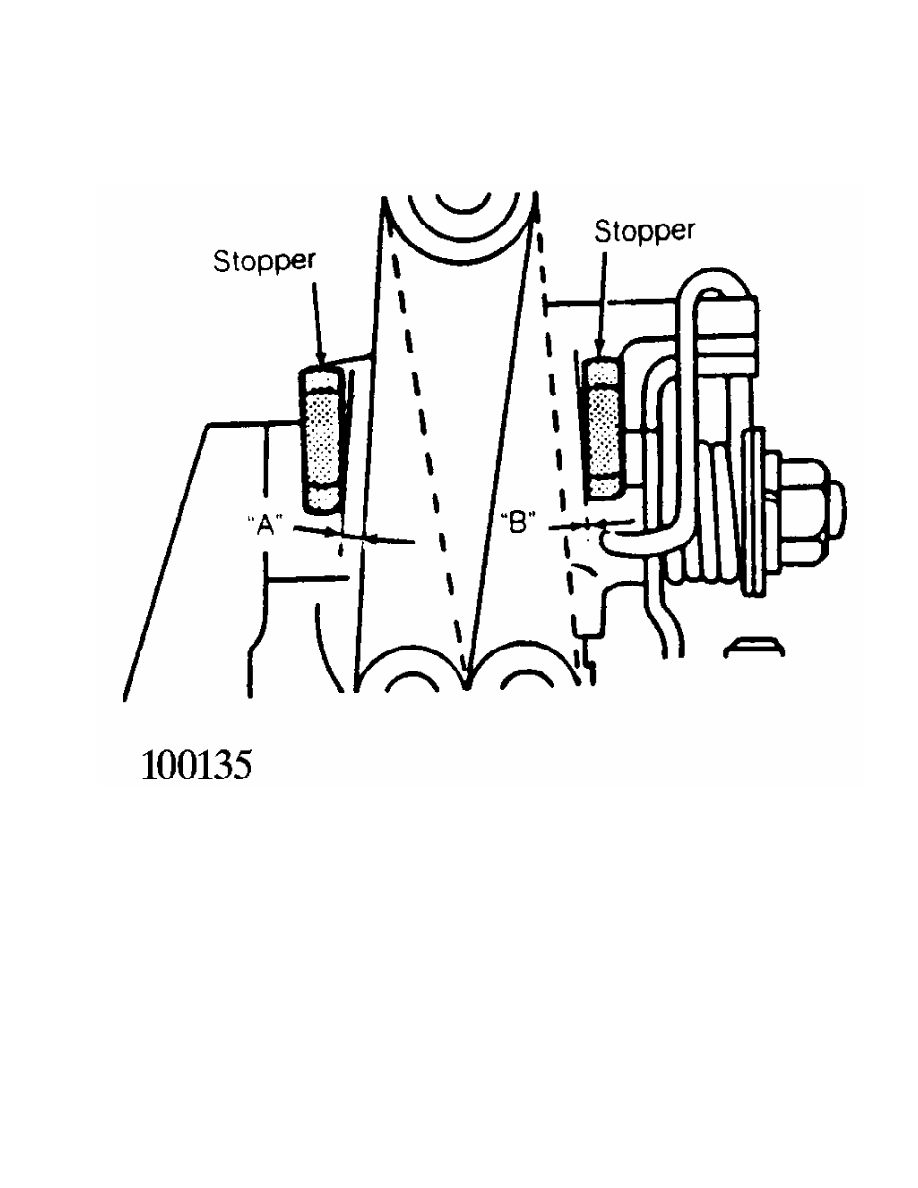

Fig. 3:  Adjusting Shift Cable

Courtesy of Chrysler Motors.

TROUBLE SHOOTING - BASIC PROCEDURES



1991 Mitsubishi Montero

         GENERAL TROUBLE SHOOTING

         * PLEASE READ THIS FIRST *

NOTE:    This is GENERAL information.  This article is not intended

         to be specific to any unique situation or individual vehicle

         configuration.  The purpose of this Trouble Shooting

         information is to provide a list of common causes to

         problem symptoms.  For model-specific Trouble Shooting,

         refer to SUBJECT, DIAGNOSTIC, or TESTING articles available

         in the section(s) you are accessing.

         ACCESSORIES & ELECTRICAL

         CHARGING SYSTEM TROUBLE SHOOTING

NOTE:    This is GENERAL information.  This article is not intended

         to be specific to any unique situation or individual vehicle

         configuration.  The purpose of this Trouble Shooting

         information is to provide a list of common causes to

         problem symptoms.  For model-specific Trouble Shooting,

         refer to SUBJECT, DIAGNOSTIC, or TESTING articles available

         in the section(s) you are accessing.

BASIC CHARGING SYSTEM TROUBLE SHOOTING CHART



CONDITION         POSSIBLE CAUSE                CORRECTION



Vehicle Will Not  Dead battery                  Check battery cells,

Start                                           alternator belt

                                                tension and alternator

                                                output

                  Loose or corroded battery     Check all charging

                  connections                   system connections

                  Ignition circuit or switch    Check and replace as

                  malfunction                   necessary



Alternator Light  Loose or worn alternator      Check alternator drive

Stays On With     drive belt                    tension and

Engine Running                                  condition, See Belt

                                                Adjustment in TUNE-UP

                                                article in the

                                                TUNE-UP section

                  Loose alternator wiring       Check all charging

                  connections                   system connections

                  Short in alternator light     See Indicator Warning

                  wiring                        Lights in STANDARD

                                                INSTRUMENTS in the

                                                ACCESSORIES &

                                                EQUIPMENT section

                 Defective alternator stator    See Bench Tests in

                 or diodes                      ALTERNATOR article

                 Defective regulator            See Regulator Check in

                                                ALTERNATOR article



Alternator       Blown fuse                     See WIRING DIAGRAMS

Light Stays Off

With Ignition

Switch ON

                 Defective alternator           See Testing in

                                                ALTERNATOR article

                 Defective indicator light      See Indicator Warning

                 bulb or socket                 Lights in STANDARD

                                                INSTRUMENTS in the

                                                ACCESSORIES &

                                                EQUIPMENT section



Alternator       Short in alternator wiring     See On-Vehicle Tests

Light Stays OFF                                 in ALTERNATOR article

With Ignition

Switch ON

                 Defective rectifier bridge     See Bench Tests in

                                                ALTERNATOR article



Lights or Fuses  Defective alternator wiring    See On-Vehicle Tests

Burn Out                                        in ALTERNATOR article

Frequently

                 Defective regulator            See Regulator Check in

                                                ALTERNATOR article

                 Defective battery              Check and replace as

                                                necessary



Ammeter Gauge    Loose or worn drive belt       Check alternator drive

Shows Discharge                                 belt tension and

                                                condition. See Belt

                                                Adjustment in TUNE-UP

                                                article in the

                                                TUNE-UP section

                 Defective wiring               Check all wires and

                                                wire connections

                 Defective alternator or        See Bench Tests and

                 regulator                      On-Vehicle Tests in

                                                ALTERNATOR article

                 Defective ammeter, or          See Testing in

                 improper ammeter wiring        STANDARD INSTRUMENTS

                 connection                     in the ACCESSORIES &

                                                EQUIPMENT section



Noisy            Loose drive pulley             Tighten drive pulley

Alternator                                      attaching nut

                 Loose mounting bolts           Tighten all alternator

                                                mounting bolts

                 Worn or dirty bearings         See Bearing

                                                Replacement

                                                ALTERNATOR article

                 Defective diodes or stator     See Bench Test in

                                                ALTERNATOR article



Battery Does     Loose or worn drive belt       Check alternator drive

Stay Charged                                    belt tension and

                                                condition. See

                                                Belt Adjustment in

                                                appropriate TUNE-UP

                                                article in the

                                                TUNE-UP section

                 Loose or corroded battery      Check all charging

                 connections                    system connections

                 Loose alternator connections   Check all charging

                                                system connections

                 Defective alternator or        See On-Vehicle Tests

                 battery                        and Bench Tests in

                                                ALTERNATOR article

                 Add-on electrical accessories  Install larger

                 exceeding alternator capacity  alternator



Battery          Defective battery              Check alternator

Overcharged-                                   output and repair as

Uses Too Much                                   necessary

Water

                 Defective alternator          See On-Vehicle Test and

                                               Bench Tests in

                                               ALTERNATOR article

                 Excessive alternator voltage  Check alternator output

                                               and repair as necessary



         IGNITION SYSTEM TROUBLE SHOOTING

NOTE:    This is GENERAL information.  This article is not intended

         to be specific to any unique situation or individual vehicle

         configuration.  The purpose of this Trouble Shooting

         information is to provide a list of common causes to

         problem symptoms.  For model-specific Trouble Shooting,

         refer to SUBJECT, DIAGNOSTIC, or TESTING articles available

         in the section(s) you are accessing.

         Ignition Secondary Trouble Shooting Chart





 START: Visually inspect Spark Plug Wires, Coil Wires,





        Plug Wire Boots, Rotor, and Distributor Cap for





        signs of damage.























 OK







 NOT OK























 *  To test secondary ignition







 *  Repair or replace





    system, modify a Spark Plug







    damaged components





    by attaching a ground wire







    as necessary





    to the body of the plug and
