Mitsubishi Montero (1991+). Manual - part 271

Fig. 245:  NS-4 Flow Chart & Circuit Diagram (2.0L) (2 of 2)

         NS-5: CHECKING CONTROL RELAY CIRCUIT - 2.0L

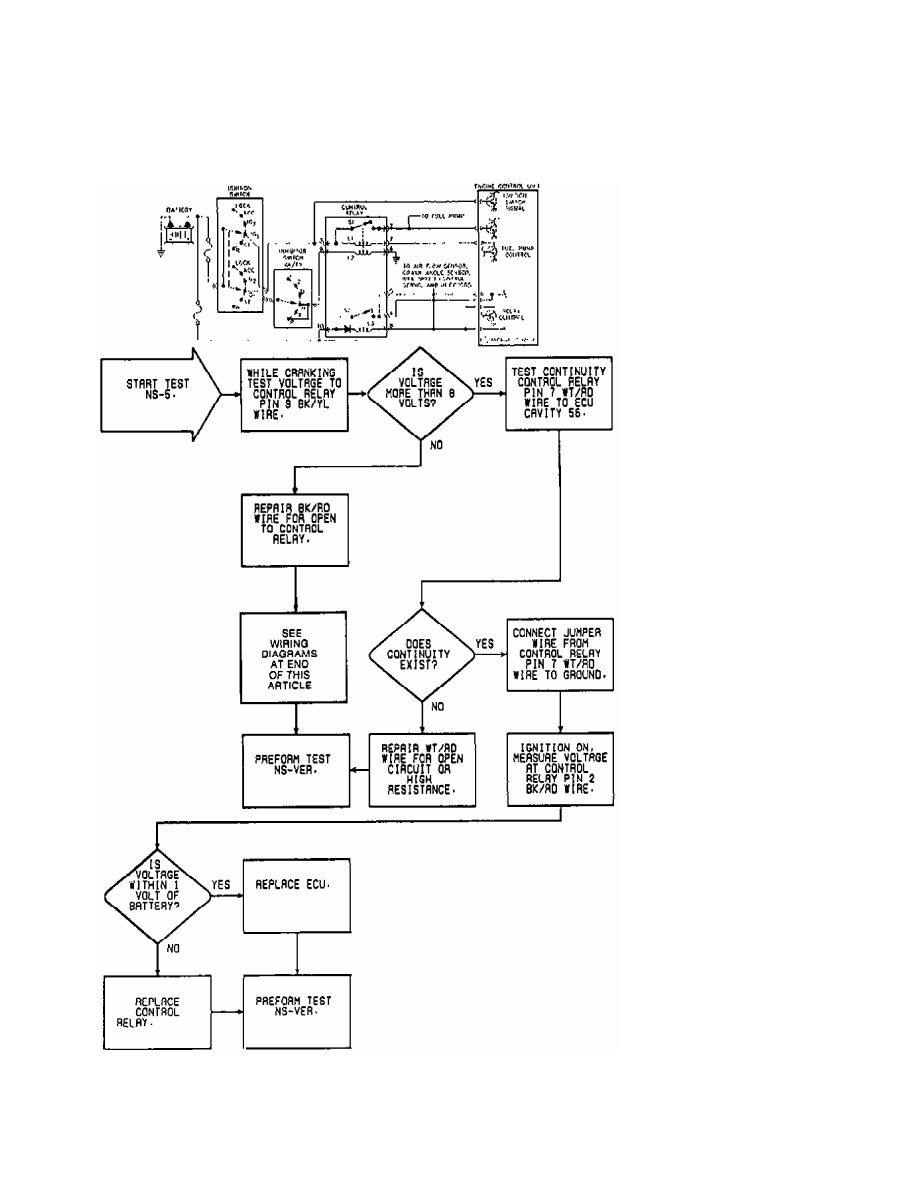

Fig. 246:  NS-5 Flow Chart & Circuit Diagram (2.0L)

         NS-VER: NO START VERIFICATION TEST - 2.0L

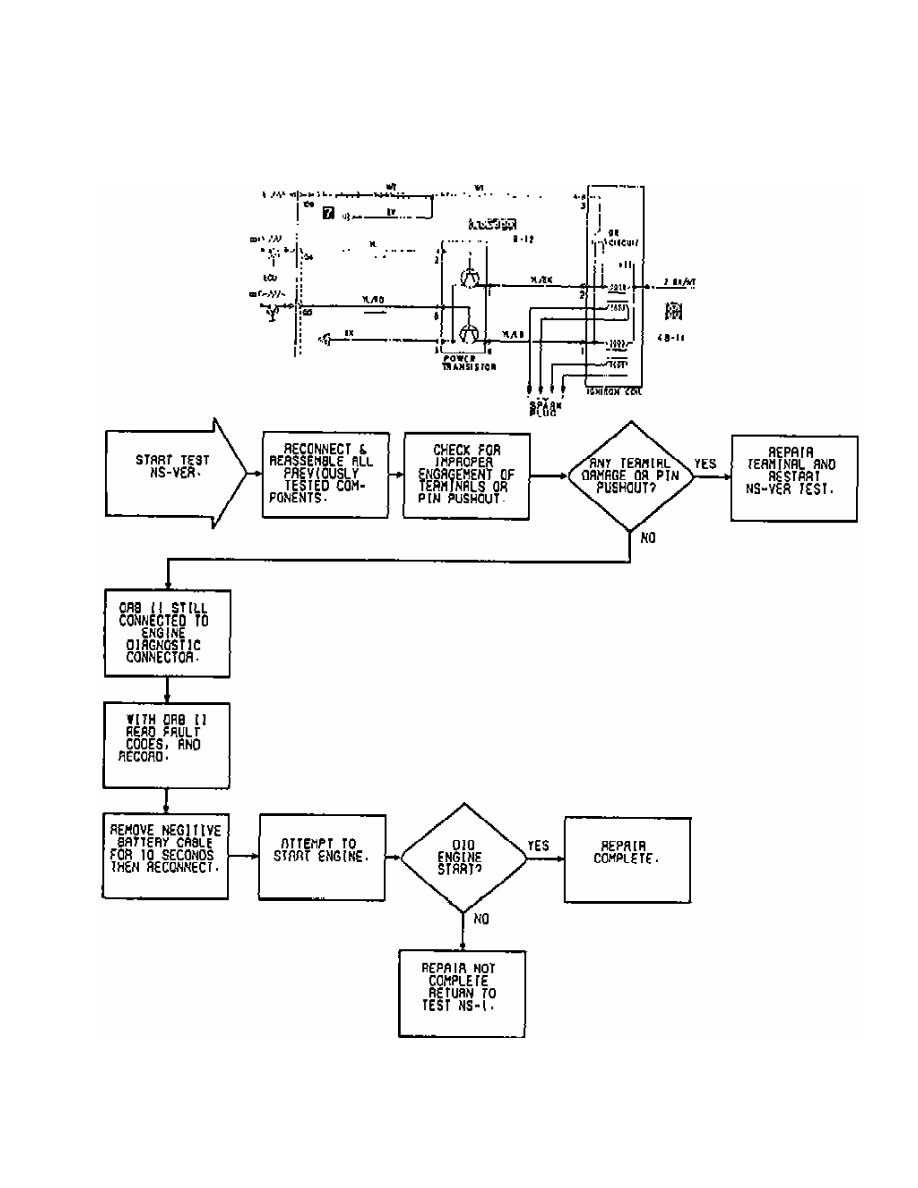

Fig. 247:  NS-VER Flow Chart & Circuit Diagram (2.0L)

         DR-1: FAULT CODE CHECK - 2.0L

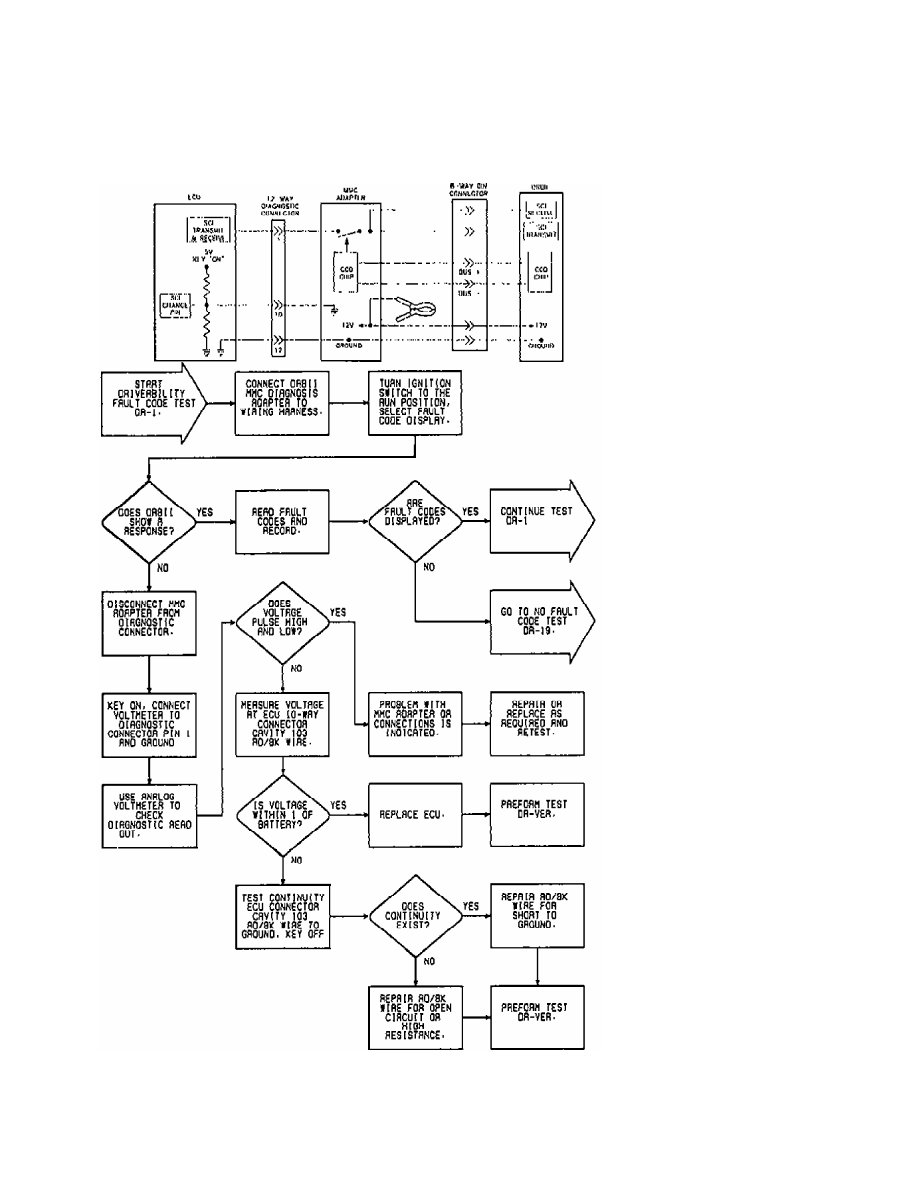

Fig. 248:  DR-1 Flow Chart & Circuit Diagram (2.0L) (1 of 3)
