Mitsubishi Montero (1991+). Manual - part 268

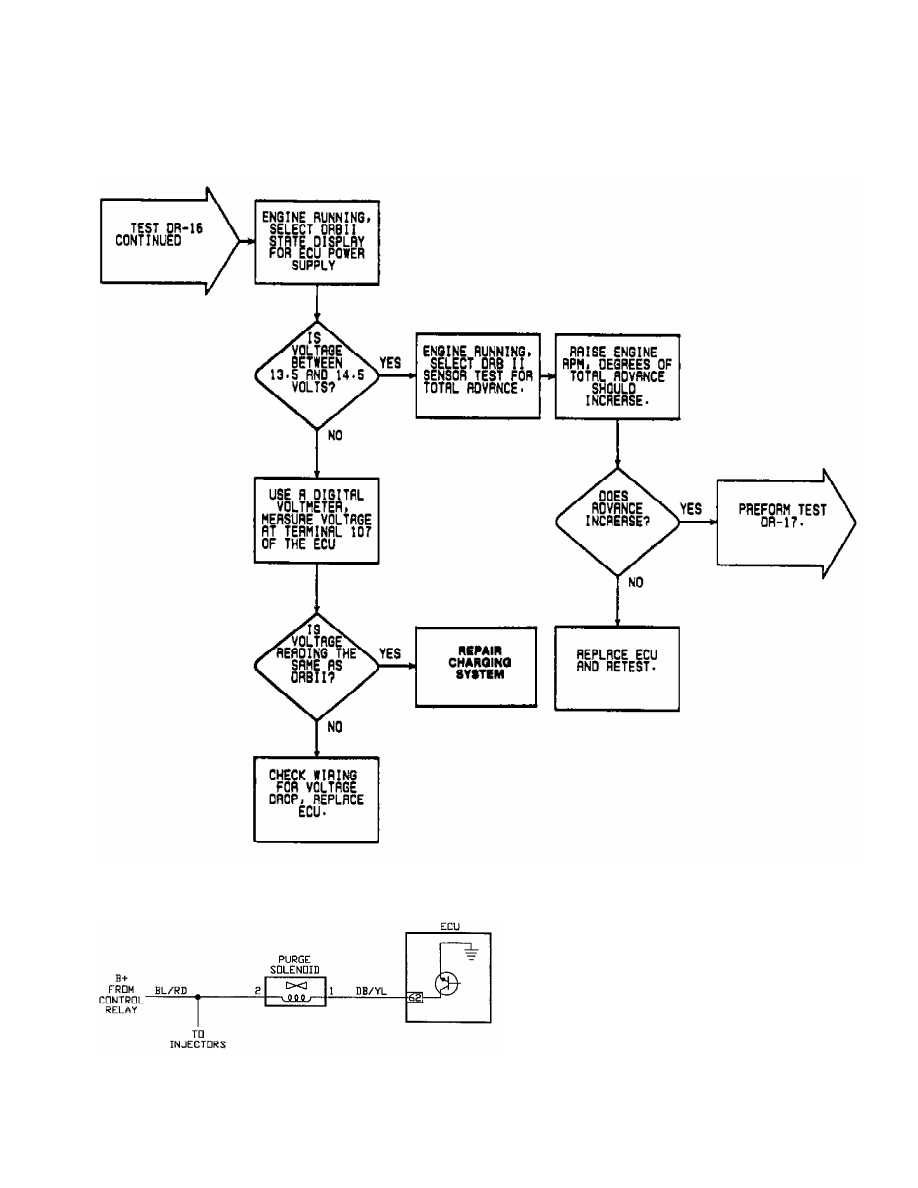

Fig. 232:  Flow Chart DR-16 (1.8L) (5 of 5)

         DR-17: PURGE SOLENOID - 1.8L

Fig. 233:  Circuit Diagram DR-17 (1.8L)

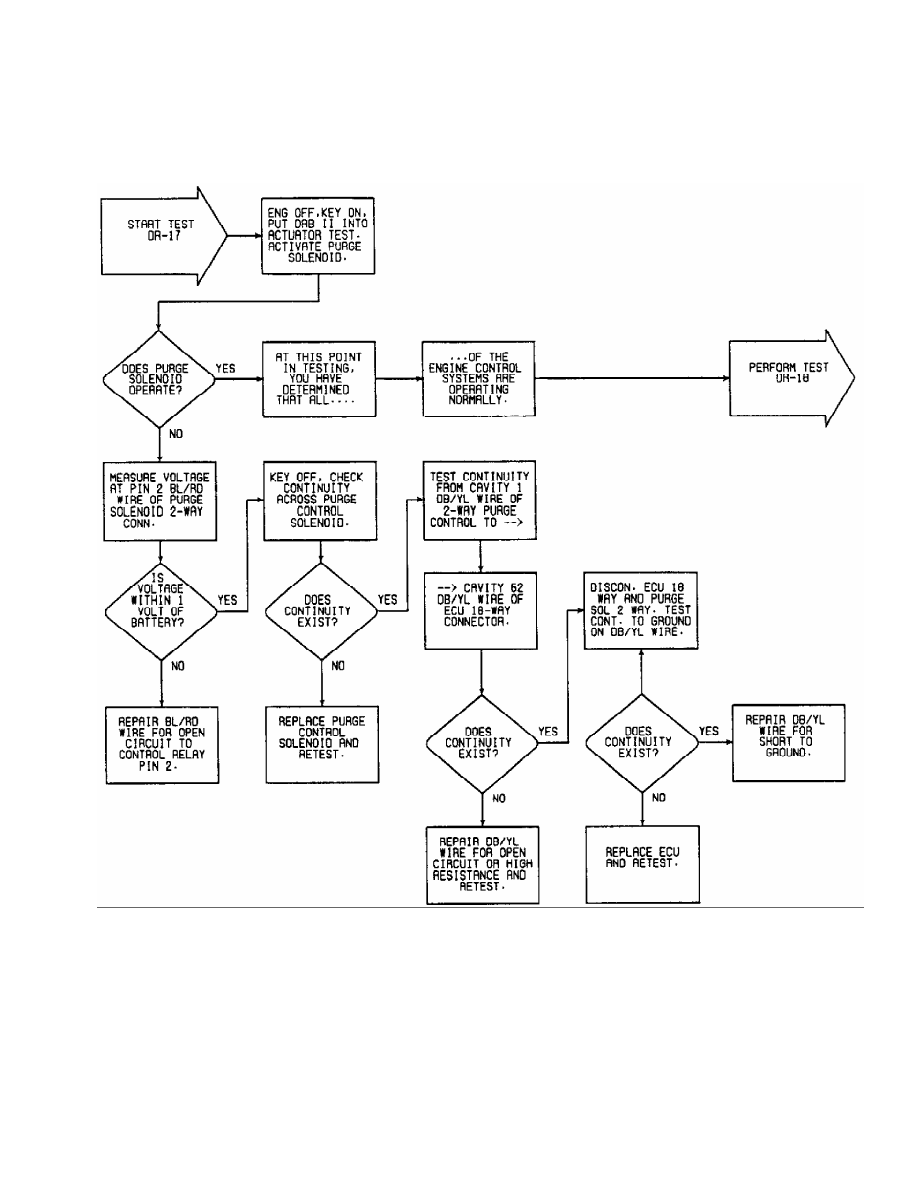

Fig. 234:  Flow Chart DR-17 (1.8L)

         DR-18: NO FAULT CODE MECHANICAL TEST - 1.8L

         At this point in the driveability test procedure, you have

determined that all of the engine control systems are operating as

they were designed to. Therefore, they are not the cause of the

driveability problem.

         The following additional items can not be overlooked as

possible causes of a driveability problem.

1.  THROTTLE VALVE AREA - Dirt or ice buildup causing rough idle and

    stalling.

2.  ENGINE IGNITION TIMING - Must be set with timing terminal

    grounded.

3.  ENGINE VACUUM - Must be normal for your altitude.

4.  ENGINE VALVE TIMING - To specifications.

5.  ENGINE COMPRESSION - To specifications.

6.  ENGINE P.C.V. SYSTEM - Must flow freely.

7.  ENGINE EXHAUST SYSTEM - Must be free of any restrictions.

8.  POWER BRAKE BOOSTER - No internal vacuum leaks.

9.  TORQUE CONVERTER CONDITION - May cause very low power at breakaway

    or high speed (Only 1 condition at a time).

10. FUEL CONTAMINATION - High alcohol or water content.

11. FUEL INJECTORS - Rough idle may be caused by injector wiring not

    connected to correct injector.

12. ENGINE SECONDARY IGNITION CHECK - Abnormal scope patterns.

13. TECHNICAL SERVICE BULLETINS - Any that apply to vehicle.

14. All air intake piping and vacuum hoses must be in place and

    secure.  The proper air filter element must be used.

15. FUEL PRESSURE - Must be correct.

    Specification: With no vacuum at the regulator:

    48 PSI on V6 & non-turbo 4 Cyl. engines

    36 PSI on turbo engines

         NS-1: IGNITION CHECK FLOW CHARTS - 2.0L

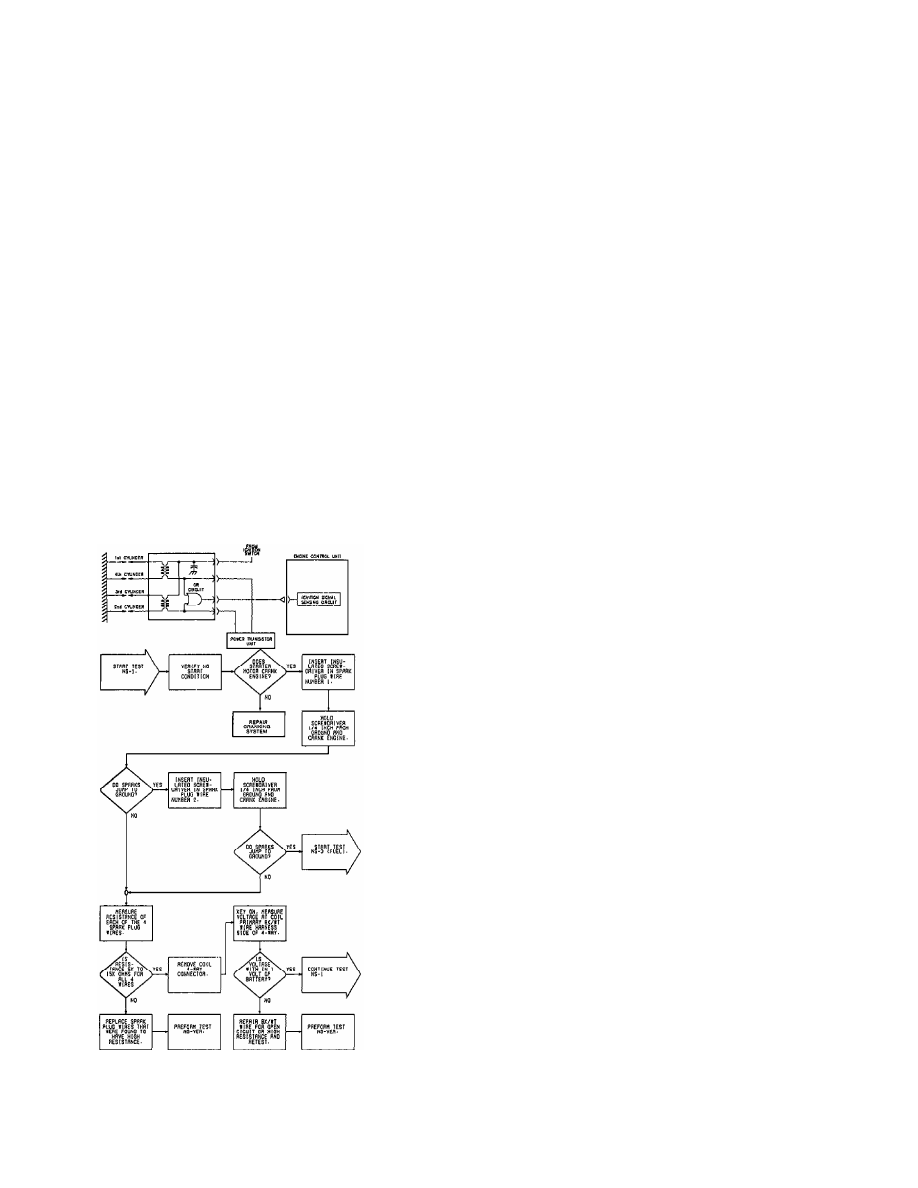

Fig. 235:  NS-1 Flow Chart & Circuit Diagram (2.0L) (1 of 5)

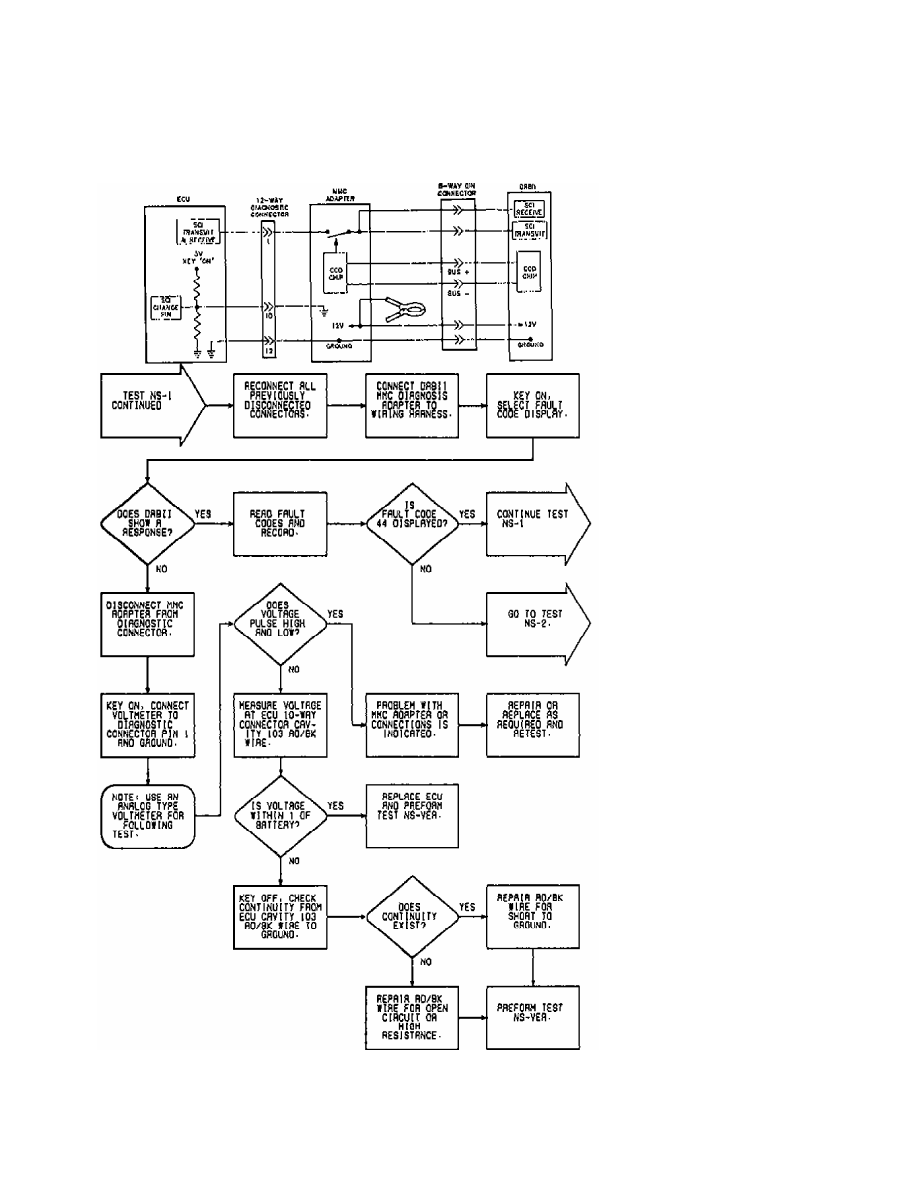

Fig. 236:  NS-1 Flow Chart & Circuit Diagram (2.0L) (2 of 5)
