Mitsubishi Montero (1991+). Manual - part 261

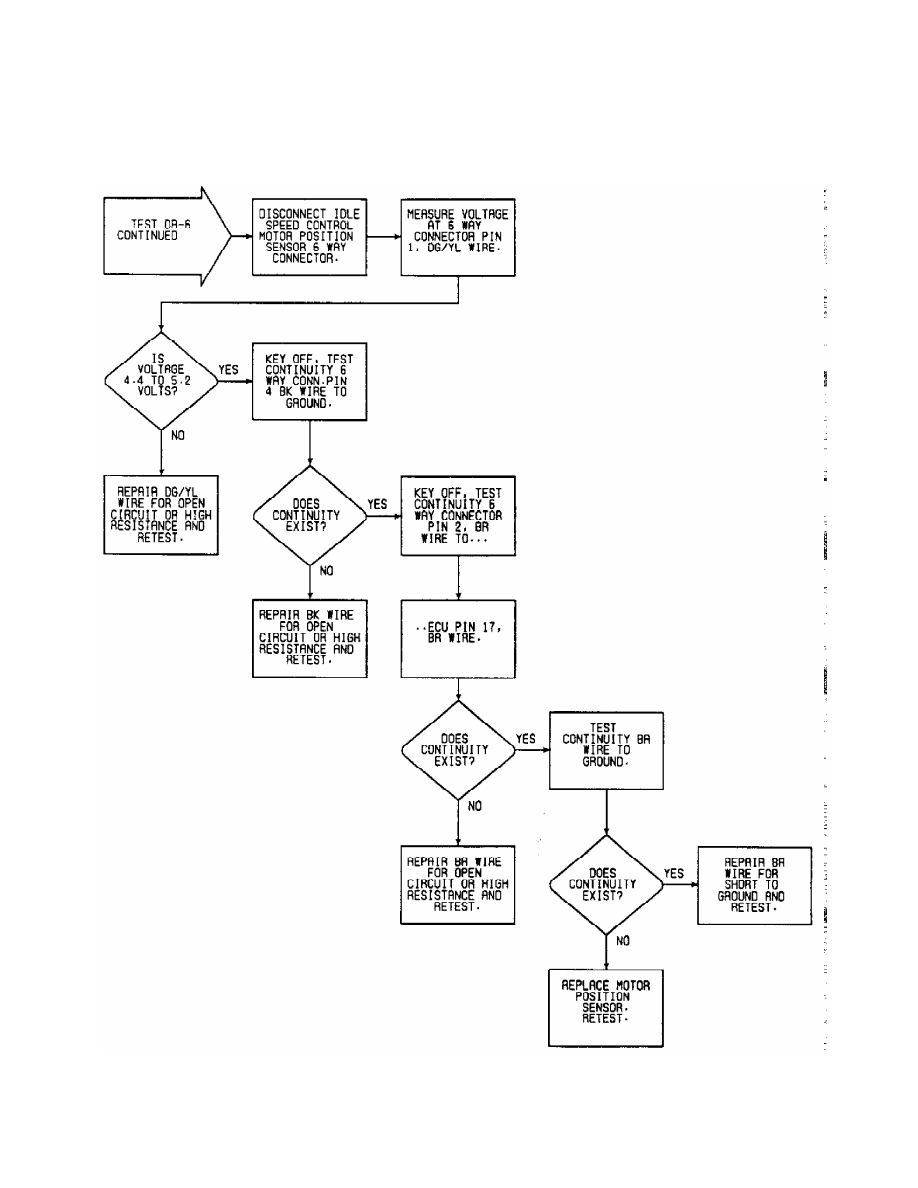

Fig. 200:  Flow Chart DR-6 (1.8L) (2 of 2)

         DR-7: CODE 21 COOLANT TEMP. SENSOR CIRCUIT - 1.8L

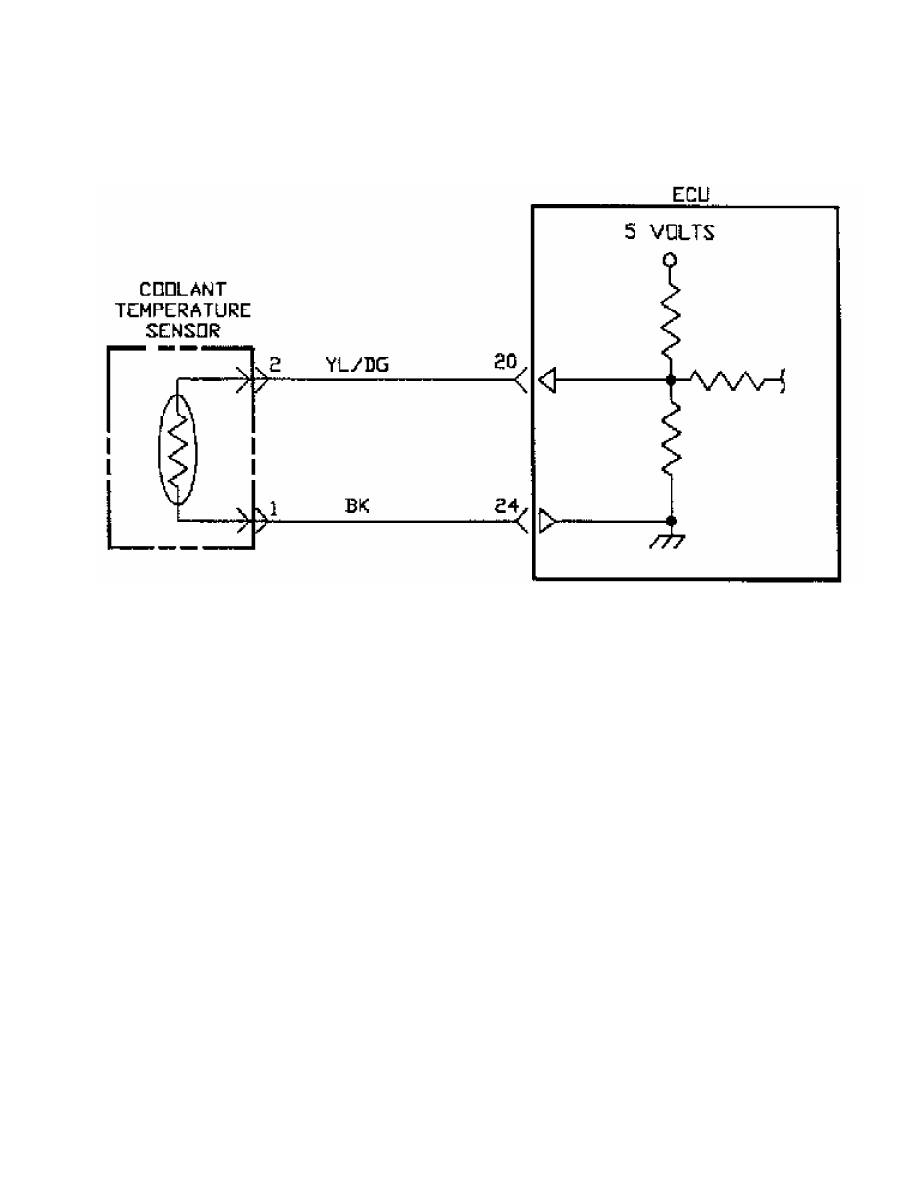

Fig. 201:  Circuit Diagram DR-7 (1.8L)

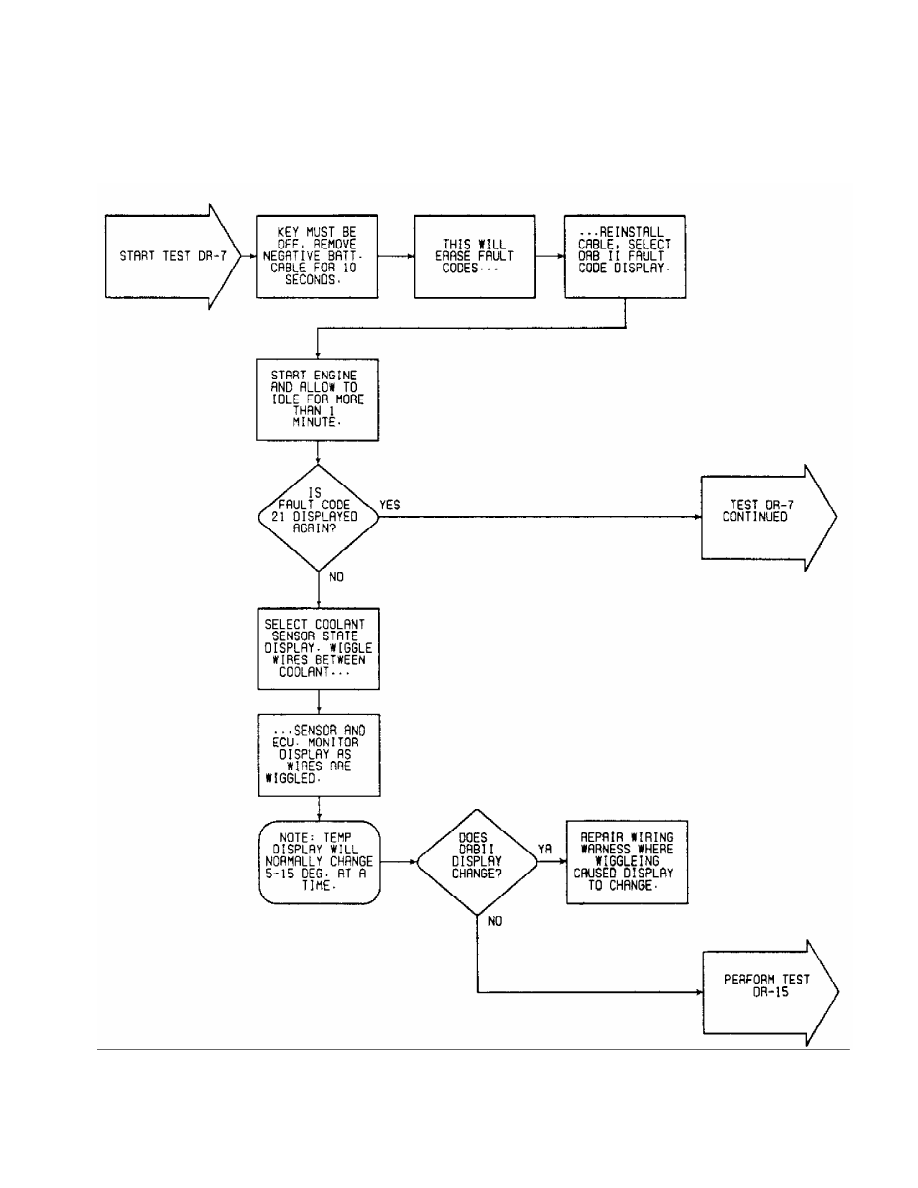

Fig. 202:  Flow Chart DR-7 (1.8L) (1 of 2)

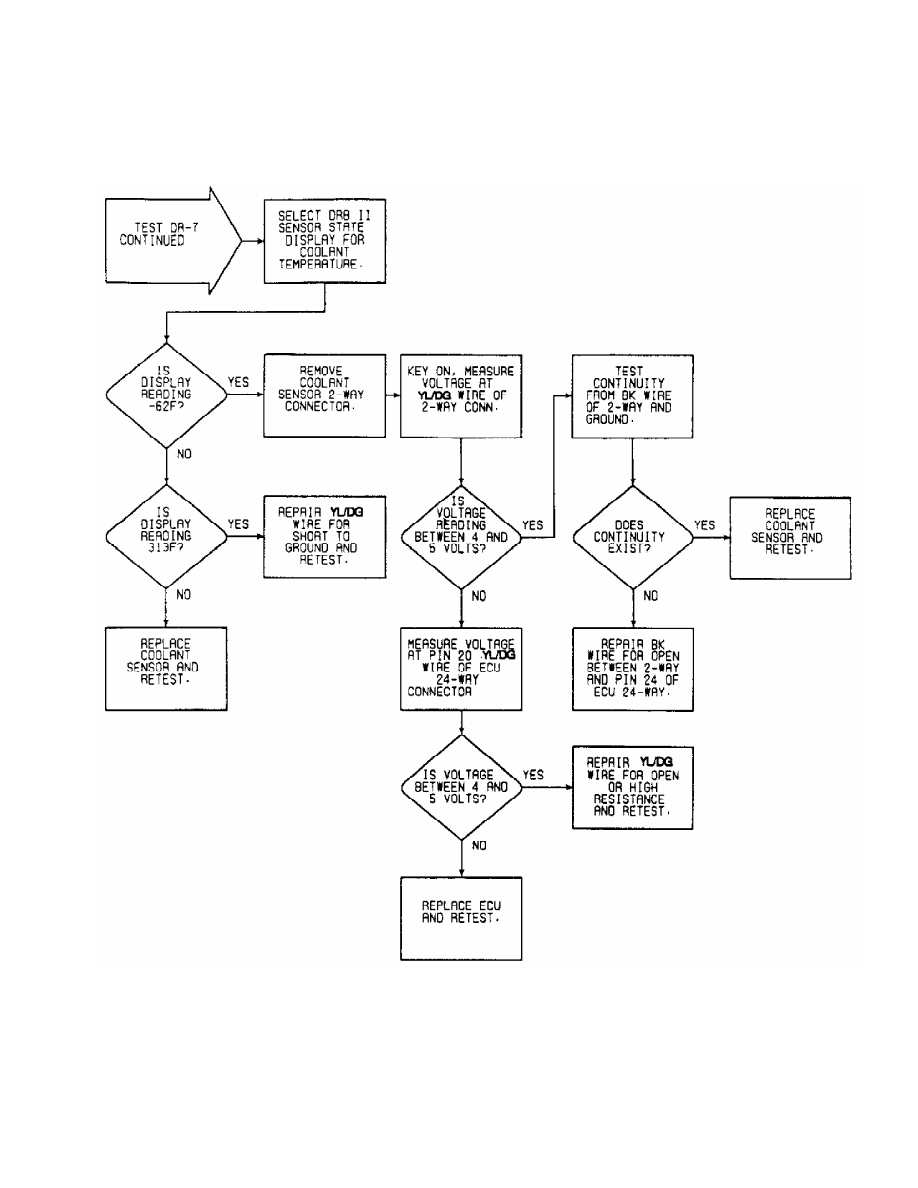

Fig. 203:  Flow Chart DR-7 (1.8L) (2 of 2)

         DR-8: TESTING DIAGNOSTIC CONNECTOR - 1.8L
