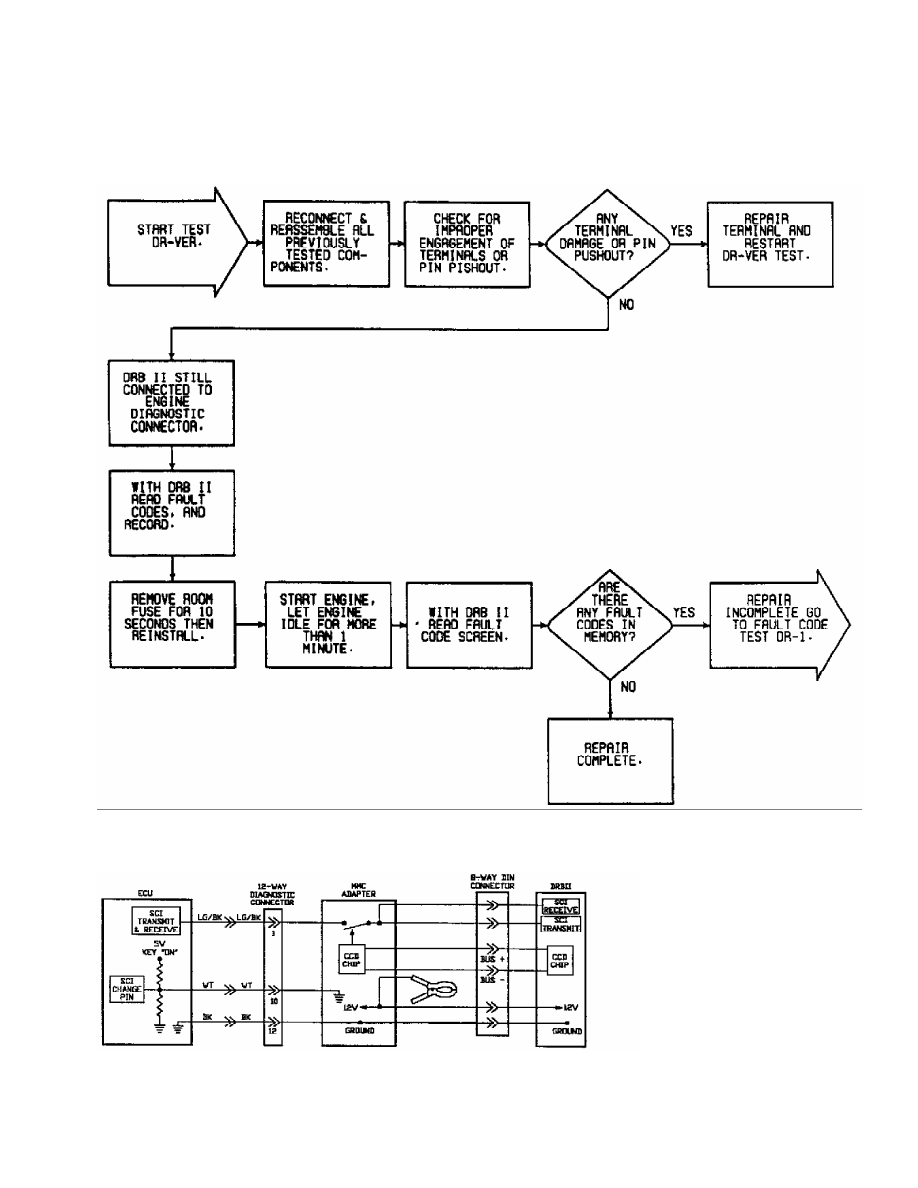

Fig. 169:  Flow Chart DR-VER (1.6L)

         NS-1: TESTING IGNITION CIRCUIT - 1.8L

Fig. 170:  Circuit Diagram NS-1 (1.8L)

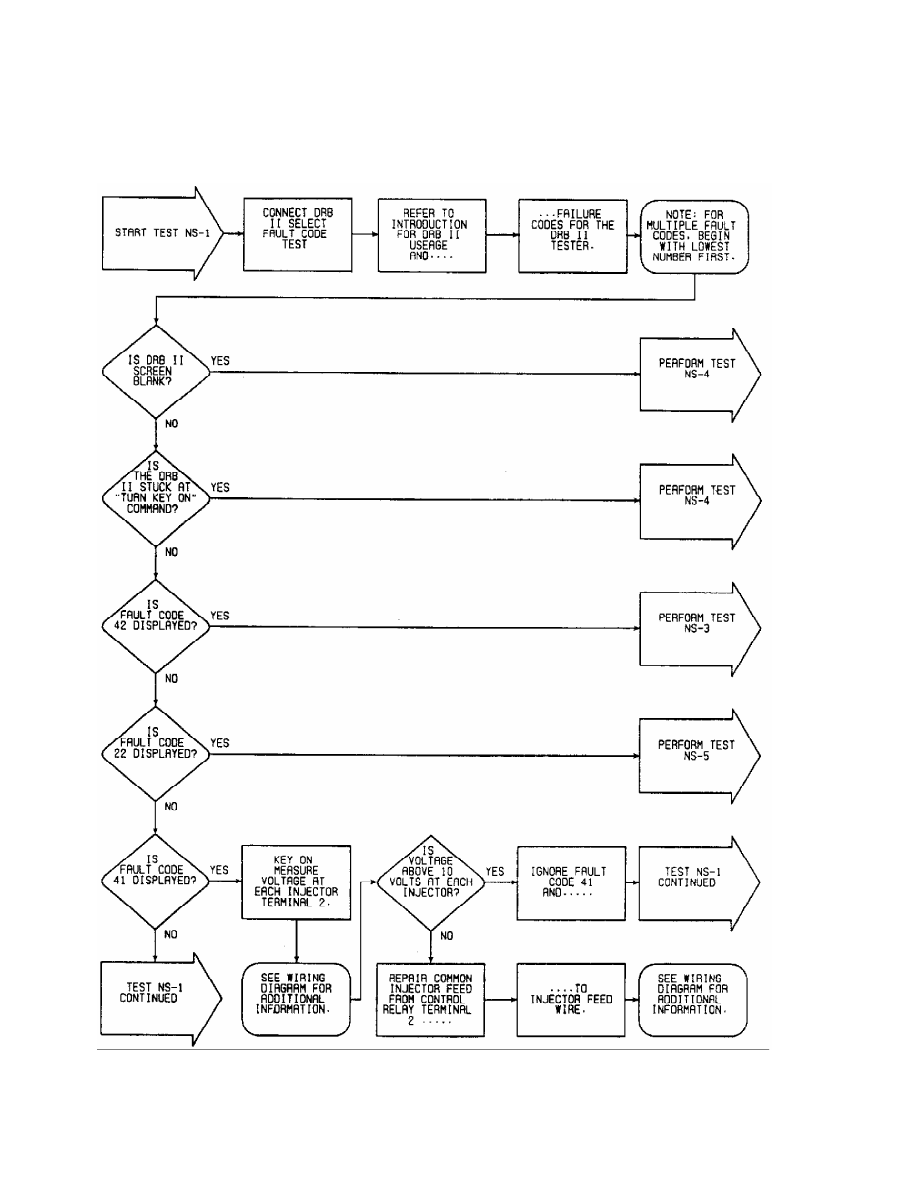

Fig. 171:  Flow Chart NS-1 (1.8L) (1 of 3)

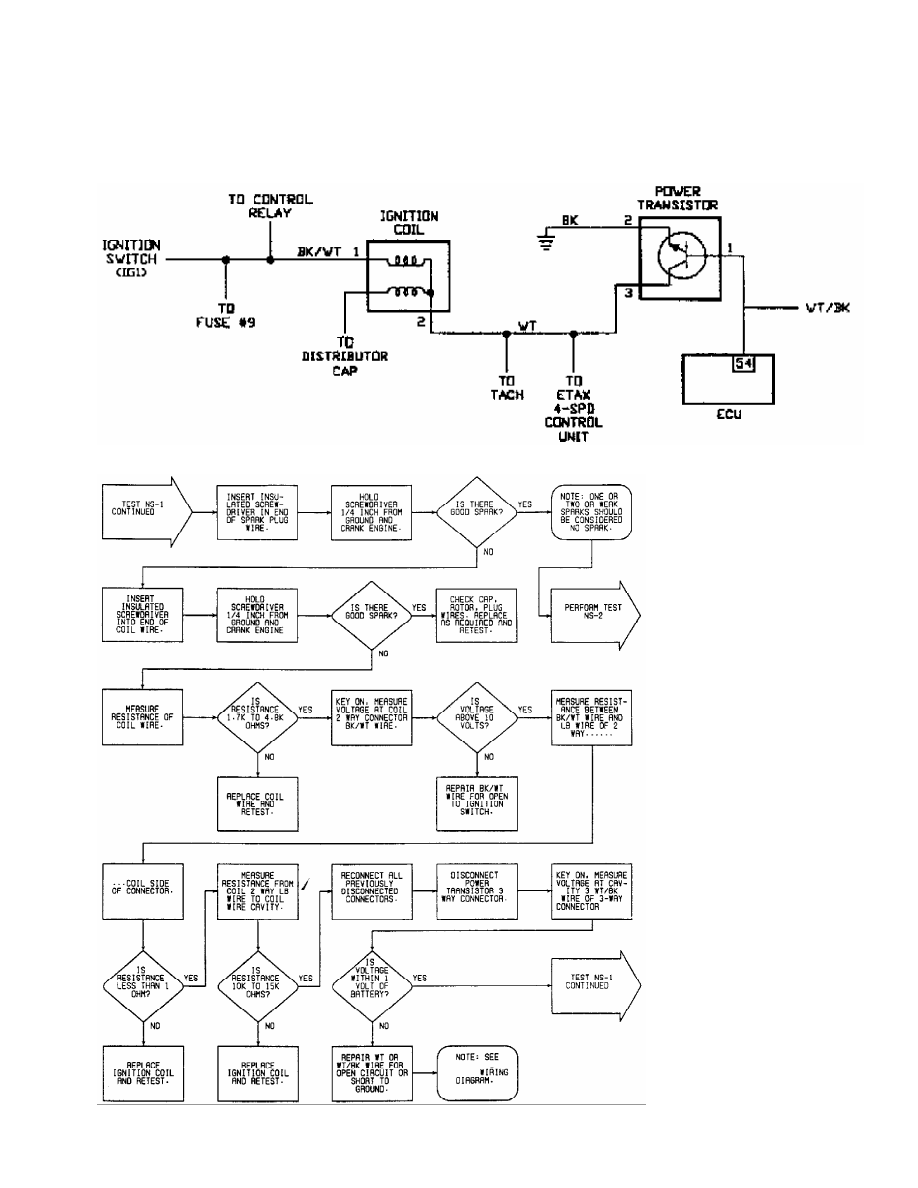

Fig. 172:  Circuit Diagram NS-1 (1.8L)

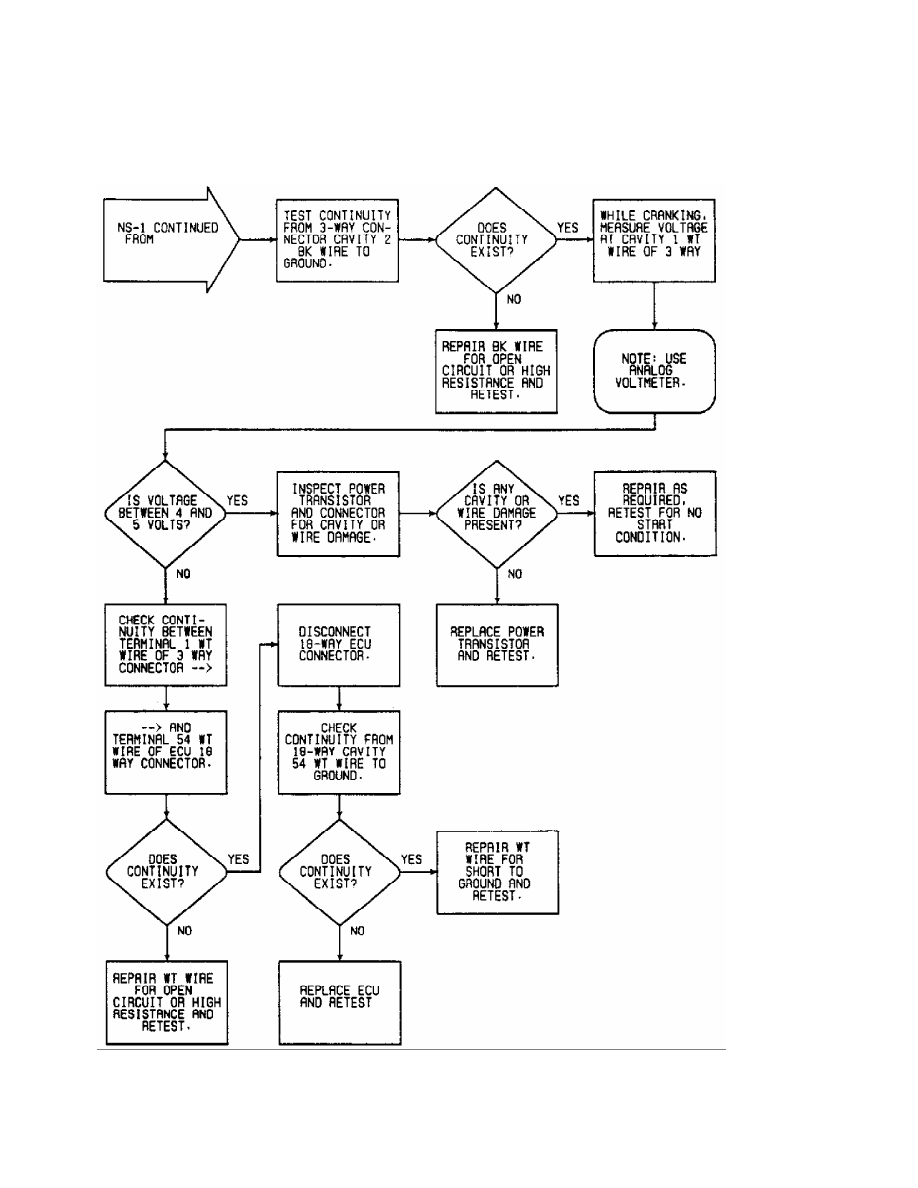

Fig. 173:  Flow Chart NS-1 (1.8L) (2 of 3)

Fig. 174:  Flow Chart NS-1 (1.8L) (3 of 3)

         NS-2: TESTING FOR FUEL - 1.8L
