         YOKES AND SLIP YOKES

YOKE AND SLIP YOKE INSPECTION



Condition                 Code                          Procedure

Bearing cap bore

 distorted  ..............  A  ..  Require repair or replacement.

Bent  ....................  A  ............  Require replacement.

Bolt holes elongated  ....  A  ..  Require repair or replacement.

Bushing or seal surface

 worn, affecting

 performance  ............  A  ..  Require repair or replacement.

Leaking through soft yoke

 plug  ...................  A  ...  Require repair or replacement

                                               of soft yoke plug.

Retainer strap bent  .....  A  ..........  Require replacement of

                                                  retainer strap.

Slip yoke broken  ........  A  ............  Require replacement.

Splines worn, affecting

 performance  ............  A  ............  Require replacement.

Splines worn close

 to the end of their

 useful life  ............  1  ............  Suggest replacement.

Threads damaged  .........  A  ..  Require repair or replacement.

Threads stripped (threads

 missing)  ...............  A  ............  Require replacement.

U-bolt damaged, affecting

 performance  ............  A  .............  Require replacement

                                                      of U-bolts.

Yoke damaged, affecting

 performance  ............  A  ..  Require repair or replacement.



P - EGR FUNCTION TESTING



1991 Mitsubishi Montero

         1989-95 ENGINE PERFORMANCE

         Chrysler Motors/Mitsubishi Corp. EGR Function Testing

         All Models

         EGR FUNCTION TESTING

         Colt Wagon 1.8L, Montero (A/T), Raider (A/T), Sigma,

         Van/Wagon & All Other Federal Models (Ported EGR Valve)

         1) Disconnect Green-striped hose from throttle body and

connect a vacuum pump to hose end. Plug nipple where hose was

connected to throttle body. With engine temperature 122 F (50 C) or

less, and engine idling, apply vacuum to hose. If idle does not change

and vacuum leaks down, system is functioning properly.

         2) With engine temperature 176-205 F (80-95 C) and engine

idling, apply 2 in. Hg to hose. If idle does not change, and vacuum

holds, system is functioning properly.

         3) Apply 7.7 in. Hg. If vacuum holds and idle becomes

unstable or engine stalls, EGR system is functioning properly.

         Montero (M/T), Raider (M/T) & All Other California

         Models (Ported EGR Valve)

         1) Connect a vacuum tee into Green-striped hose from EGR

valve and connect a vacuum pump to vacuum tee. With engine temperature

68 F (20 C) or less and engine idling, snap throttle opened and

closed. If no change in vacuum reading on vacuum pump gauge is

detected, system is functioning properly.

         2) With engine temperature 158 F (70 C) or higher and engine

idling, snap throttle open to race engine. If vacuum is now indicated

on vacuum pump gauge, system is functioning properly.

         3) Using a vacuum pump, apply specified vacuum to open EGR

valve. See appropriate EGR VALVE SPECIFICATIONS table. If idle becomes

unstable or engine stalls, EGR system is functioning properly.

EGR VALVE SPECIFICATIONS TABLE (1989 Models)



Application                     Closed                  Open

                                In. Hg                In. Hg

Colt, Colt Wagon,

 Mirage  .......................  1.8  ................  7.7

Colt Vista  ....................  2.1  ................  6.8

Galant, Sigma  .................  1.7  ................  7.5

Montero, Raider,

 Van/Wagon  ....................  1.9  ................  6.7



EGR VALVE SPECIFICATIONS TABLE (1990 Models)



Application                     Closed                  Open

                                In. Hg                In. Hg

Colt, Colt 200, Mirage

 & Colt Wagon  .................  1.8  ................  7.7

Colt Vista  ....................  2.1  ................  6.8

Eclipse  .......................  1.8  ................  8.5

Galant  ........................  1.7  ................  7.5

Pickup, Ram-50  ................  1.2  ................  9.4

Precis  ........................  1.0  ................  3.3

Sigma  .........................  1.6  ................  8.7

Van/Wagon  .....................  1.9  ................  6.7



EGR VALVE SPECIFICATIONS TABLE (1991 Models)



Application                     Closed                  Open

                                In. Hg                In. Hg

Colt, Colt 200,

  Colt Vista,

   Mirage & Summit  ............  2.1  ................  6.8

Eclipse  .......................  1.8  ................  8.5

Galant  ........................  1.7  ................  7.5

Montero  .......................  2.4  ................  6.7

Pickup, Ram-50  ................  1.2  ................  9.4

Precis  ........................  1.0  ................  3.3

Stealth & 3000GT  ..............  1.8  ................  9.1



EGR VALVE SPECIFICATIONS TABLE (1992-94 Models)



Application                     Closed                  Open

                                In. Hg                In. Hg

Colt, Colt 200,

  Mirage & Summit  .............  2.1  ................  6.8

Diamante, Stealth & 3000GT  ....  1.8  ................  9.1

Eclipse  .......................  1.8  ................  8.5

Expo, Summit Wagon &

 Vista Wagon  ..................  1.6  ................  7.9

Galant  ........................  1.7  ................  7.5

Montero  .......................  2.4  ................  6.7

Pickup, Ram-50  ................  1.2  ................  9.4

Precis  ........................  1.0  ................  3.3



ELECTRICAL COMPONENT LOCATOR



1991 Mitsubishi Montero

         1991 CHRYSLER MOTORS & MITSUBISHI

         ELECTRICAL COMPONENTS

         Montero

         BUZZERS, RELAYS & TIMERS



Component                               Component Location



A/C Relay                               Behind right side of dash, on

                                        evaporator case.

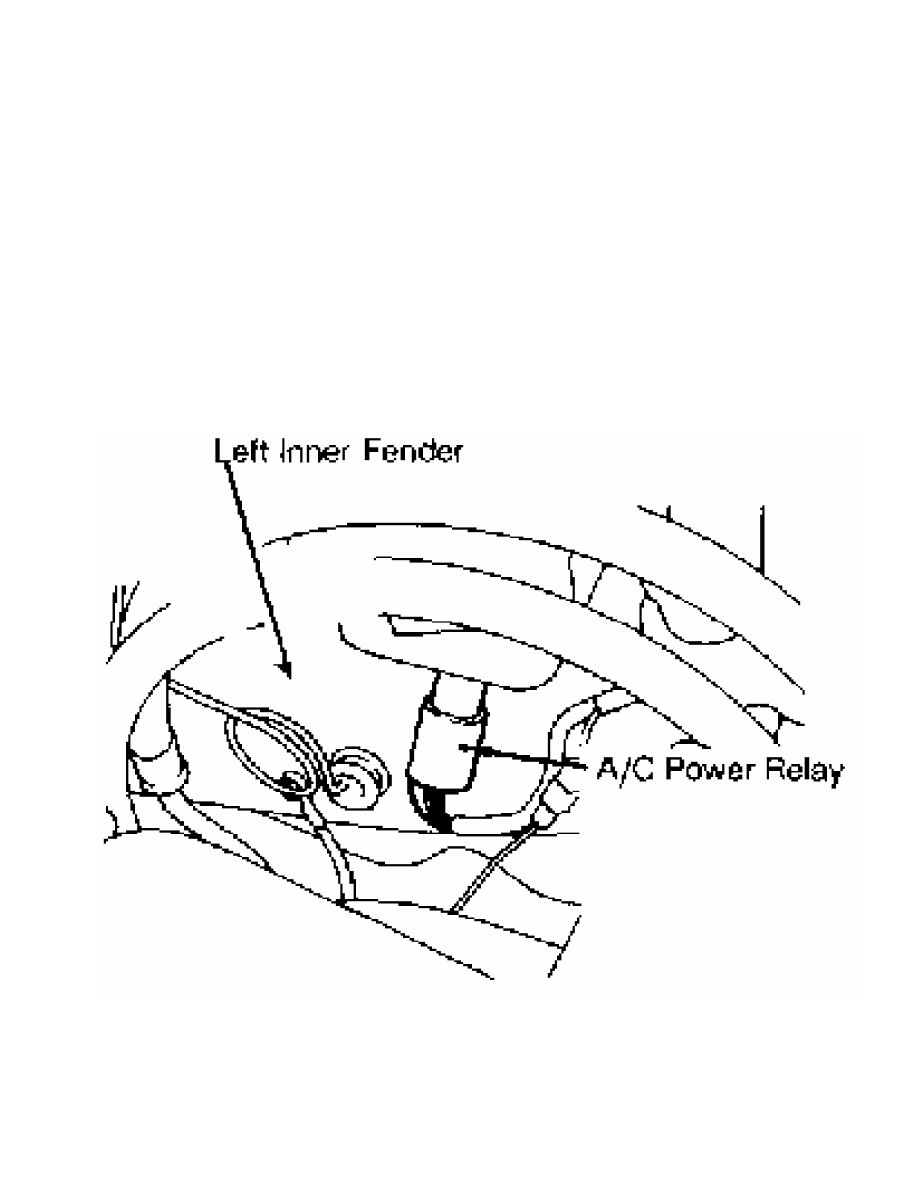

A/C Power Relay                         On left front inner fender

                                        panel.
