         1) Disconnect power transistor connectors. Using a DVOM,

connect positive ohmmeter lead to terminal No. 2 and negative lead to

terminal No. 7. See Fig. 7. Ensure there is no continuity.

         2) Using a 1.5-volt dry cell battery, connect positive end of

1.5-volt battery to power transistor terminal No. 8 and negative end

to terminal No. 7. DVOM should now read continuity at power transistor

terminals No. 2 and No. 7. Replace power transistor if it does not

test as described.

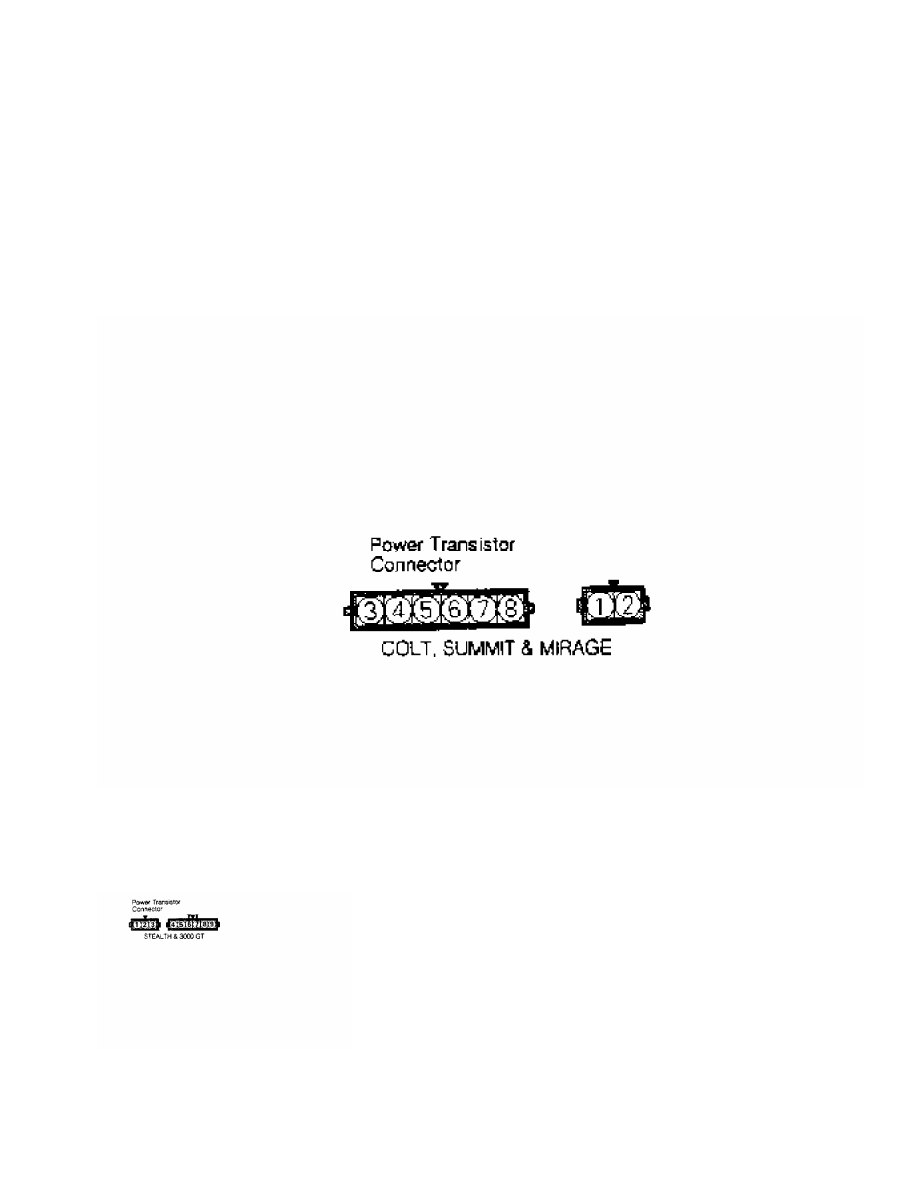

Fig. 7:  Power Transistor Connector ID (Colt, Summit & Mirage)

Courtesy of Mitsubishi Motor Sales of America.

         Power Transistor (Stealth & 3000GT)

         When testing power transistor, refer to POWER TRANSISTOR

TESTING (STEALTH & 3000GT) table.

Fig. 8:  Power Transistor Connector ID (Stealth & 3000GT)

Courtesy of Mitsubishi Motor Sales of America.

POWER TRANSISTOR TESTING TABLE (STEALTH & 3000GT)  (1)



                     (2) Analog Ohmmeter        (2) With 1.5 V Battery

Cylinders             Connected Between              Connected Between

Tested          Terminals (No 1.5 V Battery)                 Terminals

1 & 4  .........  3 & 7    No Continuity  .......  6 & 7    Continuity

2 & 5  .........  2 & 7    No Continuity  .......  5 & 7    Continuity

3 & 6  .........  1 & 7    No Continuity  .......  4 & 7    Continuity

(1) - All tests performed with power transistor disconnected. Replace

      power transistor if it does not test as described.

(2) - See Fig. 8 for terminal identification.



         MAGNETIC & OPTICAL IGNITION

         Ignition Coil Resistance

         1) Using a DVOM, measure primary coil resistance between

positive and negative terminals of coil. See  Fig. 9. For ignition coil

terminal identification See Fig. 11 - 13.

         2) Measure secondary coil resistance between coil positive

terminal and ignition coil tower. See Fig. 10.

         3) Primary and secondary coil resistance should be within

specification. See IGNITION COIL RESISTANCE table.

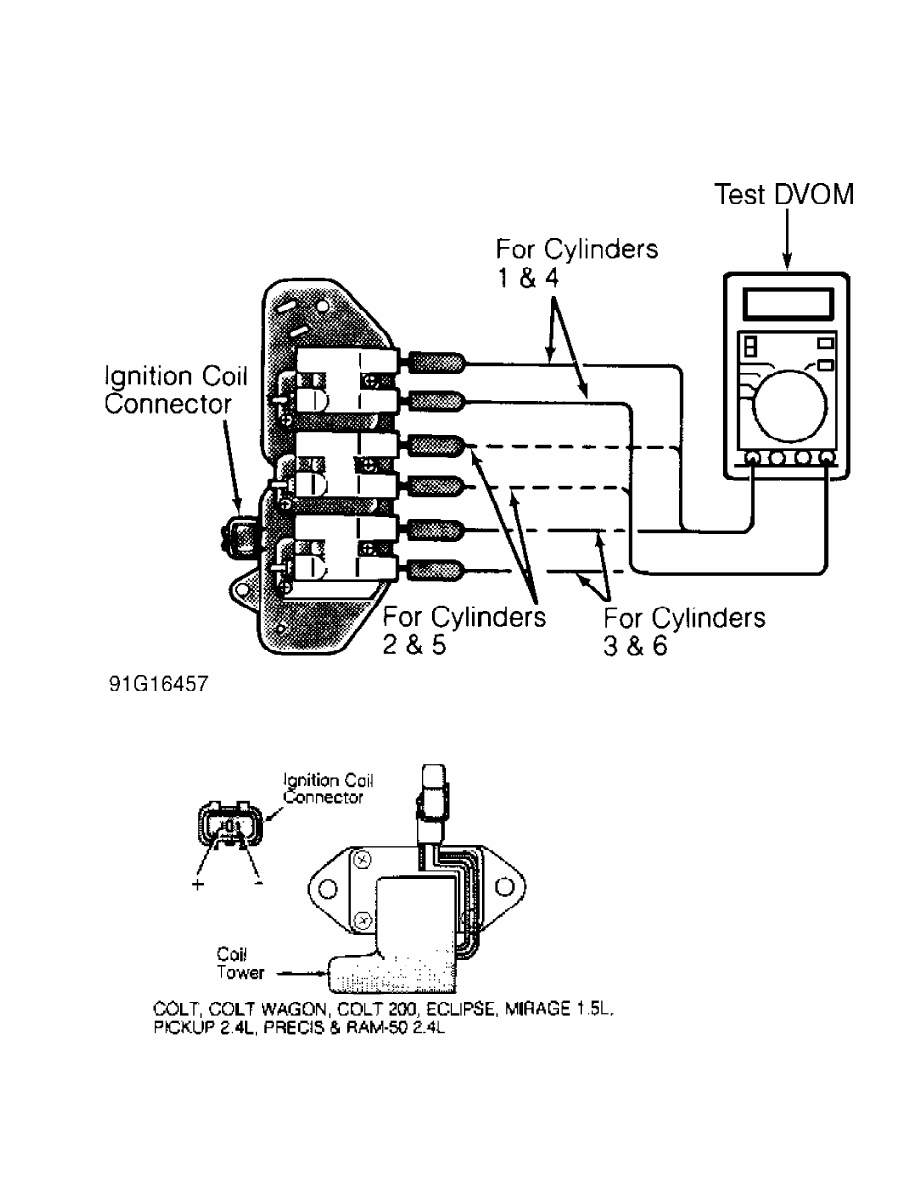

Fig. 9:  Testing Ignition Coil Primary Resistance (6-Cylinder)

Courtesy of Mitsubishi Motor Sales of America.

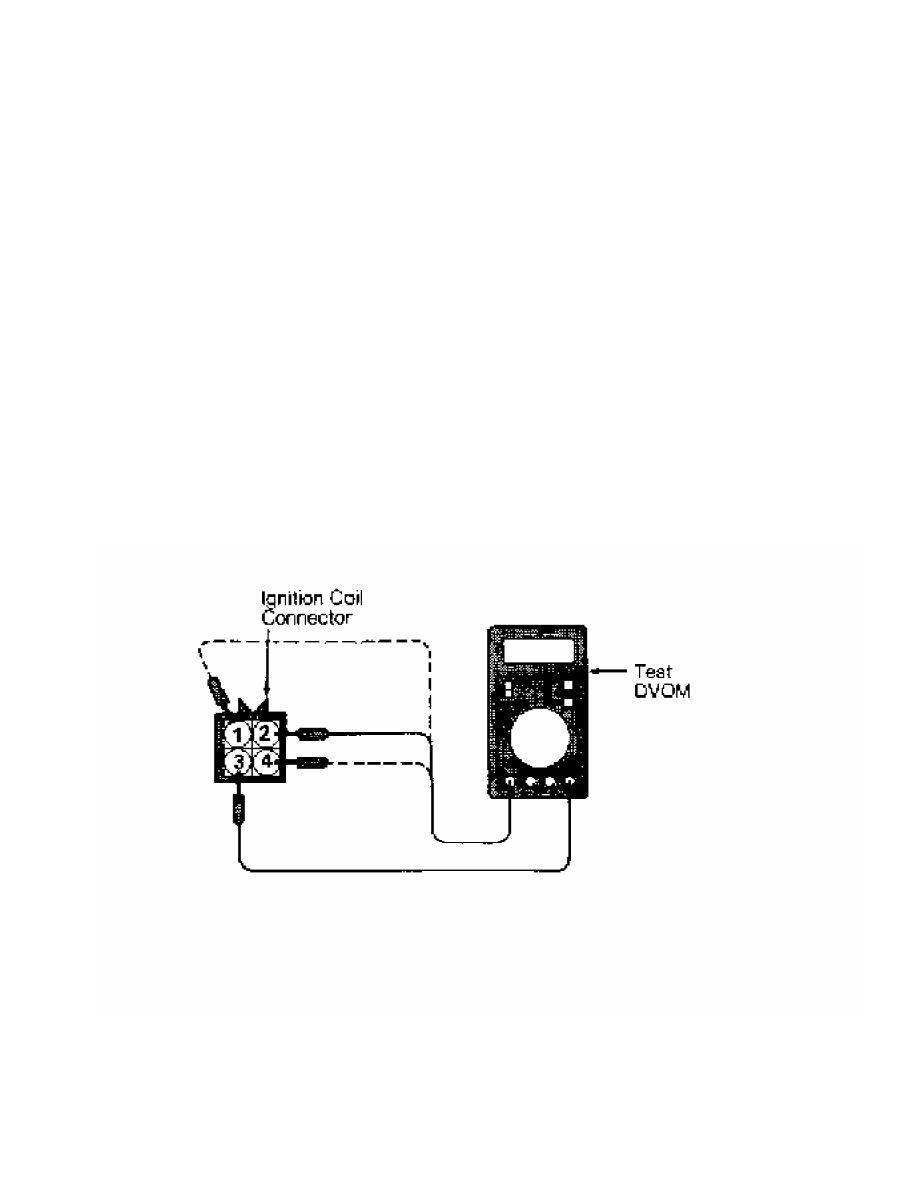

Fig. 10:  Testing Ignition Coil Secondary Resistance (6-Cylinder)

Courtesy of Mitsubishi Motor Sales of America.

Fig. 11:  Ign Coil Term ID (Colt, Eclipse, Mirage 1.5L, P/U & Ram 50

2.4L)

Courtesy of Mitsubishi Motor Sales of America.

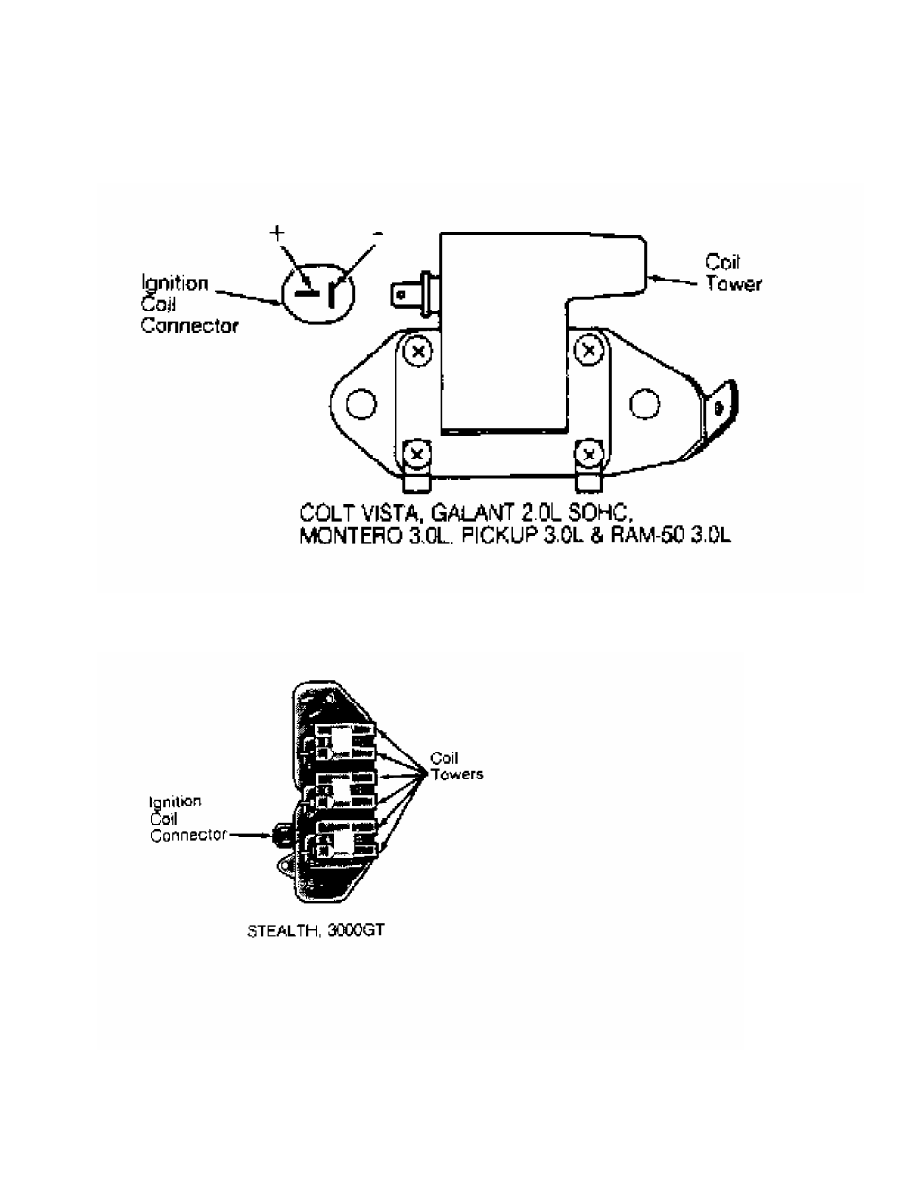

Fig. 12:  Ign Coil Term ID (Colt Vista, Galant 2.0L SOHC & Montero,

P/U & Ram 50 3.0L)

Courtesy of Mitsubishi Motor Sales of America.

Fig. 13:  Ignition Coil Terminal ID (Stealth & 3000GT)

Courtesy of Mitsubishi Motor Sales of America.

IGNITION COIL RESISTANCE TABLE - Ohms @ 68



F (20



C)
