MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-665

Step 17    .

STEP 17. Perform the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern (Refer to

Diagnostic Function

− OBD-ll Drive Cycle − Procedure 1 −

Evaporative Emission System Leak Monitor

P.13A-5

).

(2) Read the diagnostic trouble code (DTC).
Q: Is DTC P0451 set?

YES : Repeat the troubleshooting from Step 2.
NO :  The procedure is complete.

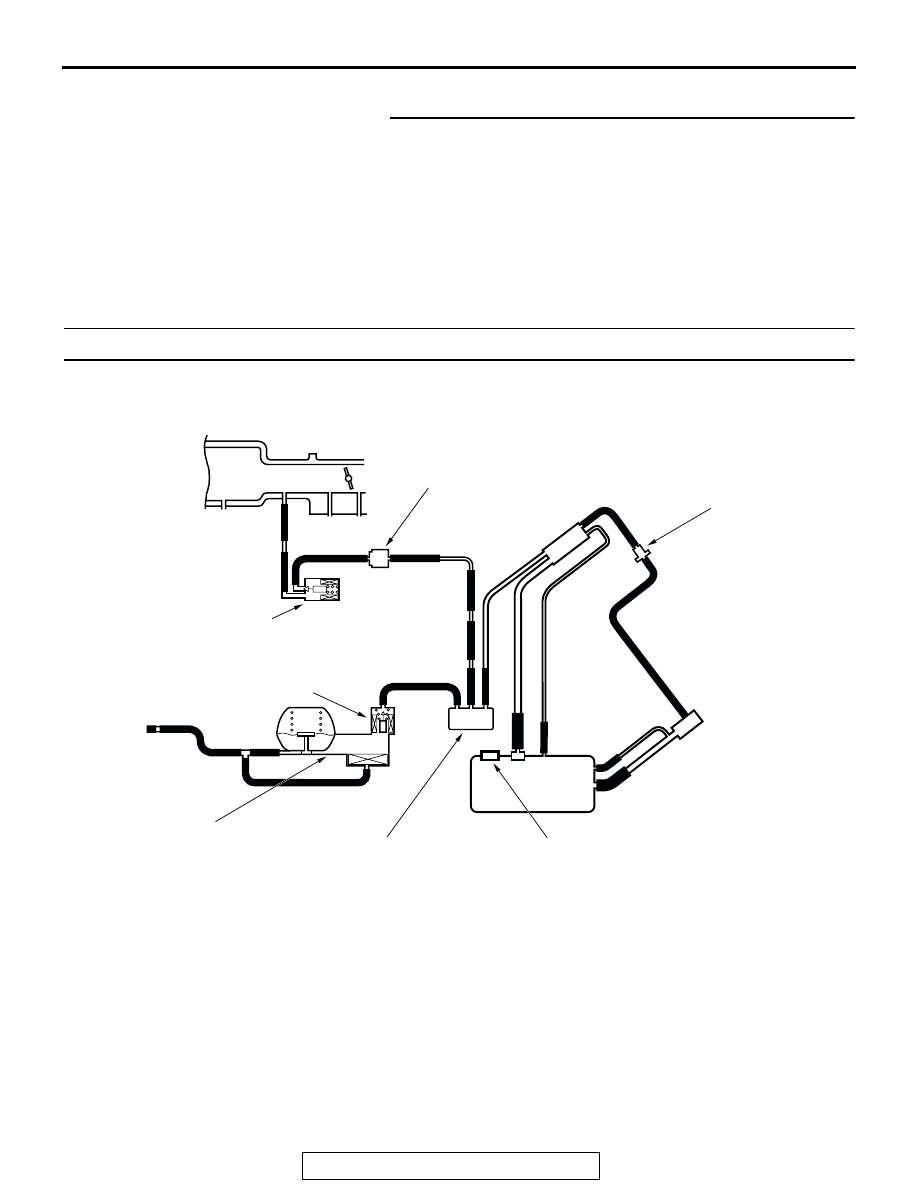

DTC P0452: Evaporative Emission System Pressure Sensor Low Input

AC306277

A

B

C

D

E

F

G

H

P

Q

R

O

N

M

I

J

K

L

AC

INTAKE MANIFOLD

FUEL TANK

EVAPORATIVE EMISSION
VENTILATION SOLENOID

CHECK VALVE

EVAPORATIVE EMISSION
PURGE SOLENOID

EVAPORATIVE
EMISSION CANISTER

ONBOARD REFUELING
VAPOR RECOVERY(ORVR)
VENT VALVE MODULE

FUEL TANK DIFFERENTIAL
PRESSURE SENSOR

SYSTEM DIAGRAM

CHAMBER

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-666

FUEL TANK
DIFFERENTIAL
PRESSURE
SENSOR

POWERTRAIN
CONTROL
MODULE

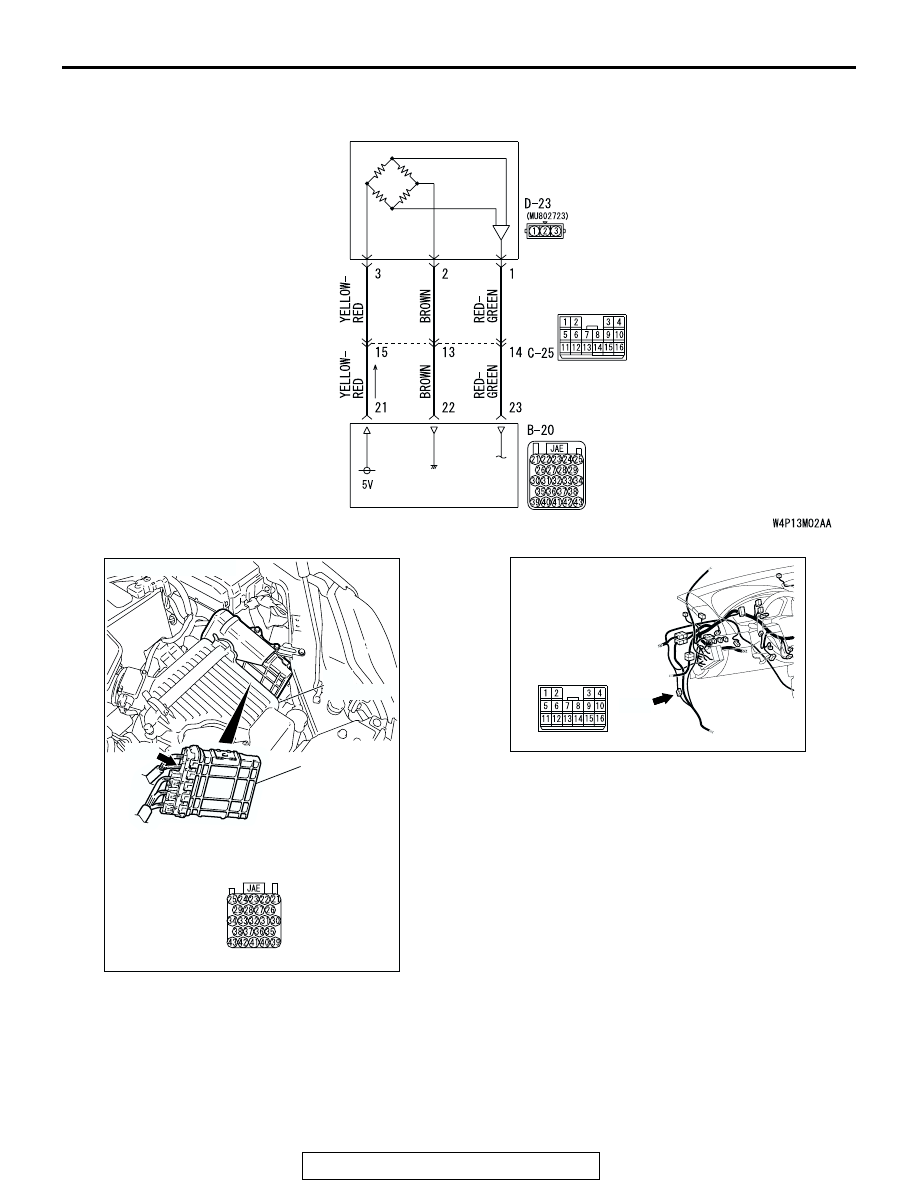

Fuel Tank Differential Pressure Sensor Circuit

AC306128

AC306248

B-20 HARNESS

CONNECTOR:

COMPONENT SIDE

AB

B-20

CONNECTOR: B-20

PCM

AIR
CLEANER

AC305231

CONNECTOR: C-25

AM

C-25

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-667

.

CIRCUIT OPERATION

• The PCM (terminal 21) supplies a 5-volt refer-

ence signal to the fuel tank differential pressure
sensor (terminal 3). The fuel tank differential
pressure sensor (terminal 2) is grounded through
the PCM (terminal 22).

• The fuel tank differential pressure sensor (termi-

nal 1) returns a voltage signal to the PCM (termi-
nal 23) that is proportional to the pressure in the
fuel tank.

.

TECHNICAL DESCRIPTION

• The PCM monitors the fuel tank differential pres-

sure sensor output voltage.

• The PCM determines whether the fuel tank differ-

ential pressure sensor signal voltage is within
normal operating parameters.

.

DESCRIPTIONS OF MONITOR METHODS

• Compare purge solenoid status with fuel tank dif-

ferential pressure sensor output voltage.

.

MONITOR EXECUTION

• Continuous.

.

MONITOR EXECUTION CONDITIONS (Other
Monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Evaporative emission purge solenoid monitor

• Evaporative emission ventilation solenoid monitor

 Sensor (The sensors below are determined to be

normal)

• Mass airflow sensor

• Barometric pressure sensor

• Intake air temperature sensor

• Engine coolant temperature sensor

.

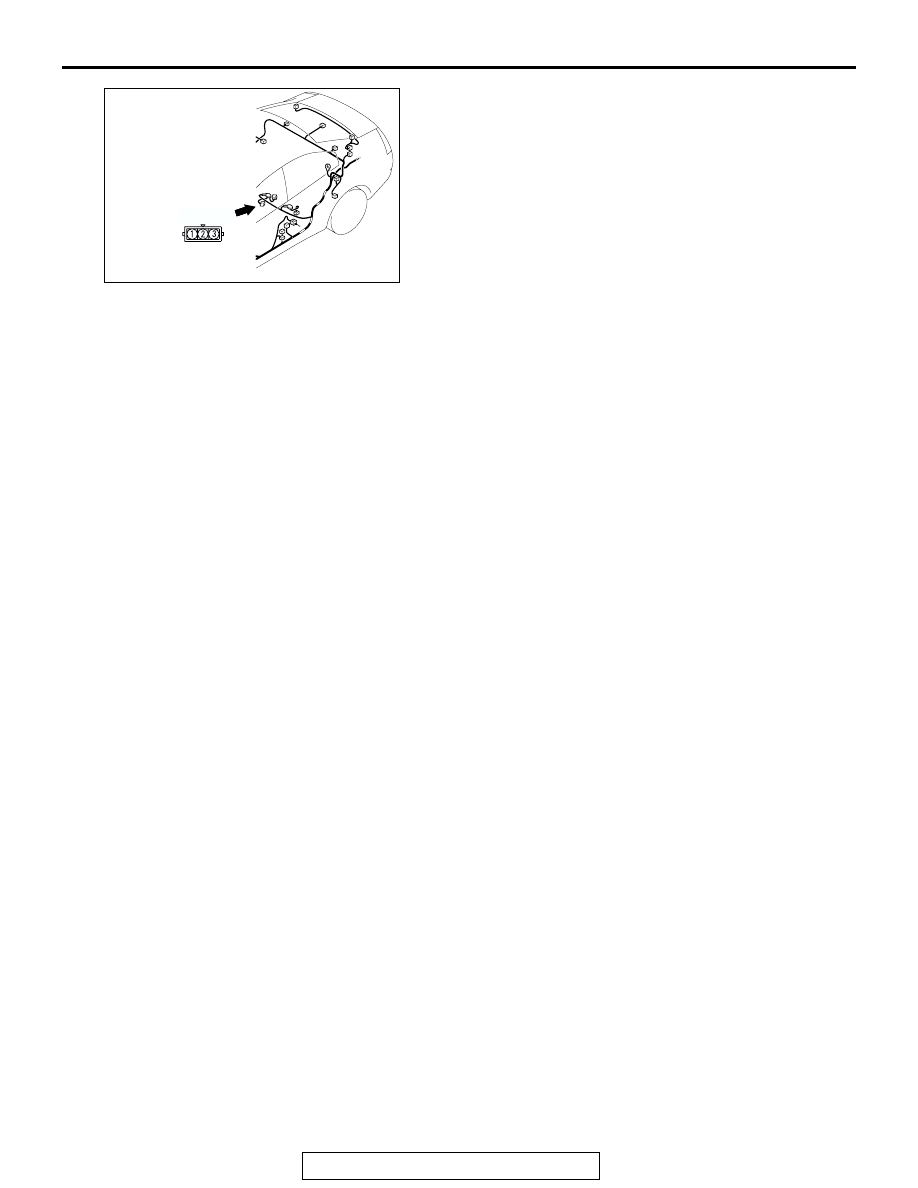

AC305266

CONNECTOR: D-23

AB

D-23 (B)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-668

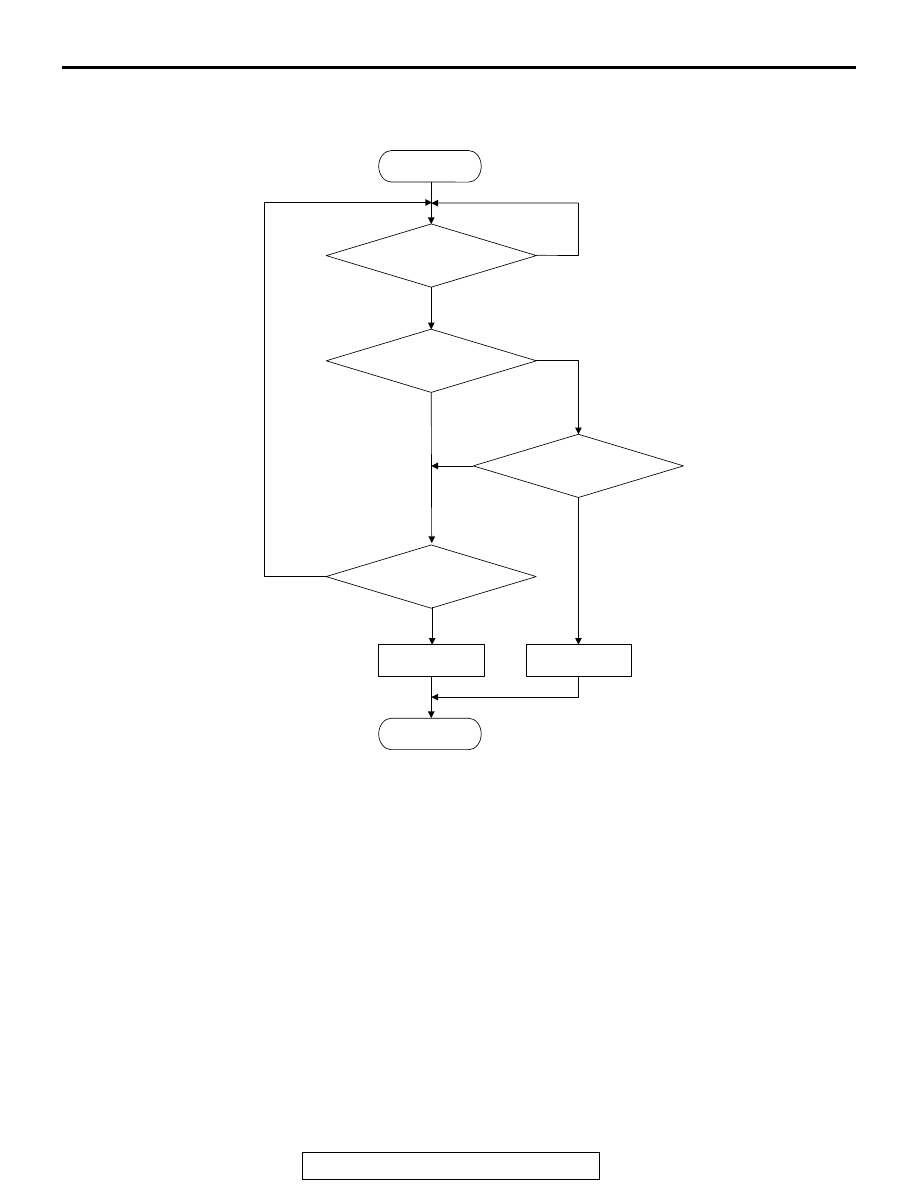

LOGIC FLOW CHARTS (Monitor Sequence)

.

DTC SET CONDITIONS

Check Conditions

• Intake air temperature is greater than 5°C (41°F).

• Engine speed is 1,600 r/min or greater.

• Volumetric efficiency is between 20 and 70 per-

cent.

Judgment Criteria

• When the evaporative emission purge solenoid is

off, the fuel differential pressure sensor output
voltage remains 1.0 volt or less for ten seconds.

.

OBD-ll DRIVE CYCLE PATTERN
Refer to Diagnostic Function

− OBD-ll Drive Cycle −

Procedure 1

− Evaporative Emission System Leak

Monitor

P.13A-5

.

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

• Malfunction of the fuel tank differential pressure

sensor.

• A damaged harness in the fuel tank differential

pressure sensor circuit.

• Malfunction of the PCM.

.

NO

YES

CONTINUOUS

FAILURE FOR 10 SECS

START



END



NO

NO

NO

YES



YES



YES

MALFUNCTION

GOOD



MONITORING



CONDITIONS



OUTPUT VOLTAGE



< 1.0V

OUTPUT VOLTAGE



> 4.0V



AC306648

RANGE CHECK - MIN/MAX
