MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-365

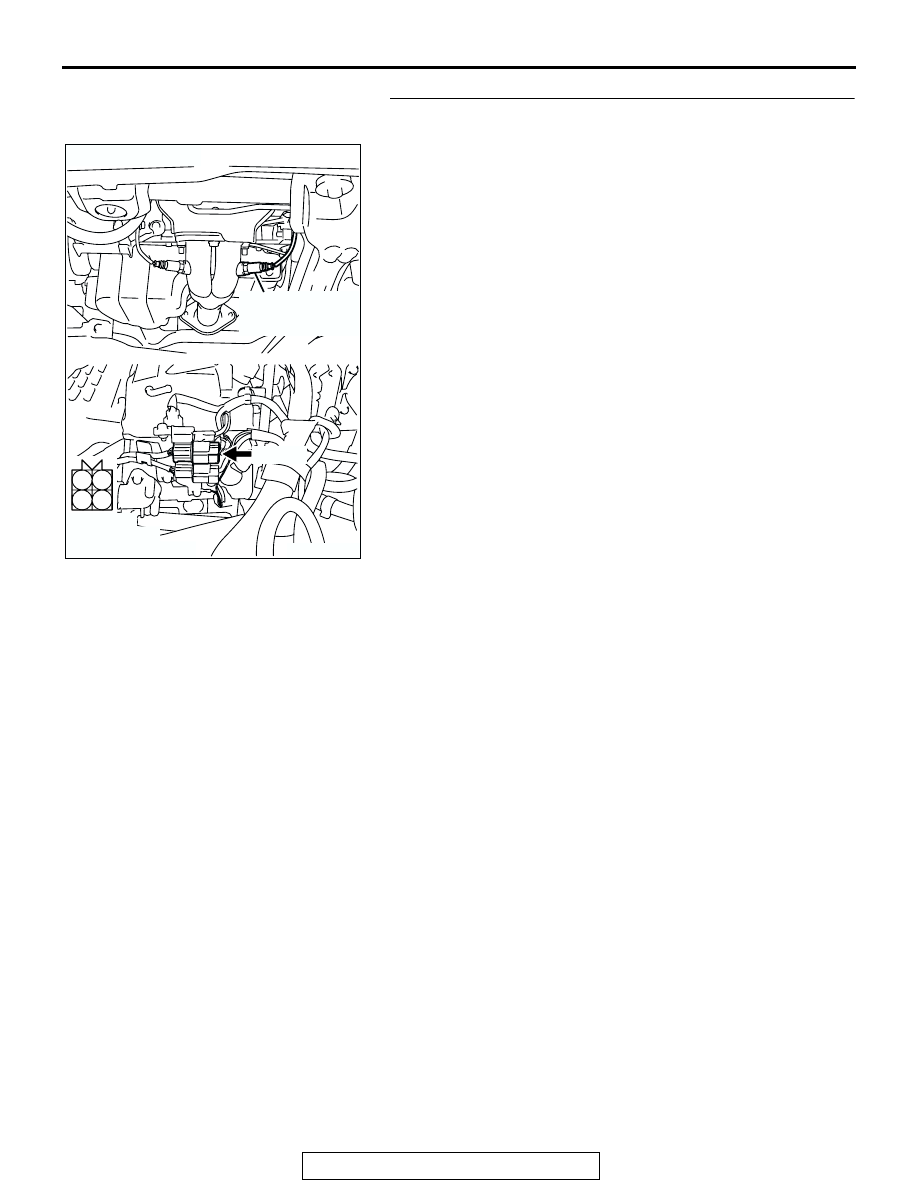

STEP 7. Check harness connector B-35 at cylinder 2, 4
heated oxygen sensor (rear) for damage.

Q: Is the harness connector in good condition?

YES : Go to Step 8.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 15.

AK303835

1

2

3

4

AB

CONNECTOR: B-35

B-35 (B)

CYLINDER 2, 3
HEATED OXYGEN
SENSOR (REAR)

HARNESS
CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-366

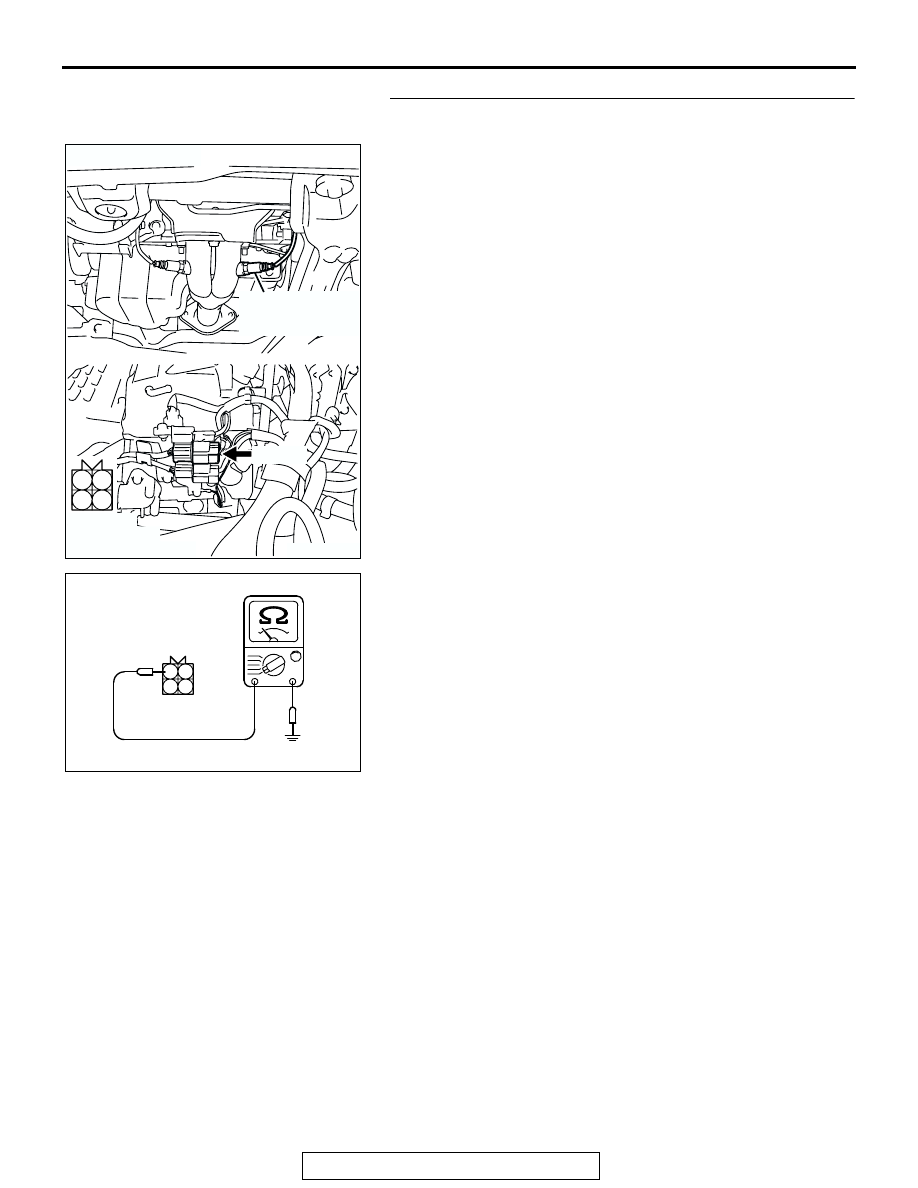

STEP 8. Check the continuity at cylinder 2, 3 heated
oxygen sensor (rear) harness side connector B-35.

(1) Disconnect the connector B-35 and measure at the harness

side.

(2) Check for the continuity between terminal No. 2 and

ground.

• Should be less than 2 ohms.

Q: Does continuity exist?

YES : Go to Step 11.
NO :  Go to Step 9.

AK303835

1

2

3

4

AB

CONNECTOR: B-35

B-35 (B)

CYLINDER 2, 3
HEATED OXYGEN
SENSOR (REAR)

HARNESS
CONNECTOR:
COMPONENT SIDE

AK000239BI

1

2
4 3

B-35 HARNESS
CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-367

STEP 9. Check harness connector B-21 at PCM for
damage.

Q: Is the harness connector in good condition?

YES : Go to Step 10.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 15.

AK303018

55

56

54 53 52 51

57

62 61 60 59 58

63

69 68 67 66 65 64

70

75 74 73 72 71

76

82 81 80 79 78 77

83

CONNECTOR: B-21

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER

B-21 (B)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-368

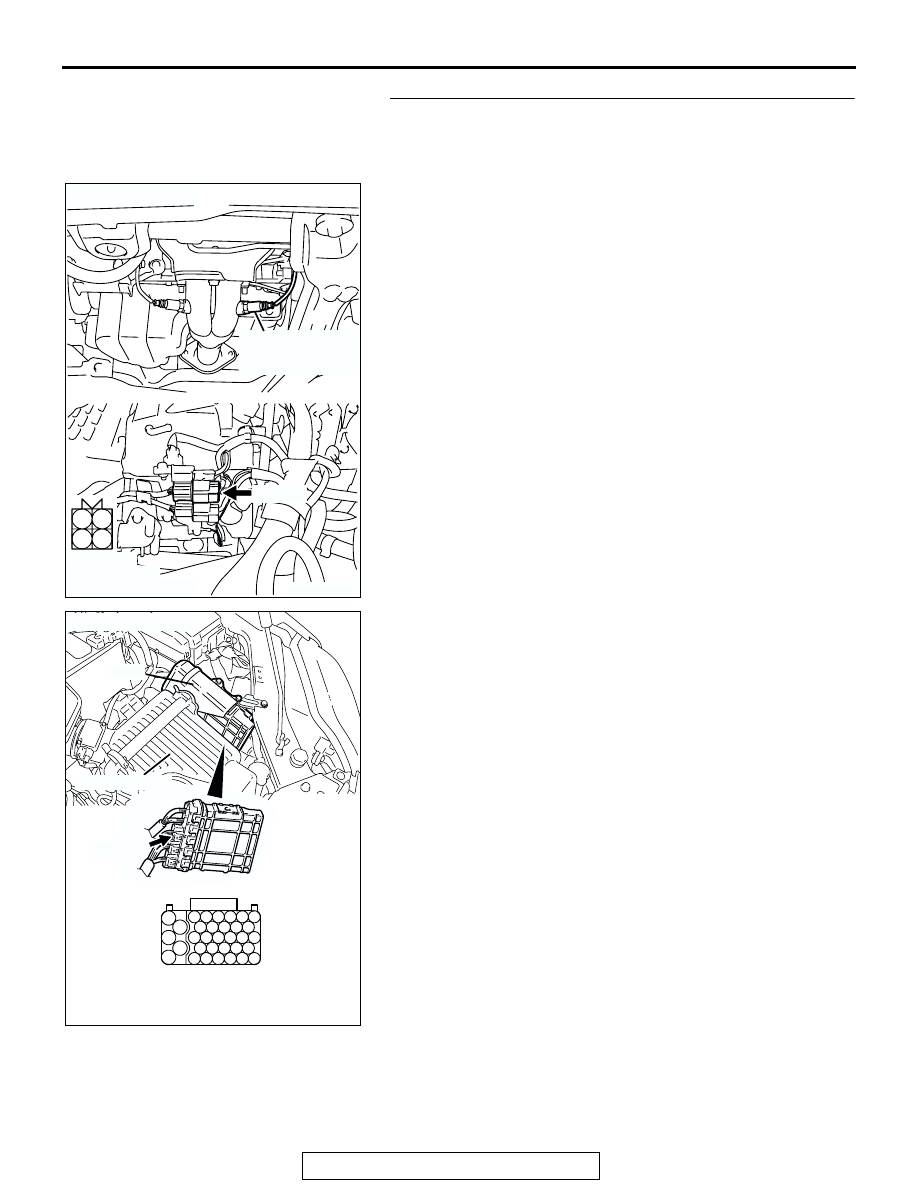

STEP 10. Check for open circuit and harness damage
between cylinder 2, 3 heated oxygen sensor (rear)
connector B-35 (terminal No. 2) and PCM connector B-21
(terminal No. 69).

Q: Is the harness wire in good condition?

YES : Replace the PCM. Then go to Step 15.
NO :  Repair it. Then go to Step 15.

AK303835

1

2

3

4

AB

CONNECTOR: B-35

B-35 (B)

CYLINDER 2, 3
HEATED OXYGEN
SENSOR (REAR)

HARNESS
CONNECTOR:
COMPONENT SIDE

AK303018

55

56

54 53 52 51

57

62 61 60 59 58

63

69 68 67 66 65 64

70

75 74 73 72 71

76

82 81 80 79 78 77

83

CONNECTOR: B-21

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER

B-21 (B)
