MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-277

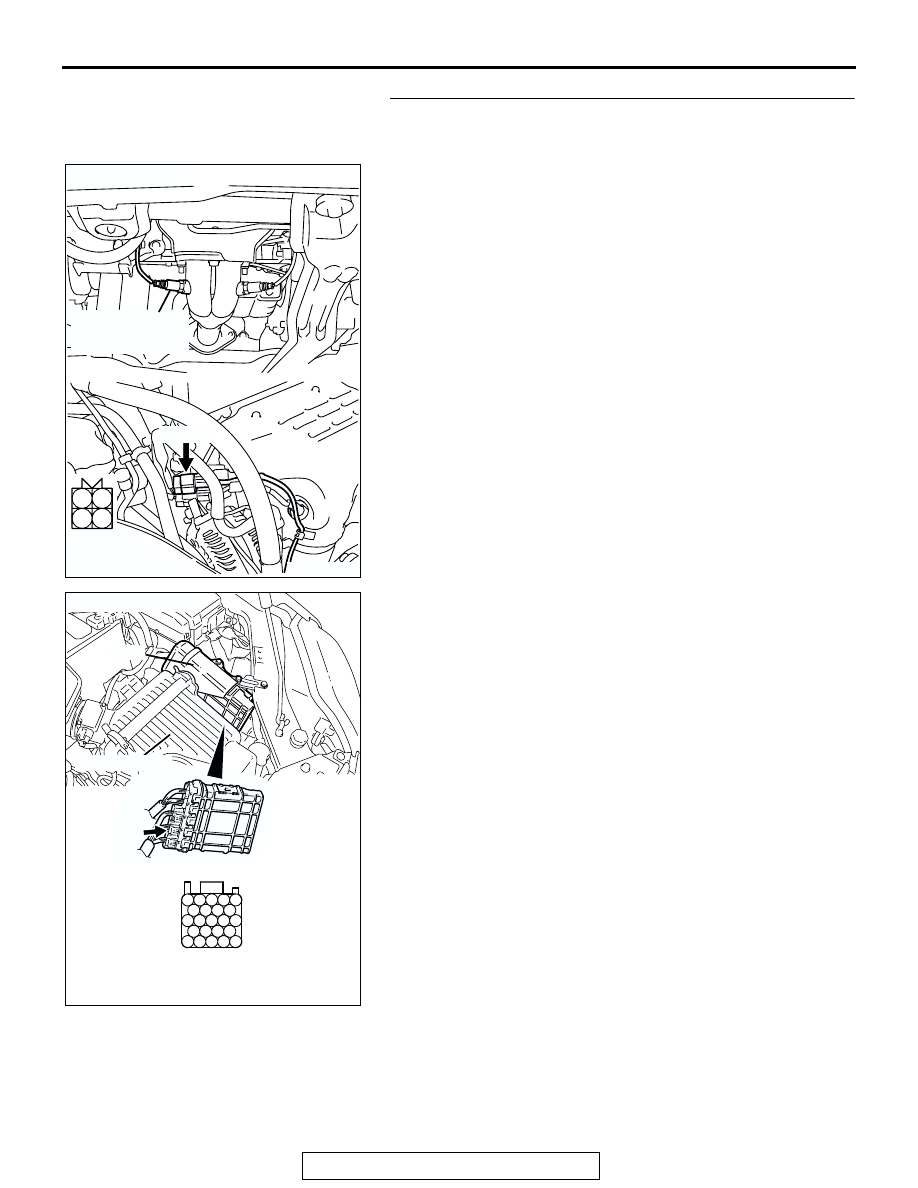

STEP 2. Check for short circuit to power supply between
cylinder 1, 4 heated oxygen sensor (rear) connector B-38
(terminal No. 4) and PCM connector B-22 (terminal No. 97).
Q: Is the harness wire in good condition?

YES : Replace the PCM. Then go to Step 3.
NO :  Repair it. Then go to Step 3.

AK303826

1

2

3

4

AB

HARNESS
CONNECTOR:
COMPONENT SIDE

CONNECTOR: B-38

B-38 (B)

CYLINDER 1, 4
HEATED OXYGEN
SENSOR (REAR)

AK303016

104

96

94

95

93 92 91

99 98 97

103 102 101 100

108 107 106 105

113 112 111 110 109

CONNECTOR: B-22

B-22 (B)

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-278

STEP 3. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13A-5

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0138 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

DTC P0139: Cylinder 1, 4 Heated Oxygen Sensor Circuit  Slow Responce (sensor 2)

52

51

53 54 55 56

57

58 59 60 61 62

63

64 65 66 67 68 69

70

71 72 73 74 75

76

77 78 79 80 81 82

83

100

99

92

91

93 94 95

96 97 98

101 102 103 104

105 106 107 108

109 110 111 112 113

AK303824

1

2

3

4

YELLO

W

BLUE

BLA

CK

BLA

CK

TO PCM

FROM MFI RELAY

69

97

2

4

3

1

B-22

CYLINDER 1, 4
HEATED OXYGEN
SENSOR (REAR)

POWERTRAIN CONTROL
MODULE (PCM)

B-38

MU802605

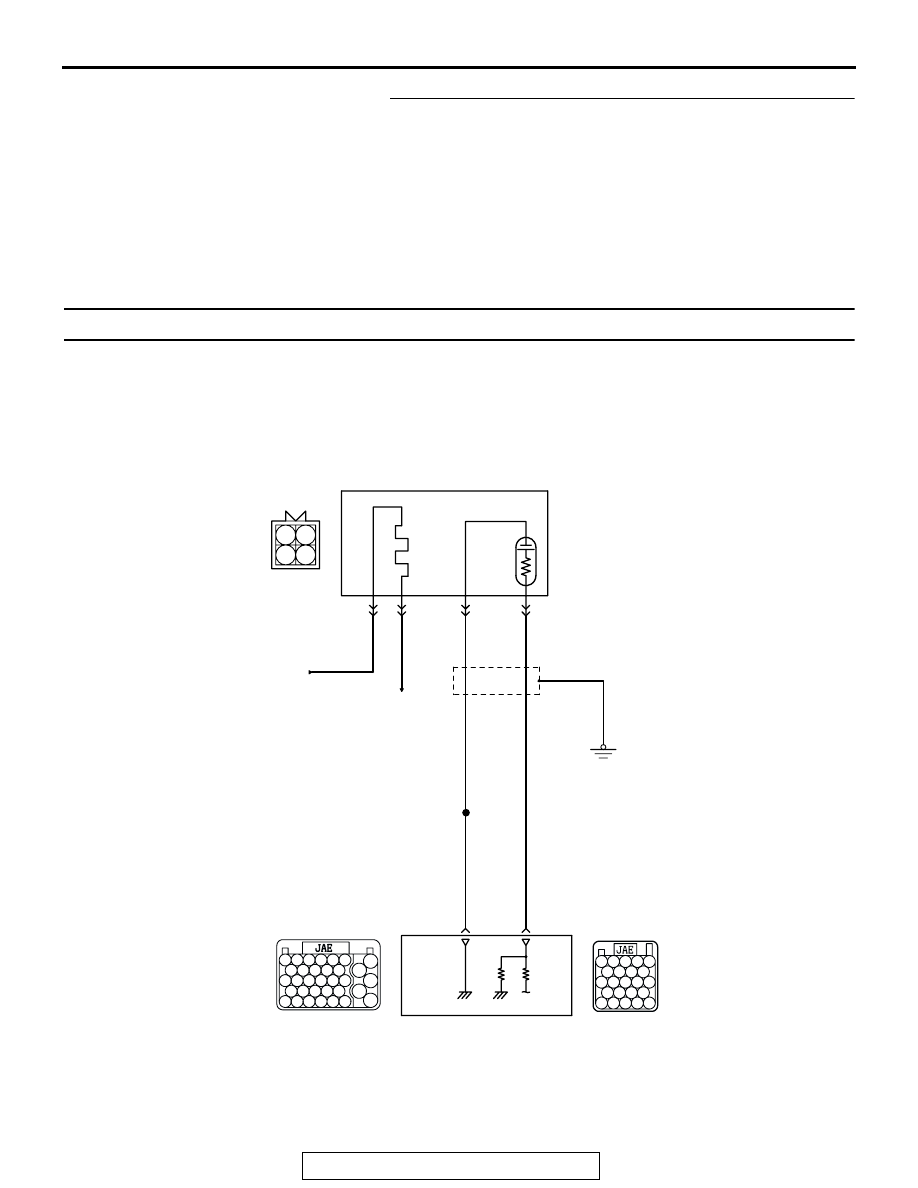

Cylinder 1, 4 Heated Oxygen Sensor (rear) Circuit

B-21

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-279

.

CIRCUIT OPERATION

• A voltage corresponding to the oxygen concen-

tration in the exhaust gas is sent to the PCM (ter-
minal No. 97) from the output terminal (terminal
No. 4) of the cylinder 1, 4 heated oxygen sensor
(rear).

• Terminal No. 2 of the cylinder 1, 4 heated oxygen

sensor (rear) is grounded with PCM (terminal No.
69).

.

TECHNICAL DESCRIPTION

• The output signal of the cylinder 1, 4 heated oxy-

gen sensor (front) is compensated by the output
signal of the cylinder 1, 4 heated oxygen sensor
(rear).

• The PCM checks for an open circuit in the cylin-

der 1, 4 heated oxygen sensor (rear) output line.

.

DESCRIPTIONS OF MONITOR METHODS
Cylinder 1, 4 heated oxygen sensor (rear) output

voltage does not change during specified go/stop
operations including fuel cut are repeated.

.

MONITOR EXECUTION
Continuous

.

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Heated oxygen sensor heater (front) monitor

• Heated oxygen sensor heater (rear) monitor

• Air/fuel ratio feedback monitor

Sensor (The sensor below is determined to be

normal)

• Mass airflow sensor

• Engine coolant temperature sensor

• Intake air temperature sensor

• Barometric pressure sensor

.

AK303825AB

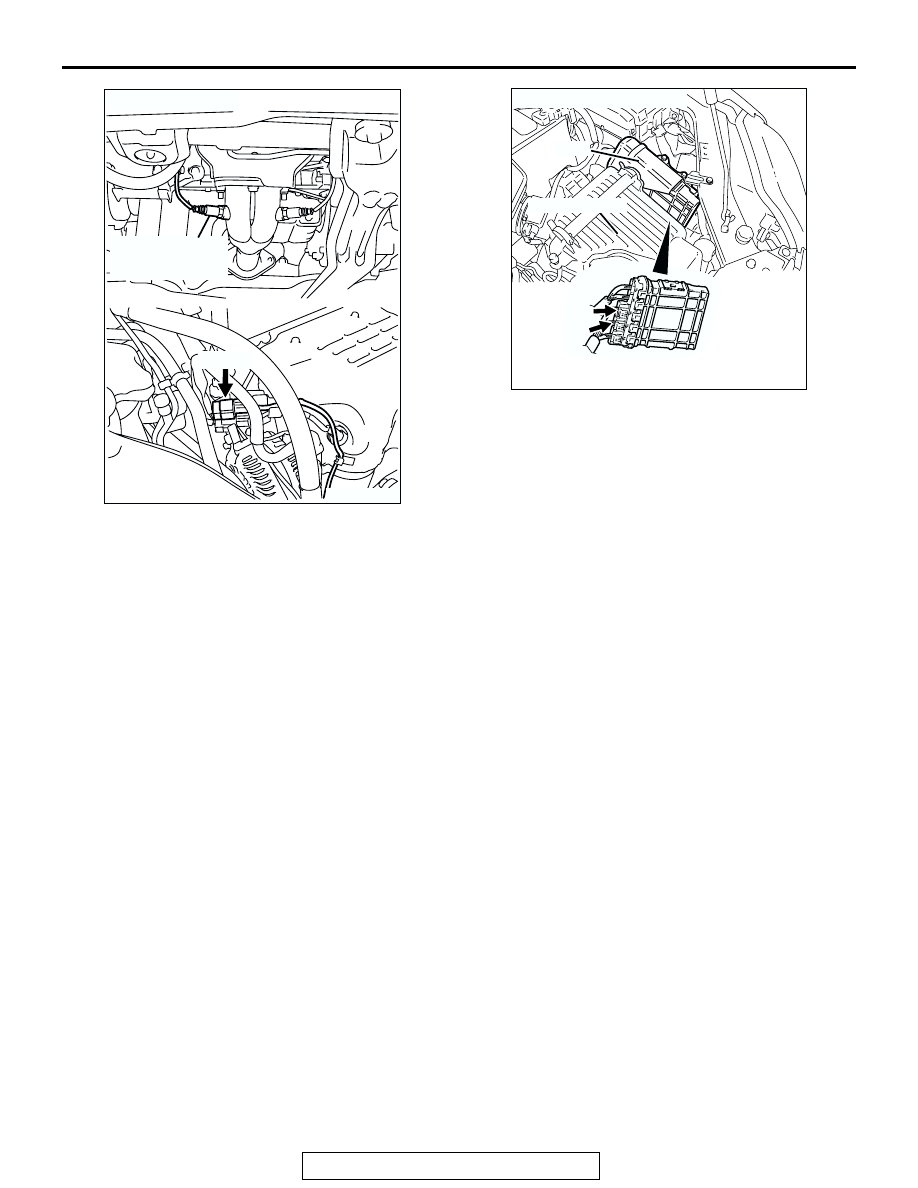

CONNECTOR: B-38

CYLINDER 1, 4
HEATED OXYGEN
SENSOR (REAR)

B-38 (B)

AK303013

CONNECTORS: B-21, B-22

PCM

AB

AIR CLEANER

B-22 (B)

B-21 (B)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-280

DTC SET CONDITIONS

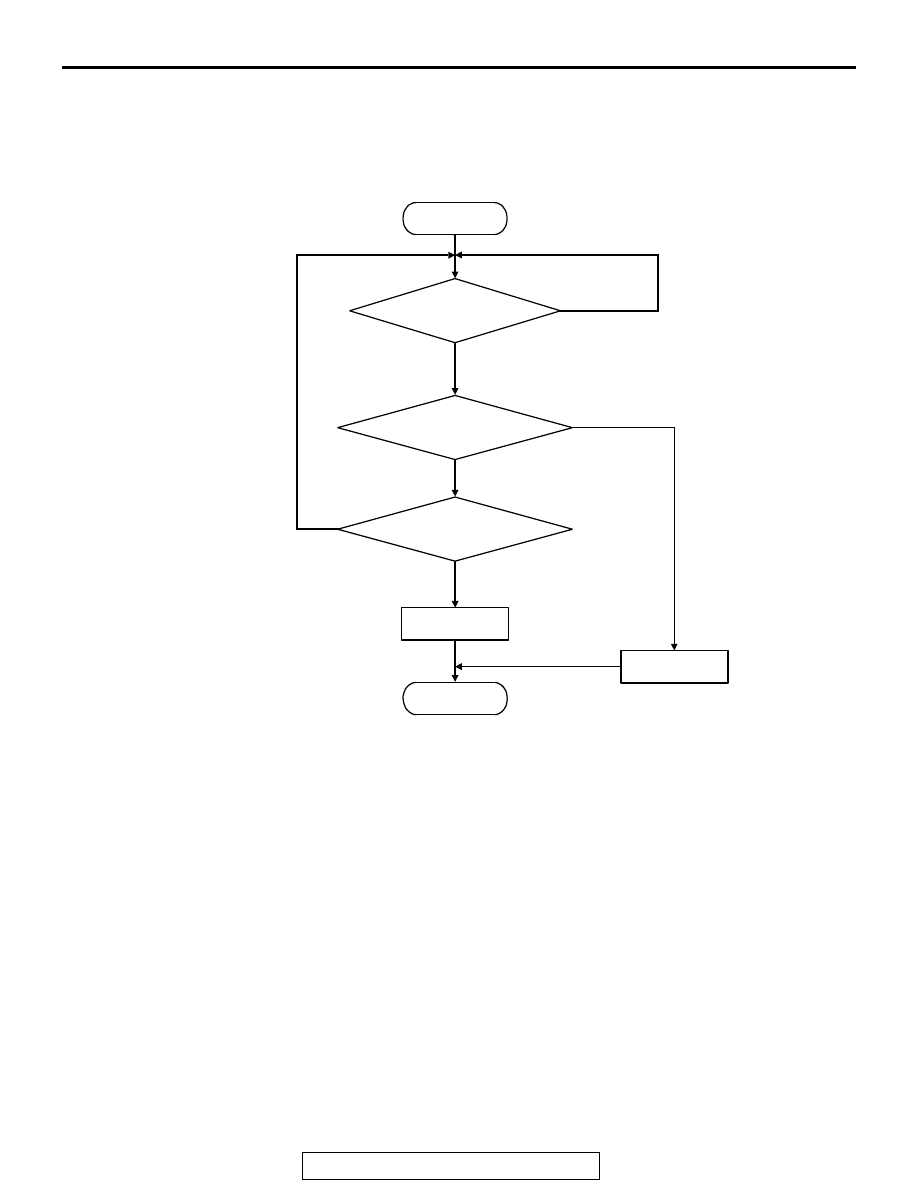

Logic Flow Chart

.

Check Conditions

• Engine coolant temperature is higher than 76°C

(169

°F).

• The cylinder 1, 4 heated oxygen sensor (front) is

active.

• The cumulative mass airflow sensor output is

higher than 1,638 g.

• Repeat 3 or more times: drive

*1

, stop

*2

.

Drive

*1

:

• Engine speed is higher than 1,500 r/min.

• Volumetric efficiency is higher than 40 per-

cent.

• Vehicle speed is higher than 30 km/h (19

mph).

• A total of more than 10 seconds have

elapsed with the above mentioned condi-
tions, and more than 2 seconds have
elapsed with the fuel shut off.

Stop

*2

:

• Vehicle speed is lower than 1.5 km/h (1

mph).

Judgement Criteria

• Change in the output voltage of the cylinder 1, 4

heated oxygen sensor (rear) is lower than 0.313
volt. <Federal>

or

• Change in the output voltage of the cylinder 1, 4

heated oxygen sensor (rear) is lower than 0.234
volt. <California>
NOTE: Monitoring stops after fuel has been shut
off for more than 38 seconds.

END

YES

NO

NO

NO

START

MONITORING

CONDITION

YES

MALFUNCTION

GOOD

OUTPUT VOLTAGE

CHANGE < 0.313 V <FEDERAL> OR

    0.234 V <CALIFOLNIA>

GO/STOP OPERATION

FOR SPECIFIED TIMES

YES
