Mitsubishi Galant (2004+). Manual - part 837





MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-165

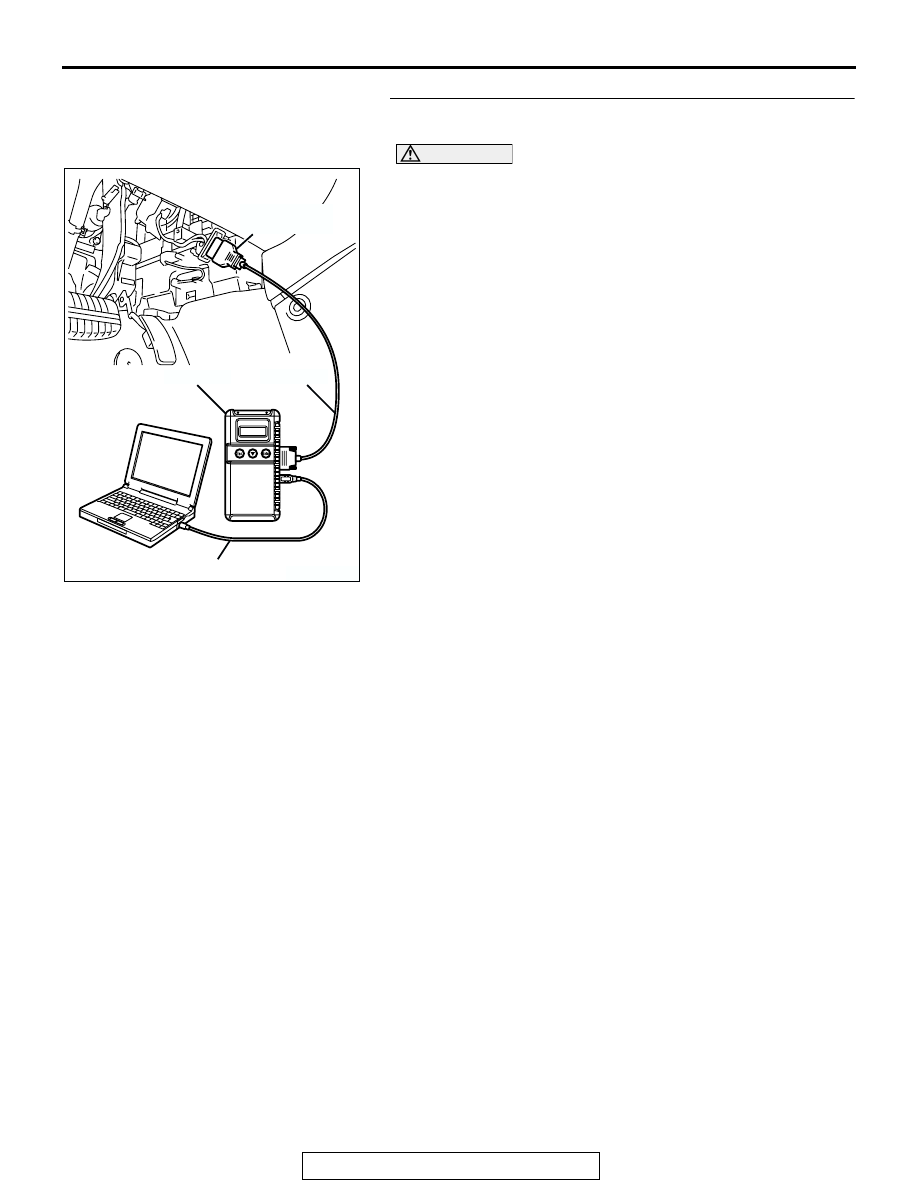

STEP 11. Using scan tool MB991958, read the diagnostic
trouble code (DTC).

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK"(OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) After the DTC has been deleted, read the DTC again.
(4) Turn the ignition switch to the "LOCK"(OFF) position.
Q: Is DTC P0122 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

AK303804AB

MB991910

DATA LINK
CONNECTOR

MB991824

MB991827

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-166

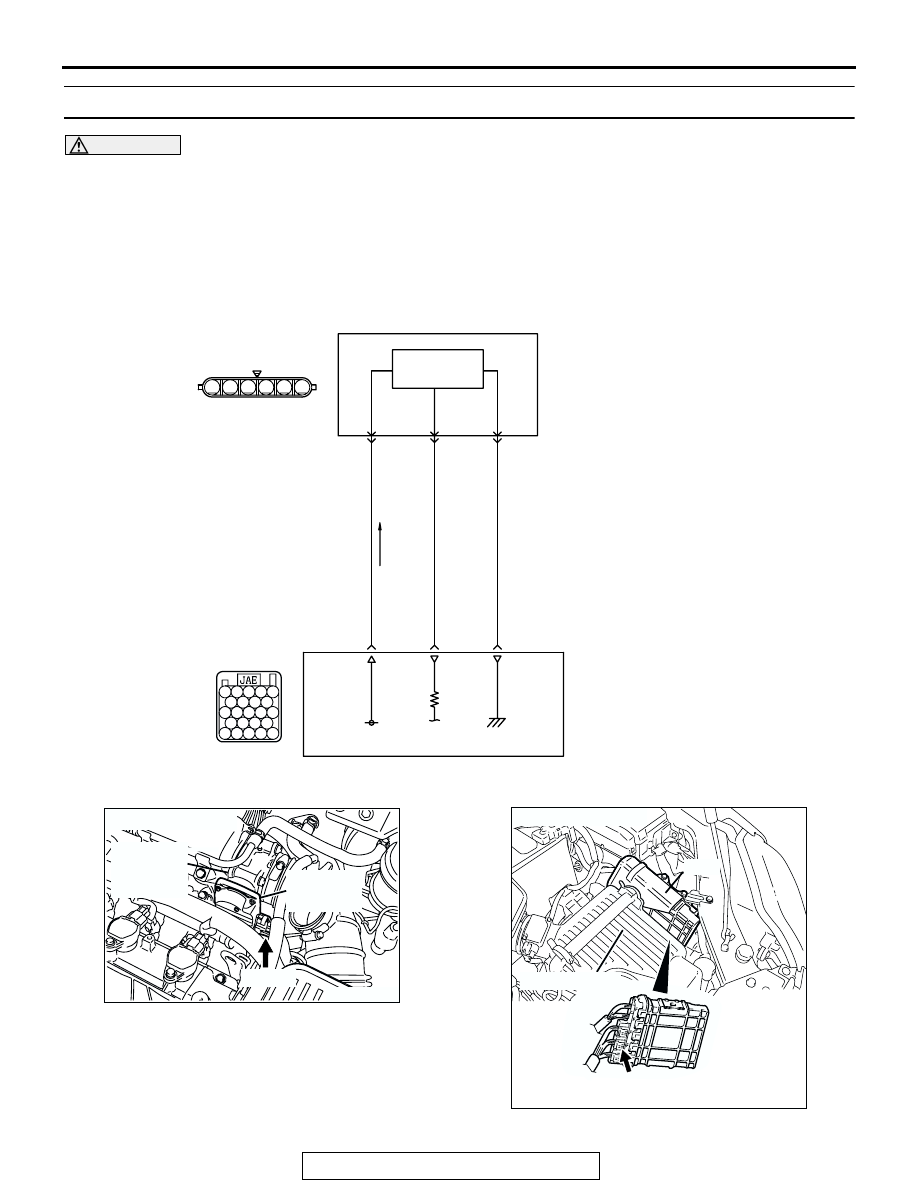

DTC P0123: Throttle Position Sensor (main) Circuit High Input

CAUTION

If DTC P0123 has been set, TCL related DTC
U1120 is also set. After P0123 has been diag-
nosed, don't forget to erase DTC U1120.

.

6

1 2 3 4 5

100

99

92

91

93 94 95

96 97 98

101 102 103 104

105 106 107 108

109 110 111 112 113

AK303816

YELLO

W

-RED

RED-WHITE

BLA

CK-WHITE

B-06

5 V

94

5

THROTTLE POSITION
SENSOR (MAIN)

HALL IC

POWERTRAIN CONTROL MODULE (PCM)

99

95

4

3

Throttle Position Sensor (main) Circuit

B-22

AK303817AB

CONNECTOR: B-06

B-06 (B)

THROTTLE
ACTUATOR
CONTROL
MOTOR

THROTTLE
POSITION
SENSOR

AK303043

CONNECTOR: B-22

B-22 (B)

PCM

AB

AIR CLEANER

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-167

CIRCUIT OPERATION

• A 5-volt power supply is applied on the throttle

position sensor (main) power terminal (terminal
No. 5) from the PCM (terminal No. 94).
The ground terminal (terminal No. 3) is grounded
with PCM (terminal No. 95).

.

TECHNICAL DESCRIPTION

• The throttle position sensor (main) outputs volt-

age which corresponds to the throttle valve open-
ing angle.

• The PCM checks whether the voltage is within a

specified range.

.

DESCRIPTIONS OF MONITOR METHODS
Throttle position sensor (main) output voltage is out

of specified range.

.

MONITOR EXECUTION
Continuous

.

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Not applicable

.

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-168

DTC SET CONDITIONS

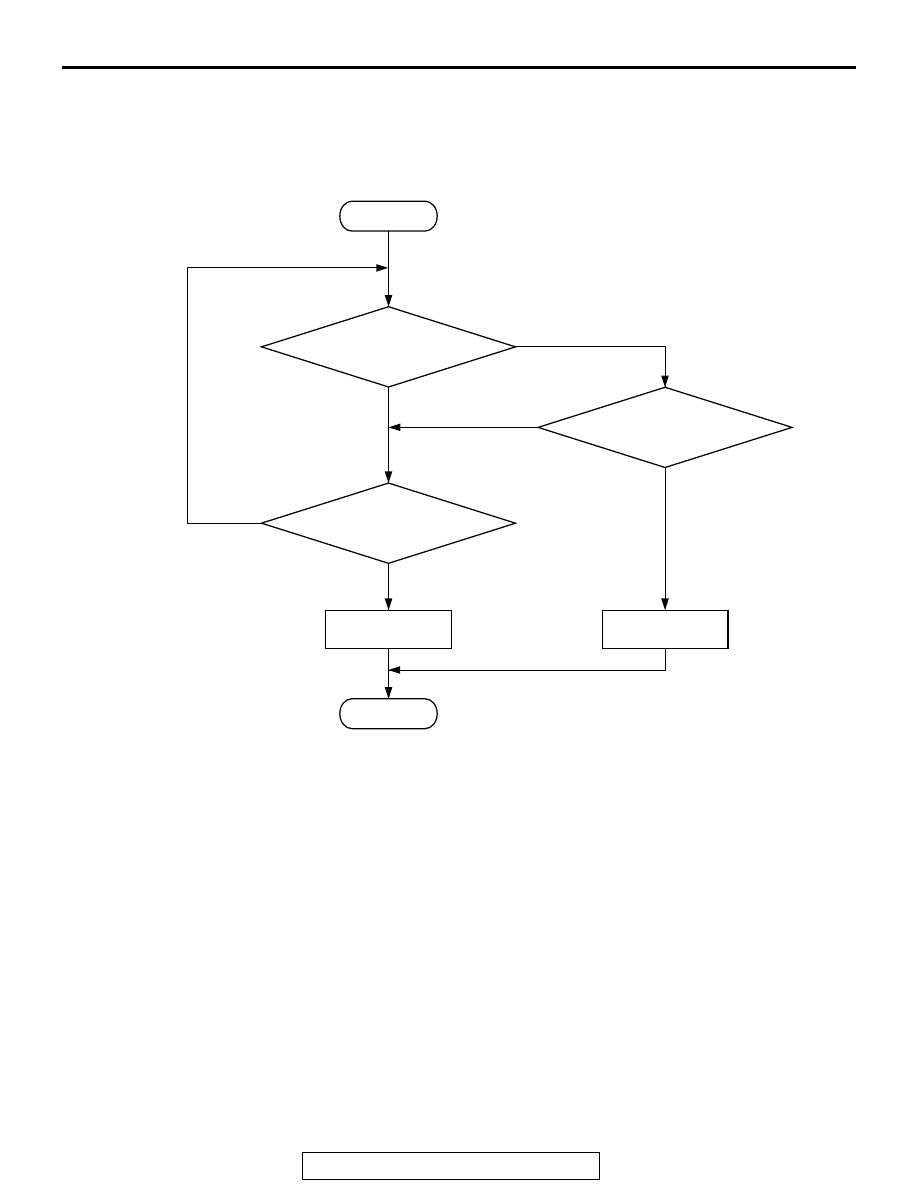

Logic Flow Chart

.

Check Conditions

• Ignition switch is "ON" position.

Judgement Criteria

• Throttle position sensor (main) output voltage

should be 4.8 volts or more for 0.5 second.

.

OBD-II DRIVE CYCLE PATTERN
None.

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

• Throttle position sensor failed.

• Open throttle position sensor (main) circuit, har-

ness damage or connector damage.

• PCM failed.

START

YES

YES

YES

NO

NO

NO

CONTINUOUS

FAILURE FOR 0.5sec

MALFUNCTION

END

GOOD

OUTPUT VOLTAGE

< =0.35V

OUTPUT VOLTAGE > =4.8V

AK302016
