Mitsubishi Galant (2004+). Manual - part 829





MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-133

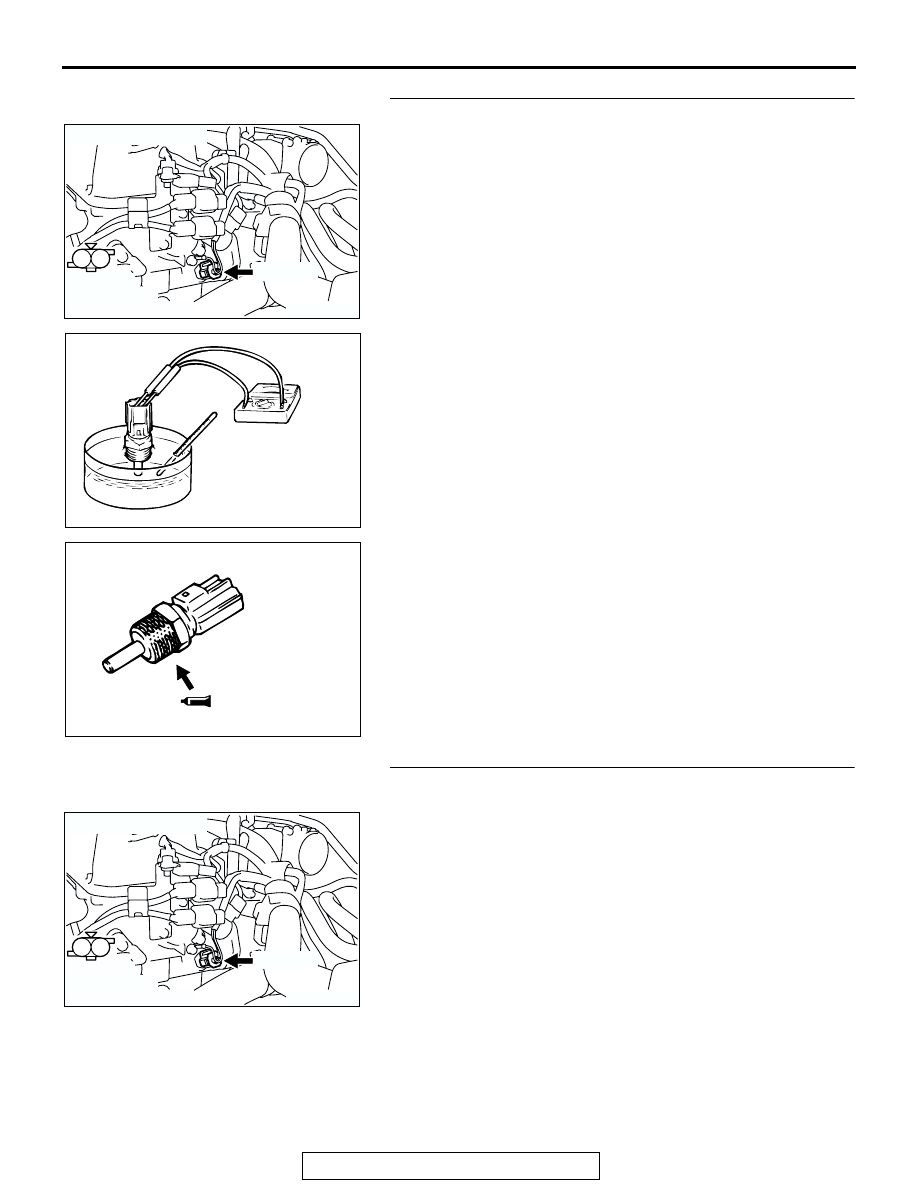

STEP 2. Check the engine coolant temperature sensor.
(1) Disconnect the engine coolant temperature sensor

connector B-104.

(2) Remove the engine coolant temperature sensor.

(3) With the temperature sensing portion of engine coolant

temperature sensor immersed in hot water, measure
resistance.

Standard value:

14

 17 k [at 20°C (4°F)]

5.1

 6.5 k [at 0°C (32°F)]

2.1

 2.7 k [at 20°C (68°F)]

0.9

 1.3 k [at 40°C (104°F)]

0.48

 0.68 k [at 60°C (140°F)]

0.26

 0.36 k [at 80°C (176°F)]

(4) Apply 3M

 AAD part number 8731 or equivalent on the

screw section of the engine coolant temperature sensor.

(5) Install the engine coolant temperature sensor, and tighten

to the specified torque.

Tightening torque: 30

± 9 Nm (22 ± 7 ft-lb)

Q: Is the measured resistance at the standard value?

YES : Go to Step 3.
NO :  Replace the engine coolant temperature sensor. Then

go to Step 9.

STEP 3. Check harness connector B-104 at the engine
coolant temperature sensor for damage.
Q: Is the harness connector in good condition?

YES : Go to Step 4.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 9.

AK303815

1

2

AB

CONNECTOR: B-104

B-104 (B)

HARNESS
CONNECTOR:
COMPONENT SIDE

AKX01622

AKX01623 AB

AK303815

1

2

AB

CONNECTOR: B-104

B-104 (B)

HARNESS
CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-134

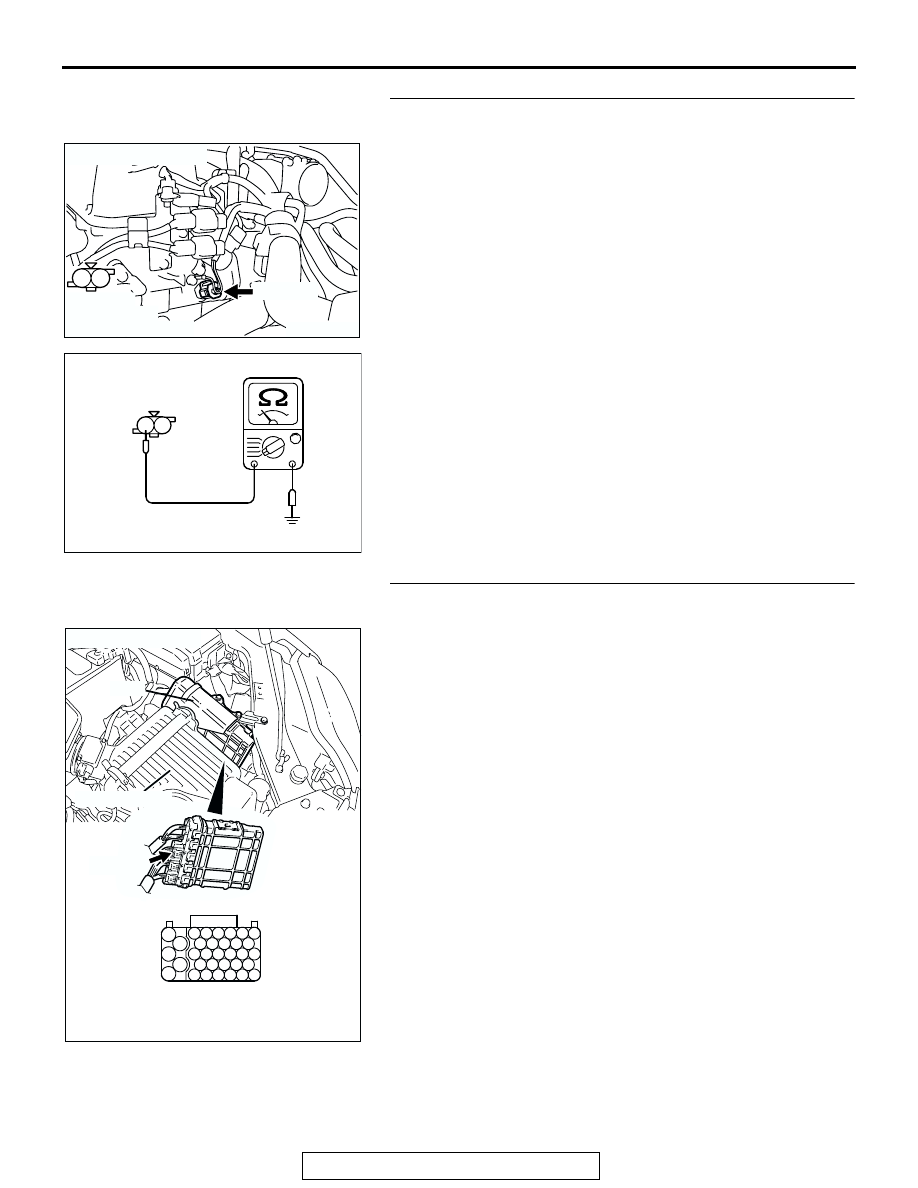

STEP 4. Check the continuity at engine coolant
temperature sensor harness side connector B-104.
(1) Disconnect the connector B-104 and measure at the

harness side.

(2) Check for the continuity between terminal No. 2 and

ground.

• Should be less than 2 ohms.

Q: Does continuity exist?

YES : Go to Step 7.
NO :  Go to Step 5.

STEP 5. Check harness connector B-21 at PCM for
damage.
Q: Is the harness connector in good condition?

YES : Go to Step 6.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 9.

AK303815

1

2

AB

CONNECTOR: B-104

B-104 (B)

HARNESS
CONNECTOR:
COMPONENT SIDE

AK000235

B-104 HARNESS
CONNECTOR:
COMPONENT SIDE

1

2

AQ

AK303018

55

56

54 53 52 51

57

62 61 60 59 58

63

69 68 67 66 65 64

70

75 74 73 72 71

76

82 81 80 79 78 77

83

CONNECTOR: B-21

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER

B-21 (B)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-135

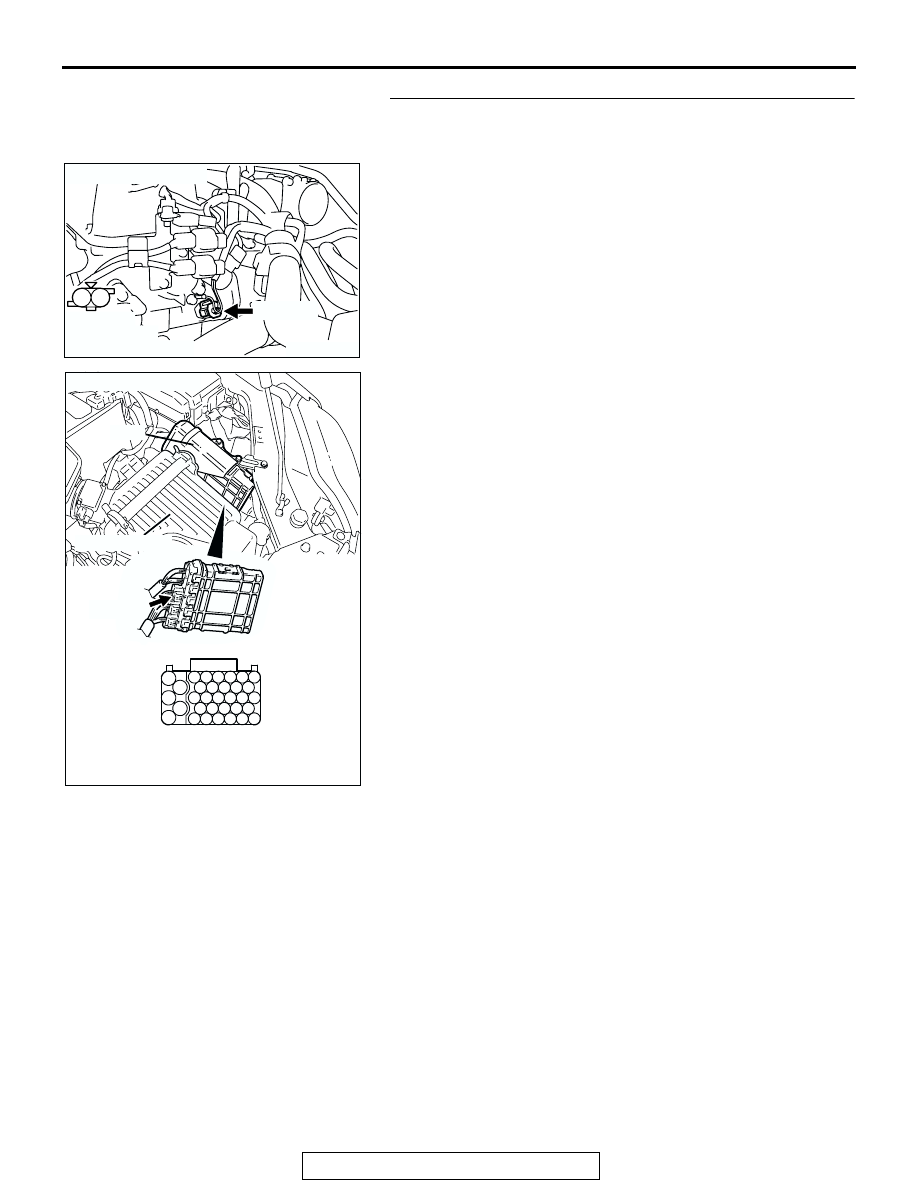

STEP 6. Check for harness damage between engine
coolant temperature sensor connector B-104 (terminal No.
2) and PCM connector B-21 (terminal No. 69).
Q: Is the harness wire in good condition?

YES : Replace the PCM. Then go to Step 9.
NO :  Repair it. Then go to Step 9.

AK303815

1

2

AB

CONNECTOR: B-104

B-104 (B)

HARNESS
CONNECTOR:
COMPONENT SIDE

AK303018

55

56

54 53 52 51

57

62 61 60 59 58

63

69 68 67 66 65 64

70

75 74 73 72 71

76

82 81 80 79 78 77

83

CONNECTOR: B-21

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER

B-21 (B)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-136

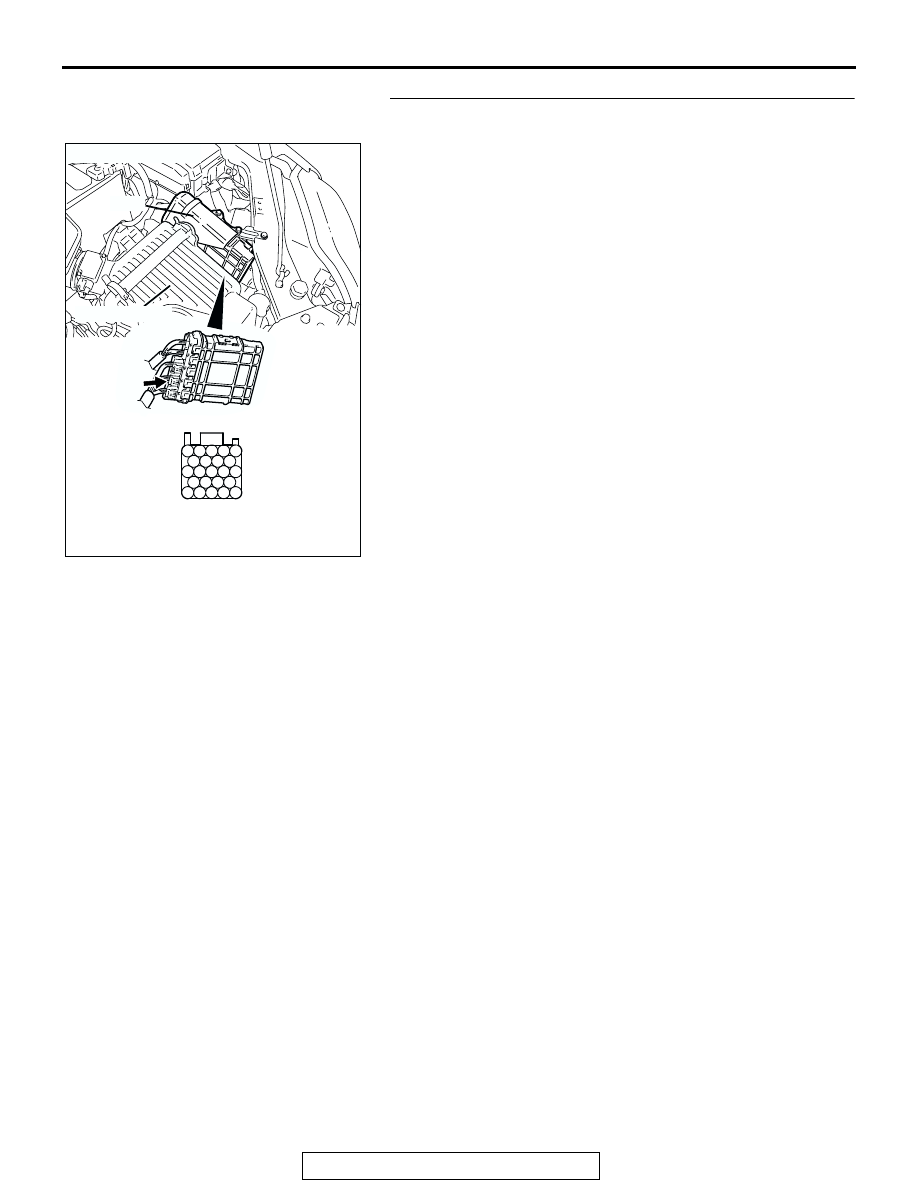

STEP 7. Check harness connector B-22 at PCM for
damage.
Q: Is the harness connector in good condition?

YES : Go to Step 8.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 9.

AK303016

104

96

94

95

93 92 91

99 98 97

103 102 101 100

108 107 106 105

113 112 111 110 109

CONNECTOR: B-22

B-22 (B)

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER
