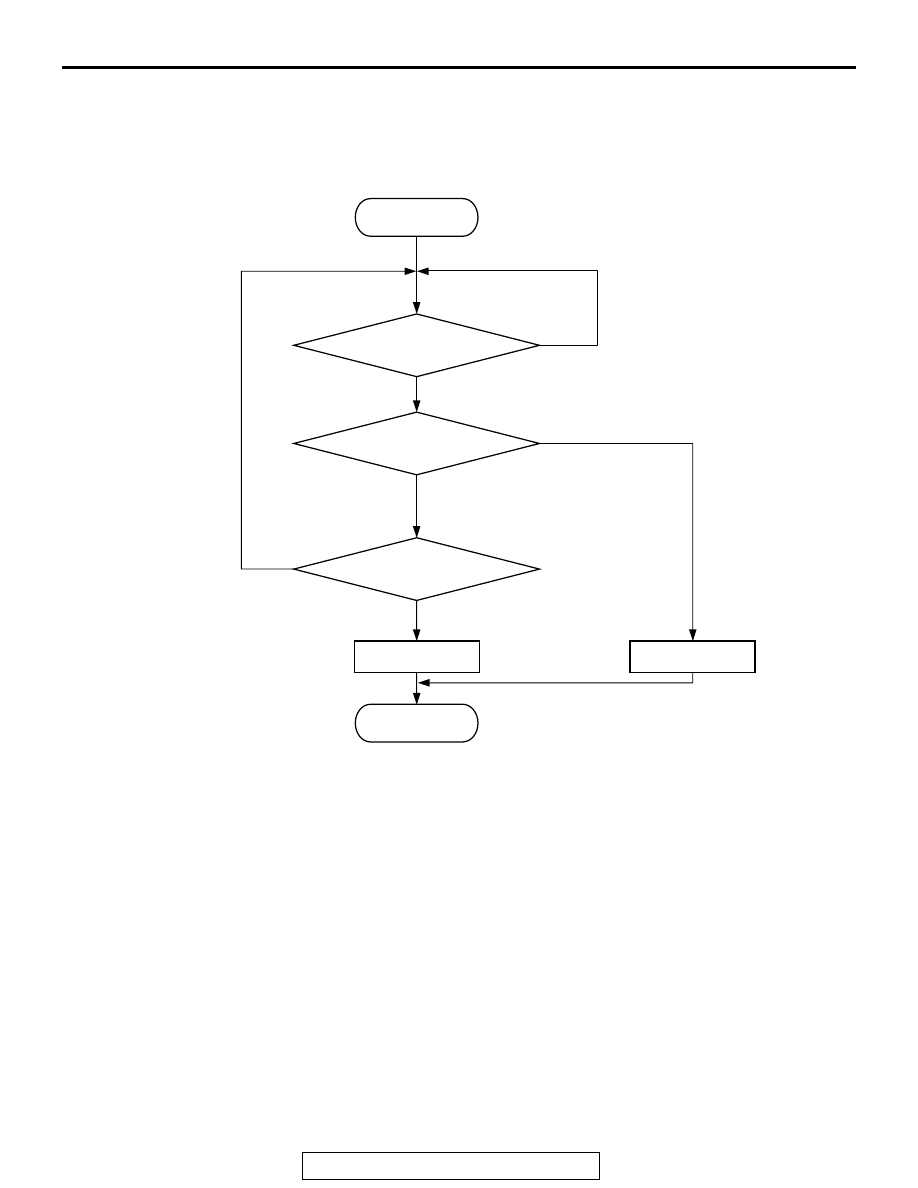

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS TSB Revision MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE> 13A-105 DTC SET CONDITIONS Logic Flow Chart . Check Conditions • Engine coolant temperature is higher than 76°C (169 °F). • Repeat 5 or more times: drive *1 , stop *2 . Drive *1 : vehicle speed higher than 50 km/h (31 mph) lasting a total of more than 60 seconds. Stop *2 : vehicle speed lower than 1.5 km/h (1.0 mph) lasting more than 30 seconds. Judgement Criteria • Changes in the intake air temperature is lower than 1 °C (1.8°F). . OBD-II DRIVE CYCLE PATTERN − OBD-II Drive Cycle − Procedure 6 . . TROUBLESHOOTING HINTS (The most likely • Intake air temperature sensor failed. • Open intake air temperature sensor circuit, har- ness damage or connector damage. • PCM failed. END MALFUNCTION YES YES NO NO YES NO GO/STOP OPERATION FOR SPECIFIED TIMES INTAKE AIR TEMP. CHANGES MONITORING CONDITIONS GOOD START AK302012 |
