Mitsubishi Galant (2004+). Manual - part 797





MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-5

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TROUBLESHOOTING STRATEGY

M1131150000609

NOTE: If a DTC is erased, its "freeze frame" data will
be also erased and the system readiness test status
will be reset. Store the "freeze frame" data before
erasing the DTC.
Use these steps to plan your diagnostic strategy. If
you follow them carefully, you will be sure to have
exhausted most of the possible ways to find an MFI
fault.
1. Gather as much information as possible about the

complaint from the customer.

2. Verify that the condition described by the

customer exists.

3. Check the vehicle for any MFI Diagnostic Trouble

Code (DTC).

4. If you cannot verify the condition and there are no

DTCs, the malfunction is intermittent. For
information on how to cope with intermittent
malfunctions, refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How

to cope with Intermittent Malfunction

P.00-6

.

5. If you can verify the condition but there are no

DTCs, or the system cannot communicate with
the scan tool, refer to the trouble symptom
classification table.

6. If there is a DTC, record the number of the code,

then erase the code from the memory using the
scan tool.

7. Reconfirm the malfunction symptom and carry out

a test drive with the drive cycle pattern.

8. If DTC is set again, carry out an inspection with

appropriate diagnostic trouble code procedures.

9. If DTC is not set again, the malfunction is

intermittent. For information on how to cope with
intermittent malfunctions, refer to GROUP 00,
How to Use Troubleshooting/Inspection Service
Points

− How to cope with Intermittent Malfunction

P.00-6

.

10.After repairs are completed, conduct a road test

duplicating the complaint set conditions to confirm
the malfunction has been corrected.

NOTE:  If the powertrain control module (PCM) is
replaced, Immobilizer Encrypted Code Registration
should be carried out, Refer to GROUP 54A, Ignition
Switch

 On-vehicle Service

 Immobilizer Encrypted

Code Registration

P.54A-40

.

DIAGNOSTIC FUNCTION

M1131155500267

.

MALFUNCTION INDICATOR LAMP (SERVICE ENGINE
SOON OR CHECK ENGINE LAMP)
Among the on-board diagnostic items, Malfunction Indicator
Lamp (SERVICE ENGINE SOON or Check Engine Lamp) illu-
minates to notify the driver of an emission control malfunction.
However, when an irregular signal returns to normal and the
powertrain control module judges that it has returned to normal,
the Malfunction Indicator Lamp (SERVICE ENGINE SOON or
Check Engine Lamp) is switched off.
 Immediately after the ignition switch is turned on, the Malfunc-
tion Indicator Lamp (SERVICE ENGINE SOON or Check
Engine Lamp) is lit for 20 seconds to indicate that the Malfunc-
tion Indicator Lamp (SERVICE ENGINE SOON or Check
Engine Lamp) operates normally.

.

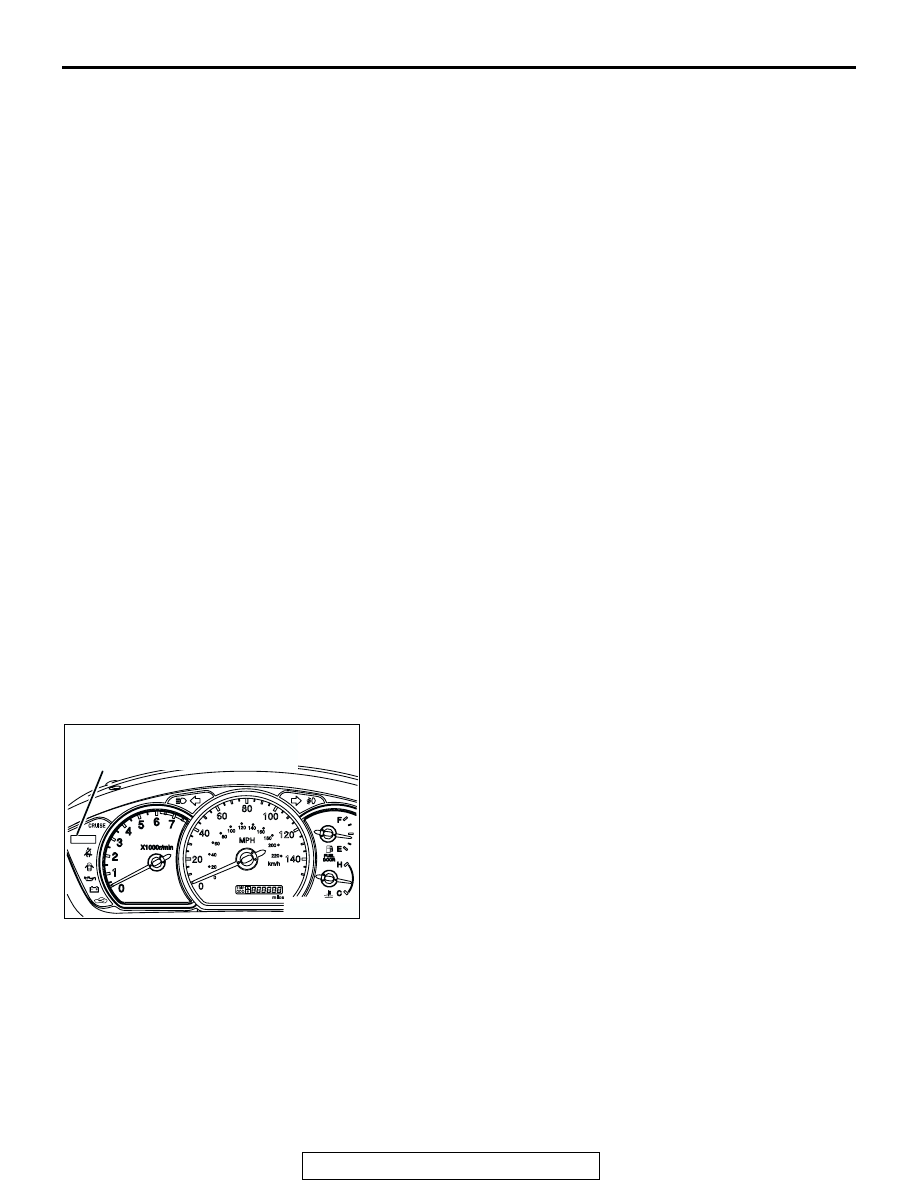

AK302202 AB

MALFUNCTION  INDICATOR LAMP
(SERVICE  ENGINE  SOON
OR CHECK ENGINE LAMP)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-6

Items Indicated by the Malfunction Indicator Lamp (SERVICE ENGINE SOON or Check Engine Lamp)

DTC

ITEM

-

Powertrain control module (PCM) malfunction

P0101*

Mass airflow circuit range/performance problem

P0102*

Mass airflow circuit low input

P0103*

Mass airflow circuit high input

P0106

Manifold absolute pressure circuit range/performance problem

P0107

Manifold absolute pressure circuit low input

P0108

Manifold absolute pressure circuit high input

P0111*

Intake air temperature circuit range/performance problem

P0112*

Intake air temperature circuit low input

P0113*

Intake air temperature circuit high input

P0116*

Engine coolant temperature circuit range/performance problem

P0117*

Engine coolant temperature circuit low input

P0118*

Engine coolant temperature circuit high input

P0122*

Throttle position sensor (main) circuit low input

P0123*

Throttle position sensor (main) circuit high input

P0125*

Insufficient coolant temperature for closed loop fuel control

P0128

Coolant thermostat (Coolant temperature below thermostat regulating temperature)

P0130

Cylinder 1, 4 heated oxygen sensor circuit (sensor 1)

P0131

Cylinder 1, 4 heated oxygen sensor circuit low voltage (sensor 1)

P0132

Cylinder 1, 4 heated oxygen sensor circuit high voltage (sensor 1)

P0133

Cylinder 1, 4 heated oxygen sensor circuit slow response (sensor 1)

P0134*

Cylinder 1, 4 heated oxygen sensor circuit no activity detected (sensor 1)

P0135

Cylinder 1, 4 heated oxygen sensor heater circuit (sensor 1)

P0136

Cylinder 1, 4 heated oxygen sensor circuit (sensor 2)

P0137

Cylinder 1, 4 heated oxygen sensor circuit low voltage (sensor 2)

P0138

Cylinder 1, 4 heated oxygen sensor circuit high voltage (sensor 2)

P0139

Cylinder 1, 4 heated oxygen sensor circuit slow response (sensor 2)

P0141

Cylinder 1, 4 heated oxygen sensor heater circuit (sensor 2)

P0150

Cylinder 2, 3 heated oxygen sensor circuit (sensor 1)

P0151

Cylinder 2, 3 heated oxygen sensor circuit low voltage (sensor 1)

P0152

Cylinder 2, 3 heated oxygen sensor circuit high voltage (sensor 1)

P0153

Cylinder 2, 3 heated oxygen sensor circuit slow response (sensor 1)

P0154*

Cylinder 2, 3 heated oxygen sensor circuit no activity detected (sensor 1)

P0155

Cylinder 2, 3 heated oxygen sensor heater circuit (sensor 1)

P0156

Cylinder 2, 3 heated oxygen sensor circuit (sensor 2)

P0157

Cylinder 2, 3 heated oxygen sensor circuit low voltage (sensor 2)

P0158

Cylinder 2, 3 heated oxygen sensor circuit high voltage (sensor 2)

P0159

Cylinder 2, 3 heated oxygen sensor circuit slow response (sensor 2)

P0161

Cylinder 2, 3 heated oxygen sensor heater circuit (sensor 2)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-7

P0171

System too lean (cylinder 1, 4)

P0172

System too rich (cylinder 1, 4)

P0174

System too lean (cylinder 2, 3)

P0175

System too rich (cylinder 2, 3)

P0181

Fuel tank temperature sensor circuit range/performance

P0182

Fuel tank temperature sensor circuit low input

P0183

Fuel tank temperature sensor circuit high input

P0201

Injector circuit-cylinder 1

P0202

Injector circuit-cylinder 2

P0203

Injector circuit-cylinder 3

P0204

Injector circuit-cylinder 4

P0222*

Throttle position sensor (sub) circuit low input

P0223*

Throttle position sensor (sub) circuit high input

P0300

Random/multiple cylinder misfire detected

P0301

Cylinder 1 misfire detected

P0302

Cylinder 2 misfire detected

P0303

Cylinder 3 misfire detected

P0304

Cylinder 4 misfire detected

P0335*

Crankshaft position sensor circuit

P0340*

Camshaft position sensor circuit

P0401

Exhaust gas recirculation flow insufficient detected

P0403

Exhaust gas recirculation control circuit

P0421

Warm up catalyst efficiency below threshold (cylinder 1, 4)

P0431

Warm up catalyst efficiency below threshold (cylinder 2, 3)

P0441

Evaporative emission control system incorrect purge flow

P0442

Evaporative emission control system leak detected (Small leak)

P0443

Evaporative emission control system purge control valve circuit

P0446

Evaporative emission control system vent control circuit

P0451

Evaporative emission control system pressure sensor range/performance

P0452

Evaporative emission control system pressure sensor low input

P0453

Evaporative emission control system pressure sensor high input

P0455

Evaporative emission control system leak detected (Gross leak)

P0456

Evaporative emission control system leak detected (Very small leak)

P0461

Fuel level sensor (main) circuit range/performance

P0506

Idle control system RPM lower than expected

P0507

Idle control system RPM higher than expected

P0513

Immobilizer malfunction

P0551

Power steering pressure switch circuit range/performance

P0554

Power steering pressure switch circuit intermittent

P0606*

Powertrain control module main processor malfunction

DTC

ITEM

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-8

P0638*

Throttle actuator control motor circuit range/performance

P0642*

Throttle position sensor power supply

P0657*

Throttle actuator control motor relay circuit malfunction

P0705

Transmission range switch circuit malfunction (RPNDL input)

P0712*

Transmission fluid temperature sensor circuit low input

P0713*

Transmission fluid temperature sensor circuit high input

P0715*

Input/Turbine speed sensor circuit

P0720*

Output speed sensor circuit

P0731*

Gear 1 incorrect ratio

P0732*

Gear 2 incorrect ratio

P0733*

Gear 3 incorrect ratio

P0734*

Gear 4 incorrect ratio

P0736*

Gear R incorrect ratio

P0741

Torque converter clutch circuit performance or stuck off

P0742

Torque converter clutch circuit stuck on

P0743*

Torque converter clutch circuit electrical

P0753*

Shift solenoid "A" electrical

P0758*

Shift solenoid "B" electrical

P0763*

Shift solenoid "C" electrical

P0768*

Shift solenoid "D" electrical

P1020

Mitsubishi innovative valve timing and lift electronic control system (MIVEC) performance
problem

P1021

Engine oil control valve circuit

P1601*

Communication malfunction (between PCM and throttle actuator control unit)

P1603*

Battery backup line malfunction

P1751*

A/T control relay malfunction

P2066

Fuel level sensor (sub) circuit range/performance

P2100*

Throttle actuator control motor circuit (open)

P2101*

Throttle actuator control motor magneto malfunction

P2102*

Throttle actuator control motor circuit (shorted low)

P2103*

Throttle actuator control motor circuit (shorted high)

P2108*

Throttle actuator control processor malfunction

P2122*

Accelerator pedal position sensor (main) circuit low input

P2123*

Accelerator pedal position sensor (main) circuit high input

P2127*

Accelerator pedal position sensor (sub) circuit low input

P2128*

Accelerator pedal position sensor (sub) circuit high input

P2135*

Throttle position sensor (main and sub) range/performance problem

P2138*

Accelerator pedal position sensor (main and sub) range/performance problem

P2227*

Barometric pressure circuit range/performance problem

DTC

ITEM
