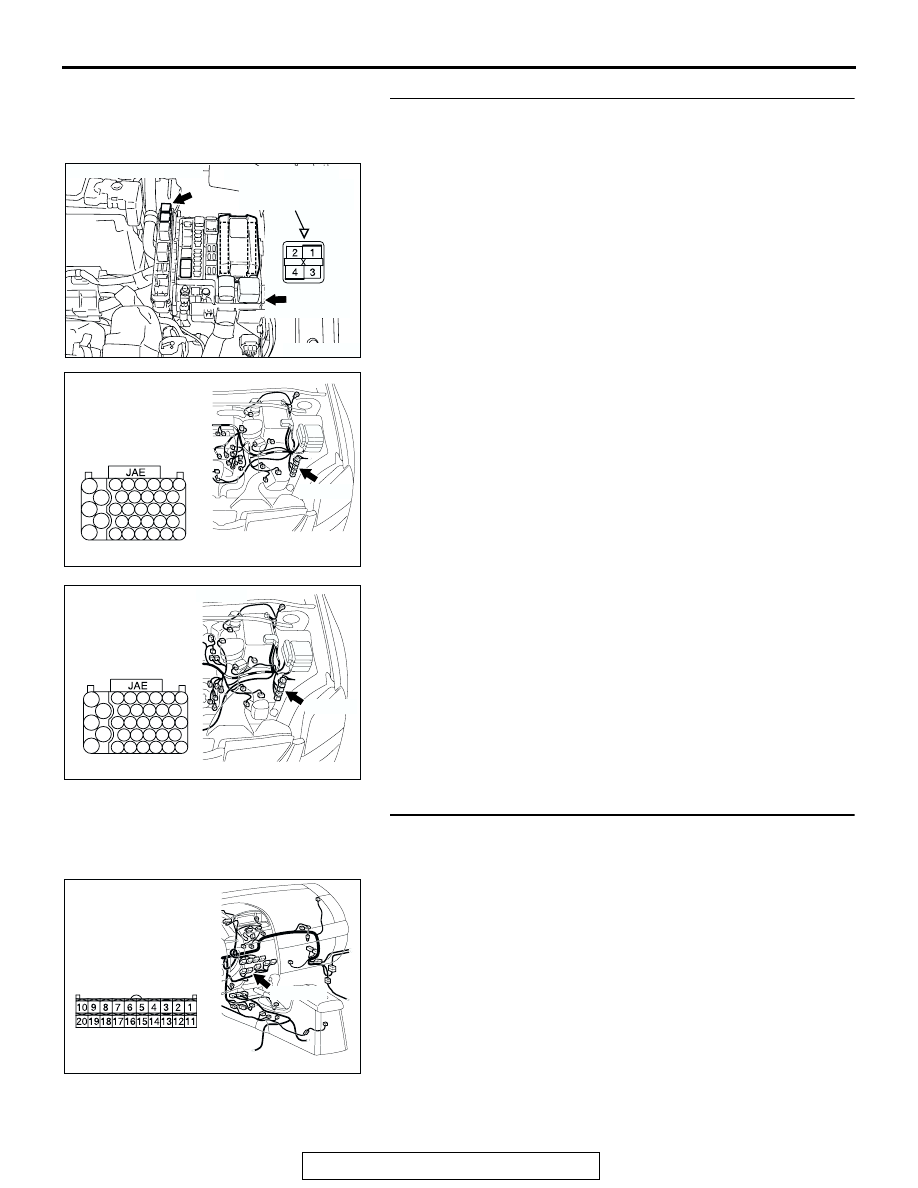

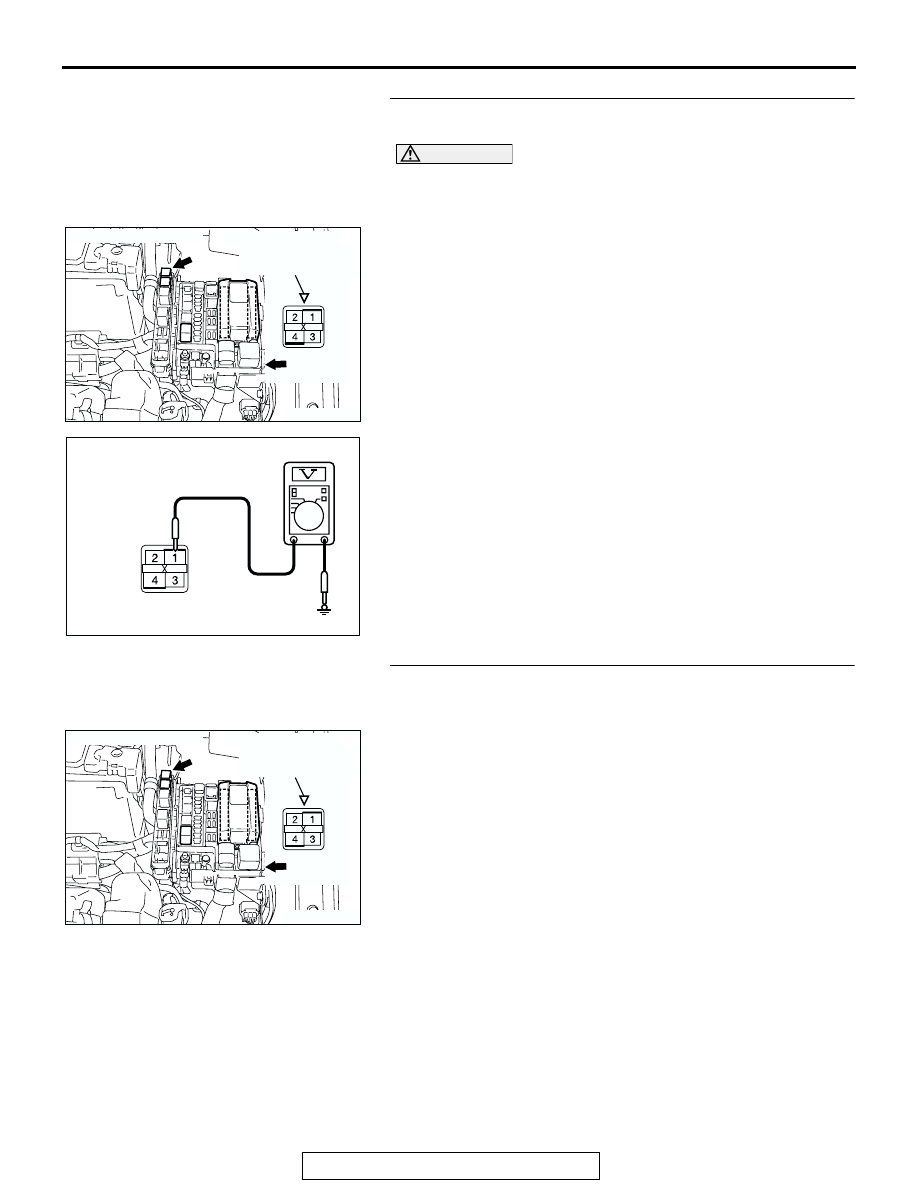

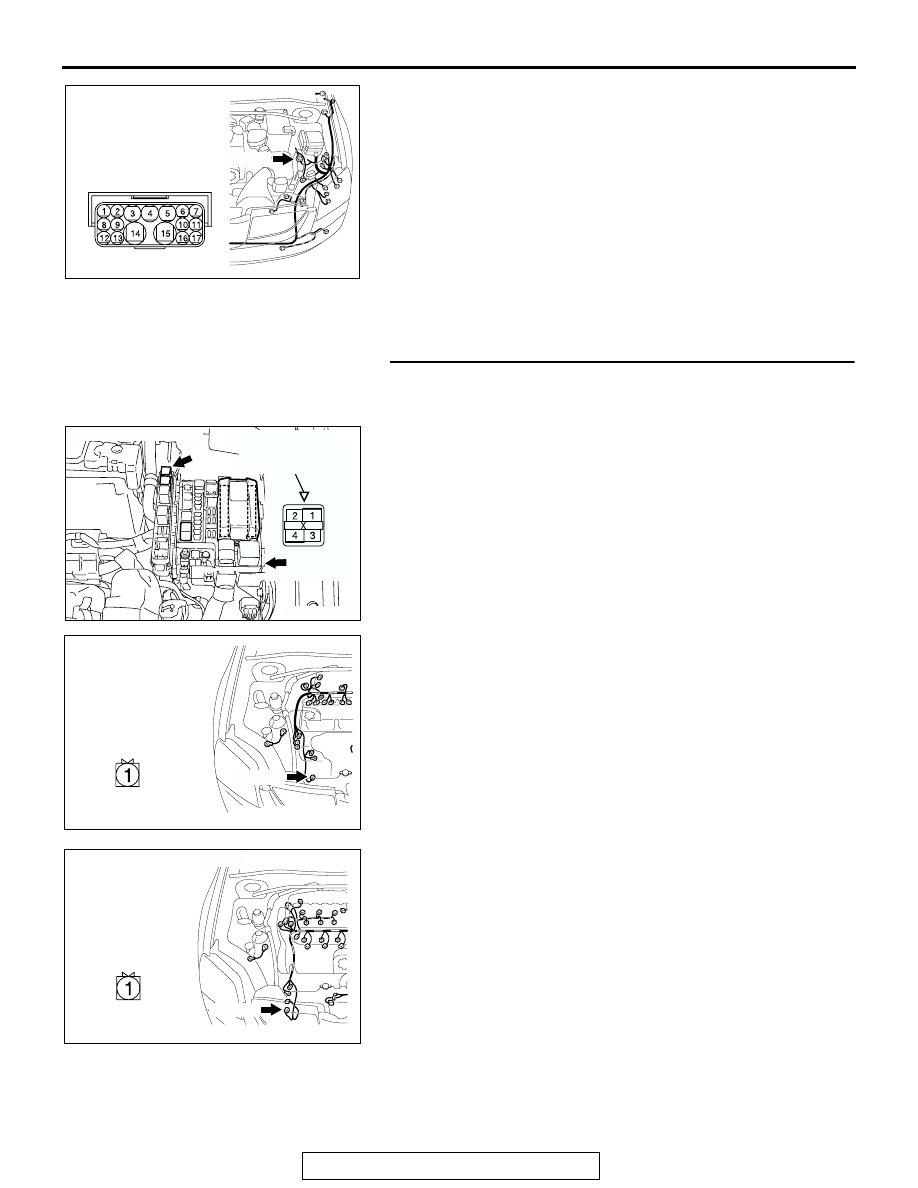

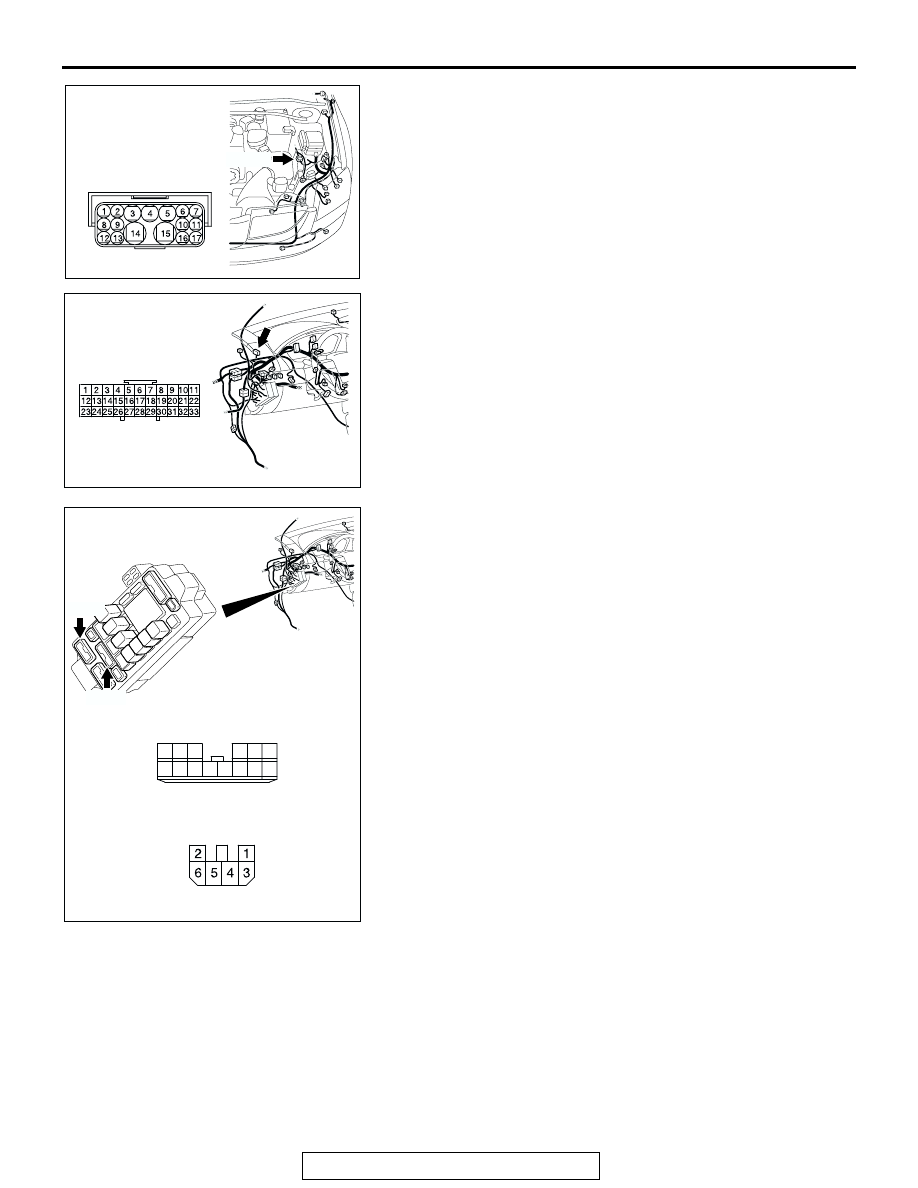

MANUAL A/C DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-199

NOTE: Also check intermediate connector A-13, joint connec-
tor C-01, junction block connectors C-214 and C-215 for loose,
corroded, or damaged terminals, or terminals pushed back in
the connector. If intermediate connector A-13, joint connector
C-01, junction block connector C-214 or C-215 is damaged,
repair or replace the connector as described in GROUP 00E,
Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between A/C compressor clutch

relay connector B-18X (terminal 2) and the ignition
switch (IG2) in good condition?
YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

P.00-6

.

NO :  Repair the wiring harness. Check that the air

conditioning works normally.

AC305210

A-13 (GR)

AR

CONNECTOR: A-13

AC305231

CONNECTOR: C-01

BO

AC305416

CONNECTORS: C-214, C-215

JUNCTION BLOCK
(FRONT VIEW)

C-215

HARNESS SIDE

C-214

C-214

HARNESS SIDE

C-215

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AL

MANUAL A/C DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-200

STEP 11. Measure the voltage at A/C compressor clutch
relay connector B-18X.

CAUTION

The top and bottom of the A/C compressor connector are
difficult to identify. Prior to inspection, confirm the triangle
mark on the relay box.
(1) Disconnect A/C compressor connector B-18X and measure

the voltage at the wiring harness side.

(2) Measure the voltage between terminal 1 and ground.

• The measured value should be approximately 12 volts

(battery positive voltage).

Q: Is the measured voltage approx. 12 volts?

YES :  Go to Step 13.
NO :   Go to Step 12.

STEP 12. Check the wiring harness between A/C
compressor clutch relay connector B-18X (terminal 1) and

the battery.

AC305977AJ

CONNECTOR: B-18X

RELAY BOX SIDE

FRONT OF
VEHICLE

JUNCTION BLOCK
TRIANGLE MARK

AC209365GU

CONNECTOR B-18X
(RELAY BOX SIDE)

AC305977AJ

CONNECTOR: B-18X

RELAY BOX SIDE

FRONT OF
VEHICLE

JUNCTION BLOCK
TRIANGLE MARK

MANUAL A/C DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-201

NOTE: Also check intermediate connector A-13 for loose, cor-
roded, or damaged terminals, or terminals pushed back in the
connector. If intermediate connector A-13 is damaged, repair or
replace the connector as described in GROUP 00E, Harness
Connector Inspection

P.00E-2

.

Q: Is the wiring harness between A/C compressor clutch

relay connector B-18X (terminal 1) and the battery in
good condition?
YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

P.00-6

.

NO :  Repair the wiring harness. Check that the air

conditioning works normally.

STEP 13. Check the wiring harness between A/C
compressor clutch relay connector B-18X (terminal 4) and
A/C compressor assembly connector B-28 (terminal 1).

Q: Is the wiring harness between A/C compressor clutch

relay connector B-18X (terminal 4) and A/C compressor
connector B-28 (terminal 1) in good condition?
YES : Go to Step 14.
NO :  Repair the wiring harness. Check that the air

conditioning works normally.

AC305210

A-13 (GR)

AR

CONNECTOR: A-13

AC305977AJ

CONNECTOR: B-18X

RELAY BOX SIDE

FRONT OF
VEHICLE

JUNCTION BLOCK
TRIANGLE MARK

AC305214

B-28 (B)

HARNESS SIDE

AD

CONNECTOR: B-28 <2.4L>

AC305218

B-28 (B)

HARNESS SIDE

AB

CONNECTOR: B-28 <3.8 L>

MANUAL A/C DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-202

STEP 14. Check the wiring harness between powertrain
control module connector B-21 (terminal 81) and A/C
compressor clutch relay connector B-18X (terminal 3).

Q: Is the wiring harness between powertrain control

module connector B-21 (terminal 81) and A/C
compressor clutch relay connector B-18X (terminal 3) in
good condition?
YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

P.00-6

.

NO :  Repair the wiring harness. Check that the air

conditioning works normally.

STEP 15. Check A/C-ECU connector C-15 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q:  Is A/C-ECU connector C-15 in good condition?

YES : Go to Step 16.
NO :  Repair or replace the connector. Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. Check

that the air conditioning works normally.

AC305977AJ

CONNECTOR: B-18X

RELAY BOX SIDE

FRONT OF
VEHICLE

JUNCTION BLOCK
TRIANGLE MARK

AC305216

B-21 (B)

AC

CONNECTOR: B-21 <2.4L>

HARNESS SIDE

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

AC305229

B-21 (B)

AB

HARNESS SIDE

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

CONNECTOR: B-21 <3.8 L>

AC305233

CONNECTOR: C-15

BG

C-105 (B)

HARNESS SIDE
