MANUAL A/C DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-187

NOTE: Also check joint connector C-03, junction block connec-
tors C-211 and C-215 for loose, corroded, or damaged termi-
nals, or terminals pushed back in the connector. If intermediate
connector C-03, junction block connector C-211 or C-215 is
damaged, repair or replace the connector as described in
GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between outside/inside air

selection damper control motor connector C-106
(terminal 1) and the ignition switch (IG2) in good
condition?
YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

P.00-6

.

NO :  Repair the wiring harness. Check that the

outside/inside air selection damper control motor
works normally.

AC305231BP

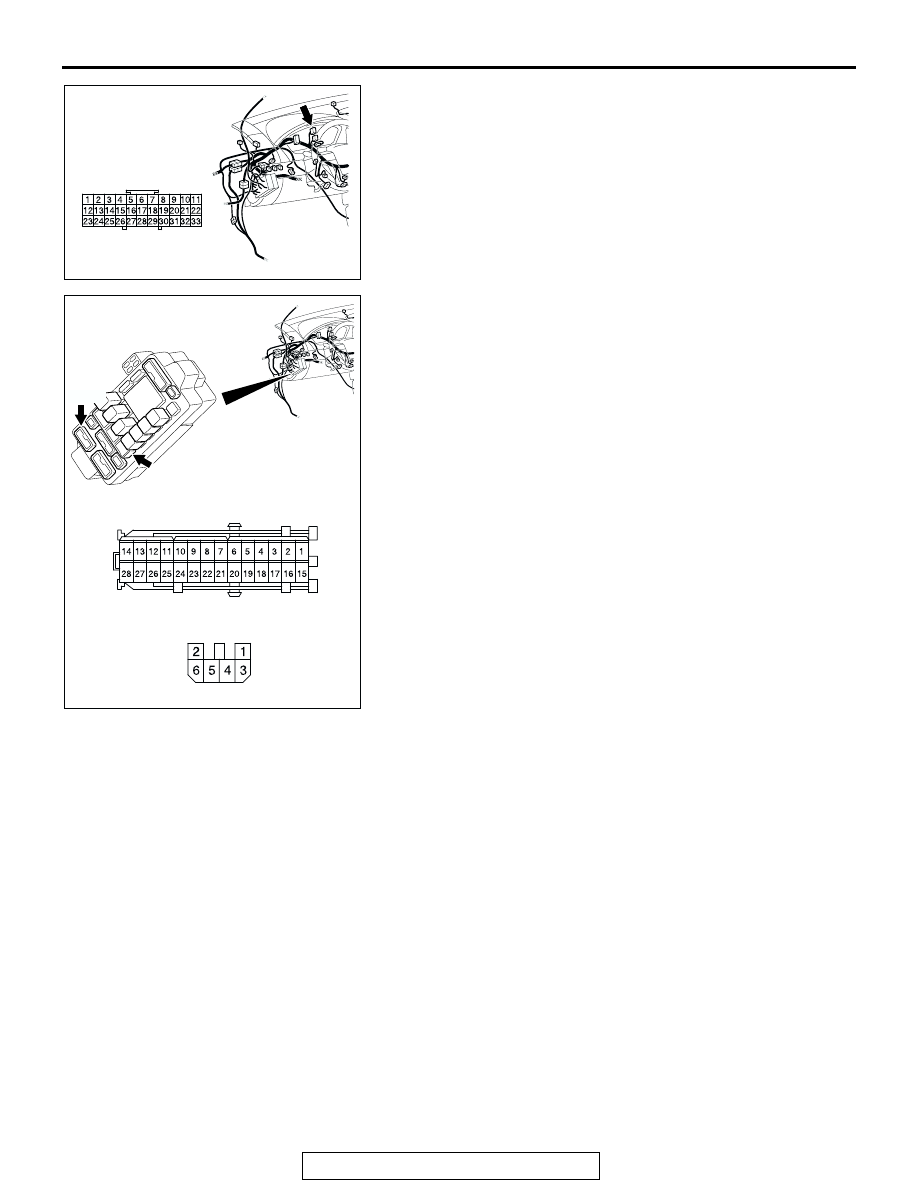

CONNECTOR: C-03

AC305416

CONNECTORS: C-211, C-215

JUNCTION BLOCK
(FRONT VIEW)

C-215

C-211

HARNESS SIDE

C-211

HARNESS SIDE

C-215

AK

MANUAL A/C DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-188

STEP 5. Check the outside/inside air selection damper
control motor.

CAUTION

Cut off the battery voltage when the damper is in the
inside/outside air position.
Check the outside/inside air selection damper control motor by
the following procedures.

Q: Does outside/inside air selection damper control motor

work normally?
YES : Go to Step 6.
NO :  Replace the outside/inside air selection damper

control motor. Check that the outside/inside air
selection damper control motor works normally.

STEP 6. Check A/C-ECU connector C-15 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q: Is A/C-ECU connector C-15 in good condition?

YES : Go to Step 7.
NO :  Repair or replace the connector. Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. Check

that the outside/inside air selection damper control
motor works normally.

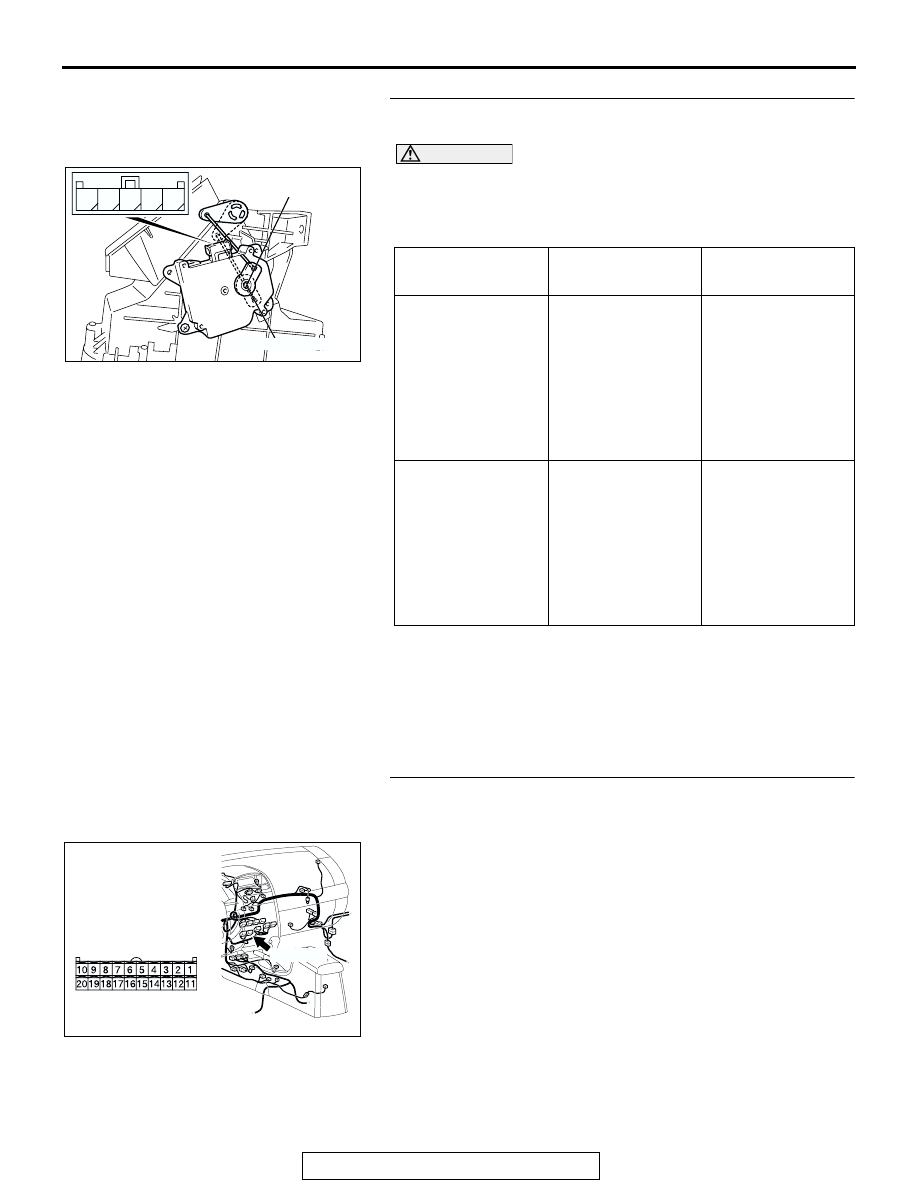

LEVER POSITION BATTERY

CONNECTION

LEVER
OPERATION

At the outside
position

• Connect

terminal 1 to the
positive battery
terminal

• Connect

terminal 5 to the
negative battery
terminal

The lever moves
from the outside
position to the
inside position

At the inside
position

• Connect

terminal 1 to the
positive battery
terminal

• Connect

terminal 4 to the
negative battery
terminal

The lever moves
from the inside
position to the
outside position

AC206298

OUTSIDE POSITION

INSIDE POSITION

AB

3

1 2

4 5

AC305233

CONNECTOR: C-15

BG

C-105 (B)

HARNESS SIDE

MANUAL A/C DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-189

STEP 7. Check the wiring harness between outside/inside
air selection damper control motor connector C-106
(terminals 4 and 5) and A/C-ECU C-15 (terminals 5 and 6).

Q: Are the wiring harness between outside/inside air

selection damper control motor connector C-106
(terminals 4 and 5) and A/C-ECU C-15 (terminals 5 and
6) in good condition?
YES : Go to Step 8.
NO :  Repair the wiring harness. Check that the

outside/inside air selection damper control motor
works normally.

STEP 8. Retest the system.
Q: Does a malfunction take place again?

YES : Replace the A/C-ECU, and check that the

outside/inside air selection damper control motor
works normally.

NO :  It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

P.00-6

.

AC305234

HARNESS SIDE

C-15

AN

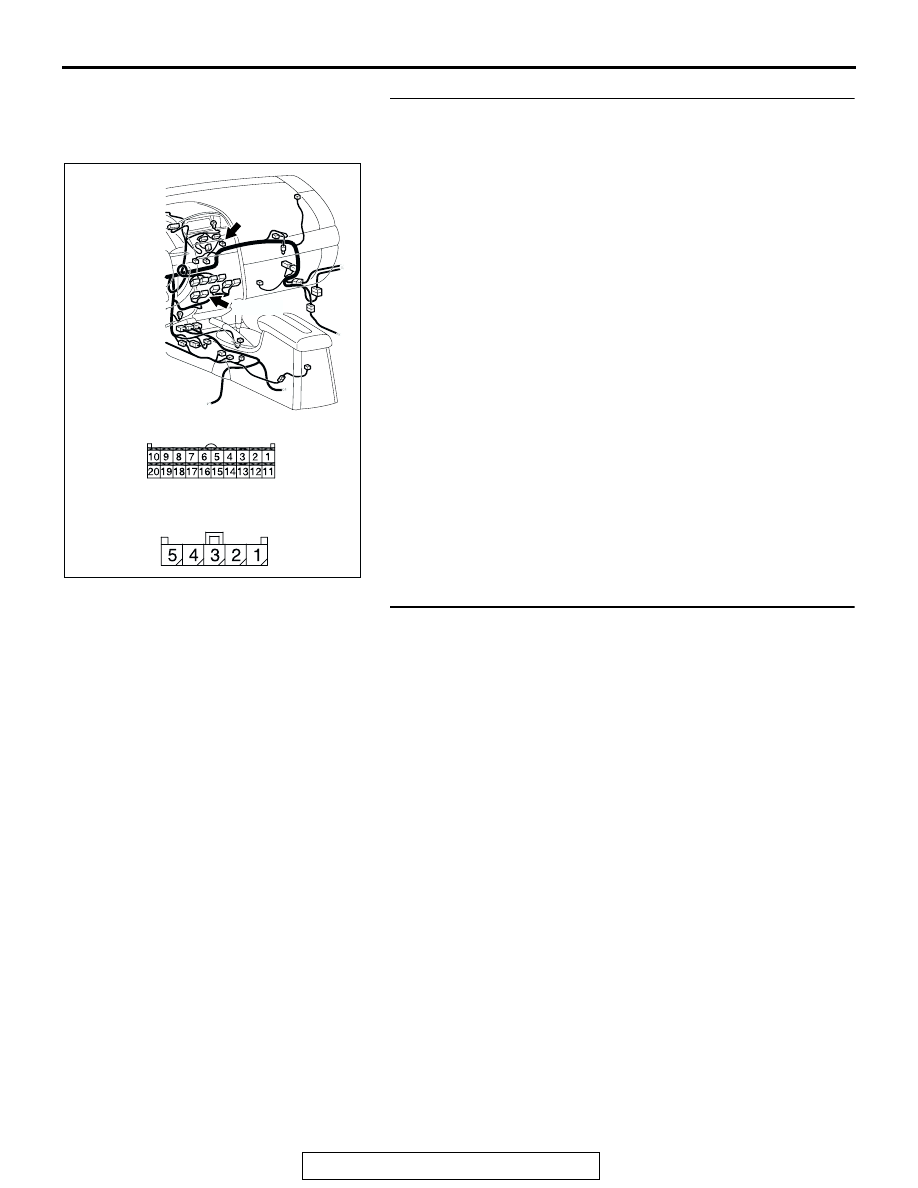

CONNECTORS: C-15, C-106

C-106

HARNESS SIDE

C-106

C-15 (B)

MANUAL A/C DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-190

INSPECTION PROCEDURE 4: When the A/C is Operating, Temperature Inside the Passenger
Compartment does not Decrease (Cool Air is not Emitted).

A/C
COMPRESSOR
CLUTCH RELAY

IGNITION
SWITCH (IG2)

BATTERY

RELAY
BOX

A/C
REFRIGERANT
TEMPERATURE
SWITCH

A/C
COMPRESSOR
ASSEMBLY

A/C
COMPRESSOR
CLUTCH

A/C-ECU

POWERTRAIN
CONTROL
MODULE

JOINT
CONNECTOR
(1)

JUNCTION
BLOCK

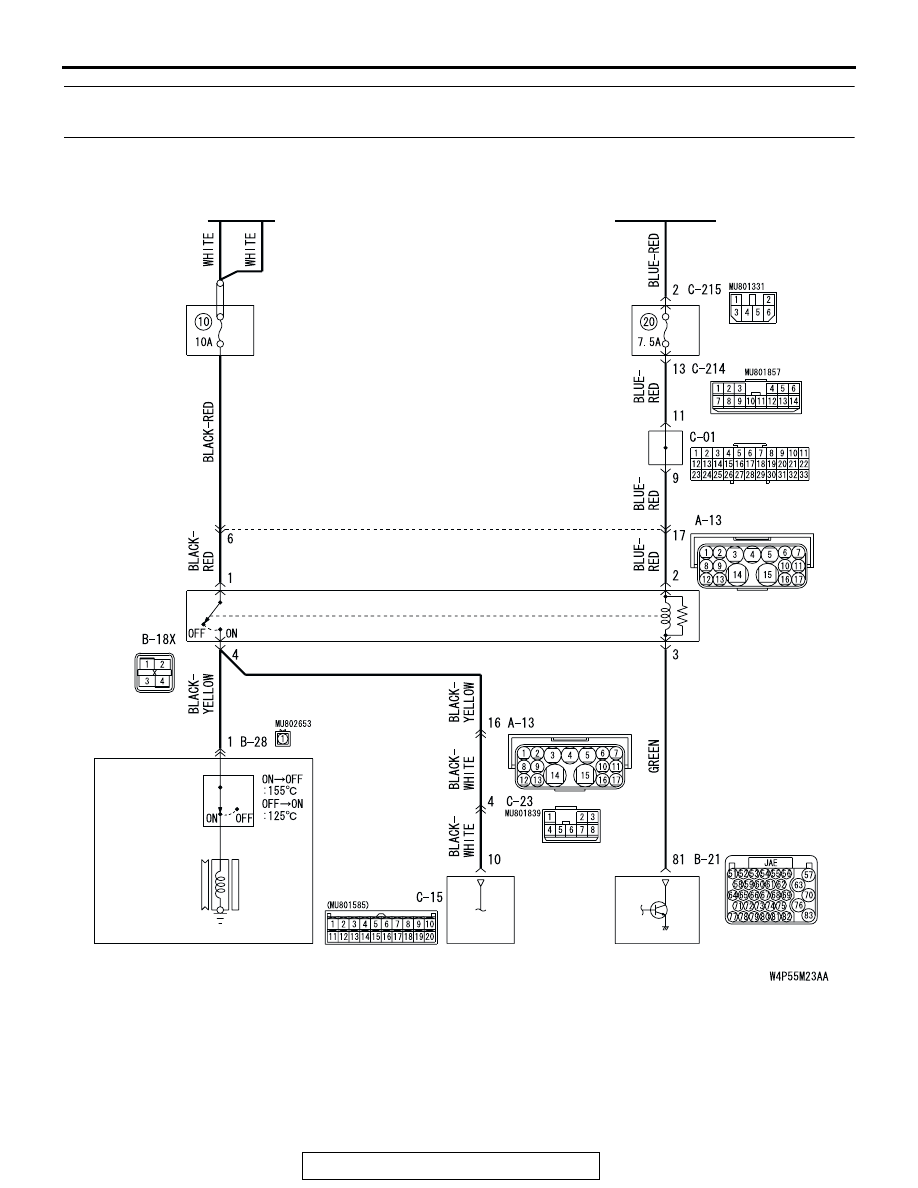

A/C Compressor Circuit
