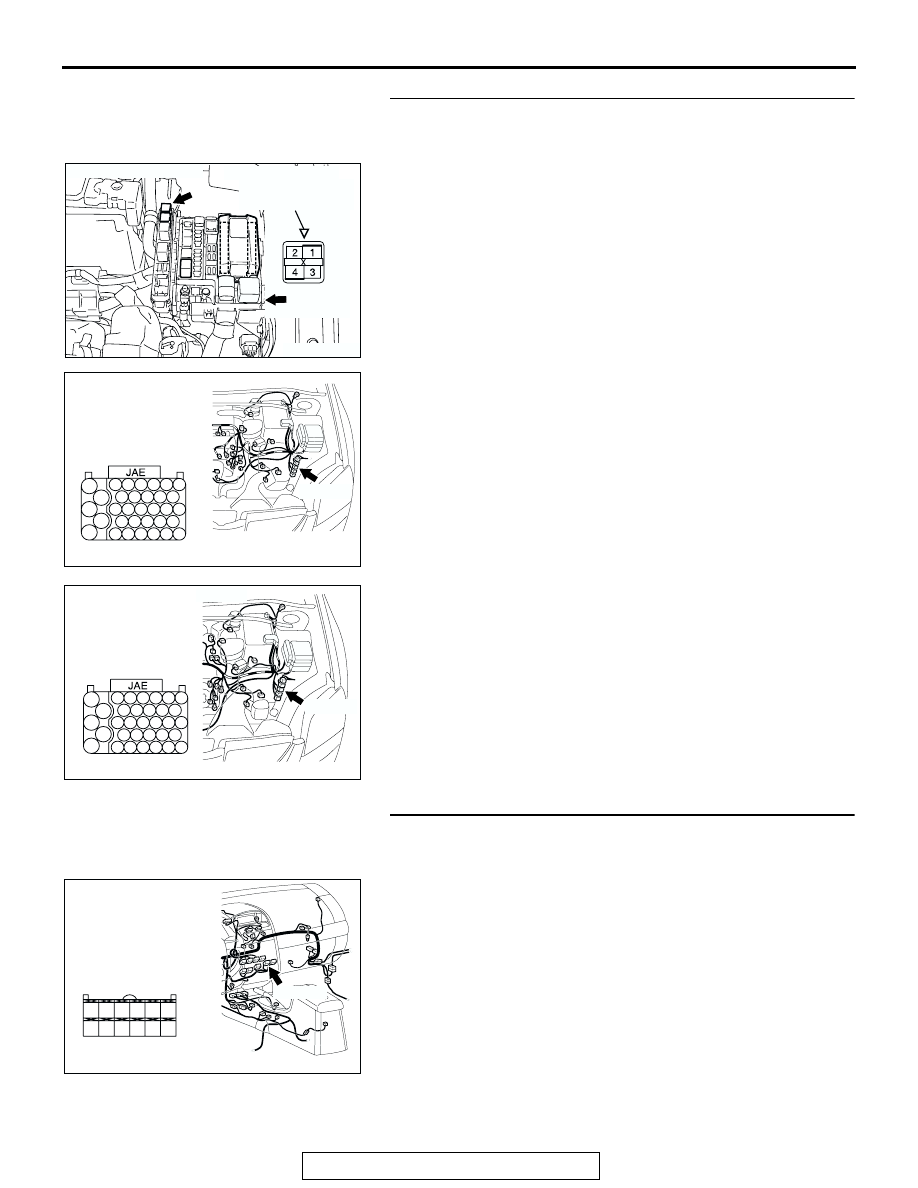

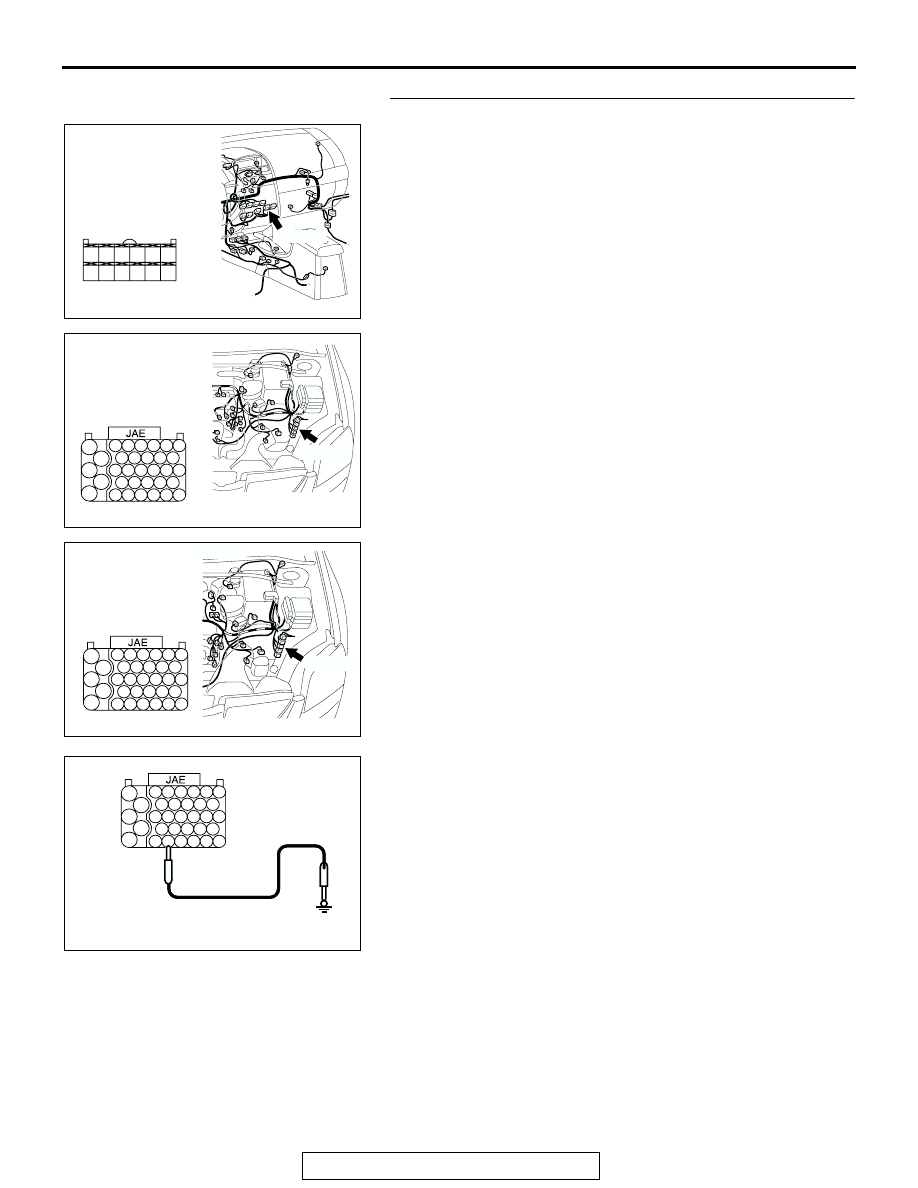

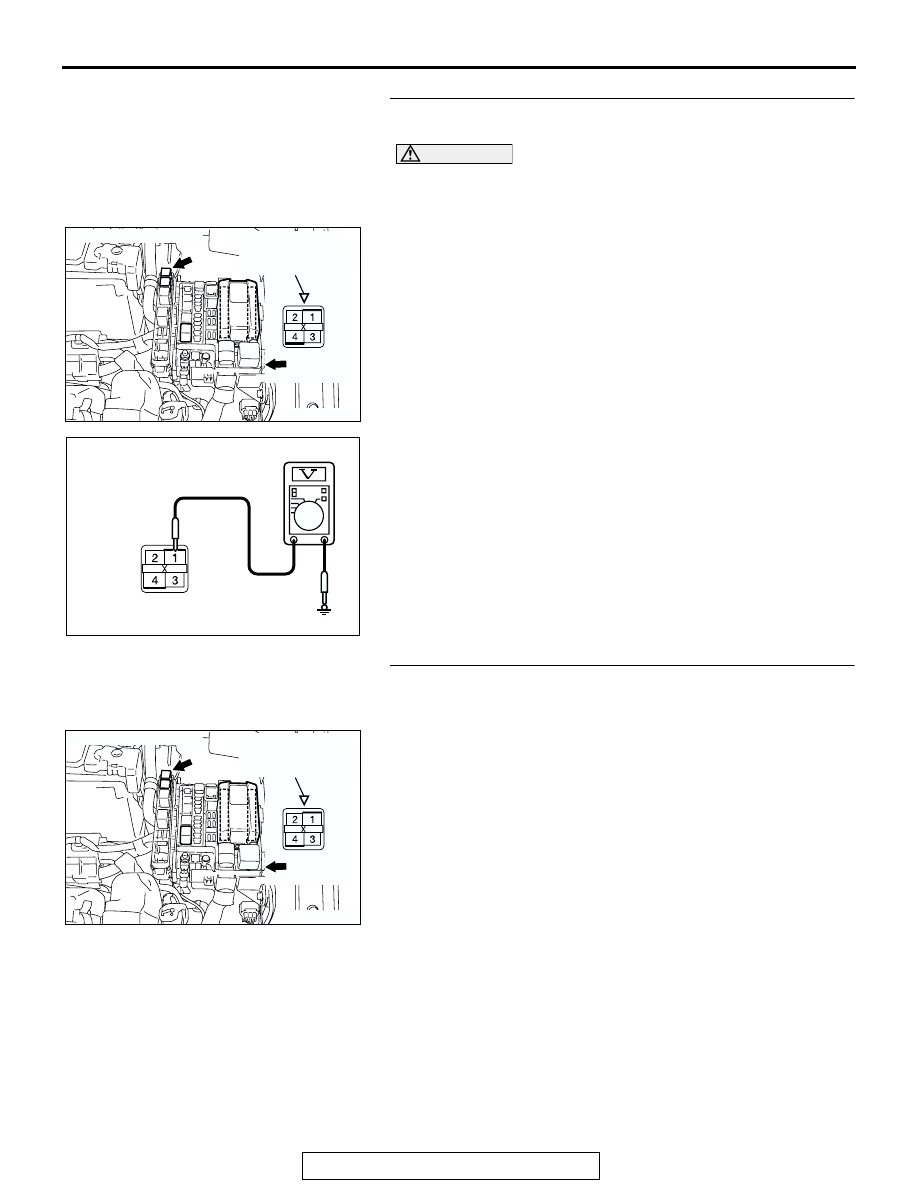

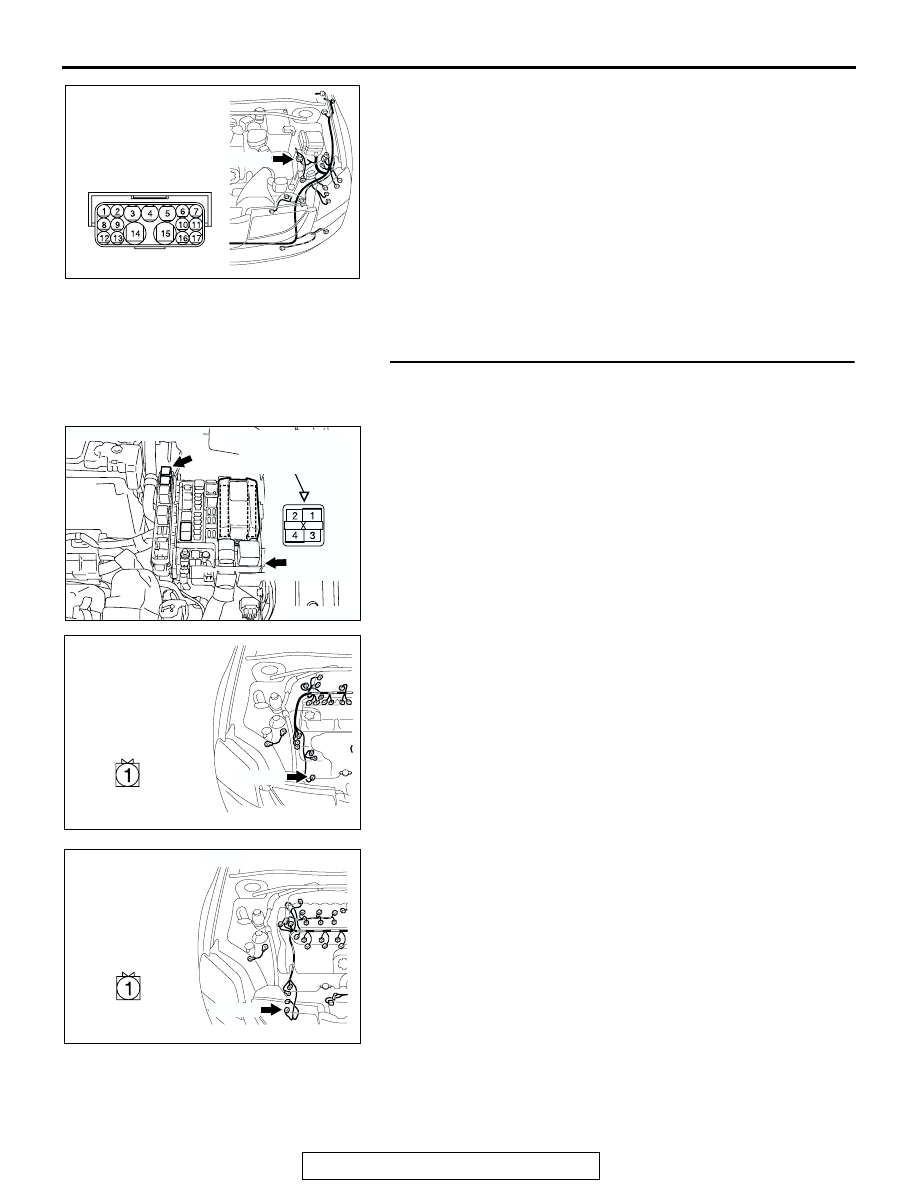

MANUAL A/C DIAGNOSIS TSB Revision HEATER, AIR CONDITIONING AND VENTILATION 55A-131 STEP 11. Measure the voltage at A/C compressor clutch CAUTION The top and bottom of the A/C compressor connector are the voltage at the wiring harness side. (2) Measure the voltage between terminal 1 and ground. • The measured value should be approximately 12 volts (battery positive voltage). Q: Is the measured voltage approx. 12 volts? YES : Go to Step 13. STEP 12. Check the wiring harness between A/C the battery. AC305977AJ CONNECTOR: B-18X RELAY BOX SIDE FRONT OF JUNCTION BLOCK AC209365GU CONNECTOR B-18X AC305977AJ CONNECTOR: B-18X RELAY BOX SIDE FRONT OF JUNCTION BLOCK |
