ON-VEHICLE SERVICE

TSB Revision

AUTOMATIC TRANSAXLE

23A-375

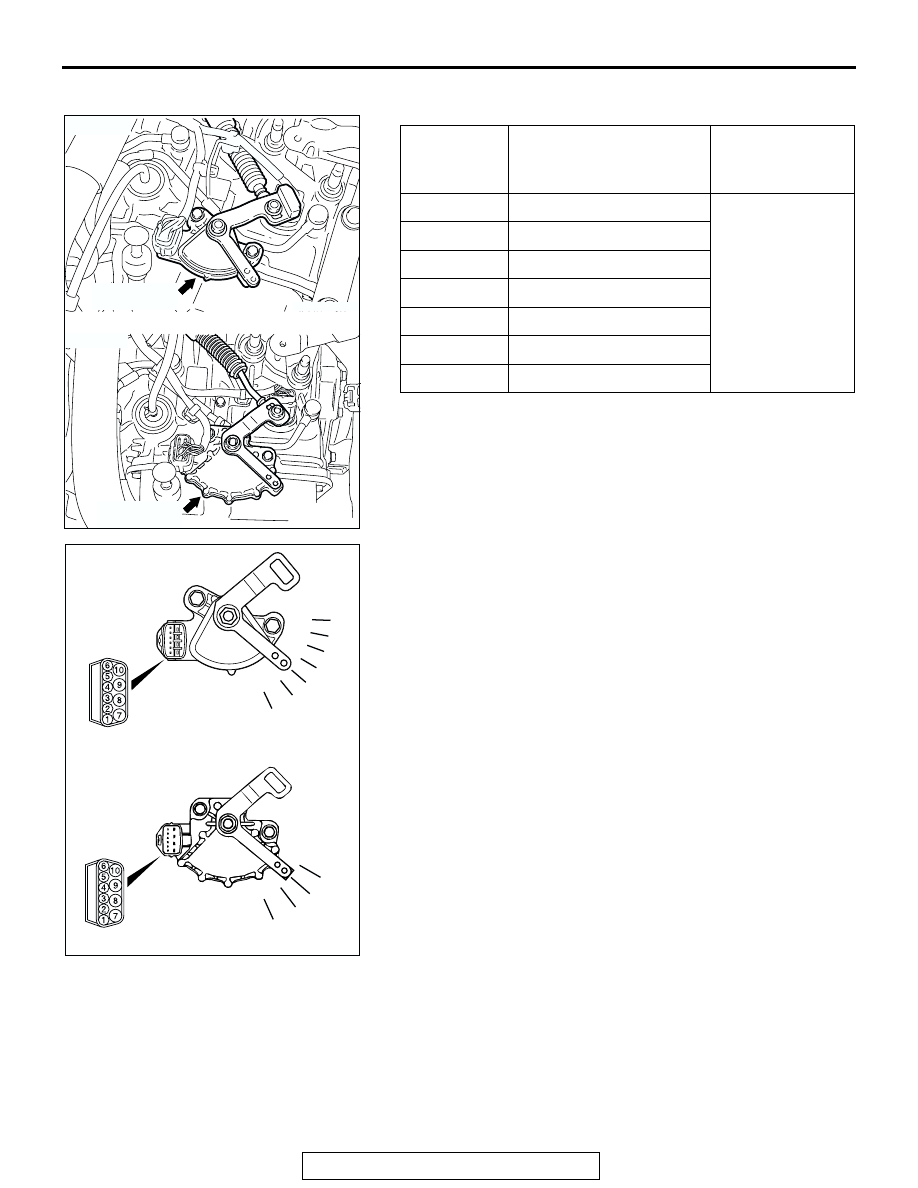

TRANSMISSION RANGE SWITCH CHECK

M1231021600106

NOTE: For vehicles with sport mode, four positions (P, R, N, D)
are used.

TRANS
MISSION
RANGE

TERMINAL
CONNECTION OF
TESTER

SPECIFIED
CONDITION

P

3

− 8, 9 − 10

Less than 2 ohms.

R

7

− 8

N

4

− 8, 9 − 10

D

1

− 8

3

5

− 8

2

2

− 8

L

6

− 8

AC305881

AC305532

AC305679

<F4A4B>

<F4A5A>

AC

TRANSMISSION
RANGE SWITCH

TRANSMISSION
RANGE SWITCH

AC210182

AC304078

AC306426

P

R

N

D

<F4A5A>

3

2

L

P

R

N

D

<F4A4B>

AB

ON-VEHICLE SERVICE

TSB Revision

AUTOMATIC TRANSAXLE

23A-376

TRANSMISSION RANGE SWITCH AND CONTROL
CABLE ADJUSTMENT

M1231021700051

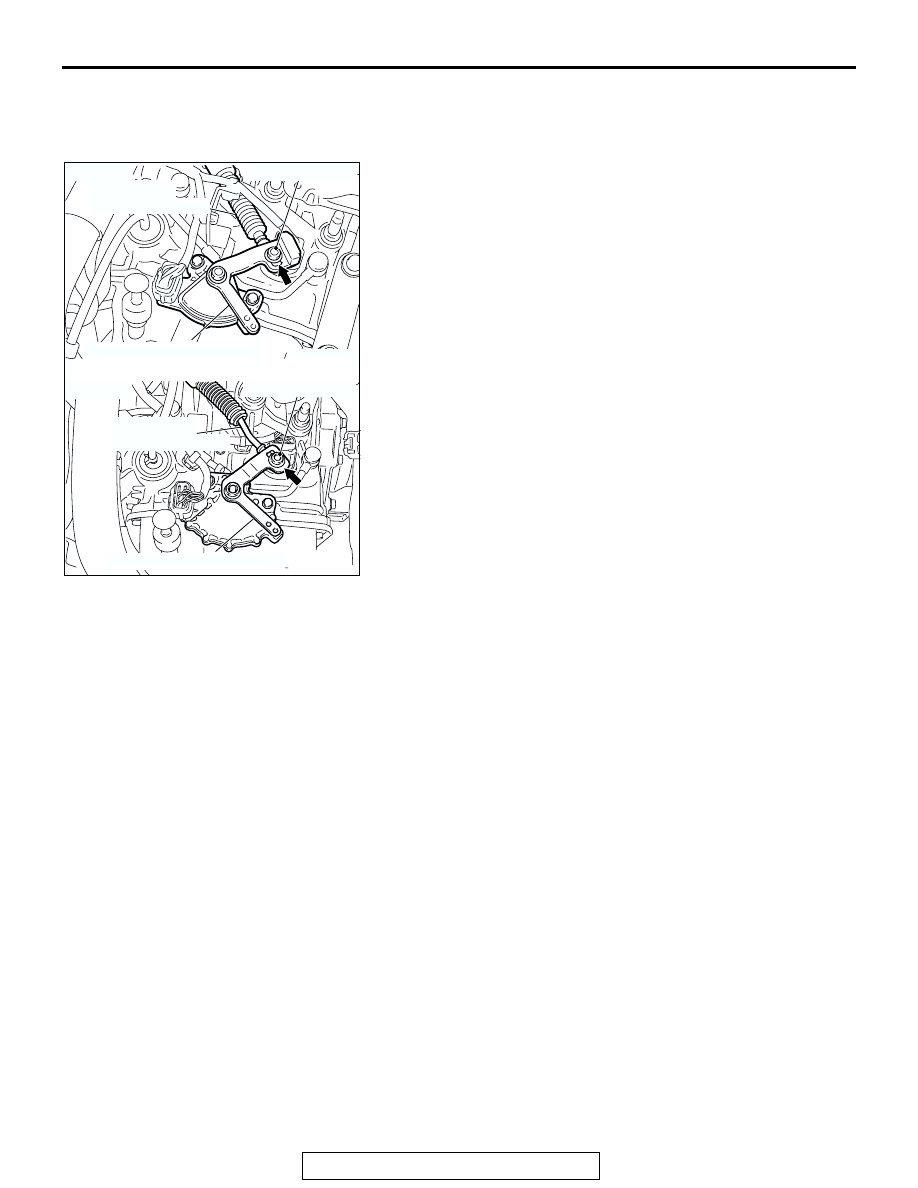

1. Set the selector lever to the "N" position.
2. Loosen the control cable to the manual control lever

coupling nut to free the cable and lever.

3. Set the manual control lever to the neutral position.

AC305881

AC305532

AC305679

ADJUSTING NUT

ADJUSTING NUT

TRANSAXLE
CONTROL CABLE

TRANSAXLE
CONTROL CABLE

MANUAL CONTROL LEVER

MANUAL CONTROL LEVER

AD

<F4A4B>

<F4A5A>

ON-VEHICLE SERVICE

TSB Revision

AUTOMATIC TRANSAXLE

23A-377

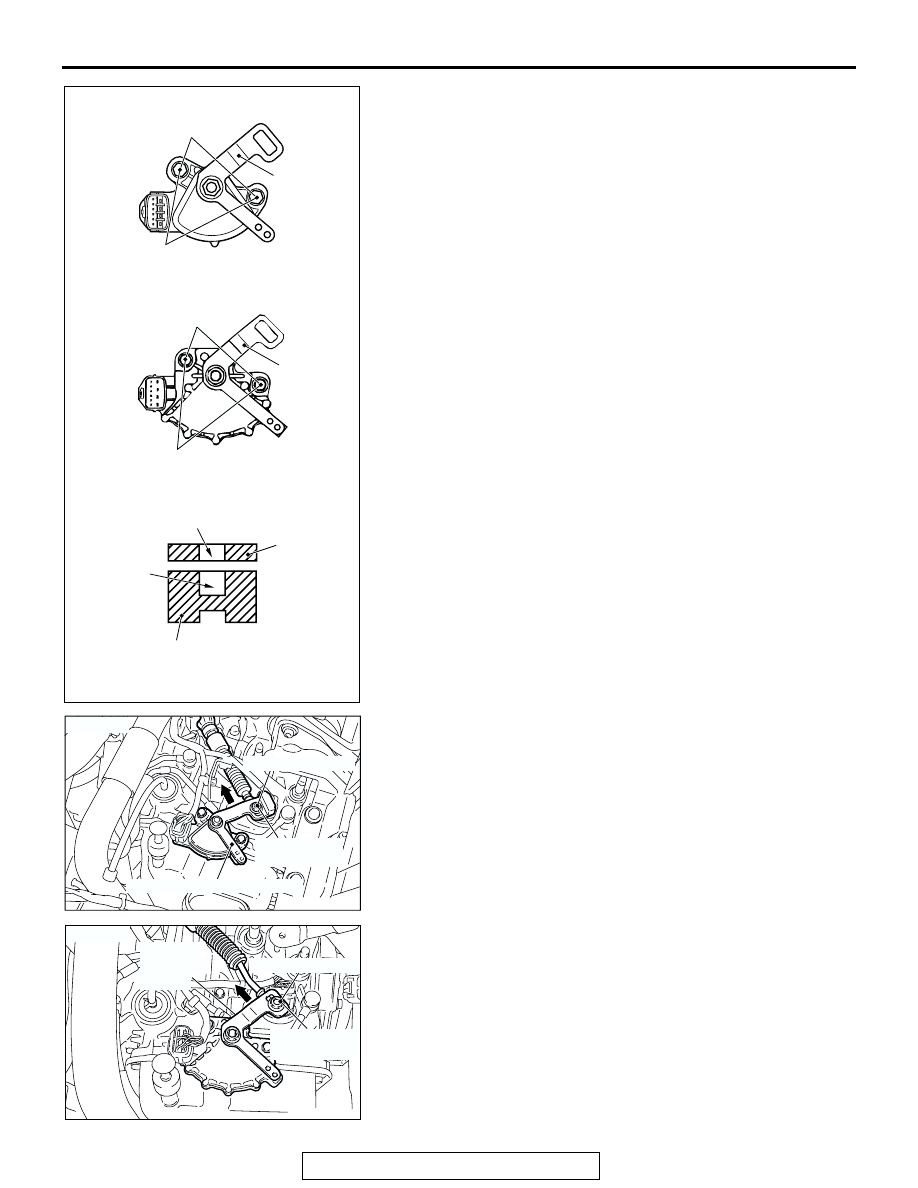

4. Loosen the transmission range switch body mounting bolts

and turn the park/neutral position switch body so the hole in
the end of the manual control lever and the hole (section A

−

A in the figure on the left) in the flange of the transmission
range switch body flange are aligned.
NOTE: The transmission range switch body can be aligned
by inserting a 5-mm diameter steel bar into the end hole of
the manual control lever and the flange hole of the transmis-
sion range switch body.

5. Tighten the transmission range switch body mounting bolts

to the specified torque. Be careful at this time that the switch
body does not move.

Tightening torque: 11

± 1 N⋅m (96 ± 8 in-lb)

6. Gently push the transaxle control cable in the direction of the

arrow, until the cable is taut. Tighten the adjusting nut.

Tightening torque: 12

± 2 N⋅m (107 ± 17 in-lb)

7. Check that the selector lever is in the "N" position.
8. Check that each position of the manual control lever

matches each position of the selector lever using scan tool
MB991958 (MUT-III sub assembly).

AC306319

<F4A4B>

11 ± 1 N·m
96 ± 8 in-lb

MOUNTING BOLTS

MANUAL
CONTROL
LEVER

<F4A5A>

11 ± 1 N·m
96 ± 8 in-lb

MOUNTING BOLTS

MANUAL
CONTROL
LEVER

SECTION A - A

HOLE IN END

HOLE IN
FLANGE

TRANSMISSION
RANGE SWITCH BODY

MANUAL
CONTROL
LEVER

AB

AC305532

12 ± 2 N·m
107 ± 17 in-lb

MANUAL CONTROL LEVER

ADJUSTING NUT

AD

<F4A4B>

AC305881AD

12 ± 2 N·m
107 ± 17 in-lb

ADJUSTING NUT

MANUAL
CONTROL
LEVER

<F4A5A>

ON-VEHICLE SERVICE

TSB Revision

AUTOMATIC TRANSAXLE

23A-378

AUTOMATIC TRANSAXLE CONTROL
COMPONENT CHECK

CRANKSHAFT POSITION SENSOR CHECK

M1231009000355

Refer to GROUP 13A <2.4L Engine>, Diagnosis

− Inspection

Procedure Using an Oscilloscope

P.13A-1086

.

Refer to GROUP 13B <3.8L Engine>, Diagnosis

− Inspection

Procedure Using an Oscilloscope

P.13B-1115

.

TRANSMISSION FLUID TEMPERATURE SENSOR
CHECK

M1231021800058

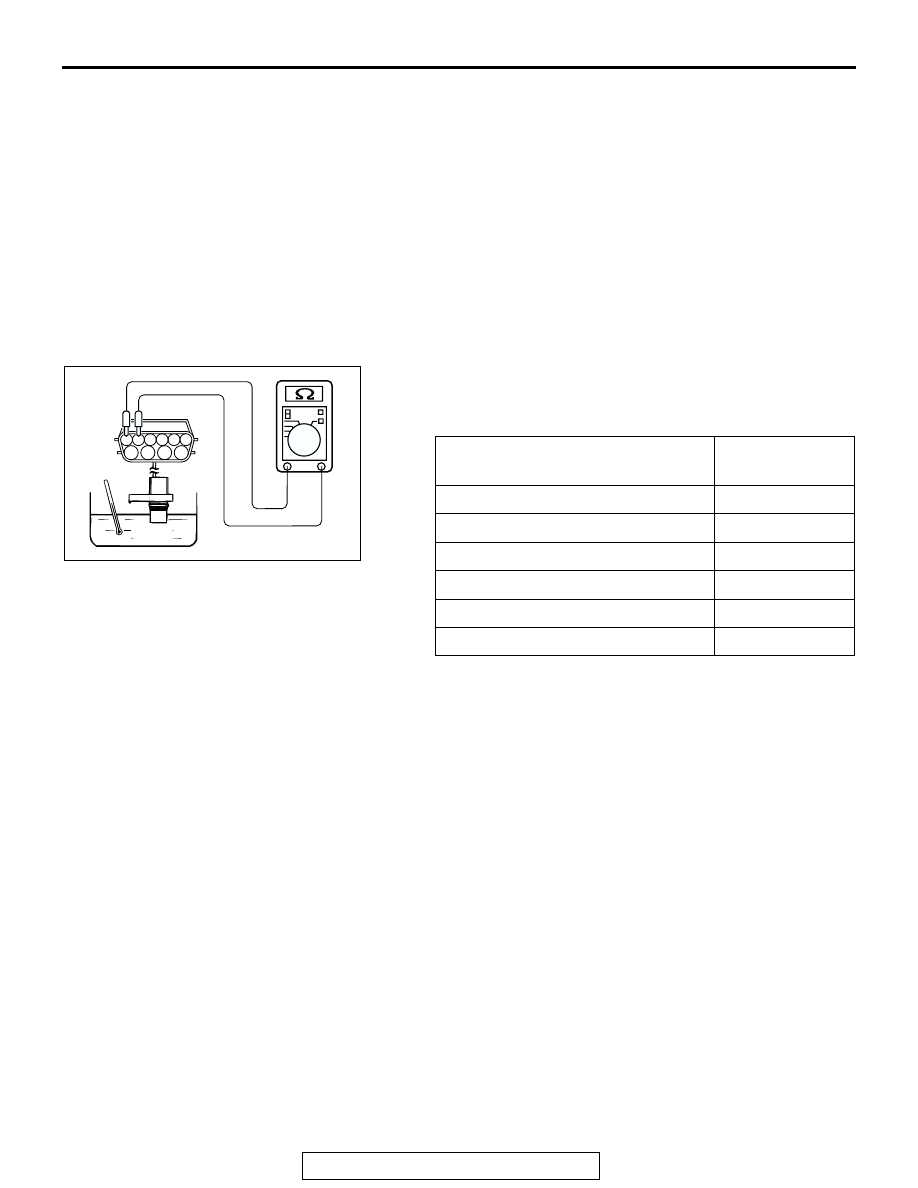

1. Remove the transmission fluid temperature sensor.
2. Measure the resistance between terminals 1 and 2 of the

transmission fluid temperature sensor connector.

Standard value:

3. If the transmission fluid temperature sensor resistance is

outside the specified range and the "N" range indicator light
is flashing, replace the transmission fluid temperature
sensor.
NOTE: The "N" range indicator light on the combination
meter flashes when the temperature reaches approximately
125

°

C (257

°

F) or greater, and then stops flashing when the

temperature drops below approximately 115

°

C (238

°

F).

TRANSMISSION RANGE SWITCH CHECK

M1231021600117

 Refer to

P.23A-375

.

STOPLIGHT SWITCH CHECK

M1231009100192

Refer to GROUP 35A, Brake Pedal

− Brake Pedal Inspection

P.35A-25

.

TRANSMISSION FLUID
TEMPERATURE

RESISTANCE

0

°C (32°F)

16.7

− 20.5 kΩ

20

°C (68°F)

7.3

− 8.9 kΩ

40

°C (104°F)

3.4

− 4.2 kΩ

60

°C (140°F)

1.9

− 2.2 kΩ

80

°C (176°F)

1.0

− 1.2 kΩ

100

°C (212°F)

0.57

− 0.69 kΩ

AC210186

2

7

1

8

3

9

4

6

10

5

AB

ATF
