Mitsubishi Galant (2004+). Manual - part 682





AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-279

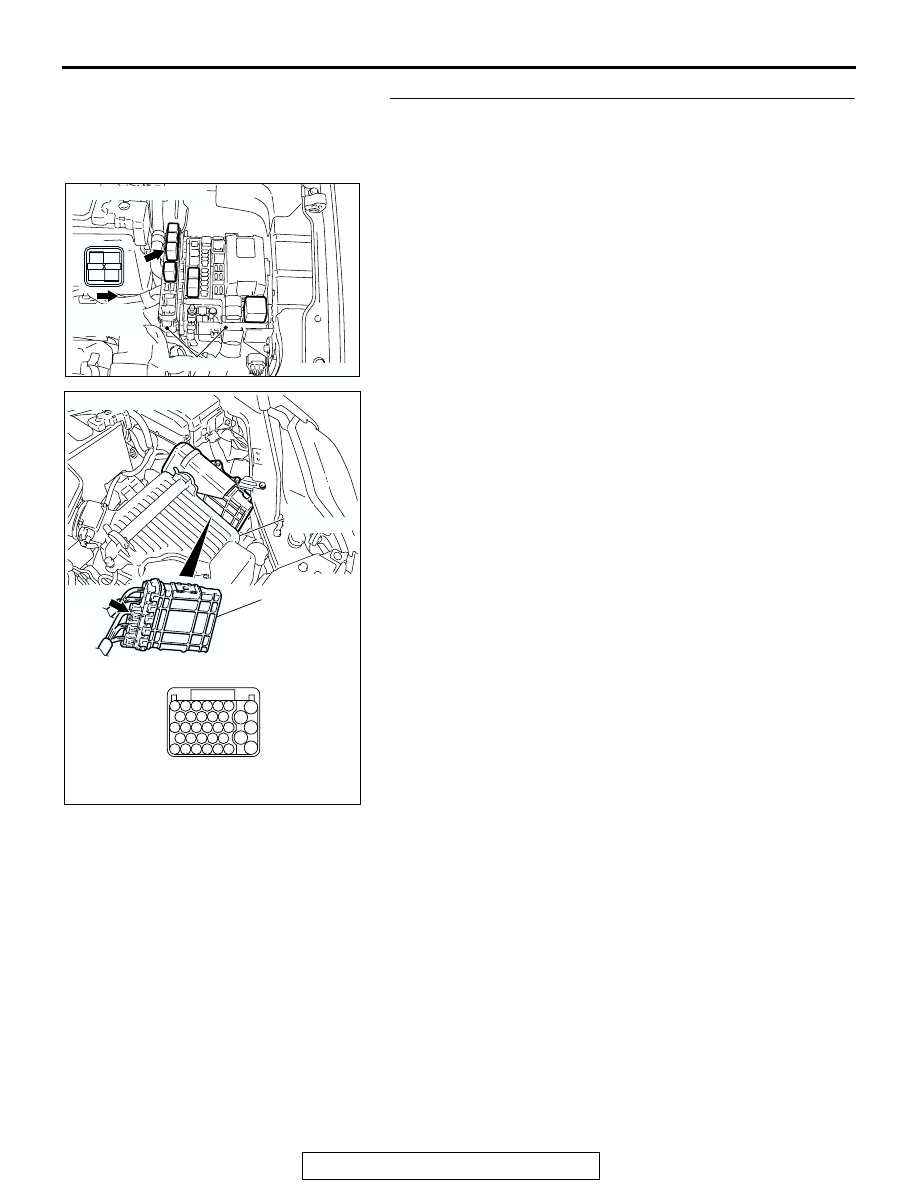

STEP 12. Check harness for open circuit or short circuit to
ground between A/T control relay connector B-16X
(terminal 4) in the engine component relay box and PCM
connector B-21 (terminals 57 and 70).

Q: Is the harness wire in good condition?

YES : Go to Step 15.
NO :  Repair or replace the harness wire.

AC306354

RELAY BOX

AB

CONNECTOR: B-16X

2

1

3

4

FRONT OF
VEHICLE

AC306248AC

B-21
(B)

CONNECTOR: B-21

PCM

AIR
CLEANER

73

80

54

67

60

71 72

77 78 79

64

51

59

58

65

52

66

53

75

74

76

81 82

83

63

JAE

62

68

61

55

69

56

70

57

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-280

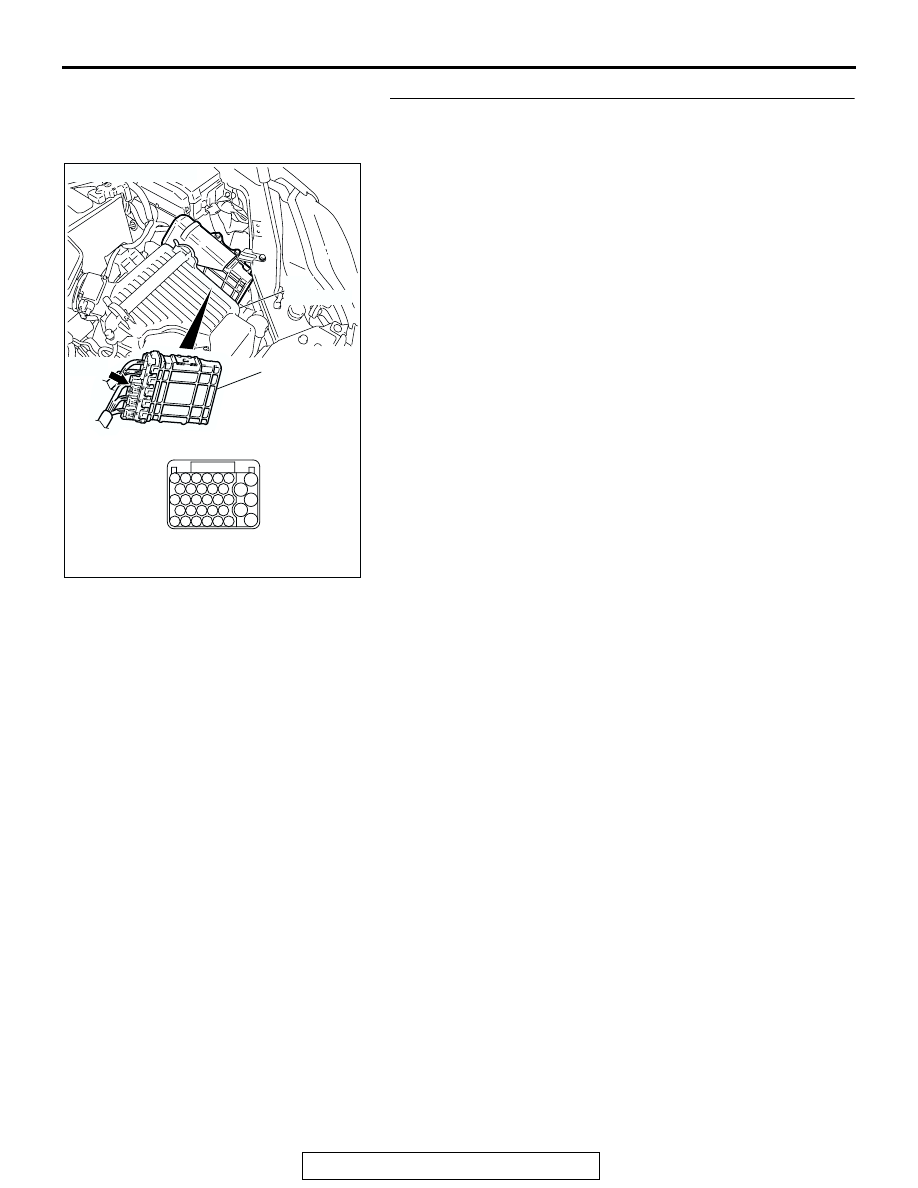

STEP 13. Check PCM connector B-21 for loose, corroded
or damaged terminals, or terminals pushed back in the
connector.

Q: Are the connector and terminals in good condition?

YES : Go to Step 14.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC306248AC

B-21
(B)

CONNECTOR: B-21

PCM

AIR
CLEANER

73

80

54

67

60

71 72

77 78 79

64

51

59

58

65

52

66

53

75

74

76

81 82

83

63

JAE

62

68

61

55

69

56

70

57

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-281

STEP 14. Check harness for open circuit or short circuit to
ground between A/T control relay connector B-16X
terminal 3 in the engine component relay box and PCM
connector B-21 terminal 82.

Q: Is the harness wire in good condition?

YES : Go to Step 15.
NO :  Repair or replace the harness wire.

AC306354

RELAY BOX

AB

CONNECTOR: B-16X

2

1

3

4

FRONT OF
VEHICLE

AC306248AC

B-21
(B)

CONNECTOR: B-21

PCM

AIR
CLEANER

73

80

54

67

60

71 72

77 78 79

64

51

59

58

65

52

66

53

75

74

76

81 82

83

63

JAE

62

68

61

55

69

56

70

57

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-282

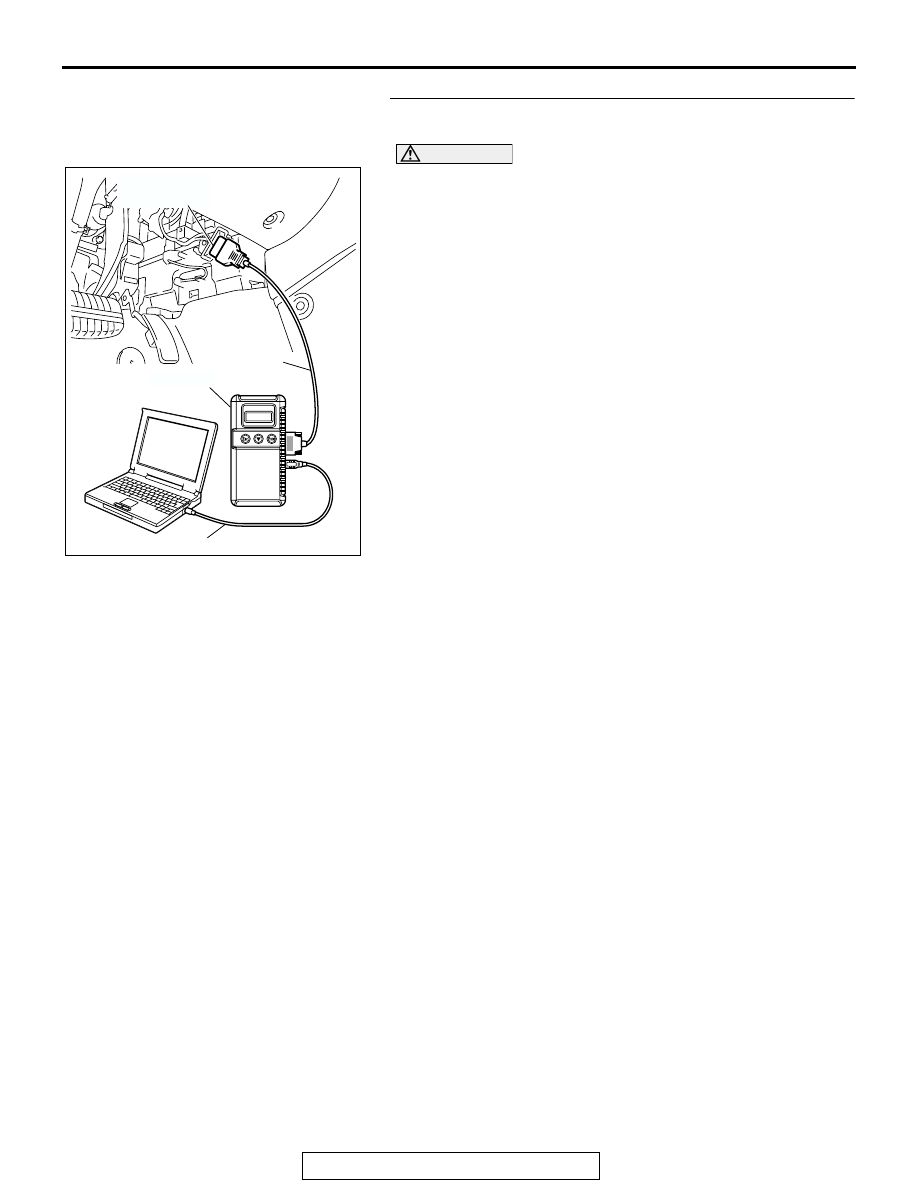

STEP 15. Using scan tool MB991958, check data list item
54: A/T control relay output Voltage.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to the data reading mode.

• Item 54: A/T Control Relay Output Voltage.

• The voltage should equal battery positive voltage.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage equal battery positive voltage?

YES : It can be that this malfunction is intermittent. Refer to

GROUP 00, How to Use Troubleshooting/Inspection
Service Points

− How to Cope with Intermittent

Malfunction

P.00-6

.

NO :  Replace the PCM.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827
