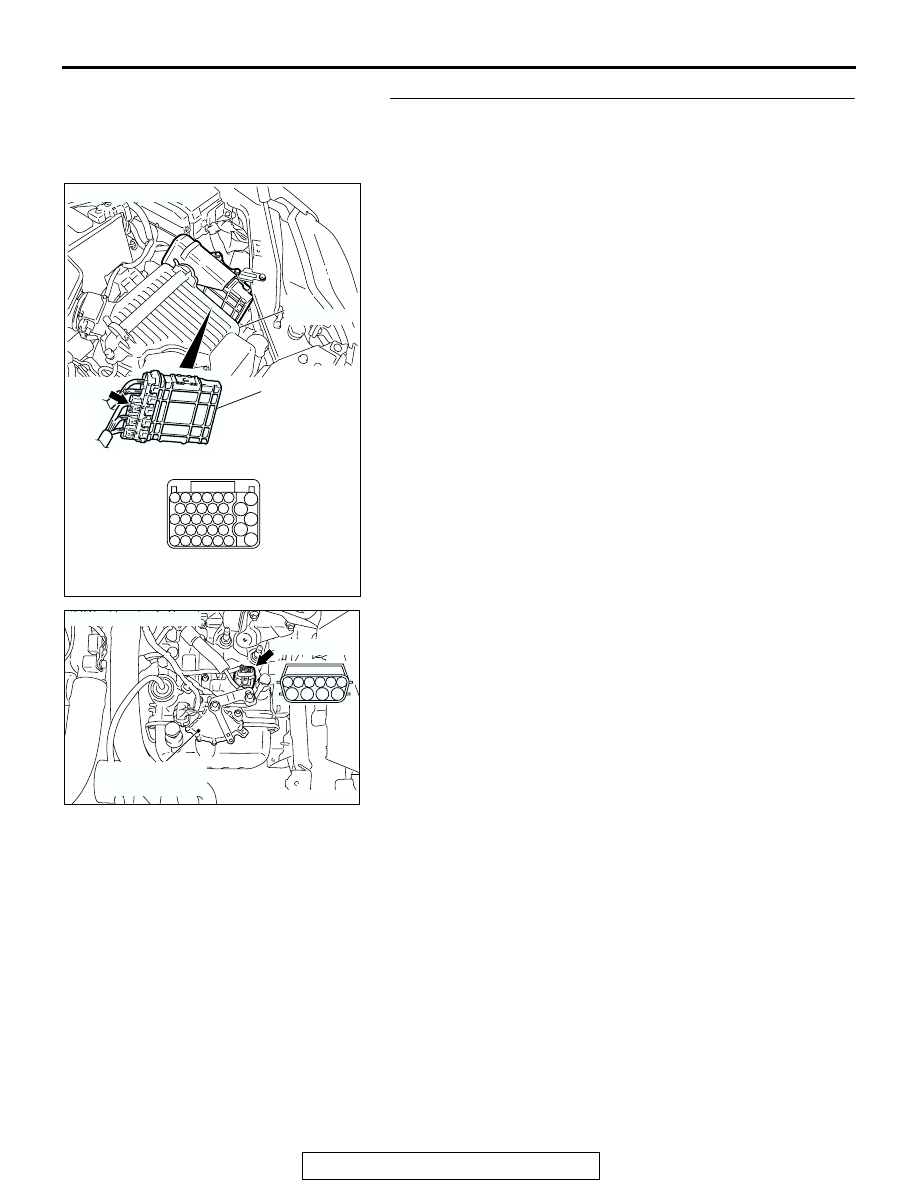

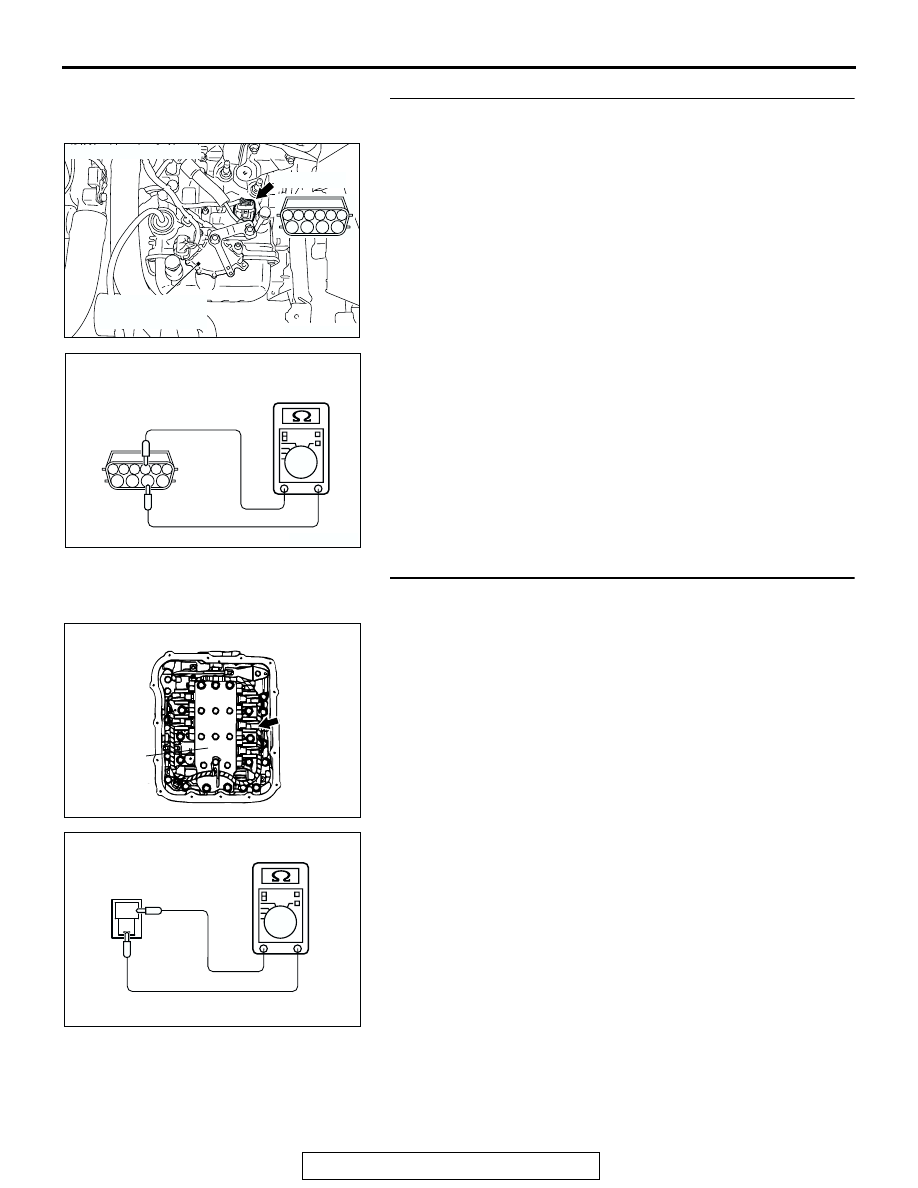

AUTOMATIC TRANSAXLE DIAGNOSIS TSB Revision AUTOMATIC TRANSAXLE 23A-215 STEP 4. Measure the Second solenoid valve resistance at (1) Disconnect connector B-108 and measure at the solenoid valve side. (2) Measure the resistance between solenoid valve assembly connector B-108 terminals 4 and 9. Resistance value: 2.7 −3.4 Ω [at 20°C (68°F)] Q: Is the measured resistance 2.7 −3.4 Ω [at 20°C (68°F)]? YES : Go to Step 6. STEP 5. Measure the solenoid valve resistance at the (1) Disconnect connector B-108-2 and measure at the solenoid valve side. (2) Measure the resistance between Second solenoid valve terminals 1 and 2. Resistance value: 2.7 −3.4 Ω [at 20°C (68°F)] Q: Is the measured resistance 2.7 −3.4 Ω [at 20°C (68°F)? YES : Replace the harness wire between A/T control solenoid valve assembly connector B-108 and the NO : Replace the Second solenoid valve. Refer to GROUP 23B, Valve Body . AC306322 CONNECTOR: B-108 B-108 (GR) AC TRANSMISSION 2 7 1 8 3 9 4 6 10 5 AC210690 2 7 1 8 3 9 4 6 10 5 AB B-108 HARNESS CONNECTOR: AC002219 CONNECTOR: B-108-2 BY B-108-2 VALVE BODY 2 1 AC201141 B-108-2 HARNESS CONNECTOR: BB |
