DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-371

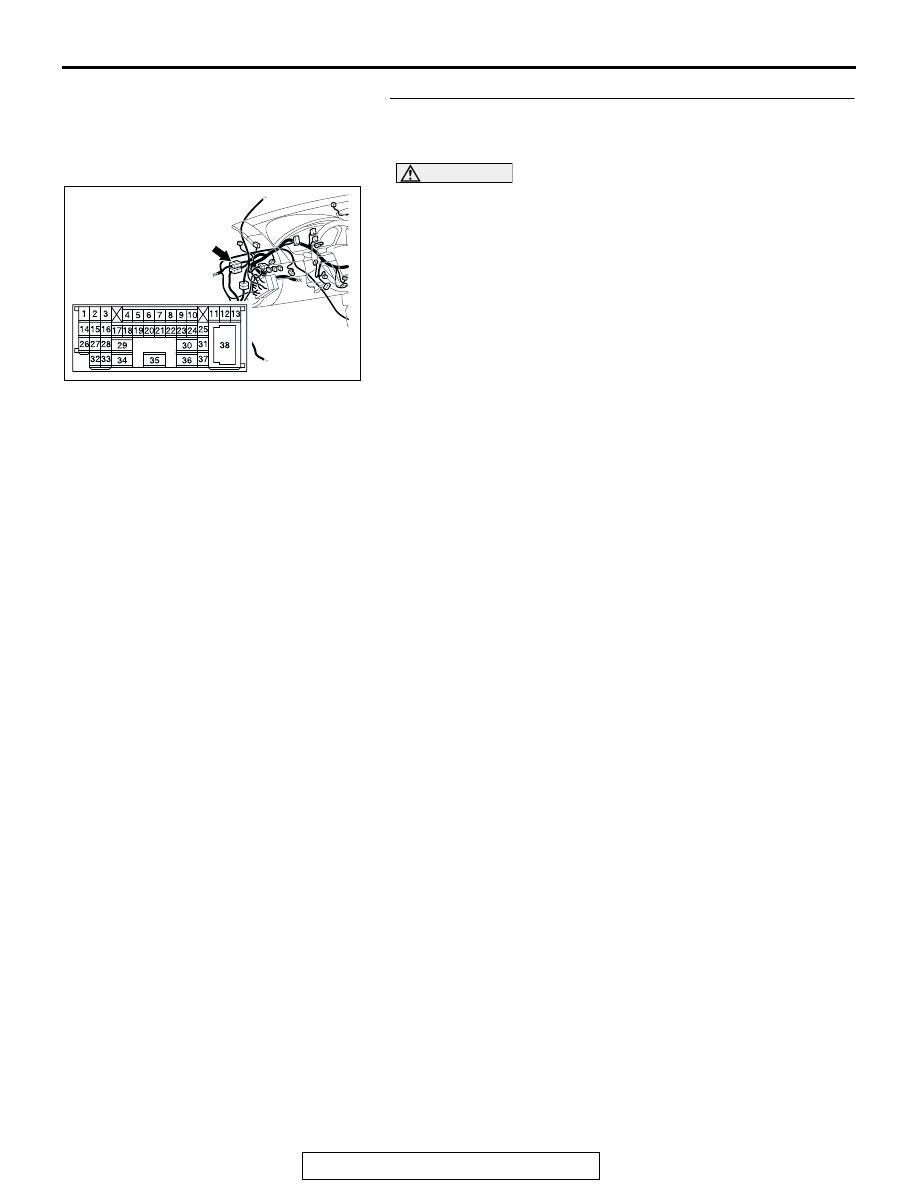

STEP 1. Check intermediate connector C-29 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

CAUTION

The strand end of the twisted wire should be within 10 cm
(4 inches) from the connector. For details refer to

P.54C-4

.

Q: Is intermediate connector C-29 in good condition?

YES : Go to Step 2.
NO :  Repair the damaged parts.

AC305231AI

CONNECTOR: C-29

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-372

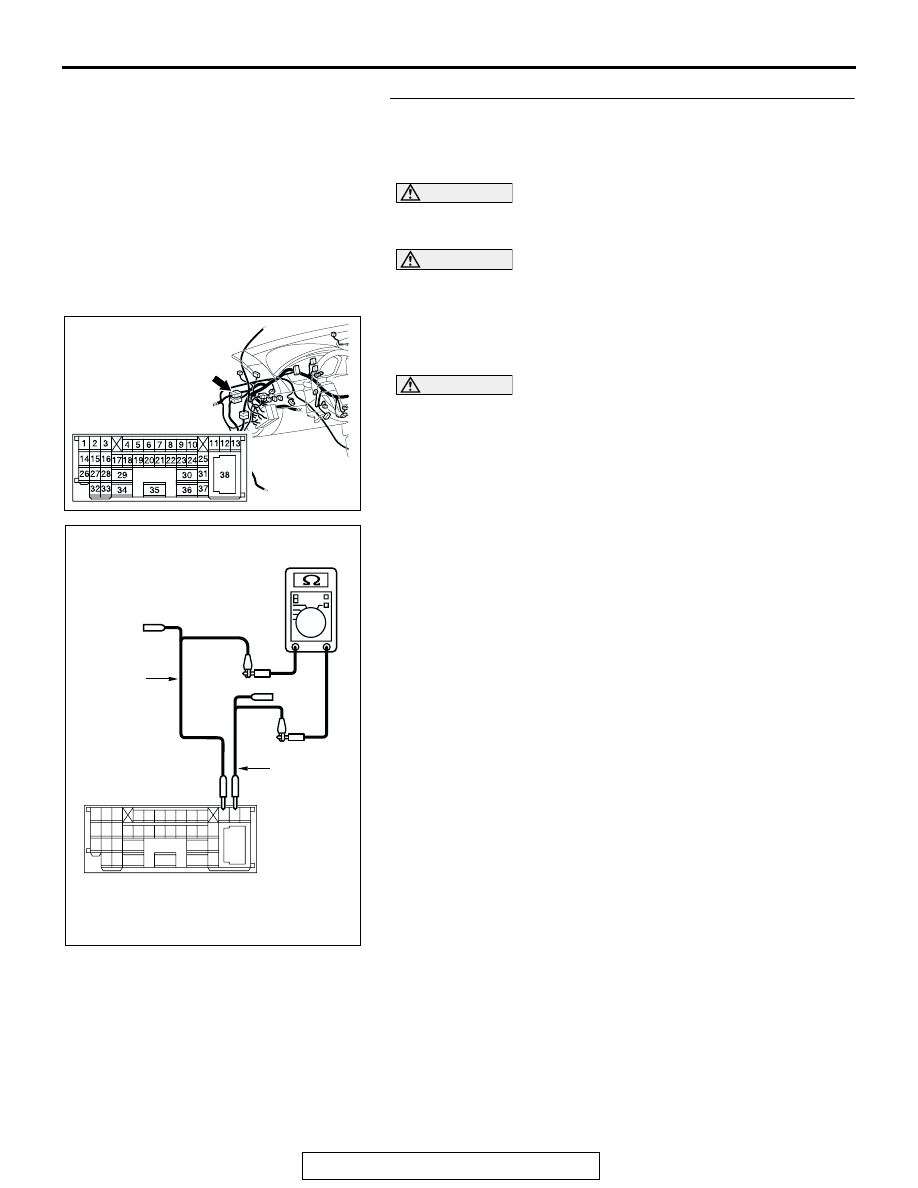

STEP 2. Check the lines between the CAN_L and H lines
(communication line including ECUs) of the front wiring
harness for a short circuit. Measure the resistance at

intermediate connector C-29.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-4

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-4

.

(1) Disconnect intermediate connector C-29, and measure the

resistance at the male side (at front wiring harness side).

(2) Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION

Disconnect the negative battery terminal. For details refer
to

P.54C-4

.

(3) Disconnect the negative battery terminal.

(4) Measure the resistance between intermediate connector

terminals 11 and 12.

OK: 120

± 20 Ω

Q: Does the resistance measure 120

± 20 Ω?

YES : If the resistance measures 120

± 20 Ω, go to Step 3.

NO :  If the resistance does not measure 120

± 20 Ω, go to

Step 30.

AC305231AI

CONNECTOR: C-29

AC204582

2 3

27

32

28

33

16

15

4 5

19

18

29

17

34

7 8

35

22

21

9 10

30

36

31

37

25

24

23

6

20

1

14

26

11

13

12

38

BX

TEST
HARNESS

TEST
HARNESS

MALE SIDE: C-29

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-373

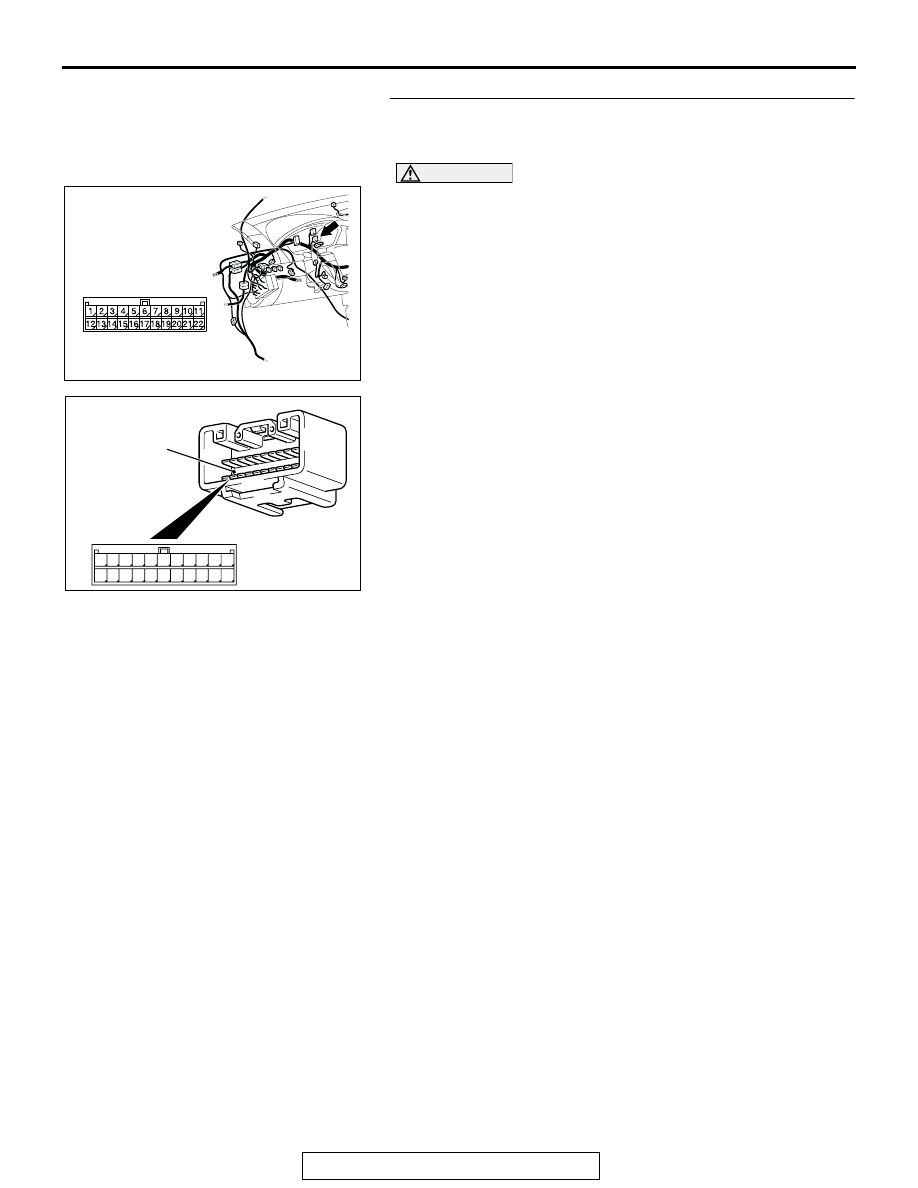

STEP 3. Check joint connector (3) C-02 for loose, corroded
or damaged terminals, or terminals pushed back in the
connector.

CAUTION

The strand end of the twisted wire should be within 10 cm
(4 inches) from the connector. For details refer to

P.54C-4

.

Check the joint connector at the wiring harness side for loose,
corroded or damaged terminals, or terminals pushed back in
the connector, and also check the short pin behind the connec-
tor for corrosion, deformation and delamination.
Q: Is joint connector (3) C-02 in good condition?

YES : Go to Step 4.
NO :  Repair the damaged parts. Replace the joint

connector as necessary.

AC305231AP

CONNECTOR: C-02

AC209350

1

12

2

13

3

14

4

15

5

16

6

17

7

18

8

19

9

20

10

21

11

22

AB

SHORT PIN

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-374

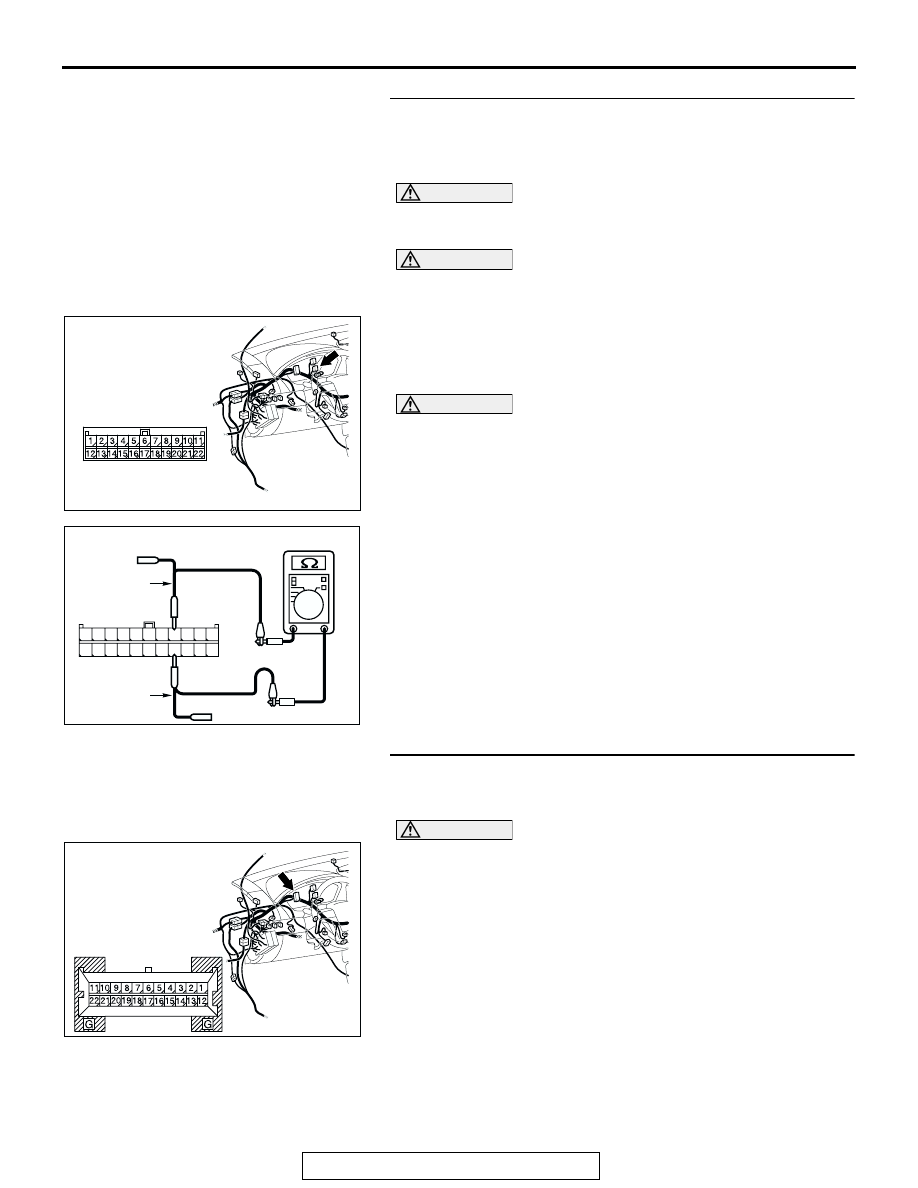

STEP 4. Check the CAN_L and H lines (communication
lines including the combination meter) between joint
connector (3) and the combination meter for a short

circuit. Measure the resistance at joint connector (3) C-02.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-4

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-4

.

(1) Disconnect joint connector (3) C-02, and measure the

resistance at the wiring harness side of joint connector (3)
C-02.

(2) Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION

Disconnect the negative battery terminal. For details refer
to

P.54C-4

.

(3) Disconnect the negative battery terminal.

(4) Measure the resistance between joint connector (3)

terminals 4 and 15.

OK: 120

± 20 Ω

Q: Does the resistance measure 120

± 20 Ω?

YES : If the resistance measures 120

± 20 Ω, go to Step 8.

NO :  If the resistance does not measure 120

± 20 Ω, go to

Step 5.

STEP 5. Check combination meter connector C-101 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.

CAUTION

The strand end of the twisted wire should be within 10 cm
(4 inches) from the connector. For details refer to

P.54C-4

.

Q: Is combination meter connector C-101 in good

condition?
YES : Go to Step 6.
NO :  Repair the damaged parts.

AC305231AP

CONNECTOR: C-02

AC209438

11

22

10

21

9

20

8

19

7

18

6

17

5

16

4

15

3

14

2

13

1

12

TEST
HARNESS

AQ

TEST
HARNESS

HARNESS SIDE: C-02

AC305231AQ

CONNECTOR: C-101

HARNESS SIDE
