CONTROLLER AREA NETWORK (CAN)

54C-227

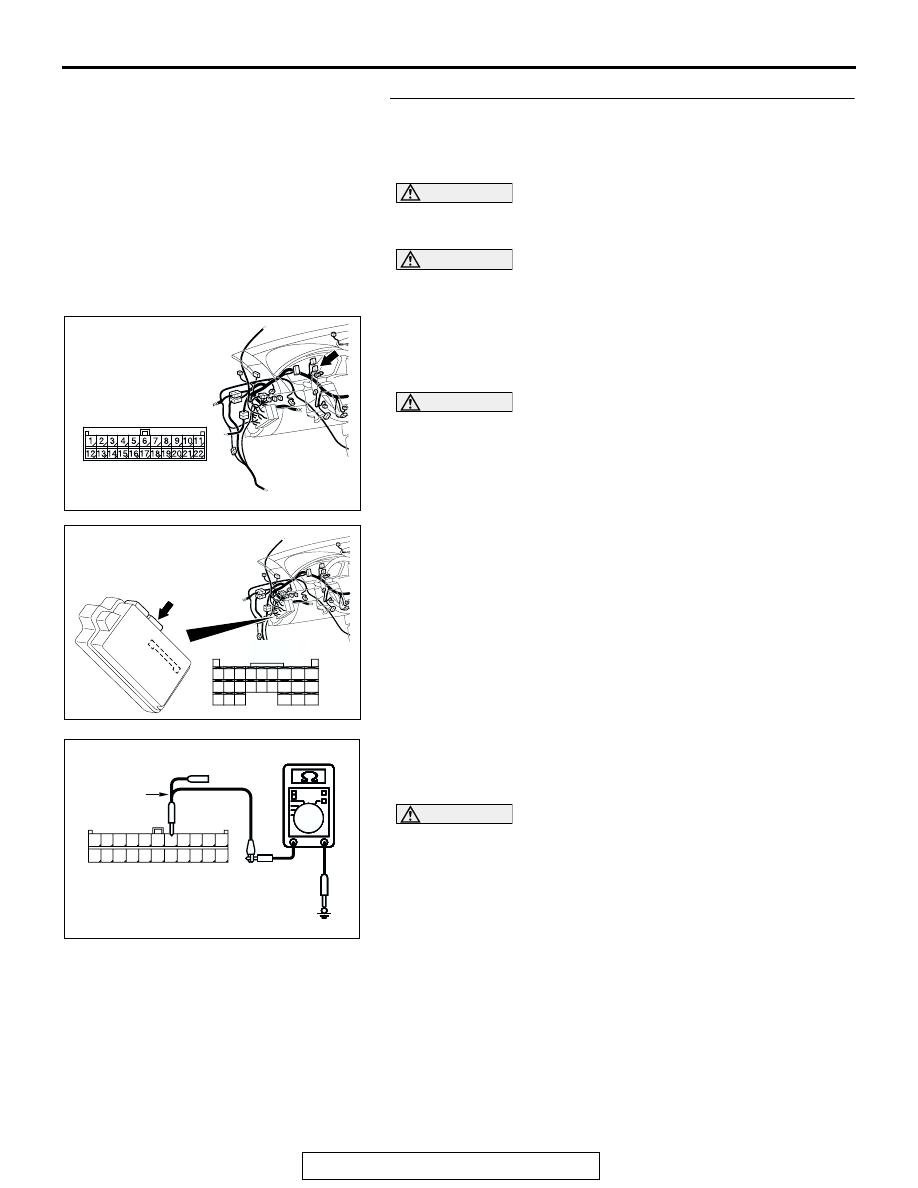

STEP 11. Check the CAN_H line (communication line only)
between joint connector (3) and ETACS-ECU connector for
short to ground. Measure the resistance at joint connector

(3) C-02.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-4

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-4

.

(1) Disconnect joint connector (3) C-02 and ETACS-ECU

connector C-218, and measure the resistance at the wiring

harness side of joint connector (3) C-02.

(2) Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION

Disconnect the negative battery terminal. For details refer
to

P.54C-4

.

(3) Disconnect the negative battery terminal.

(4) Measure the resistance between joint connector (3)

terminal 5 and body ground.

OK: 1 k

Ω or more

CAUTION

Strictly observe the specified wiring harness repair proce-
dure. For details refer to

P.54C-5

.

Q: Does the resistance measure 1 k

Ω or more?

YES : If the resistance measures 1 k

Ω or more, diagnose

CAN bus lines thoroughly by referring to

P.54C-498

.

NO :  If the resistance measures less than 1 k

Ω, repair the

wiring harness between joint connector (3) and the
ETACS-ECU connector.

AC305231AP

CONNECTOR: C-02

AC305413

C-218 (GR)

CONNECTOR: C-218

AI

HARNESS SIDE

JUNCTION BLOCK
(REAR VIEW)

68

74

63

66

72

73

67

65 64

61

70

71

62

69

60

57

58

59

56 55

52

54 53

51

AC209364

11

22

10

21

9

20

8

19

7

18

6

17

5

16

4

15

3

14

2

13

1

12

AC209364

AC209364

AC209364

AC209364

AC209364

AC209364HX

HARNESS SIDE: C-02

TEST
HARNESS

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-228

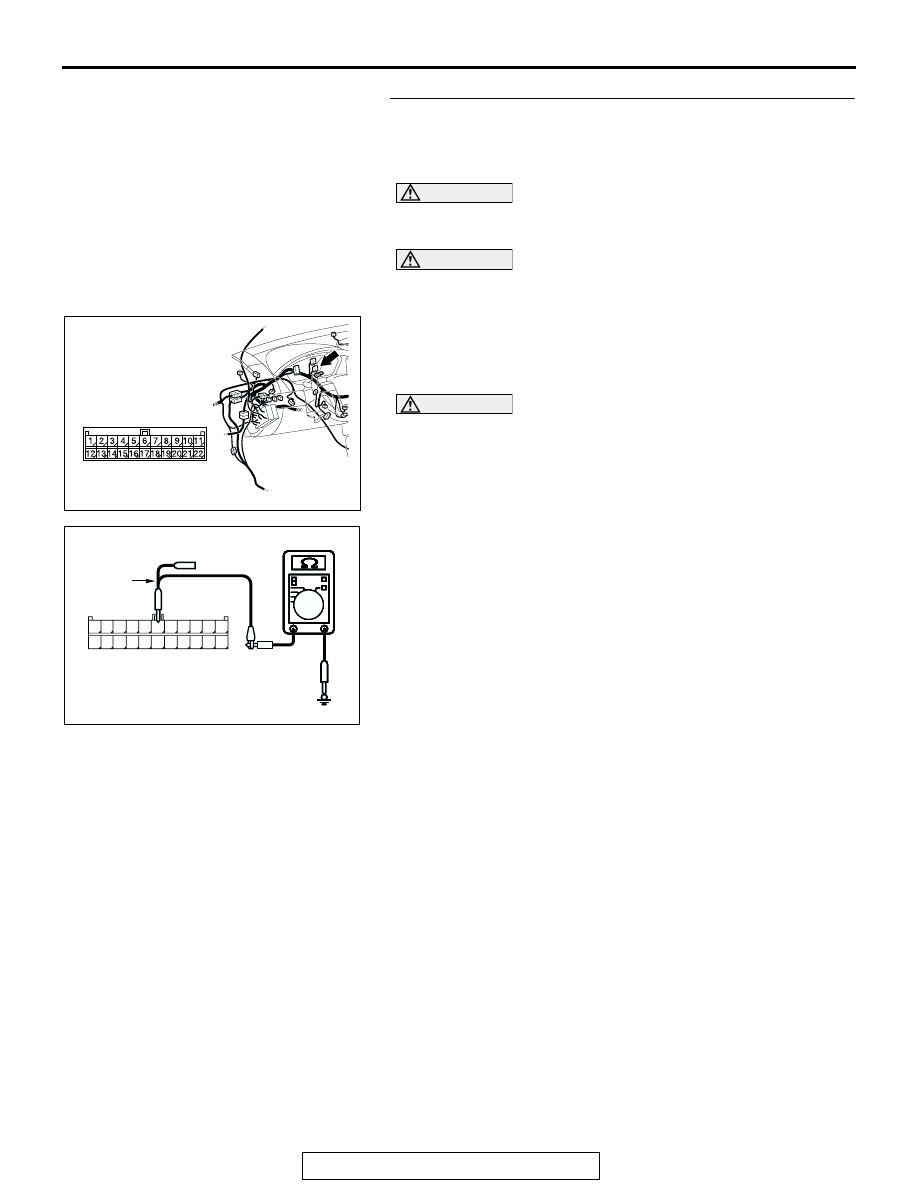

STEP 12. Check the CAN_H line (communication line
including the A/C-ECU) between joint connector (3) and
the A/C-ECU connector for short to ground. Measure the

resistance at joint connector (3) C-02.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-4

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-4

.

(1) Disconnect joint connector (3) C-02, and measure the

resistance at the wiring harness side of joint connector (3)
C-02.

(2) Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION

Disconnect the negative battery terminal. For details refer
to

P.54C-4

.

(3) Disconnect the negative battery terminal.

(4) Measure the resistance between joint connector (3)

terminal 6 and body ground.

OK: 1 k

Ω or more

Q: Does the resistance measure 1 k

Ω or more?

YES : If the resistance measures 1 k

Ω or more, go to Step

15   .

NO :  If the resistance measures less than 1 k

Ω, go to Step

13.

AC305231AP

CONNECTOR: C-02

AC209364

11

22

10

21

9

20

8

19

7

18

6

17

5

16

4

15

3

14

2

13

1

12

AC209364

AC209364

AC209364

AC209364

AC209364

AC209364JH

HARNESS SIDE: C-02

TEST
HARNESS

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-229

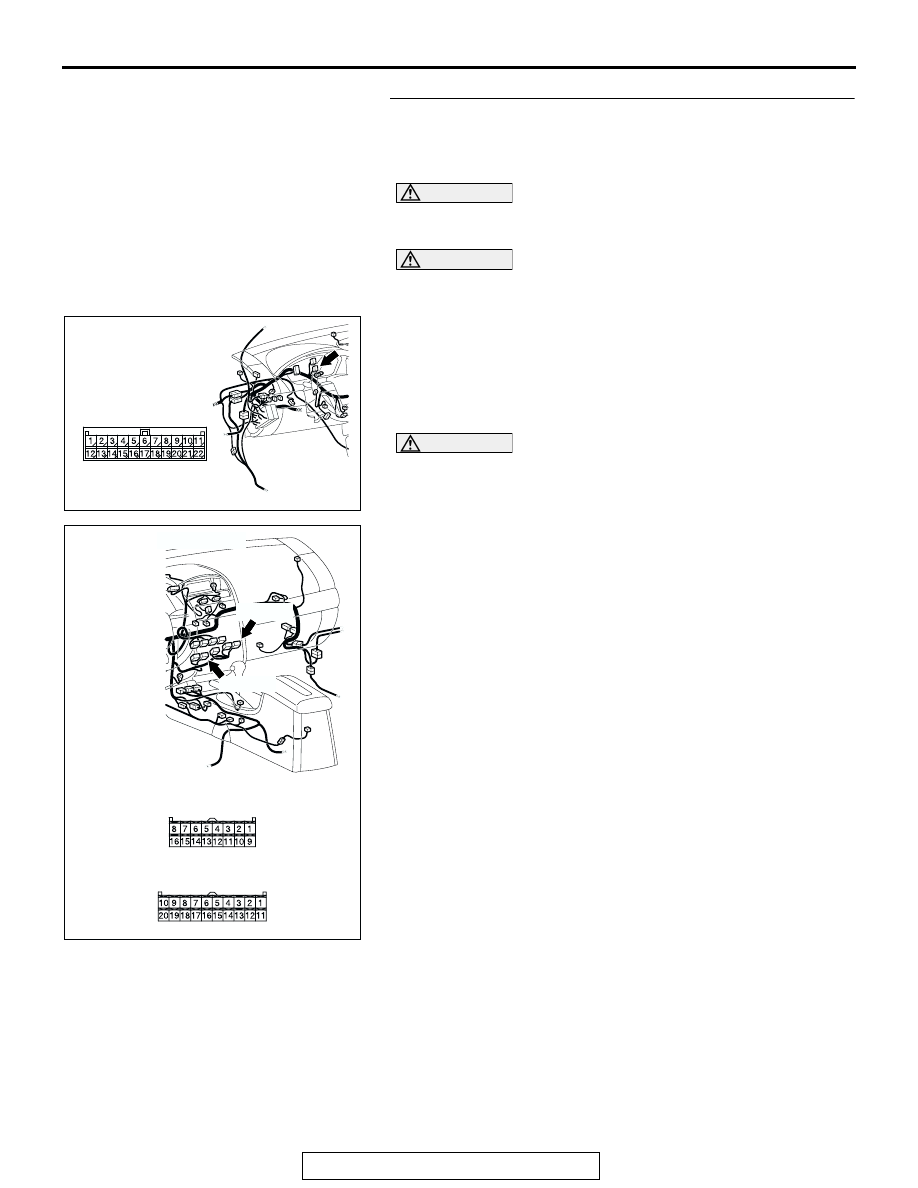

STEP 13. Check A/C-ECU connector C-10 <manual air
conditioning system (low)> or C-15 <manual air
conditioning system (middle) or automatic air conditioning
system> for loose, corroded or damaged terminals, or
terminals pushed back in the connector.

CAUTION

The strand end of the twisted wire should be within 10 cm
(4 inches) from the connector. For details refer to

P.54C-4

.

Q: Is A/C-ECU connector C-10 <manual air conditioning

system (low)> or C-15 <manual air conditioning system
(middle) or automatic air conditioning system> in good
condition?
YES : Go to Step 14.
NO :  Repair the damaged parts.

AC305234AB

C-10 HARNESS SIDE

C-15 HARNESS SIDE

CONNECTORS: C-10, C-15

C-10 (B)

C-15 (B)

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-230

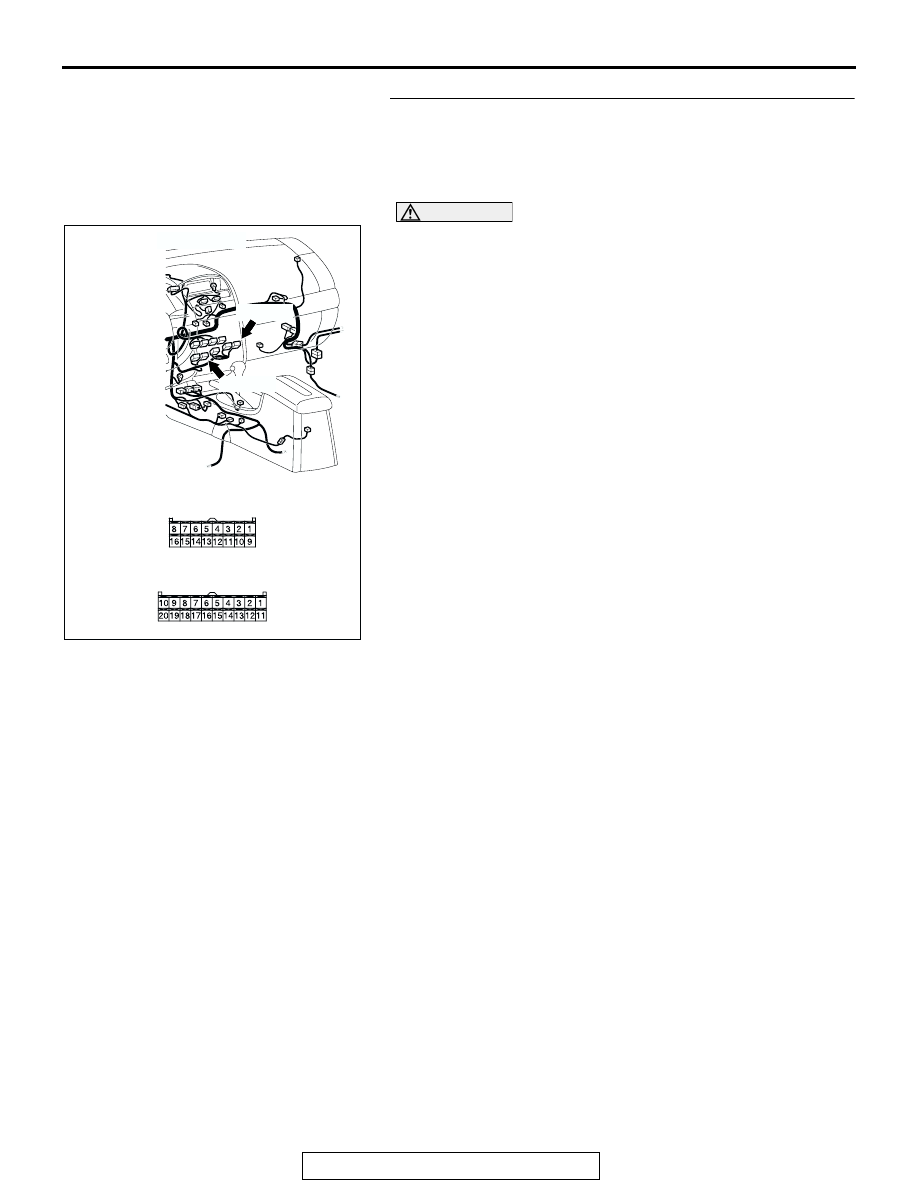

STEP 14. Check the CAN_H line (communication line only)
between joint connector (3) and A/C-ECU connector for
short to ground. Measure the resistance at joint connector

(3) C-02.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-4

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-4

.

(1) Disconnect joint connector (3) C-02 and A/C-ECU

connector C-10 <manual air conditioning system (low)> or
C-15 <manual air conditioning system (middle) or automatic
air conditioning system>, and measure the resistance at the
wiring harness side of joint connector (3) C-02.

(2) Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION

Disconnect the negative battery terminal. For details refer
to

P.54C-4

.

(3) Disconnect the negative battery terminal.

AC305231AP

CONNECTOR: C-02

AC305234AB

C-10 HARNESS SIDE

C-15 HARNESS SIDE

CONNECTORS: C-10, C-15

C-10 (B)

C-15 (B)
