DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-143

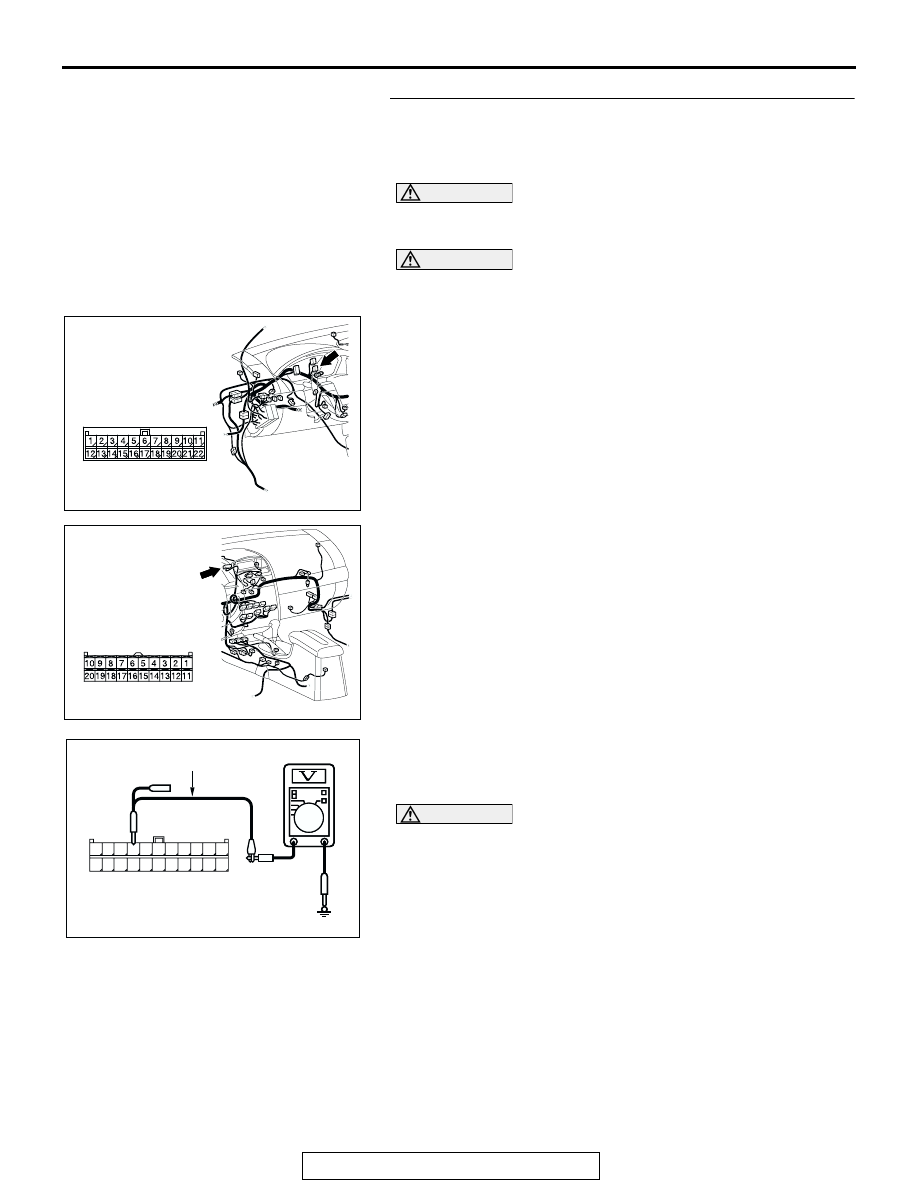

STEP 23. Check the CAN_H line (communication line only)
between joint connector (3) and multi-center display unit
(middle-grade type) connector for a short to the power

supply. Measure the voltage at joint connector (3) C-02.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-4

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-4

.

(1) Disconnect joint connector (3) C-02 and multi-center display

unit (middle-grade type) connector C-05, and measure the

voltage at the wiring harness side of joint connector (3)
C-02.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between joint connector (3) terminal 8

and body ground.

OK: 1.0 V or less

CAUTION

Strictly observe the specified wiring harness repair proce-
dure. For details refer to

P.54C-5

.

Q: Does the voltage measure 1.0 V or less?

YES : If the voltage measures 1.0 V or less, diagnose CAN

bus lines thoroughly by referring to

P.54C-534

.

NO :  If the voltage measures more than 1.0 V, repair the

wiring harness between joint connector (3) and the
multi-center display unit (middle-grade type)
connector.

AC305231AP

CONNECTOR: C-02

AC305233 AF

CONNECTOR: C-05

HARNESS SIDE

C-05 (B)

AC209365

11

22

10

21

9

20

8

19

7

18

6

17

5

16

4

15

3

14

2

13

1

12

AC209365GG

HARNESS SIDE: C-02

TEST HARNESS

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-144

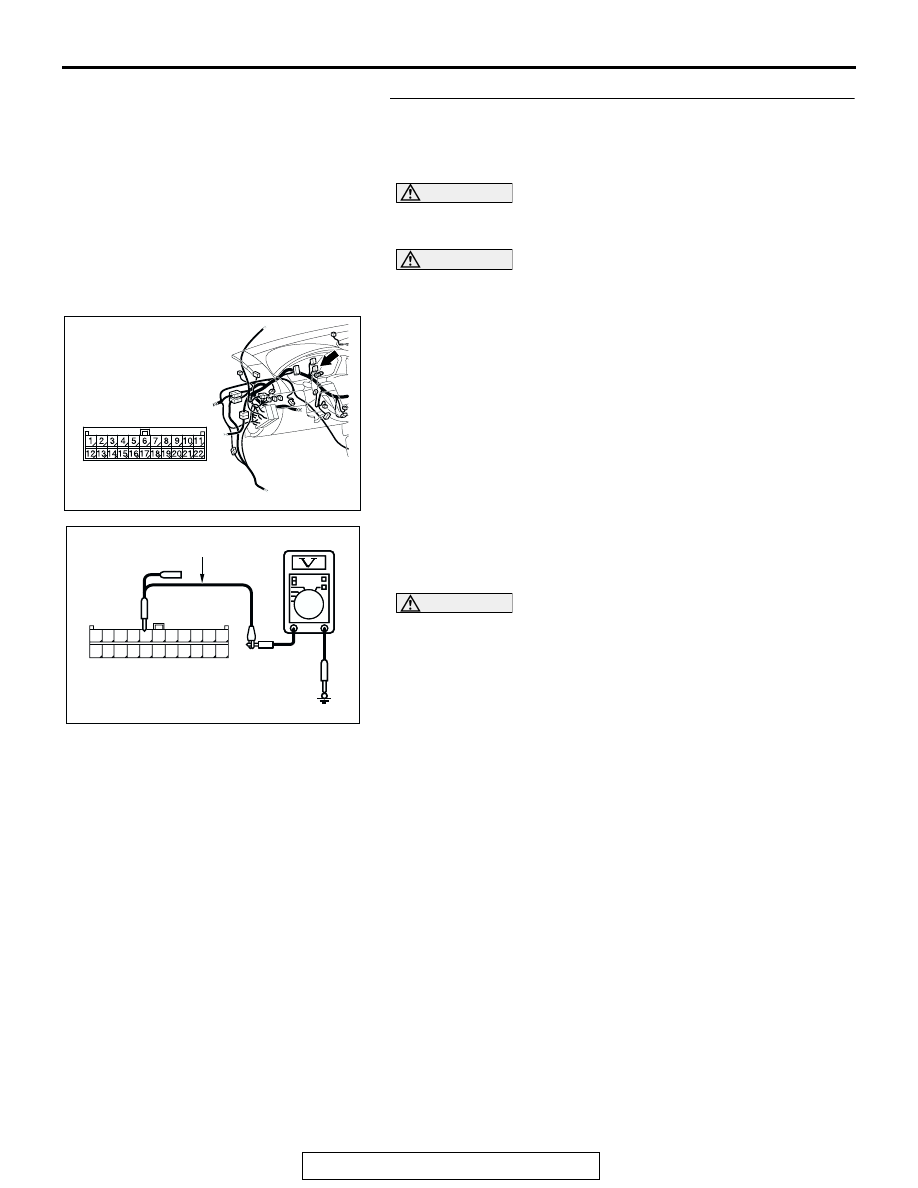

STEP 24. Check the CAN_H line (communication line only)
between joint connector (3) and the data link connector for
a short to the power supply. Measure the voltage at joint

connector (3) C-02.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-4

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-4

.

(1) Disconnect joint connector (3) C-02, and measure the

voltage at the wiring harness side of joint connector (3)
C-02.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between joint connector (3) terminal 7

and body ground.

OK: 1.0 V or less

CAUTION

Strictly observe the specified wiring harness repair proce-
dure. For details refer to

P.54C-5

.

Q: Does the voltage measure 1.0 V or less?

YES : If the voltage measures 1.0 V or less, go to Step 25.
NO :  If the voltage measures more than 1.0 V, repair the

wiring harness between joint connector (3) and the
data link connector.

AC305231AP

CONNECTOR: C-02

AC209365

11

22

10

21

9

20

8

19

7

18

6

17

5

16

4

15

3

14

2

13

1

12

AC209365FW

HARNESS SIDE: C-02

TEST HARNESS

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-145

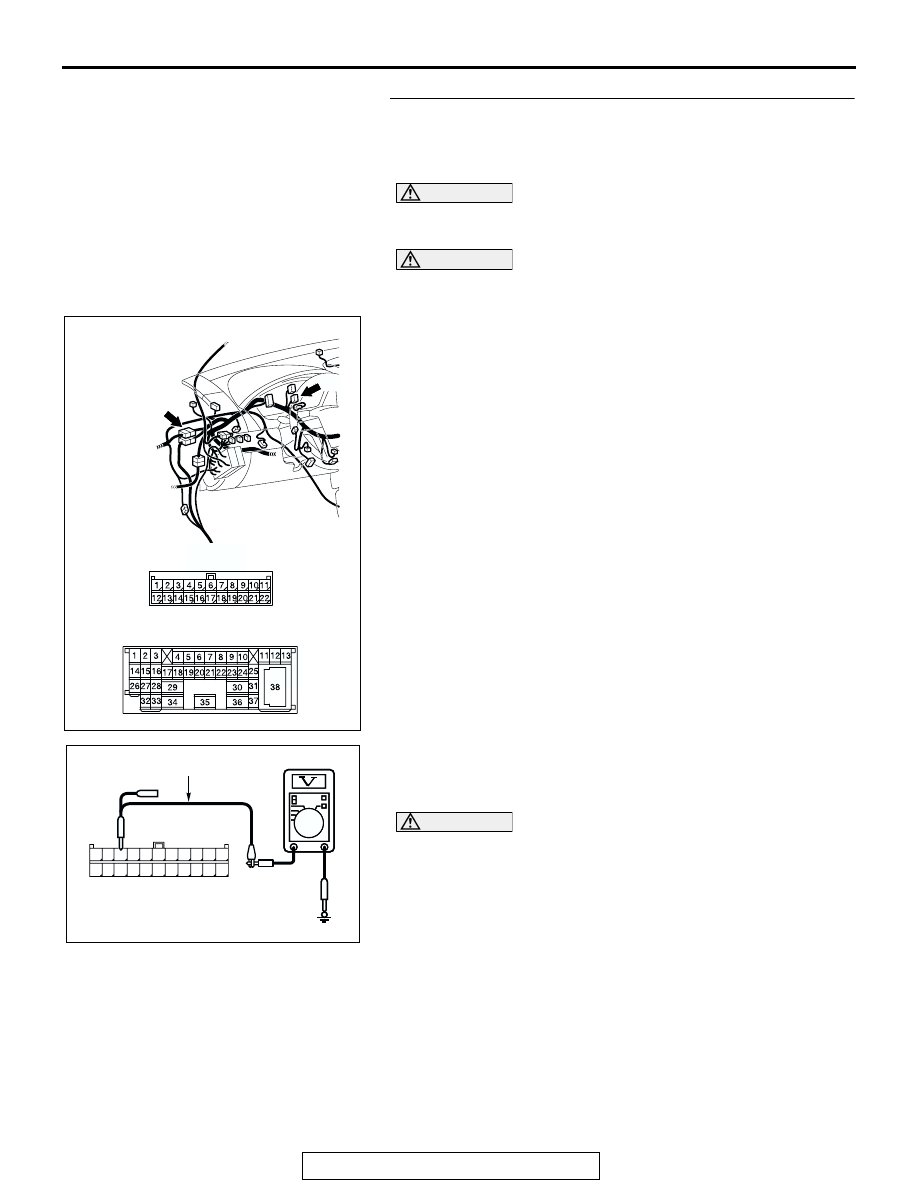

STEP 25. Check the CAN_H line (communication line only)
between intermediate connector C-29 and joint connector
(3) for a short to the power supply. Measure the voltage at

joint connector (3) C-02.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-4

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-4

.

(1) Disconnect intermediate connector C-29 and joint

connector (3) C-02, and measure the voltage at the wiring
harness side of joint connector (3) C-02.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between joint connector (3) terminal 9

and body ground.

OK: 1.0 V or less

CAUTION

Strictly observe the specified wiring harness repair proce-
dure. For details refer to

P.54C-5

.

Q: Does the voltage measure 1.0 V or less?

YES : If the voltage measures 1.0 V or less, diagnose CAN

bus lines thoroughly by referring to

P.54C-534

.

NO :  If the voltage measures more than 1.0 V, repair the

wiring harness between intermediate connector C-29
and joint connector (3).

AC305232

CONNECTORS: C-02, C-29

AG

C-02

C-02

C-29

C-29

AC209365

11

22

10

21

9

20

8

19

7

18

6

17

5

16

4

15

3

14

2

13

1

12

AC209365FY

HARNESS SIDE: C-02

TEST HARNESS

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-146

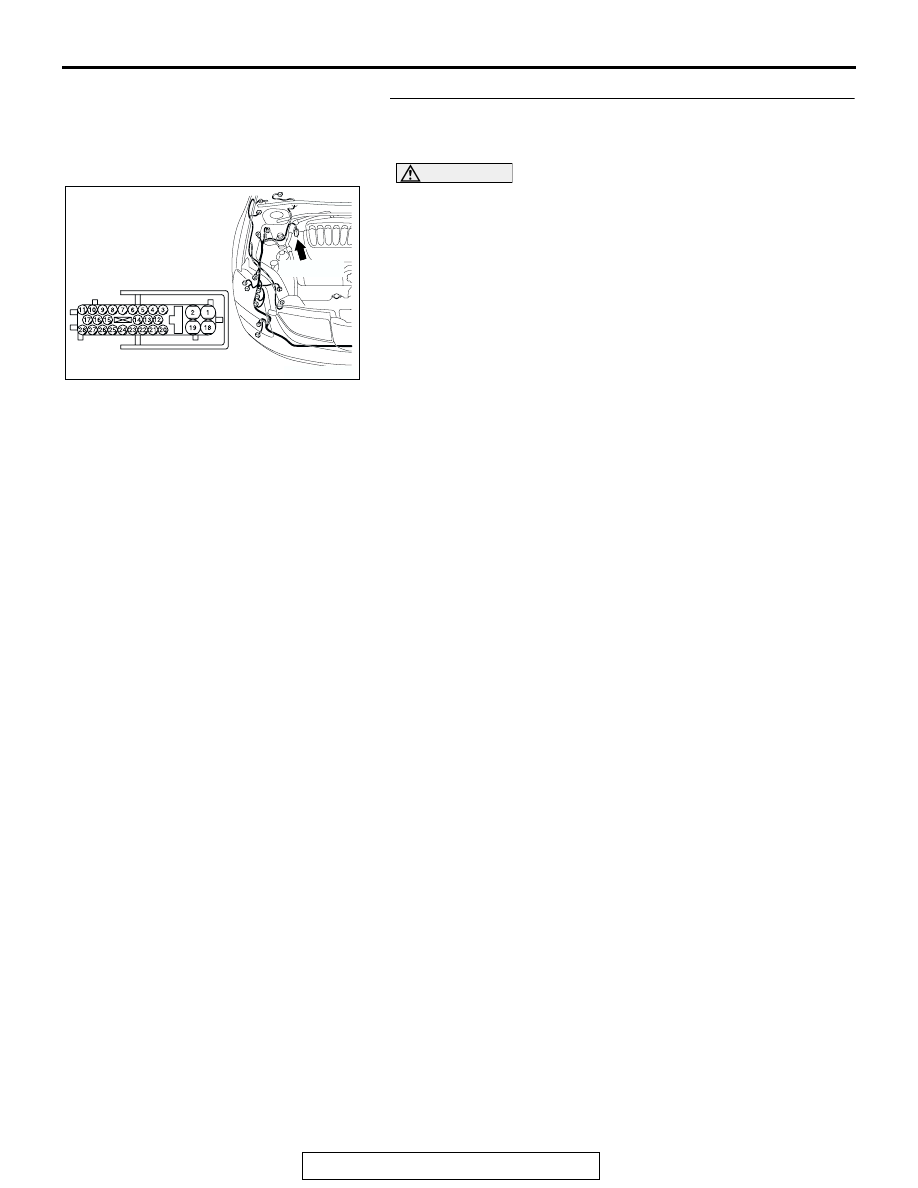

STEP 26. Check ABS-ECU connector A-02 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

CAUTION

The strand end of the twisted wire should be within 10 cm
(4 inches) from the connector. For details refer to

P.54C-4

.

Q: Is ABS-ECU connector A-02 in good condition?

YES : Go to Step 27.
NO :  Repair the damaged parts.

AC305206

CONNECTOR: A-02

AG

A-02 (GR)

HARNESS SIDE
