DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-75

.

TROUBLE JUDGMENT
A short to the power supply may be present when the
voltage between the CAN bus line (CAN_L or
CAN_H) and body ground is more than 4.0 V. In this
condition, an abnormal voltage may be measured at
CAN_L and CAN_H lines.

.

COMMENTS ON TROUBLE SYMPTOM
The wiring harness wire or connectors may have
loose, corroded, or damage terminals, or terminals
pushed back in the connector, or a ECU may be
defective.

.

TROUBLESHOOTING HINTS

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

• The ETACS-ECU may be defective

• The combination meter may be defective

• The A/C-ECU may be defective

• The ABS-ECU may be defective

• The SRS-ECU may be defective

• The powertrain control module may be defective

DIAGNOSIS

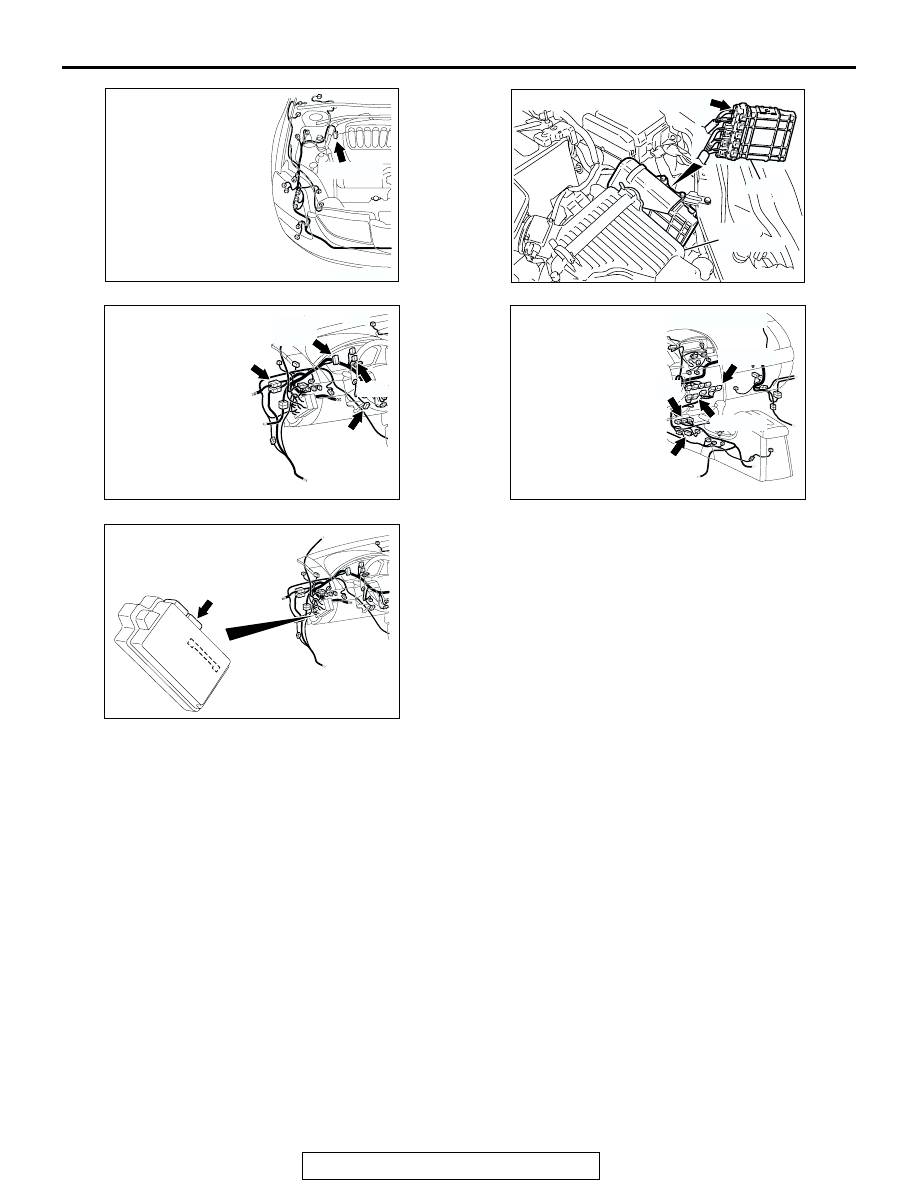

Required Special Tools:

• MB991223: Harness Set

• MB991970: ABS Check Harness

AC305206

CONNECTOR: A-02

AR

A-02 (GR)

AC306248AB

B-19 (B)

CONNECTOR: B-19

AIR
CLEANER

PCM

AC305231BZ

C-101

C-125 (B)

C-29

C-02

CONNECTORS: C-02, C-29, C-101, C-125

AC305233 AU

CONNECTORS: C-10, C-15, C-22, C-121

C-121 (Y)

C-22 (Y)

C-10 (B)

C-15 (B)

AC305413

C-218 (GR)

CONNECTOR: C-218

AJ

JUNCTION BLOCK
(REAR VIEW)

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-76

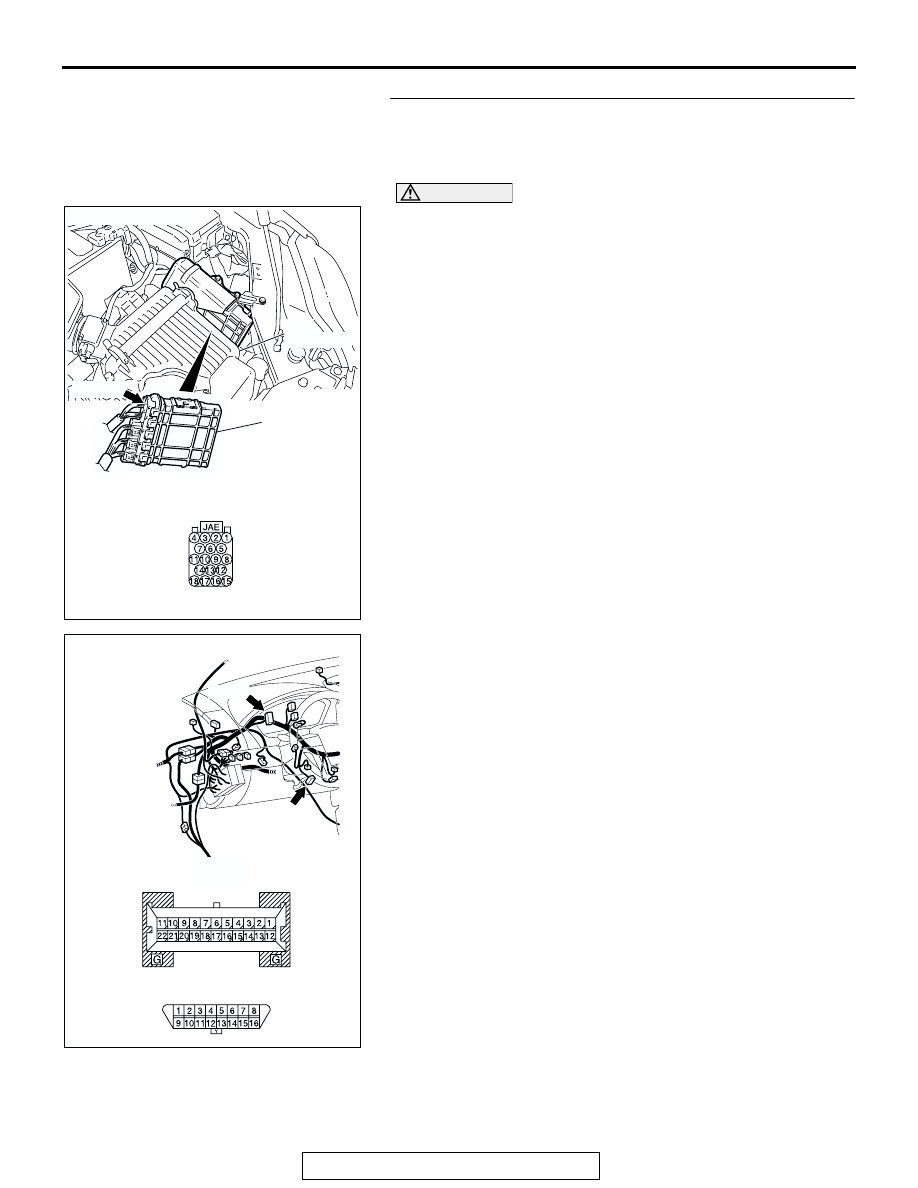

STEP 1. Check powertrain control module connector B-19,
combination meter connector C-101 and data link
connector C-125 for loose, corroded or damaged
terminals, or terminals pushed back in the connector.

CAUTION

The strand end of the twisted wire should be within 10 cm
(4 inches) from the connector. For details refer to

P.54C-4

.

Q: Are powertrain control module connector B-19,

combination meter connector C-101 and data link
connector C-125 in good condition?
YES : Go to Step 2.
NO :  Repair the damaged parts.

AC306248AD

B-19 (B)

CONNECTOR: B-19

PCM

AIR
CLEANER

HARNESS SIDE

AC305232

CONNECTORS: C-101, C-125

AH

C-101

C-125

C-125 (B)

C-101 HARNESS SIDE

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-77

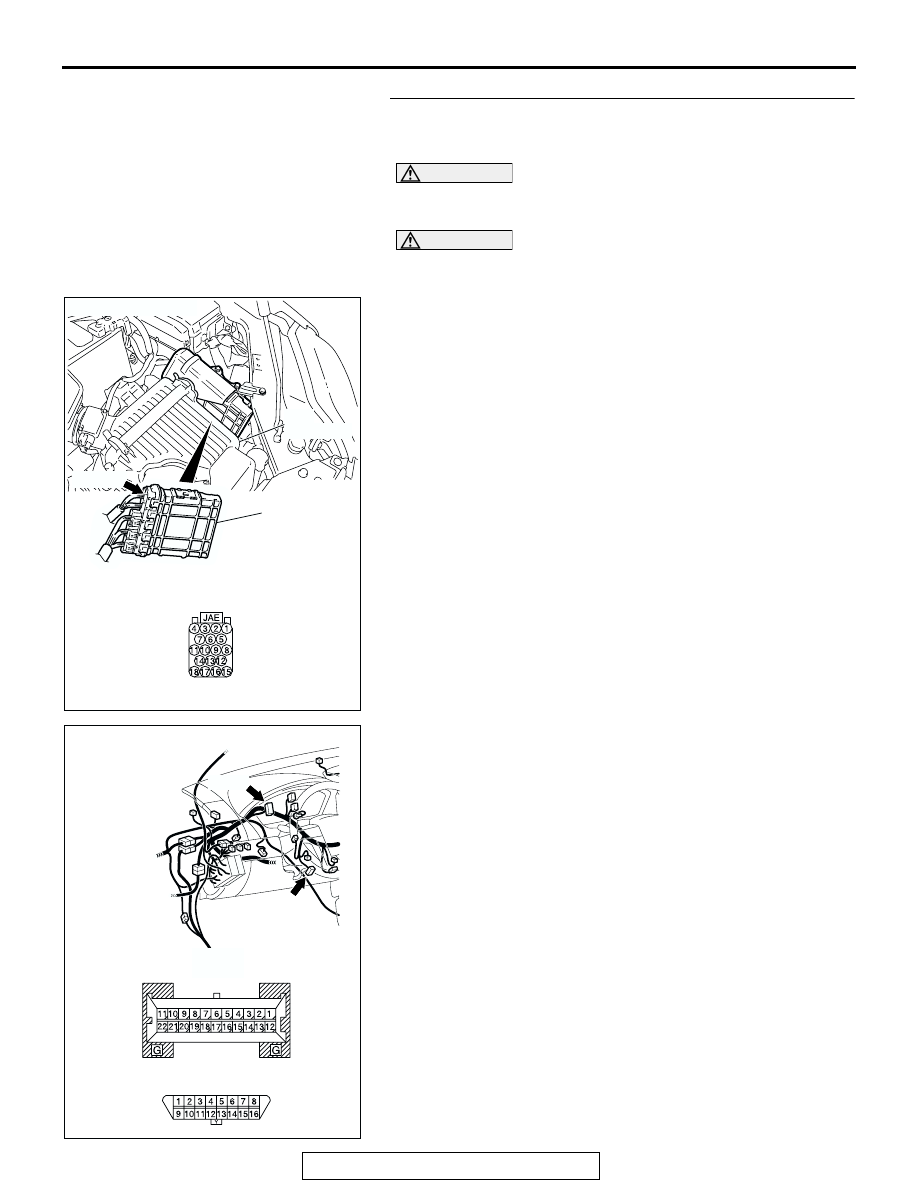

STEP 2. Check the CAN_H-side bus line (communication
line including ECUs) for a short to the power supply.

Measure the voltage at data link connector C-125.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-4

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-4

.

(1) Disconnect powertrain control module connector B-19 and

combination meter connector C-101, and measure the
voltage at the harness side of data link connector C-125.

(2) Turn the ignition switch to the "ON" position.

AC306248AD

B-19 (B)

CONNECTOR: B-19

PCM

AIR
CLEANER

HARNESS SIDE

AC305232

CONNECTORS: C-101, C-125

AH

C-101

C-125

C-125 (B)

C-101 HARNESS SIDE

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-78

(3) Measure the voltage between data link connector terminal 6

and body ground.

OK: 4.0 V or less

Q: Does the voltage measure 4.0 V or less?

YES : If the voltage measures 4.0 V or less, go to Step 3.
NO :  If the voltage measures more than 4.0 V, go to Step 4.

AC209365

HARNESS SIDE: C-125

TEST
HARNESS

FN

Y

8

16

15

7

5

1314

6

12

4

2

1011

3

9

1
