Mitsubishi Galant (2004+). Manual - part 347

ON-VEHICLE SERVICE

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-579

ITEM (multi-center display)

ADJUSTMENT DETAILS

Lights

Headlight auto-cutout function

The headlight automatic shutoff function can
be set in the following ways.

a. Auto-cutout only when the ignition is turned

OFF while lights are on (default)

b. Auto-cutout when ignition is turned OFF at

any time

c. No auto-cutout

Dome light cutout time

The interior dimmer delay period can be set in
the following ways.

a. 0 second
b. 15 seconds
c. 30 seconds (default)
d. 60 seconds
e. 120 seconds
f. 180 seconds

Interior light auto-cutout time

The period before the interior illumination is
turned off automatically can be set in the
following ways.

a. 3 minutes
b. 30 minutes (default)
c. 60 minutes
d. No auto-cutout

Wipers

Windshield wiper speed-sensitive
operation

The speed-sensitive wiper function can be
activated or deactivated. (ON by default)

Rear wiper intermittent interval

*

−

ON-VEHICLE SERVICE

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-580

NOTE: The item of the rear wiper is shown on the
display, but the rear wiper can not be customized
because it is not equipped on GALANT.

Keyless entry and
power door lock
system

Keyless entry system confirmation
by horn

The horn answerback honking conditions can
be set in the following ways.

a. Horn sounds
b. Horn sounds if doors are already locked

(default)

c. Horn does not sound

Keyless entry system confirmation
by turn signal lights

The hazard answerback flashing conditions
can be set in the following ways.

a. Locking and unlocking (default)
b. Locking only
c. Unlocking only
d. No indication

Time until automatic relocking after
unlock operation using keyless
entry system

The timed lock period after unlocking with the
keyless entry transmitter can be set to the
following times.

a. 30 seconds (default)
b. 60 seconds
c. 120 seconds
d. 180 seconds

Unlock operation using keyless
entry system or door key

The unlocking operations after unlocking with
or without a key can be set in the following
ways.

a. Unlock driver's door on first unlock

operation, and unlock all doors on second
unlock operation (default)

b. Unlock all doors on first unlock operation

Buzzers

Turn signal buzzer

The turn-signal buzzer function can be
activated or deactivated. (OFF by default)

Door-ajar warning buzzer

The door ajar warning buzzer function can be
activated or deactivated (ON by default).

Default

Initialization of above mentioned functions

ITEM (multi-center display)

ADJUSTMENT DETAILS

54C-1

GROUP 54C

CONTROLLER

AREA NETWORK

(CAN)

CONTENTS

SPECIAL TOOL . . . . . . . . . . . . . . . . .

54C-2

TEST EQUIPMENT  . . . . . . . . . . . . . .

54C-3

SERVICE PRECAUTIONS. . . . . . . . .

54C-4

PRECAUTIONS ON HOW TO REPAIR
THE CAN BUS LINES . . . . . . . . . . . .

54C-5

EXPLANATION ABOUT THE SCAN TOOL
(MUT-III) CAN BUS DIAGNOSTICS  .

54C-6

DIAGNOSTIC TROUBLE CODE
DIAGNOSIS  . . . . . . . . . . . . . . . . . . . .

54C-12

DIAGNOSIS  . . . . . . . . . . . . . . . . . . . .

54C-14

CAN BUS DIAGNOSTICS TABLE  . . . . . . .

54C-14

CAN BUS DIAGNOSTICS. . . . . . . . . . . . . .

54C-31

CAN COMMUNICATION SIGNAL
TABLE. . . . . . . . . . . . . . . . . . . . . . . . .

54C-621

CAN COMMUNICATION-RELATED DTC
CODE (U CODE) TABLE . . . . . . . . . .

54C-623

SPECIAL TOOL

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-2

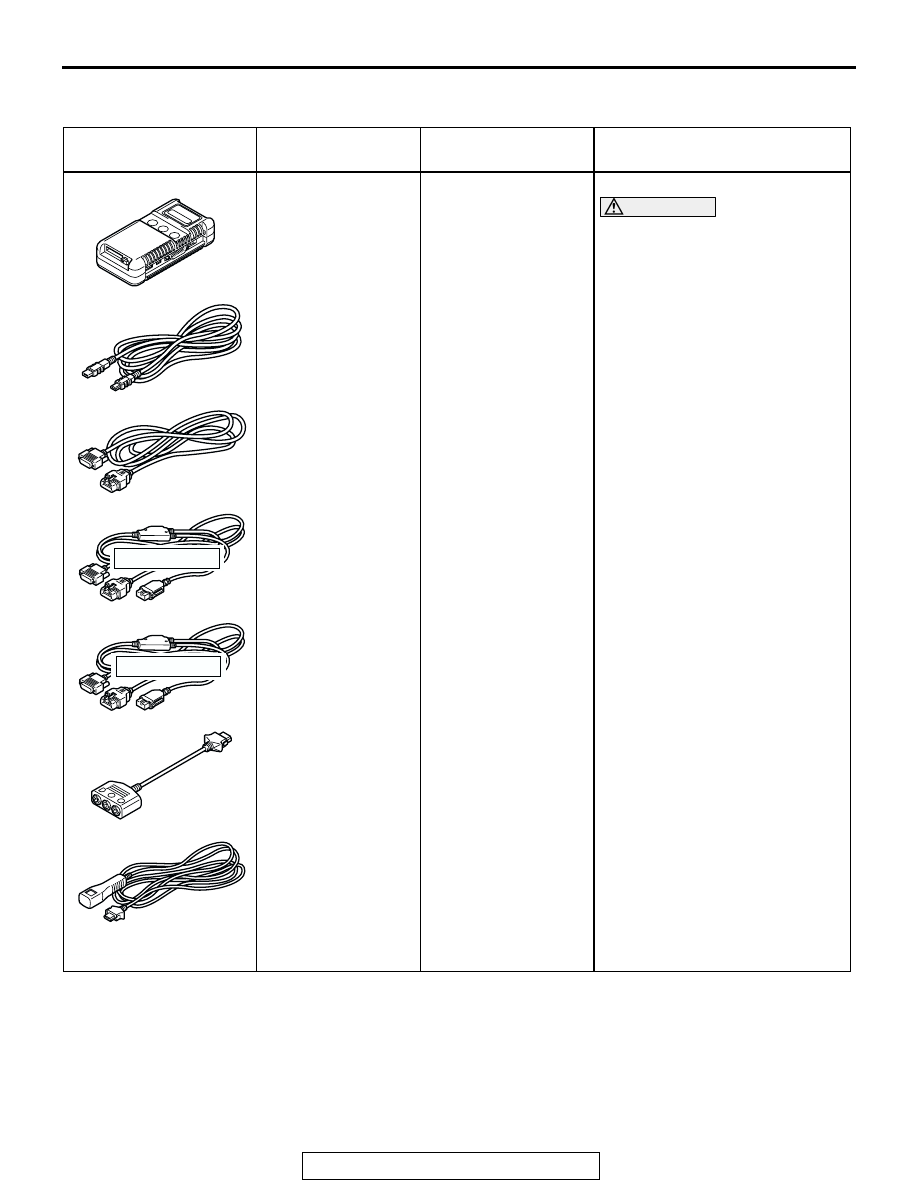

SPECIAL TOOL

M1548304200057

TOOL

TOOL NUMBER
AND NAME

SUPERSESSION

APPLICATION

MB991958

A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991914
F: MB991825

MUT-III Sub
Assembly

A: Vehicle

communication
interface (V.C.I.)

B: MUT-III USB

cable

C: MUT-III Main

harness a
(vehicles with
CAN
communication
system)

D: MUT-III main

harness B
(vehicles without
CAN
communication
system)

E: MUT-III main

harness C (for
daimler chrysler
models only)

F: MUT-III measure

adapter

MB991824-KIT
NOTE: G: MB991826
MUT-III Trigger
Harness is not
necessary when
pushing V.C.I. ENTER
key.

CAN bus diagnostics

CAUTION

For vehicles with CAN
communication, use MUT-III
main harness A to send
simulated vehicle speed. If you
connect MUT-III main harness B
instead, the CAN
communication does not
function correctly.

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

DO NOT USE

A

B

C

D

E

F

G

DO NOT USE
