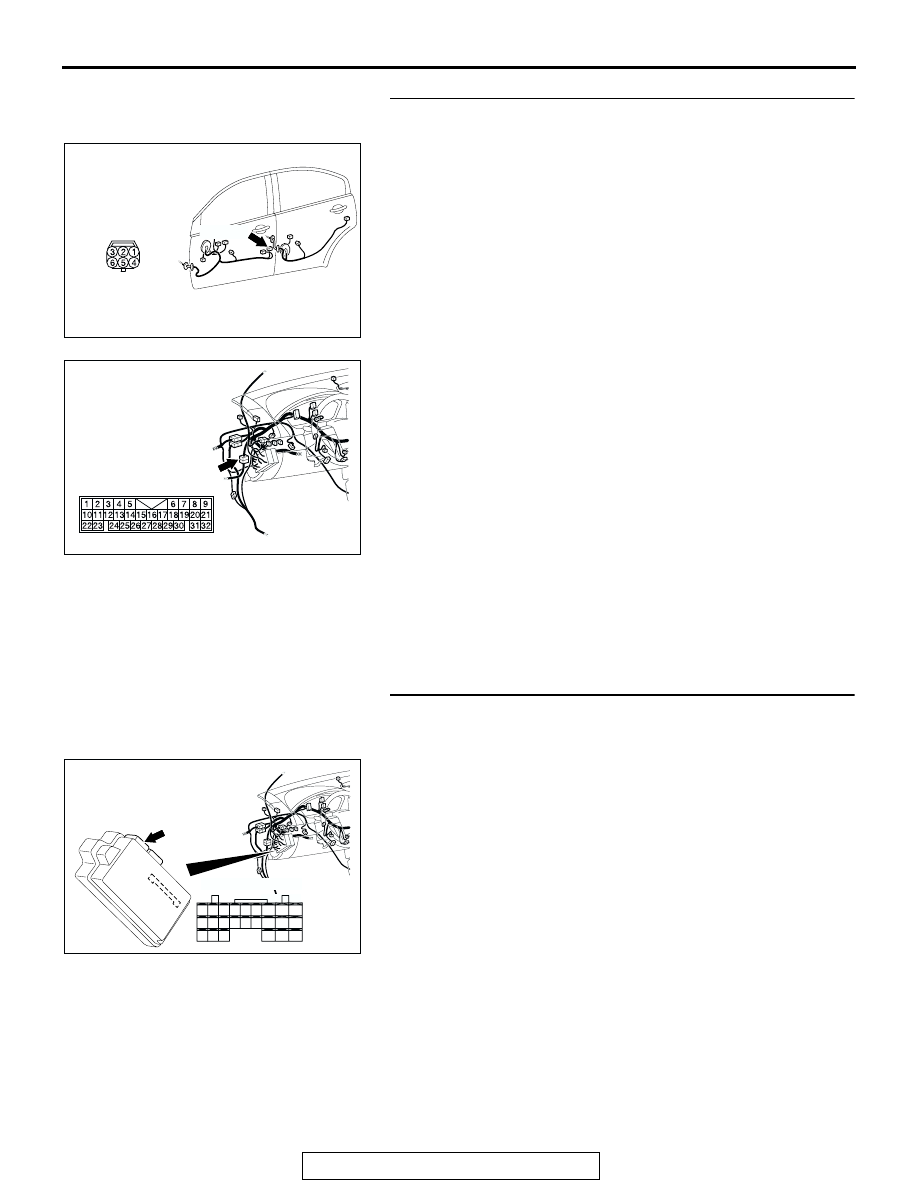

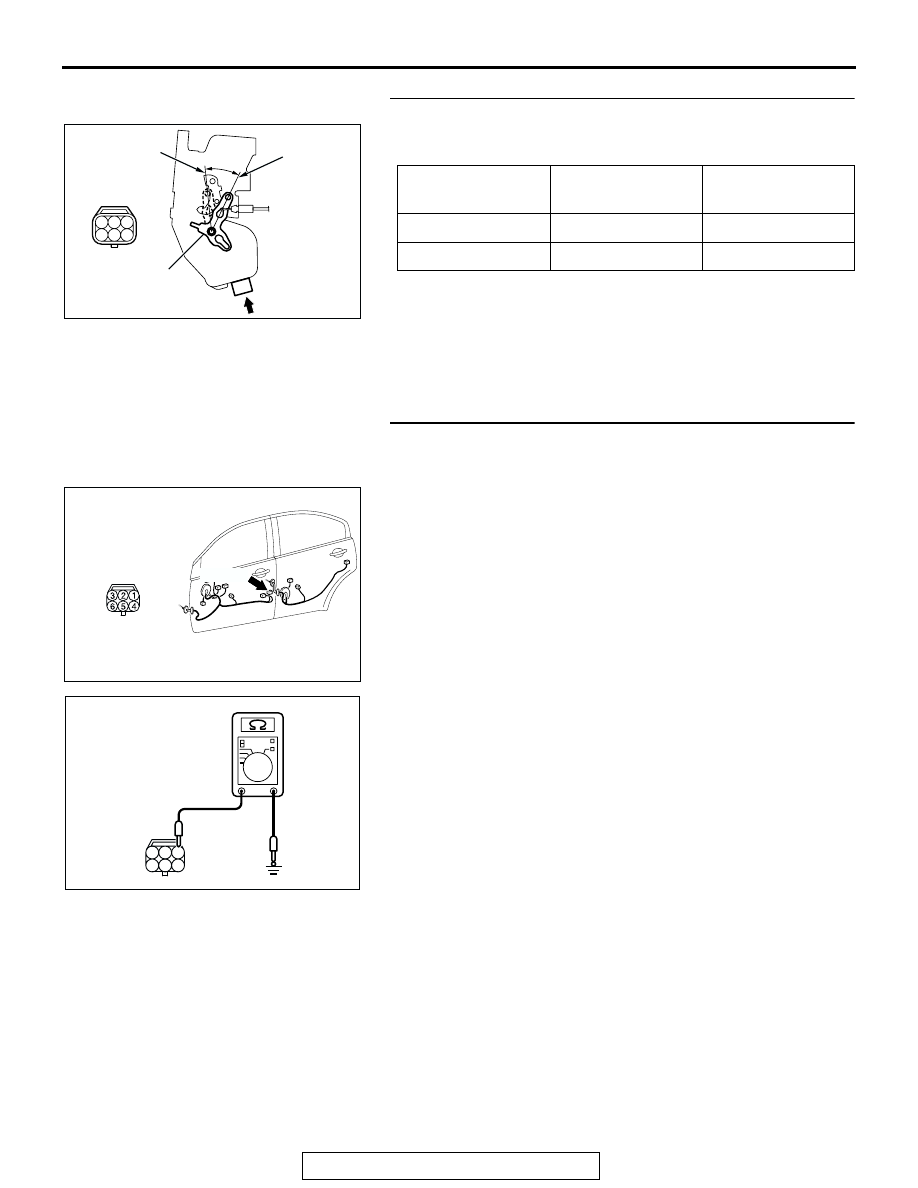

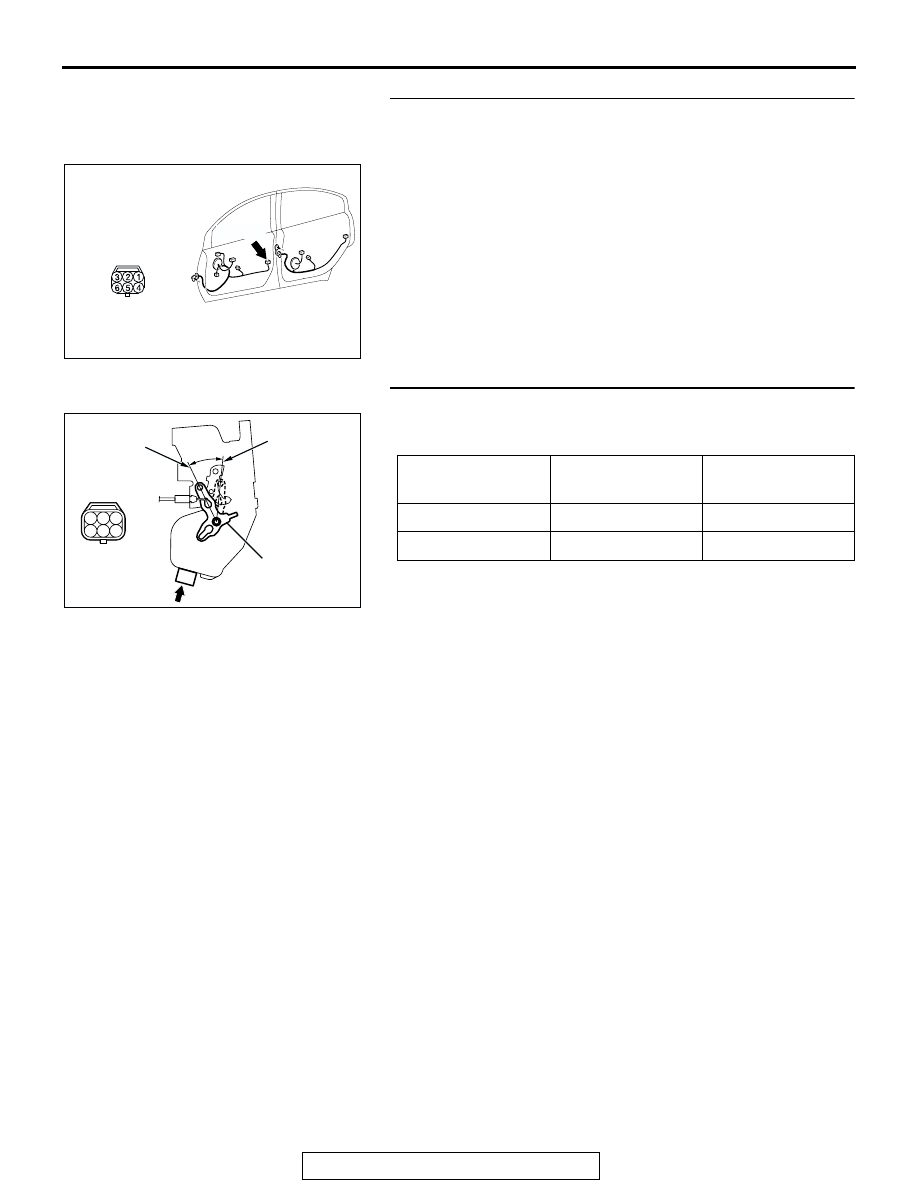

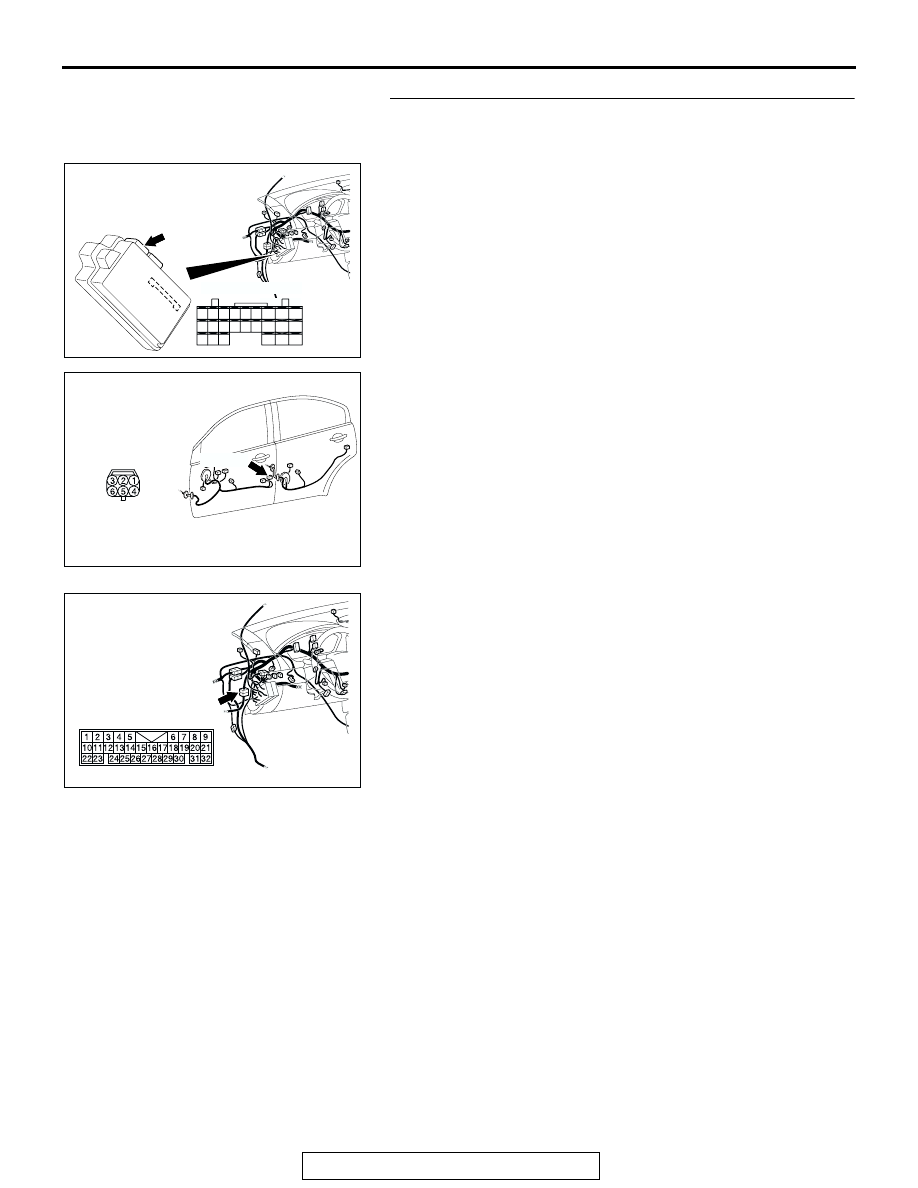

INPUT SIGNAL PROCEDURES TSB Revision SIMPLIFIED WIRING SYSTEM (SWS) 54B-543 STEP 3. Check the front door lock actuator (LH). Disconnect front door lock actuator (LH) connector E-15. Then Q: Is the front door lock actuator (LH) in good condition? YES : Go to Step 4. functions described in "CIRCUIT OPERATION" work STEP 4. Check the ground circuit to the front door lock (1) Disconnect front door lock actuator (LH) connector E-15 and measure the resistance available at the wiring harness side of the connector. (2) Measure the resistance value between terminal 1 and ground. • The resistance should be 2 ohms or less. Q: Is the measured resistance 2 ohms or less? YES : Go to Step 6. LEVER POSITION TESTER CONNECTION SPECIFIED UNLOCK 1 − 2 Less than 2 ohms LOCK 1 − 2 Open circuit 1 2 3 AC210903 AB VIEW A A LOCK UNLOCK LEVER AC305262 E-15 (B) HARNESS SIDE CONNECTOR: E-15 AH 5 6 4 2 3 1 AC209829 CONNECTOR E-15 AD |
