Mitsubishi Galant (2004+). Manual - part 313

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-443

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A

STEP 1. Check which of the front dome light, rear dome
light or trunk light do not illuminate normally.
Q: Which of the front dome light, rear dome light or trunk

light fail to illuminate normally?
Front dome light and rear dome light : Go to Step 2.
Front dome light : Go to Step 4.
Rear dome light : Go to Step 9.
Trunk light : Go to Step 14.

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-444

STEP 2. Check map light assembly connector D-02
<without sunroof>, overhead console assembly connector
D-03 <with sunroof> and ETACS-ECU connector C-219 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.

Q: Is map light assembly connector D-02 <without

sunroof>, overhead console assembly connector D-03
<with sunroof> and ETACS-ECU connector C-219 in
good condition?
YES : Go to Step 3.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Check that the front dome light and rear

dome light illuminates normally.

AC305413 AG

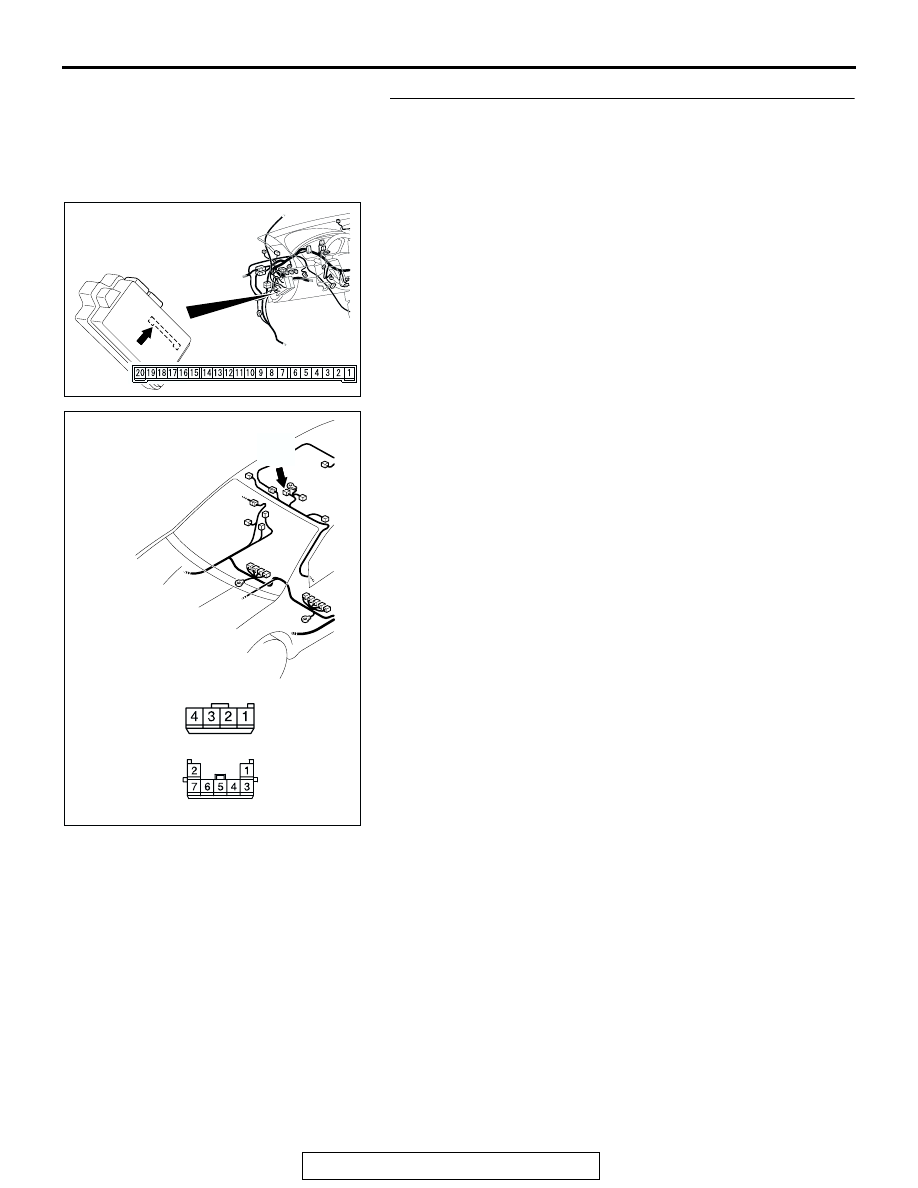

CONNECTOR: C-219

JUNCTION BLOCK SIDE

JUNCTION BLOCK

(REAR VIEW)

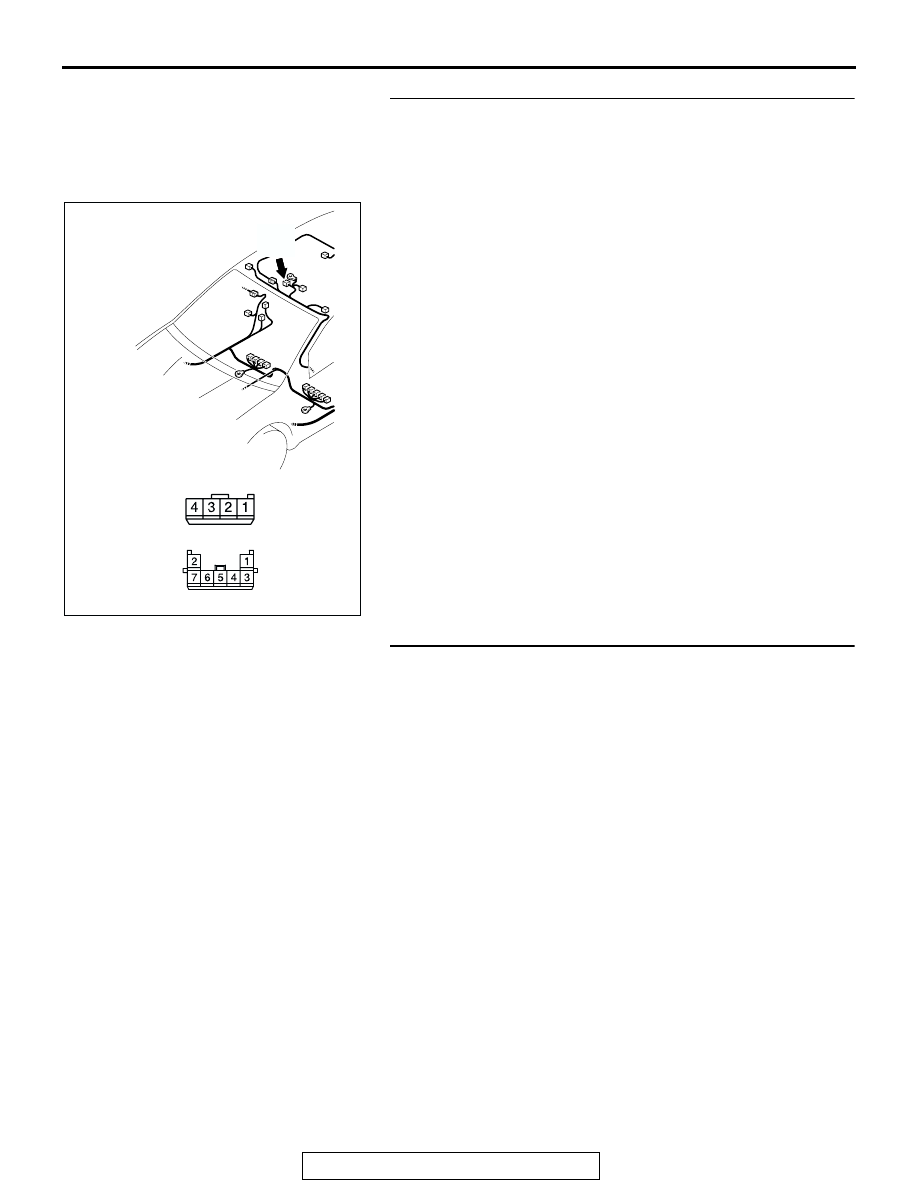

AC305265

AB

CONNECTORS: D-02, D-03

D-02
D-03

D-02

D-03

HARNESS SIDE

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-445

STEP 3. Check the wiring harness between map light
assembly connector D-02 (terminals 1 and 2) <without
sunroof> or overhead console assembly connector D-03
(terminals 1 and 2) <with sunroof> and ETACS-ECU
connector C-219 (terminals 6 and 5).

Q: Is the wiring harness between map light assembly

connector D-02 (terminals 1 and 2) <without sunroof> or
overhead console assembly connector D-03 (terminals
1 and 2) <with sunroof> and ETACS-ECU connector
C-219 (terminals 6 and 5) in good condition?
YES : No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Check that
the front dome light and rear dome light illuminates
normally.

AC305413 AG

CONNECTOR: C-219

JUNCTION BLOCK SIDE

JUNCTION BLOCK

(REAR VIEW)

AC305265

AB

CONNECTORS: D-02, D-03

D-02
D-03

D-02

D-03

HARNESS SIDE

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-446

STEP 4. Check map light assembly connector D-02
<without sunroof> or overhead console assembly
connector D-03 <with sunroof> for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.

Q: Is map light assembly connector D-02 <without

sunroof> or overhead console assembly connector
D-03 <with sunroof> in good condition?
YES : Go to Step 5.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Check that the front dome light illuminates

normally.

STEP 5. Check the front dome light bulb.
Q: Is the front dome light bulb in good condition?

YES : Go to Step 6.
NO :  Replace the front dome light bulb. Check that the front

dome light illuminates normally.

AC305265

AB

CONNECTORS: D-02, D-03

D-02
D-03

D-02

D-03

HARNESS SIDE
