SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-71

NOTE: Also check joint connector C-03 for loose, corroded, or
damaged terminals, or terminals pushed back in the connector.
If joint connector C-03 is damaged, repair or replace the con-
nector as described in GROUP 00E, Harness Connector
Inspection

P.00E-2

.

Q: Is the wiring harness between ETACS-ECU connector

C-218 (terminals 51, 59 and 67) and data link connector
C-125 (terminals 9, 3 and 1) in good condition?
YES : Replace the ETACS-ECU. The system should

communicate with the SWS monitor kit normally.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. The system
should communicate with the SWS monitor kit
normally.

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-72

INSPECTION PROCEDURE A-2: Communication with the Column Switch (column-ECU) is not
Possible.

NOTE: This troubleshooting procedure requires the
use of scan tool MB991958 and SWS monitor kit
MB991813. For details on how to use the SWS mon-
itor, refer to "How to use SWS monitor

P.54B-15

."

RELAY
BOX

BATTERY

IGNITION
SWITCH (IG1)

COLUMN
SWITCH

COLUMN -ECU

ETACS-ECU

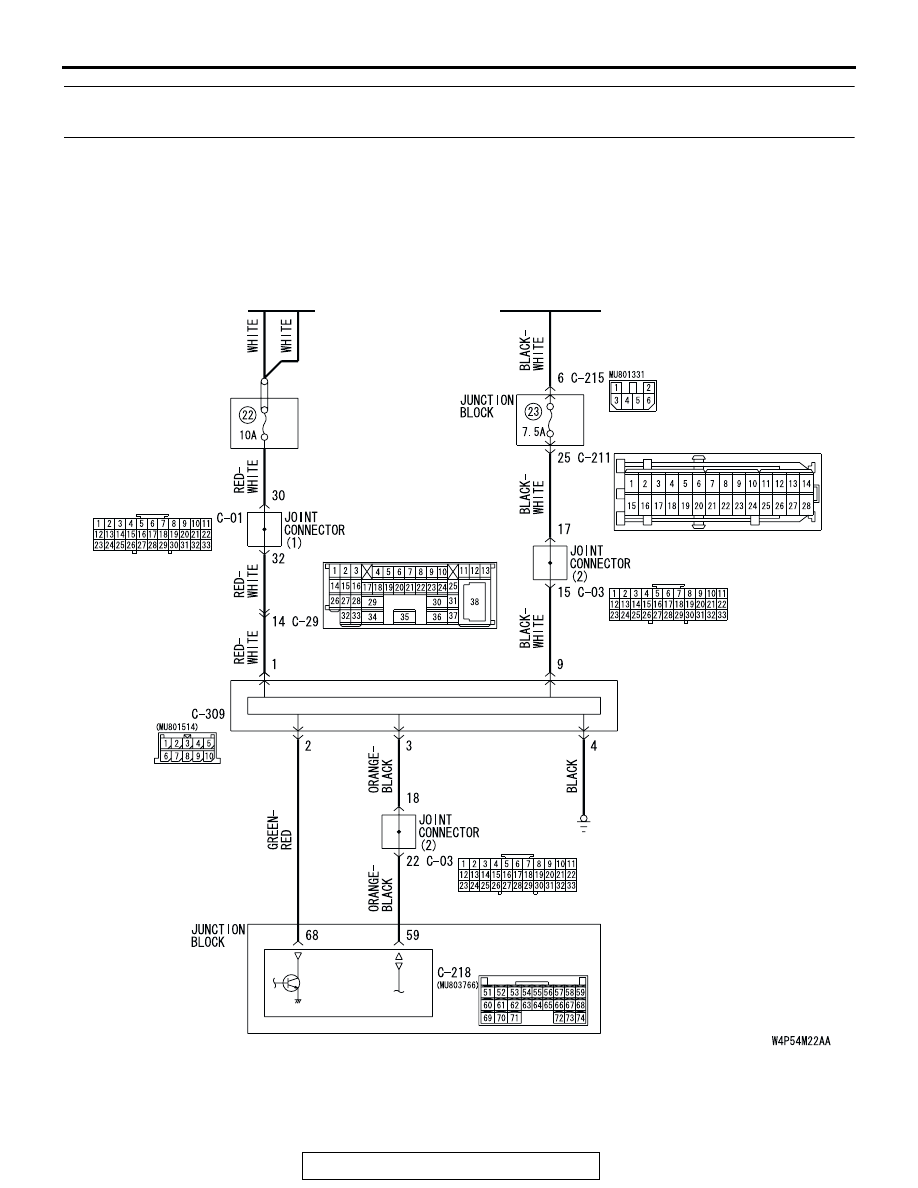

Column Switch Power Supply and SWS Communication Circuit

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-73

.

CIRCUIT OPERATION

• The power supply to the column switch is pro-

vided by the battery and the ignition switch (IG1).

• If the power supply system from the battery is

defective, the system operates by the power sup-
ply from the ignition switch (IG1).

.

TECHNICAL DESCRIPTION (COMMENT)
The power supply circuit to the column switch (col-
umn-ECU) may be defective. If the battery power
supply circuit (terminal 1 of the column switch) to the
ECU is damaged, also check the power supply circuit
from the ignition switch (IG1) (terminal 9 of the col-
umn switch), and repair if necessary.

.

TROUBLESHOOTING HINTS

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

• The column switch may be defective

• The ETACS-ECU may be defective

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A

• MB991813: SWS Monitor Kit

• MB991806: SWS Monitor Cartridge

• MB991812: SWS Monitor Harness (For Column-ECU)

• MB991822: Probe Harness

AC305231

C-01

C-29

CJ

C-03

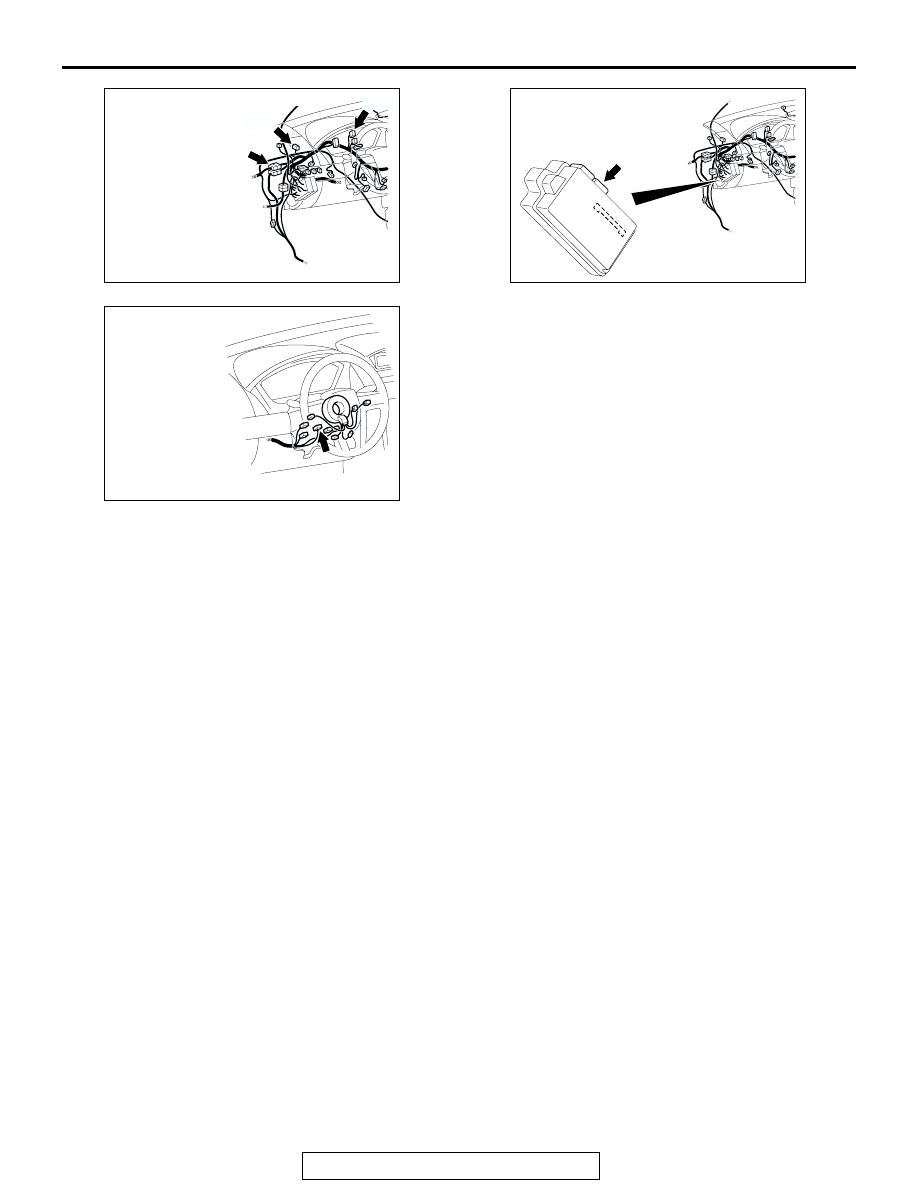

CONNECTORS: C-01, C-03, C-29

AC305413AL

CONNECTOR: C-218

C-218 (GR)

AC305235AC

CONNECTOR: C-309

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-74

STEP 1. Use scan tool MB991958 to select "ECU COMM
Check" on the SWS monitor display.

Check the following ECUs:

• ETACS-ECU

• Column-ECU

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958. Connect
special tool MB991910 before connecting special tool
MB991812. Be sure to connect special tool MB991806 after
turning on special tool MB991824.
(1) Connect the special tool. Refer to "How to connect SWS

monitor

P.54B-13

."

(2) Turn the ignition switch to the "ON" position.
(3) Operate scan tool MB991958 according to the procedure

below to display "ECU COMM Check."
a. Select "Interactive Diagnosis."
b. Select "System select."
c. Select "SWS."
d. Select "SWS MONITOR."
e. Select "ECU COMM Check."

(4) Scan tool MB991958 should show "OK" on the "ECU

COMM Check" menus for both the "ETACS ECU" and the
"COLUMN ECU" menus.

Q: Is "OK" displayed for both the "ETACS ECU" and

"COLUMN ECU" menus?
"OK" is displayed for all the items : Go to Step 2.
"NG" is displayed for the "COLUMN ECU" menu : Go to

Step 6.

"NG" is displayed for the "ETACS ECU" menu : Refer to

Inspection Procedure A-3 "Communication with the
ETACS-ECU is not possible

P.54B-79

."

"NG" is displayed for all the items : Refer to Inspection

Procedure A-3 "Communication with the ETACS-ECU
is not possible

P.54B-79

."

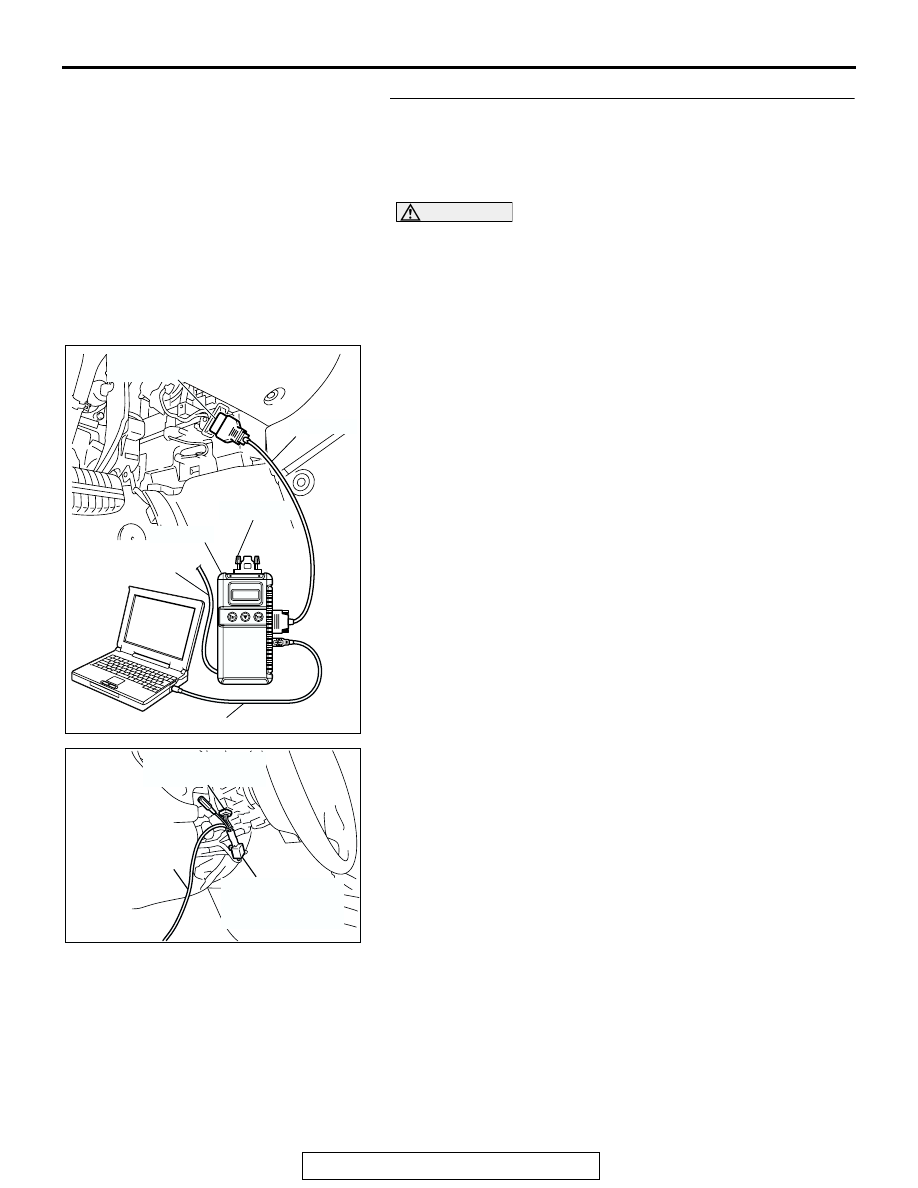

AC305411AB

MB991910

DATA LINK

CONNECTOR

MB991827

MB991824

MB991806

MB991812

AC302210

COLUMN SWITCH
CONNECTOR

COLUMN SWITCH
CONNECTOR AT
HARNESS SIDE

MB991812

AB
