Mitsubishi Galant (2004+). Manual - part 199





EMISSION CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-87

<3.8L ENGINE>

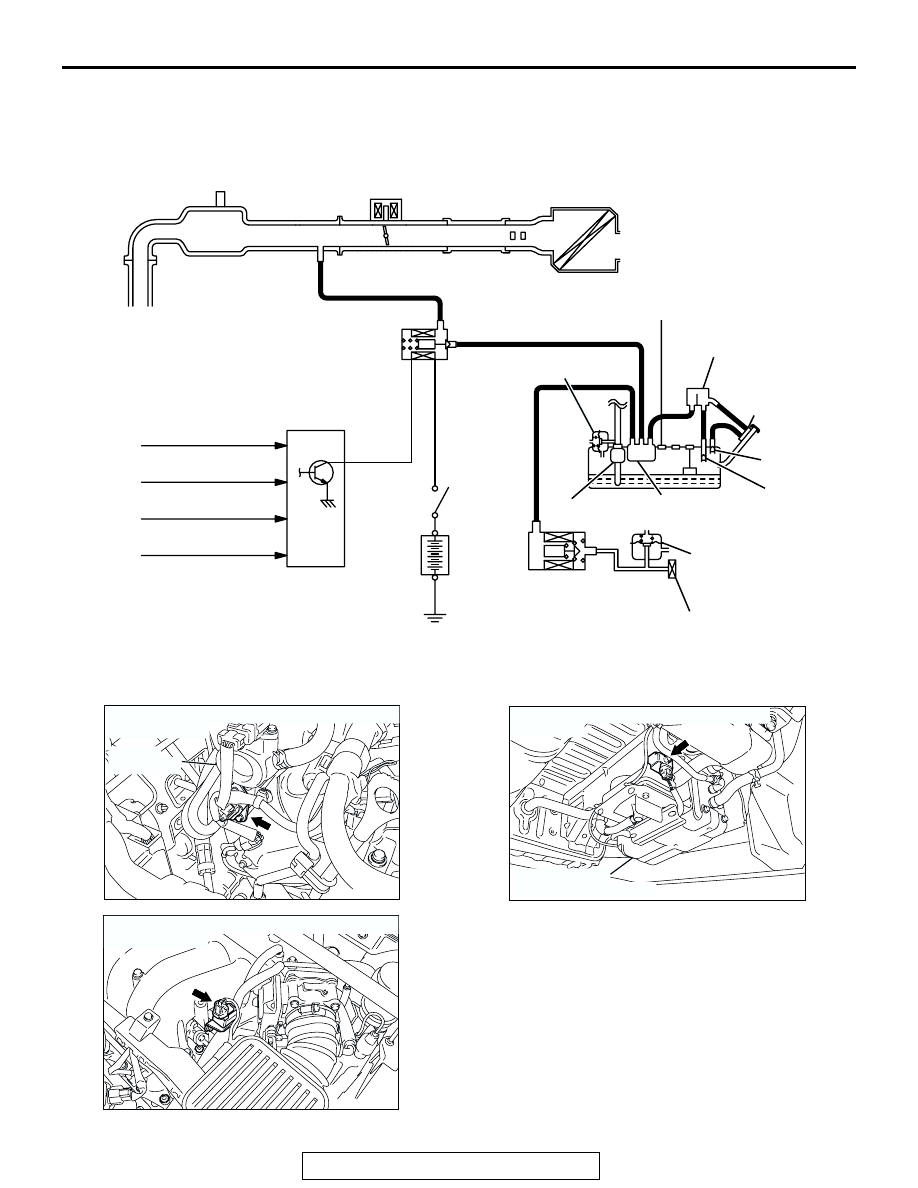

COMPONENT LOCATION

M1173007500205

AK203862

FUEL TANK DIFFERENTIAL
PRESSURE SENSOR

EVAPORATIVE
EMISSION
CANISTER

LEVELING
VALVE

FUEL CUT
OFF VALVE

FUEL
OVERFLOW
LIMITER
VALVE

EVAPORATIVE
EMISSION
PURGE
SOLENOID
ON: OPEN

PCM

BAROMETRIC PRESSURE
SENSOR

INTAKE AIR TEMPERATURE
SENSOR

ENGINE COOLANT
TEMPERATURE SENSOR

MASS AIRFLOW SENSOR

FUEL
TANK

MFI
RELAY

FUEL
PUMP

EVAPORATIVE
EMISSION
VENTILATION VALVE

AIR FILTER

EVAPORATIVE
EMISSION
VENTILATION SOLENOID
ON: CLOSED

AC

LIQUID
SEPARATOR

FUEL PRESSURE
REGULATOR

AK303004AB

EVAPORATIVE EMISSION PURGE SOLENOID
<2.4L ENGINE>

INTAKE
MANIFOLD

AK303005AB

EVAPORATIVE EMISSION PURGE SOLENOID
<3.8L ENGINE>

AK303006 AB

EVAPORATIVE EMISSION VENTILATION
SOLENOID

EVAPORATIVE
EMISSION CANISTER

EMISSION CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-88

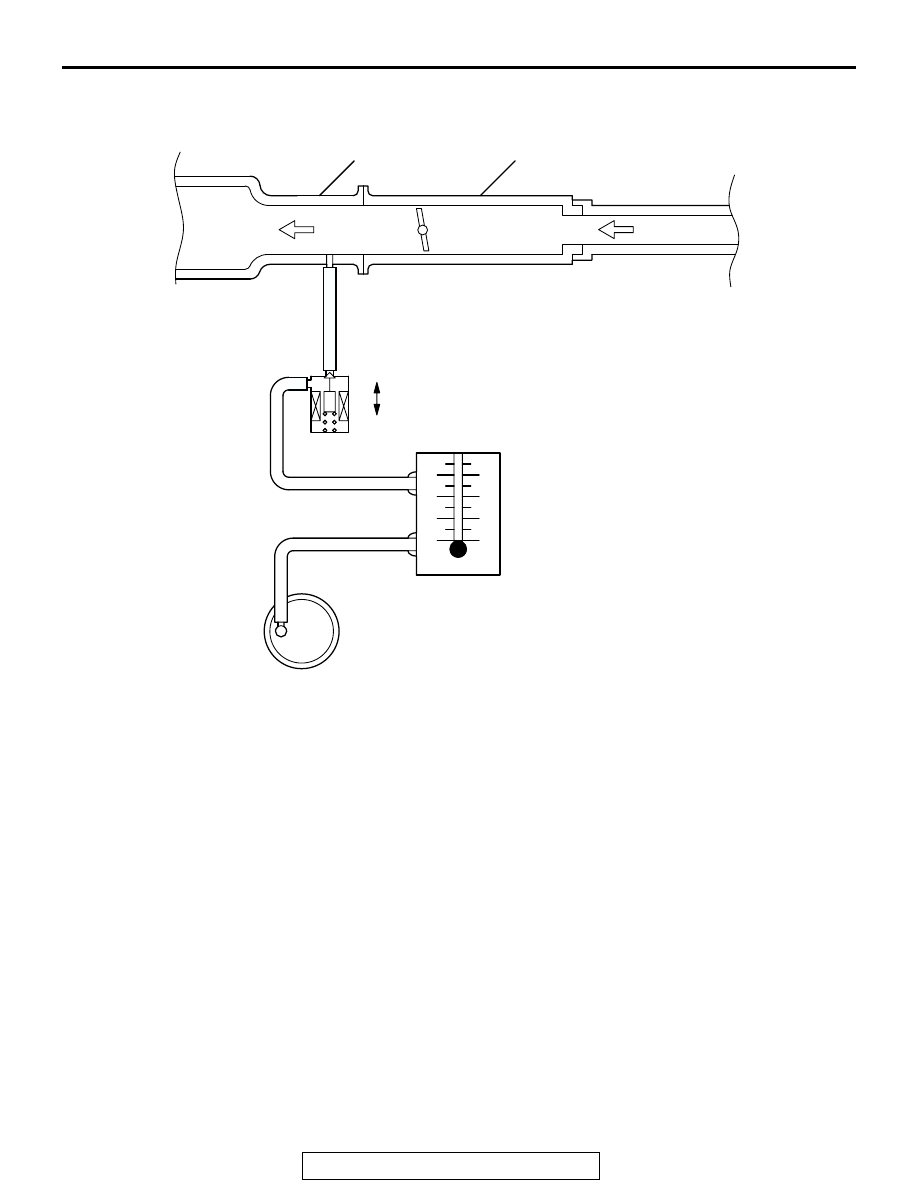

PURGE CONTROL SYSTEM CHECK (PURGE FLOW CHECK)

M1173001400352

Required Special Tool:
MB995061: Purge Flow Indicator
1. Disconnect the purge hose from the evaporative emission

(EVAP) purge solenoid, and connect special tool MB995061
between the EVAP purge solenoid and the purge hose.

2. Before checks, set the vehicle in the following conditions:

• Engine coolant temperature: 80 − 95°C (176 − 203°F)

• Lights, electric cooling fan and accessories: OFF

• Transaxle: P range

NOTE: Vehicles for Canada, the headlight, taillight, etc.
remain lit even when the lighting switch is in "OFF" position
but this is no problem for checks.

3. Run the engine at idle for more than four minutes.
4. Check the purge flow volume when engine is revved

suddenly several times.

Standard value: Momentarily 20 cm

3

/s (2.5 SCFH) or

more.

AK300556

THROTTLE BODY

INTAKE MANIFOLD

FROM
AIR CLEANER

TO
COMBUSTION
CHAMBER

AB

OFF

ON

EVAPORATIVE EMISSION
PURGE SOLENOID

(ON: OPENED)

PURGE
FLOW
INDICATOR
(MB995061)

PURGE HOSE

EVAPORATIVE EMISSION
CANISTER

EMISSION CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-89

5. If the purge flow volume is less than the standard value,

check it again with the vacuum hose disconnected from the
EVAP canister. If the purge flow volume is less than the
standard value, check the vacuum port and the vacuum
hose for clogging. Also check the EVAP purge solenoid. If
the purge flow volume is at the standard value, replace the
EVAP canister.

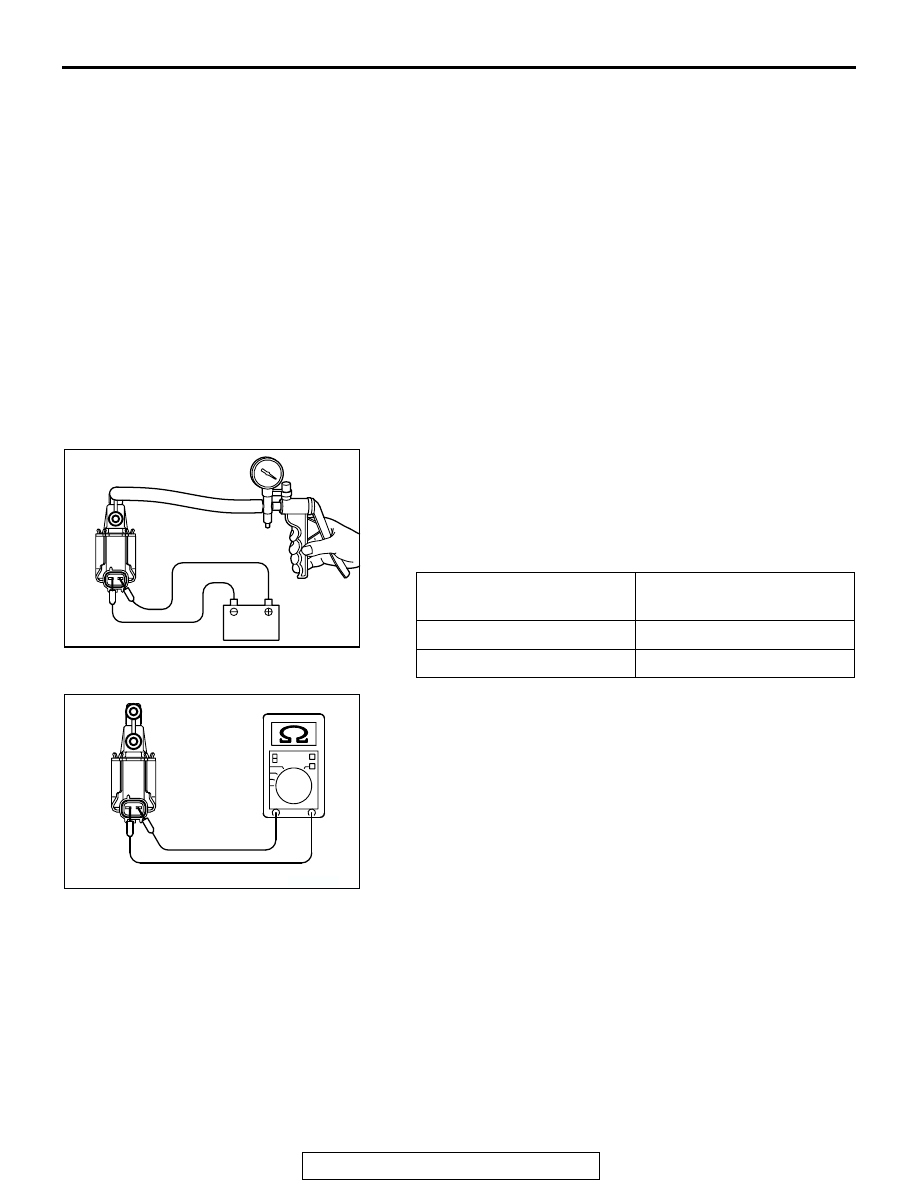

EVAPORATIVE EMISSION PURGE SOLENOID
CHECK

M1173001700289

1. Disconnect the vacuum hose (black, black with red paint

mark) from the evaporative emission (EVAP) purge
solenoid.
NOTE: When disconnecting the vacuum hose, always place
an identification mark so that it can be reconnected at its
original position.

2. Disconnect the harness connector.
3. Connect a hand vacuum pump to nipple (A) of the EVAP

purge solenoid (refer to the illustration at left).

4. As described in the chart below, check airtightness by

applying a vacuum with voltage applied directly from the
battery to the EVAP purge solenoid valve and without
applying voltage.

5. Measure the resistance between the terminals of the EVAP

purge solenoid.

Standard value: 22

 26  [at 20°C (68°F)]

6. Replace the solenoid if resistance is out of specification.

MASS AIRFLOW SENSOR CHECK

M1173050400053

<2.4L ENGINE>

To inspect these parts, refer to GROUP 13A, Multiport Fuel
Injection (MFI) <2.4L Engine>

− Multiport Fuel Injection (MFI)

Diagnosis

− Diagnostic Trouble Code Chart

P.13A-34

.

<3.8L ENGINE>

To inspect these parts, refer to GROUP 13B, Multiport Fuel
Injection (MFI) <3.8L Engine>

− Multiport Fuel Injection (MFI)

Diagnosis

− Diagnostic Trouble Code Chart

P.13B-33

.

BATTERY POSITIVE
VOLTAGE

NORMAL CONDITION

Applied

Vacuum leaks

Not applied

Vacuum maintained

AK200339AB

A

B

AK103872

EMISSION CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-90

BAROMETRIC PRESSURE SENSOR CHECK

M1173008000269

<2.4L ENGINE>

To inspect the sensor, refer to GROUP 13A, Multiport Fuel
Injection (MFI) <2.4L Engine>

− Multiport Fuel Injection (MFI)

Diagnosis

− Diagnostic Trouble Code Chart

P.13A-34

.

<3.8L ENGINE>

To inspect the sensor, refer to GROUP 13B, Multiport Fuel
Injection (MFI) <3.8L Engine>

− Multiport Fuel Injection (MFI)

Diagnosis

− Diagnostic Trouble Code Chart

P.13B-33

.

ENGINE COOLANT TEMPERATURE SENSOR
CHECK

M1173008100523

<2.4L ENGINE>

To inspect the sensor, refer to GROUP 13A, Multiport Fuel
Injection (MFI) <2.4L Engine>

− Multiport Fuel Injection (MFI)

Diagnosis

− Diagnostic Trouble Code Chart

P.13A-34

.

<3.8L ENGINE>

To inspect the sensor, refer to GROUP 13B, Multiport Fuel
Injection (MFI) <3.8L Engine>

− Multiport Fuel Injection (MFI)

Diagnosis

− Diagnostic Trouble Code Chart

P.13B-33

.

INTAKE AIR TEMPERATURE SENSOR CHECK

M1173008200263

<2.4L ENGINE>

To inspect the sensor, refer to GROUP 13A, Multiport Fuel
Injection (MFI) <2.4L Engine>

− Multiport Fuel Injection (MFI)

Diagnosis

− Diagnostic Trouble Code Chart

P.13A-34

.

<3.8L ENGINE>

To inspect the sensor, refer to GROUP 13B, Multiport Fuel
Injection (MFI) <3.8L Engine>

− Multiport Fuel Injection (MFI)

Diagnosis

− Diagnostic Trouble Code Chart

P.13B-33

.

FUEL TANK DIFFERENTIAL PRESSURE SENSOR
CHECK

M1173007700221

To inspect the sensor, refer to GROUP 13C, Fuel Supply

− Fuel

Tank

− Fuel Tank Inspection − Fuel Tank Differential Pressure

Sensor Check

P.13C-16

.

EVAPORATIVE EMISSION VENTILATION
SOLENOID CHECK

M1173007800206

Refer to Emission Control

− Evaporative Emission Canister and

Fuel Tank Pressure Relief Valve

− Inspection − Evaporative

Emission Ventilation Solenoid Check

P.17-98

.
