AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-39

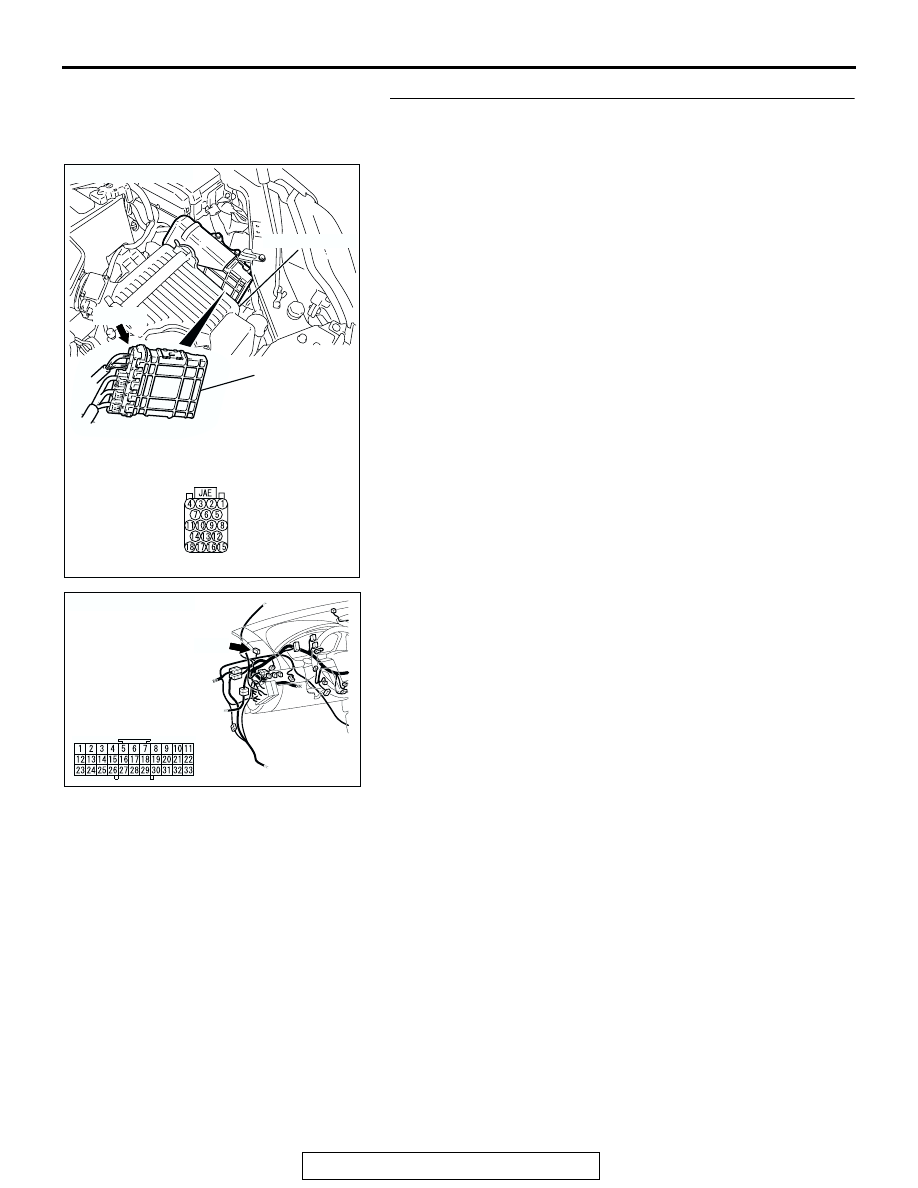

STEP 4. Check PCM connector B-19 and joint connector
(1) C-01 for loose, corroded or damaged terminals, or
terminals pushed back in the connector.

Q: Are the connectors and terminals in good condition?

YES : Go to Step 5 .
NO :  Repair or replace the damaged components (Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

). Then go to Step 22 .

AC305710

B-19 HARNESS

CONNECTOR:

COMPONENT SIDE

AC

B-19 (B)

CONNECTOR: B-19

AIR CLEANER

PCM

AC305231AN

CONNECTOR: C-01

C-01

C-01 HARNESS
CONNECTOR:
COMPONENT SIDE

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-40

STEP 5. Check the harness wire between PCM connector
B-19 terminal 9 and joint connector (1) C-01 terminal 14 for
damage.

Q: Is the harness wire in good condition?

YES : Go to Step 13 .
NO :  Repair the damaged harness wire. Then go to Step

22 .

AC305710

B-19 HARNESS

CONNECTOR:

COMPONENT SIDE

AC

B-19 (B)

CONNECTOR: B-19

AIR CLEANER

PCM

AC305231AN

CONNECTOR: C-01

C-01

C-01 HARNESS
CONNECTOR:
COMPONENT SIDE

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-41

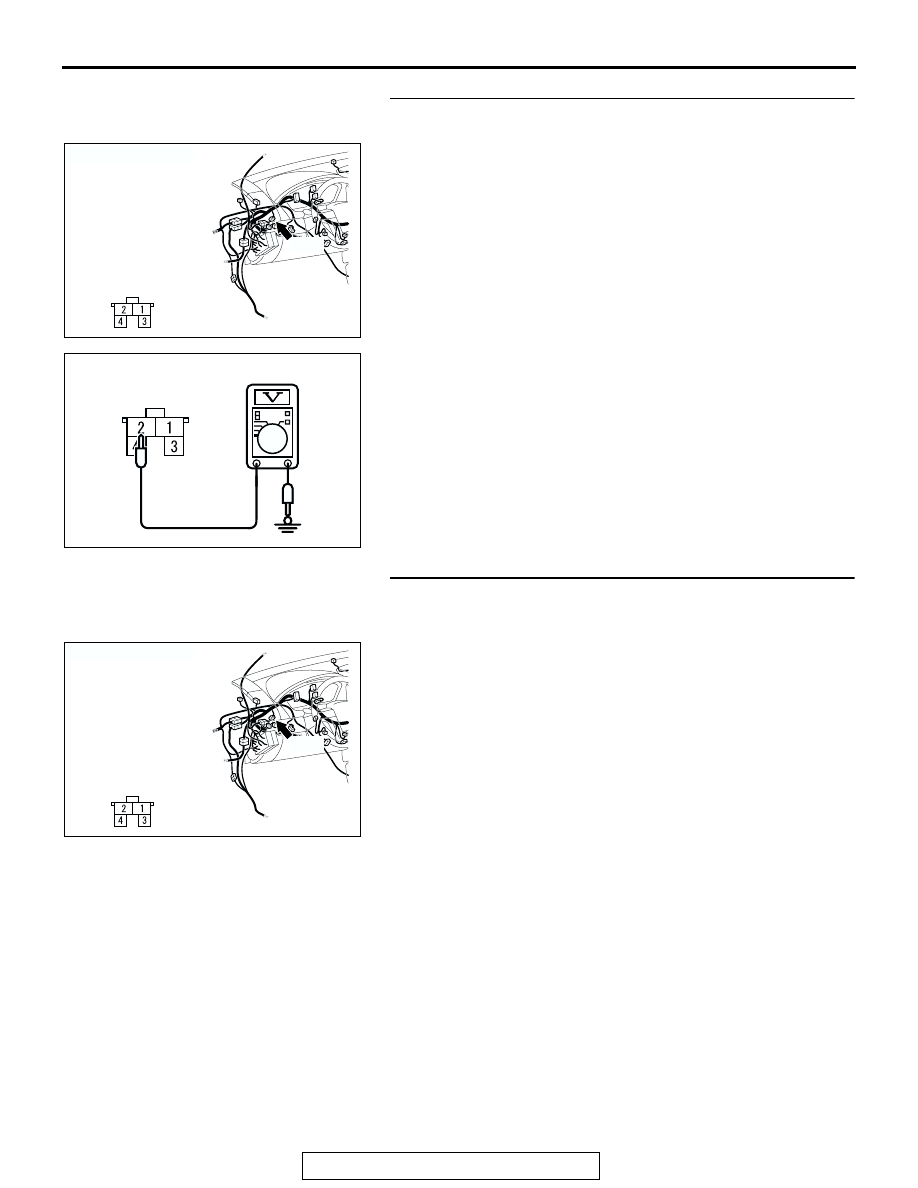

STEP 6. Measure the power supply voltage at stoplight
switch connector C-30 by backprobing.

(1) Disconnect stoplight switch connector C-30.

(2) Measure the power supply voltage between stoplight switch

connector C-30 terminal 2 and ground.

(3) Reconnect stoplight switch connector C-30.
Q: Is the measured voltage battery positive voltage

(approximately 12 volts)?
YES : Go to Step 10 .
NO :  Go to Step 7 .

STEP 7. Check stoplight switch connector C-30 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q: Are the connector and terminals in good condition?

YES : Go to Step 8 .
NO :  Repair or replace the damaged components (Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

). Then go to Step 22 .

AC305231AO

CONNECTOR: C-30

C-30

C-30 HARNESS
CONNECTOR:
COMPONENT SIDE

AC305712AB

C-30 HARNESS
CONNECTOR:
COMPONENT SIDE

AC305231AO

CONNECTOR: C-30

C-30

C-30 HARNESS
CONNECTOR:
COMPONENT SIDE

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-42

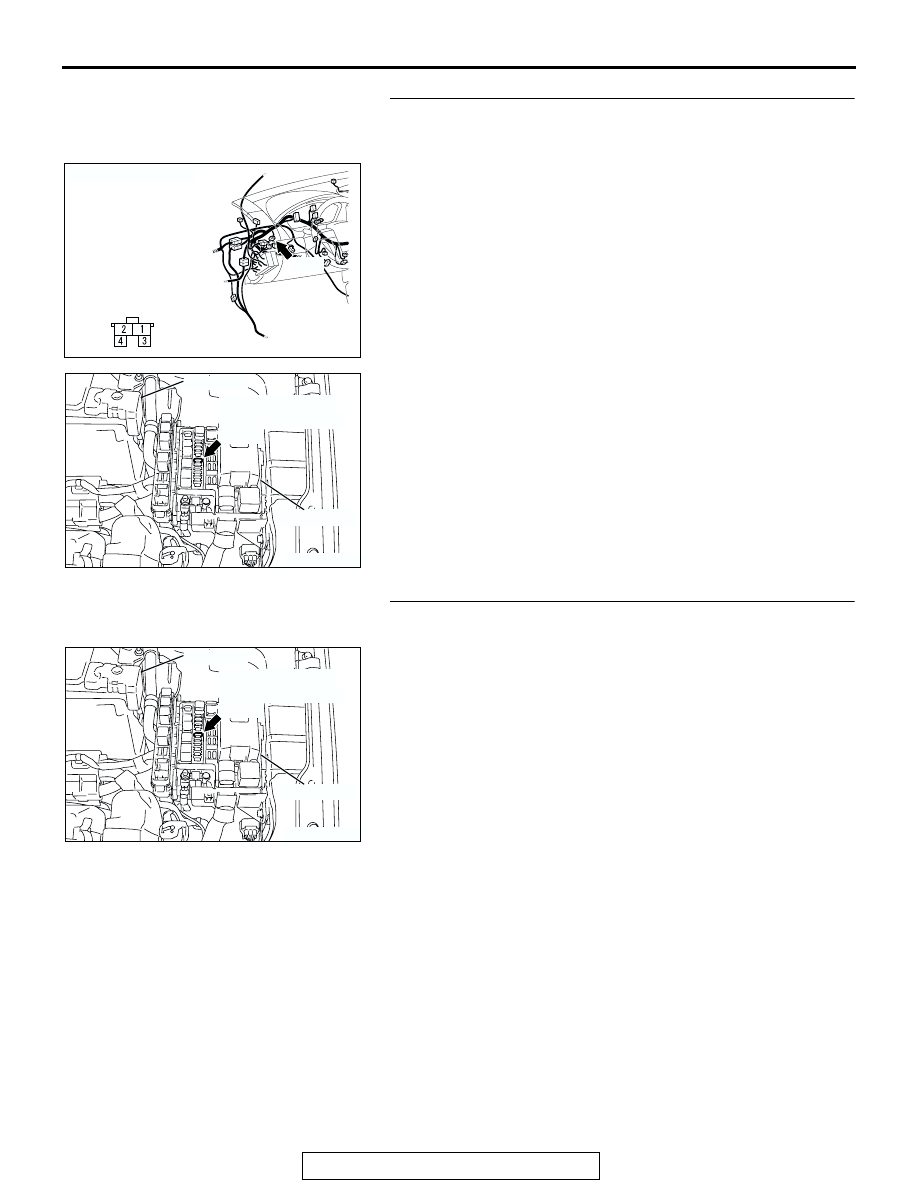

STEP 8. Check the harness wire between stoplight switch
connector C-30 terminal 2 and fuse number 11 at the relay
box at engine compartment for damage.

Q: Is the harness wire in good condition?

YES : Go to Step 9 .
NO :  Repair the damaged harness wire. Then go to Step

22 .

STEP 9. Check the fuse number 11 at the relay box at
engine compartment.

Q: Is the fuse in good condition?

YES : Go to Step 10 .
NO :  Check the stoplight system harness and replace the

fuse. Then go to Step 22 .

AC305231AO

CONNECTOR: C-30

C-30

C-30 HARNESS
CONNECTOR:
COMPONENT SIDE

AC305713AB

BATTERY

RELAY BOX

FUSE NUMBER 11
(HOUSING COLOR:
BLUE)

AC305713AB

BATTERY

RELAY BOX

FUSE NUMBER 11
(HOUSING COLOR:
BLUE)
