INSPECTION PROCEDURE 2: Accelerator Pedal Operation Not Smooth (Over Acceleration)

.

COMMENT
The accelerator pedal, its installation condition or the
accelerator pedal position sensor (APS) is sus-
pected.

.

TROUBLESHOOTING HINTS (The most likely
causes for this case:)

• Malfunction of the accelerator pedal.

• Incorrectly installed accelerator pedal

• Malfunction of the accelerator pedal position sen-

sor (APS).

DIAGNOSIS

Required Special Tool:

• MB991958: Scan Tool (MUT-III sub assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

STEP 1. Check if the accelerator pedal and the accelerator
pedal are installed correctly.
Q: Are the accelerator pedal and the accelerator pedal

installed correctly?
YES : Go to Step 2.
NO :  Replace and reinstall the accelerator pedal (Refer to

P.17-9

). Go to Step 3.

ENGINE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-8

STEP 2. Using scan tool MB991958, read the diagnostic
trouble code (DTC).

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Ensure that the ignition switch is at the "LOCK" (OFF)

position.

(2) Start up the personal computer.
(3) Connect special tool MB991827 to special tool MB991824

and the personal computer.

(4) Connect special tool MB991910 to special tool MB991824.
(5) Connect special tool MB991910 to the data link connector.
(6) Turn the power switch of special tool MB991824 to the "ON"

position.
NOTE: When special tool MB991824 is energized, special
tool MB991824 indicator light will be illuminated in a green
color.

(7) Start the MUT-III system on the personal computer.
(8) Turn the ignition switch to the "ON" position.
(9) Check for MFI system diagnostic trouble code (Refer to

GROUP 13A, MFI Diagnosis - How to Read and Erase
Diagnostic Trouble Code

P.13A-5

).

(10)Turn the ignition switch to the "LOCK" (OFF) position, and

then remove scan tool MB991958 in the reverse order of
installation.

Q: Is any DTC set?

YES : Refer to GROUP 13A, MFI Diagnosis

− Diagnostic

Trouble Code Chart

P.13A-34

.

NO :  Go to Step 3.

STEP 3. Retest the system.
Q: Does the accelerator pedal work normally?

YES : The procedure is complete.
NO :  Return to Step 1.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

ENGINE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-9

ACCELERATOR CABLE AND PEDAL

REMOVAL AND INSTALLATION

M1171001200363

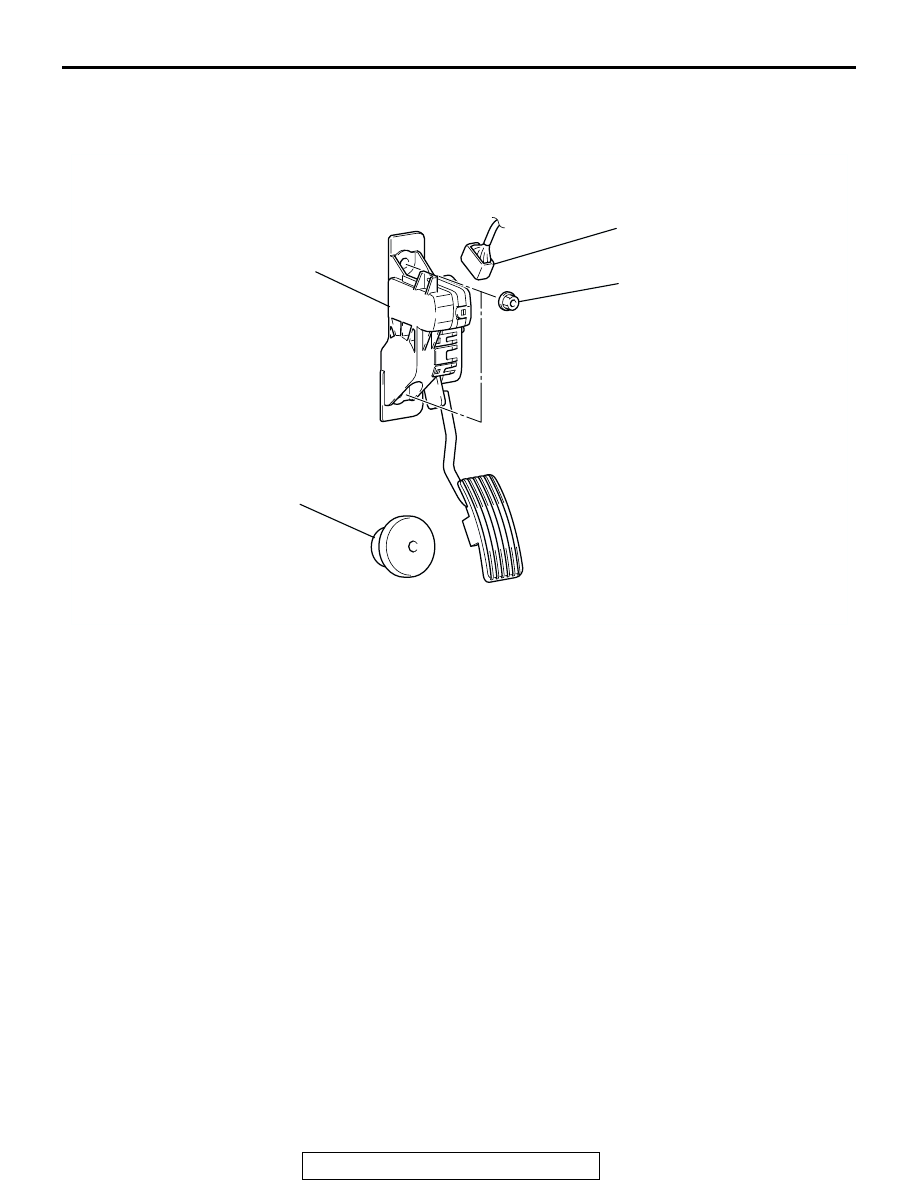

AC307006AB

1

13 ± 2 N·m
111 ± 22 in-lb

2

3

REMOVAL STEPS

1. ACCELERATOR PEDAL POSITION

SENSOR (APS) CONNECTOR

2. ACCELERATOR PEDAL ASSEMBLY
3. ACCELERATOR STOPPER

REMOVAL STEPS (Continued)

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-10

AUTO-CRUISE CONTROL

GENERAL DESCRIPTION

M1172000100281

By using the auto-cruise control, the driver can select
and maintain a desired cruising speed [between 40
km/h (25 mph) and 200 km/h (124 mph)] without
depressing the accelerator pedal.

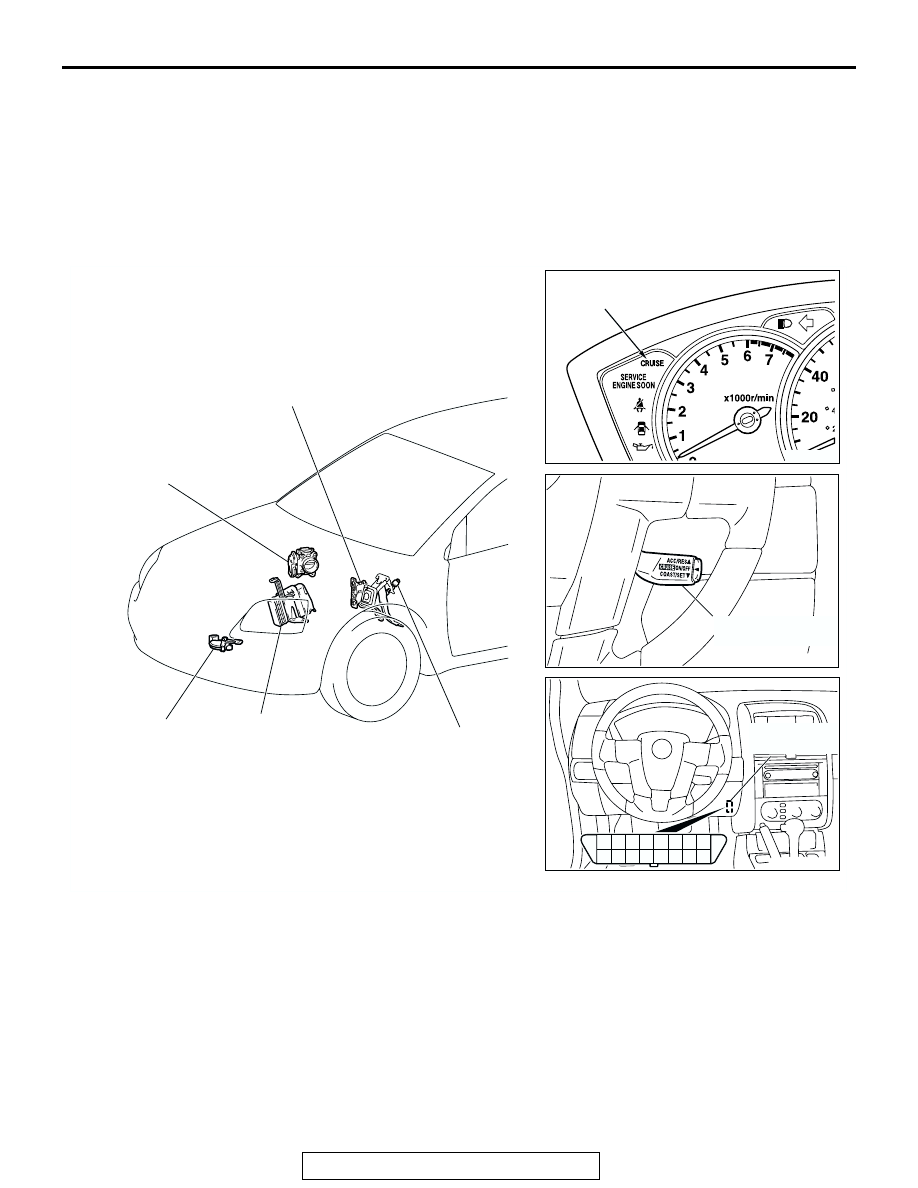

CONSTRUCTION DIAGRAM

AC305704

AC206195

AC305701

AC305702

9 10 11 12 13 14 15 16

1

2 3

4 5 6 7 8

AC305703

AB

STOPLIGHT SWITCH

PCM

TRANSMISSION
RANGE SWITCH

THROTTLE BODY
(BUILT-IN THROTTLE
POSITION SENSOR
AND THROTTLE
ACTUATOR CONTROL
MOTOR)

"CRUISE" INDICATOR
LIGHT

AUTO-CRUISE
CONTROL SWITCH

DATA LINK
CONNECTOR

ACCELERATOR PEDAL
(BUILT-IN ACCELERATOR
PEDAL POSITION SENSOR)
