FUEL INJECTION CONTROL

MULTIPORT FUEL SYSTEM (MFI) <3.8L ENGINE>

13B-5

FUEL INJECTION CONTROL

M2132003000293

The fuel injection control is basically the same as
that for the 3.8L engine installed in the ENDEAVOR.

.

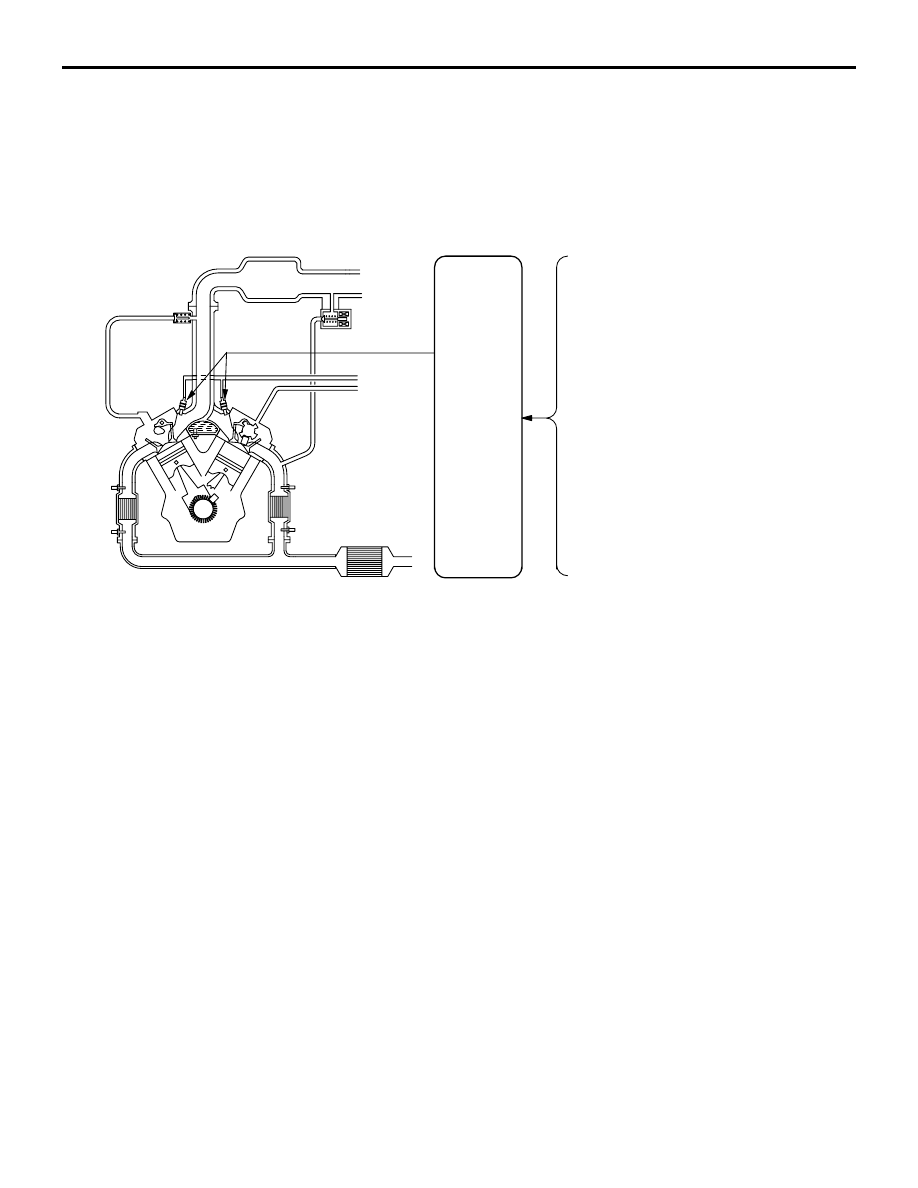

System Configuration Diagram

AK302859

INJECTOR

PCM

MASS AIRFLOW SENSOR

MANIFOLD ABSOLUTE PRESSURE
(MAP) SENSOR

INTAKE AIR TEMPERATURE SENSOR

ENGINE COOLANT TEMPERATURE
SENSOR

THROTTLE POSITION SENSOR

CRANKSHAFT POSITION SENSOR

CAMSHAFT POSITION SENSOR

KNOCK SENSOR

IGNITION SWITCH-ST

HEATED OXYGEN SENSOR

AB

THROTTLE VALVE OPENING ANGLE CONTROL

MULTIPORT FUEL SYSTEM (MFI) <3.8L ENGINE>

13B-6

THROTTLE VALVE OPENING ANGLE CONTROL

M2132015000074

The throttle valve opening angle control is basically
the same that for the 3.8L engine installed in the
ENDEAVOR.

.

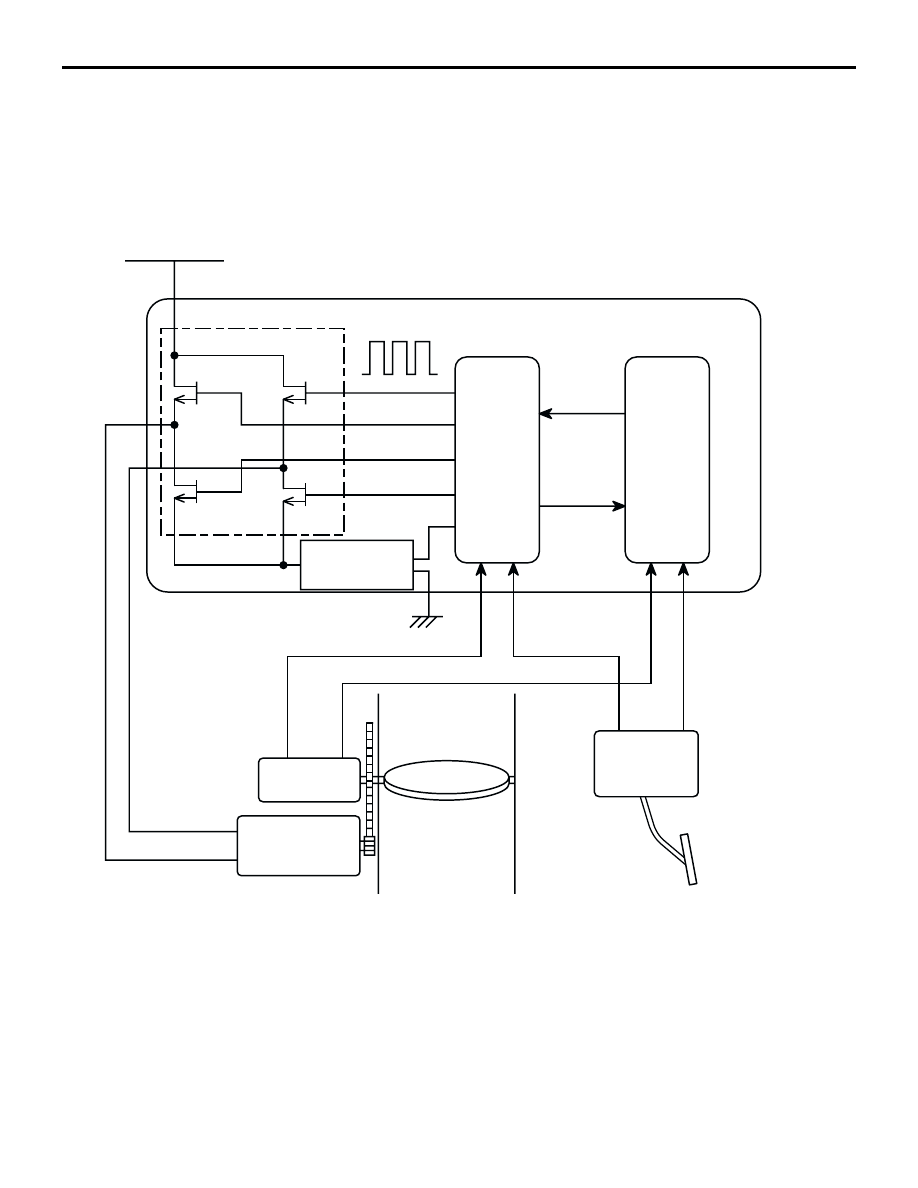

System Configuration Diagram

AK304205

THROTTLE
ACTUATOR
CONTROL
MOTOR

THROTTLE
POSITION
SENSOR

ACCELERATOR
PEDAL
POSITION
SENSOR

ENGINE
CONTROL
UNIT

THROTTLE
VALVE
CONTROL
UNIT

PULSE WIDTH MODULATION
CONTROL

POWERTRAIN CONTROL MODULE

THROTTLE ACTUATOR
CONTROL MOTOR RELAY

MOTOR DRIVE CIRCUIT

ELECTRICAL

CURRENT

DETECTION

CIRCUIT

AB

IGNITION TIMING CONTROL

MULTIPORT FUEL SYSTEM (MFI) <3.8L ENGINE>

13B-7

IGNITION TIMING CONTROL

M2132005000288

The ignition timing control system is basically the
same as that for the 3.8L engine installed in the
ENDEAVOR.

.

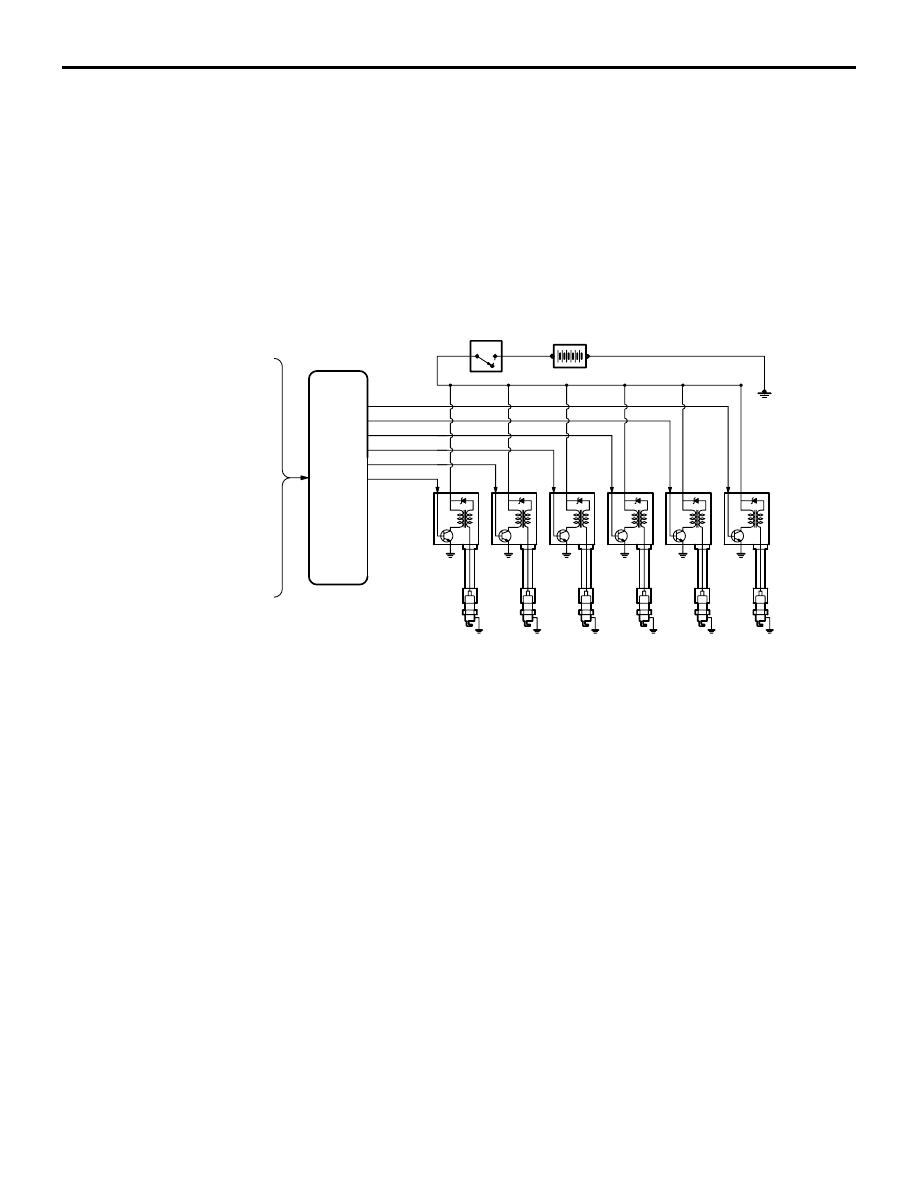

System Configuration Diagram

AK304258AB

MASS AIRFLOW
SENSOR

PCM

IGNITION
SWITCH-ST

IGNITION
COIL

SPARK PLUG

CYLINDER No.

BATTERY

1

2

3

4

5

6

INTAKE AIR
TEMPERATURE SENSOR

ENGINE COOLANT
TEMPERATURE SENSOR

CAMSHAFT POSITION
SENSOR

CRANKSHAFT POSITION
SENSOR

TRANSMISSION
RANGE SWITCH

IGNITION SWITCH-ST

KNOCK SENSOR

FAN CONTROL (RADIATOR, A/C CONDENSOR)

MULTIPORT FUEL SYSTEM (MFI) <3.8L ENGINE>

13B-8

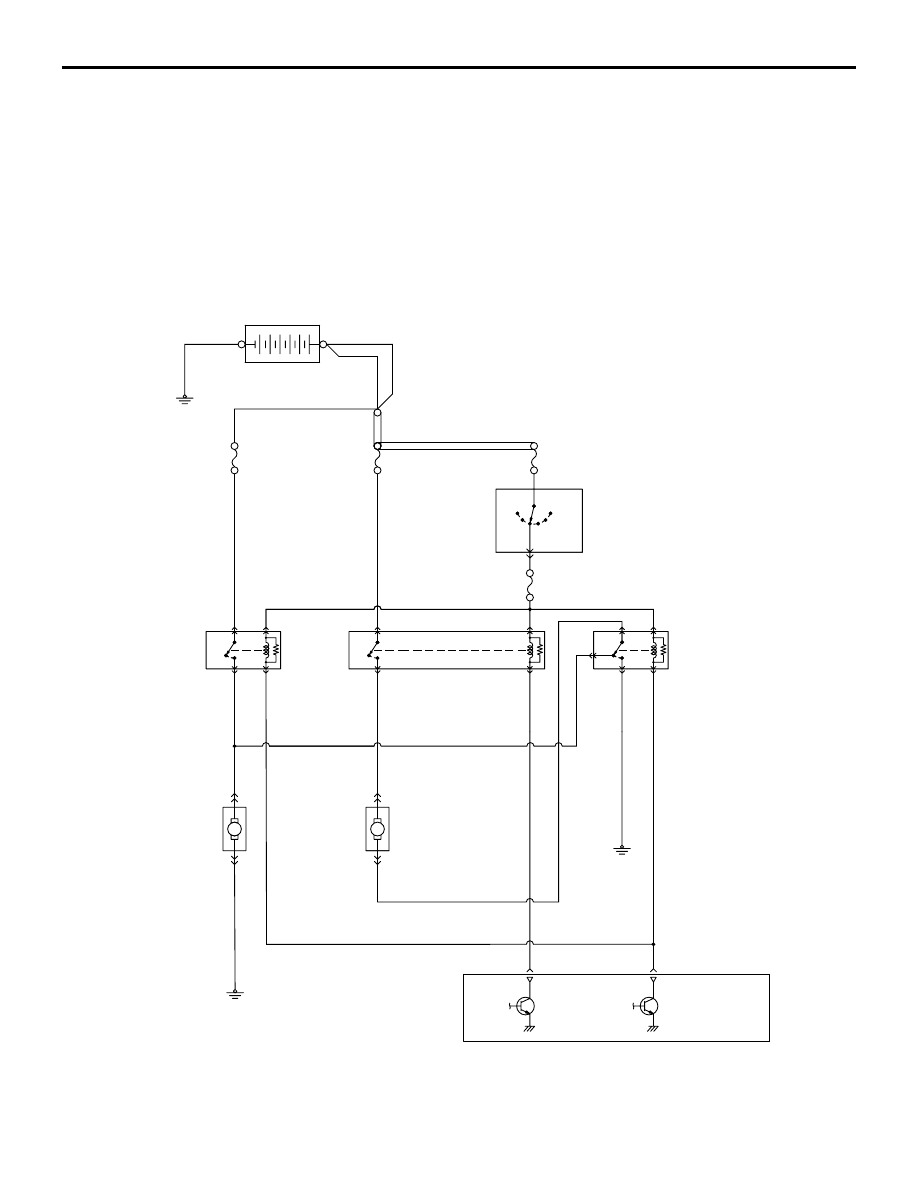

FAN CONTROL (RADIATOR, A/C CONDENSOR)

M2132022500015

•

The powertrain control module (PCM) turns on
the lower speed power transistor, so that the fan
control relay is in ON position, and then the radia-
tor fan and A/C condenser fan motors rotate
slowly. PCM turns on the higher speed power
transistor, so that radiator fan and A/C condenser
fan motors rotate highly.

•

PCM performs the rotation control for the radiator
fan and A/C condenser fan motors corresponding
to the engine coolant temperature and vehicle
speed by controlling (both of the higher and lower
speed) power transistor.

.

AK304054

IG2

ST

LOCK

ACC

IG1

R

M

M

CONDENSER
FAN RELAY

FAN CONTROL RELAY

IGNITION
SWITCH

POWERTRAIN CONTROL
MODULE (PCM)

RADIATOR
FAN MOTOR

RADIATOR
FAN RELAY

CONDENSER
FAN MOTOR

(LOW SPEED
 SIDE)

(HIGH SPEED
 SIDE)

BATTERY

AB
