16-1

GROUP 16

ENGINE

ELECTRICAL

CONTENTS

IGNITION COIL  . . . . . . . . . . . . . . . . .

16-2

CAMSHAFT POSITION SENSOR  . . .

16-2

IGNITION COIL

ENGINE ELECTRICAL

16-2

IGNITION COIL

M2163001000077

<6G7 ENGINE>

An ignition coil of plug top type is used and an igni-
tion coil is arranged by cylinder.

CAMSHAFT POSITION SENSOR

M2163002000070

<6G7 ENGINE>

The compression top dead center is detected with
the camshaft position sensing cylinder settled on the
camshaft rear end, and with the camshaft position
sensor installed on the camshaft position sensor
support. No ignition timing adjustment is needed.

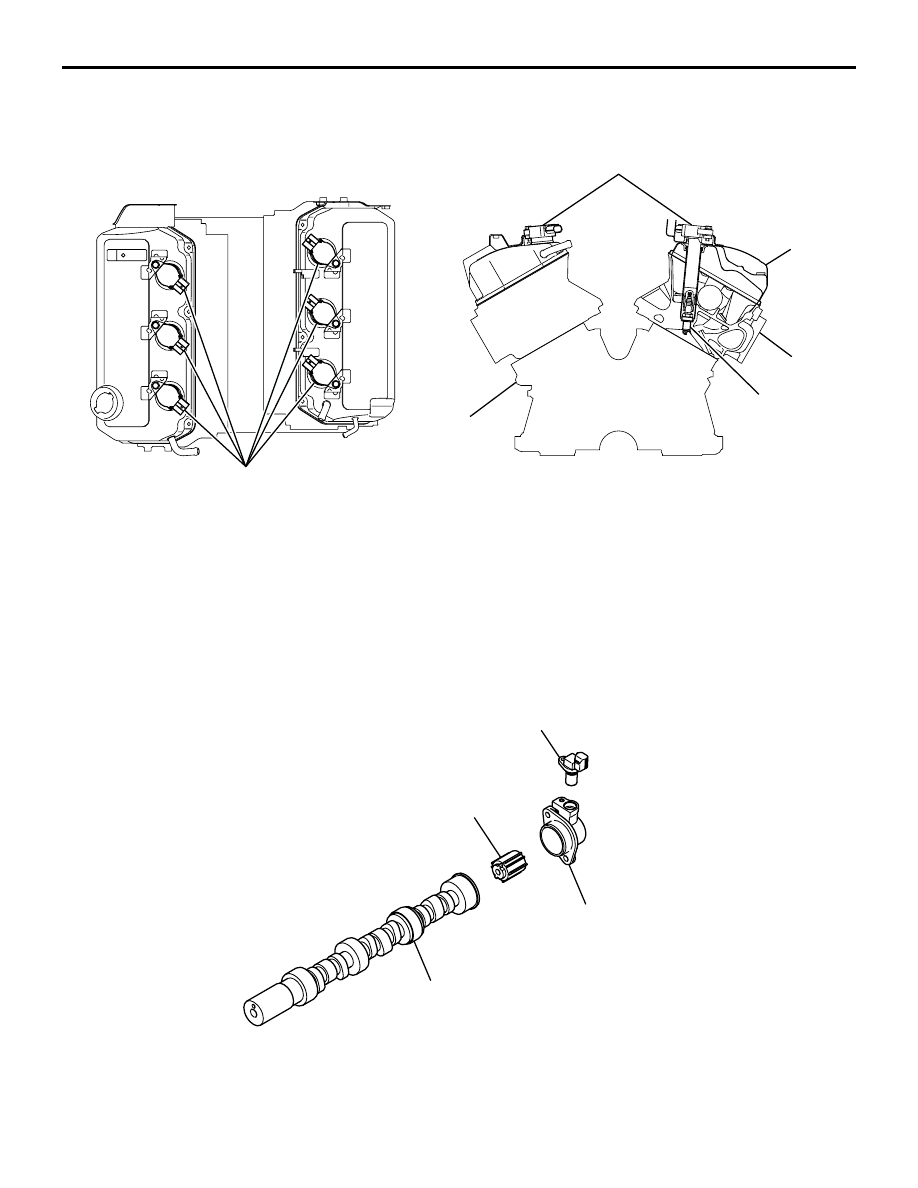

AK203076AB

IGNITION COIL

IGNITION COIL

CYLINDER BLOCK

SPARK PLUG

CYLINDER
HEAD

ROCKER COVER

AK203075AB

CAMSHAFT

CAMSHAFT POSITION
SENSOR SUPPORT

CAMSHAFT POSITION SENSOR

CAMSHAFT POSITION
SENSING CYLINDER

13C-1

GROUP 13C

FUEL SUPPLY

CONTENTS

GENERAL DESCRIPTION. . . . . . . . .

13C-2

FUEL TANK  . . . . . . . . . . . . . . . . . . . .

13C-3

GENERAL DESCRIPTION

FUEL SUPPLY

13C-2

GENERAL DESCRIPTION

M2134000100190

.

The fuel system consists of the following compo-
nents:

•

Fuel injector

•

Fuel rail

•

Fuel pipe

•

Fuel tank

•

Fuel level sensor (sub)

•

Fuel tank differential pressure sensor

•

Fuel pump module

•

Fuel tank leveling valve

•

Evaporative emission canister

.

The fuel system has the following characteristics.

•

A plastic tube (a conductive multilayer nylon
tube) is used for the fuel high-pressure hose in
the engine compartment to improve fuel supply
performance and reduce the weight.

•

For the vapor hose and purge hose, hoses for a
lower rate of supply are used.

•

A returnless fuel system eliminates returned fuel
from the engine. The heat that fuel receives from
the engine is reduced, minimizing fuel tempera-
ture in the fuel tank and controlling the amount of
evaporated gas.

SPECIFICATIONS

ITEM

SPECIFICATION

Fuel tank capacity dm

3

 (gal)

67 (17.7)

Fuel pump type

Electric

Fuel filter type

Cartridge (incorporates fuel pump module)

Fuel pump pressure regulator pressure kPa (in. Hg)

324 (95.7)

Fuel injector

 Type

Electro-magnetic

Quantity

2.4L Engine 4
3.8L Engine 6

Evaporative emission control system

Canister
