55-1

GROUP 55

HEATER, AIR

CONDITIONING AND

VENTILATION

CONTENTS

GENERAL DESCRIPTION. . . . . . . . .

55-2

HEATER AND AIR CONDITIONING
SYSTEM . . . . . . . . . . . . . . . . . . . . . . .

55-4

HEATER CONTROL  . . . . . . . . . . . . .

55-8

A/C COMPRESSOR . . . . . . . . . . . . . .

55-10

CONDENSER . . . . . . . . . . . . . . . . . . .

55-11

DUCT. . . . . . . . . . . . . . . . . . . . . . . . . .

55-11

VENTILATION SYSTEM. . . . . . . . . . .

55-12

GENERAL DESCRIPTION

HEATER, AIR CONDITIONING AND VENTILATION

55-2

GENERAL DESCRIPTION

M2551001500017

For the heater and air conditioning system, the
heater and cooling unit are combined in a single unit,
which, with the mode film damper and flow rate con-
trol valve in the heater unit, reduces ventilation resis-
tance, increases fan power, and reduces noise. Two
types of air conditioner are available, manual and
automatic.

FEATURES

.

Improvements in comfort

•

Flow rate control valve

•

Maximum A/C damper

•

Heater and blower combined into in a single unit

.

Improvements in operation performance

•

Enlargement of heater control dial

•

Enlargement of label for heater control dial

•

Electronics incorporated in temperature control
dial and mode selection dial for heater control
<vehicles with manual A/C>

•

A/C system display added to multi center display
<vehicles with multi-center display (middle grade
type)>

•

Green used for air conditioner indicator

•

Maximum A/C position added to temperature
control dial for heater control <vehicles with man-
ual A/C>

.

Reliability

•

External temperature prioritization control for
linked defroster control

•

New model of heater unit

•

Blower type defroster

.

Improvements in fuel economy

•

Scrolling compressor

•

Larger condenser

•

Reduced the wiring and lightened vehicle weight
by using CAN communication system

.

Global environment protection

•

New refrigerant system

•

Detection control for refrigerant leaks

•

Integration of condenser with receiver

.

Improvements in service quality

•

Used one-shot coupling at the joints of the flexi-
ble suction hose and suction pipe

SPECIFICATIONS

ITEM

SPECIFICATION

Air conditioning switch type

Push button type

Compressor type

MSC105CA

Cooling output

5.5 kw

Heating output

5.7 kw

Refrigerant

Type

R134a (HFC-134a)

Charge quantity g (oz.)

610

±

 20 (21.51

±

 0.71)

GENERAL DESCRIPTION

HEATER, AIR CONDITIONING AND VENTILATION

55-3

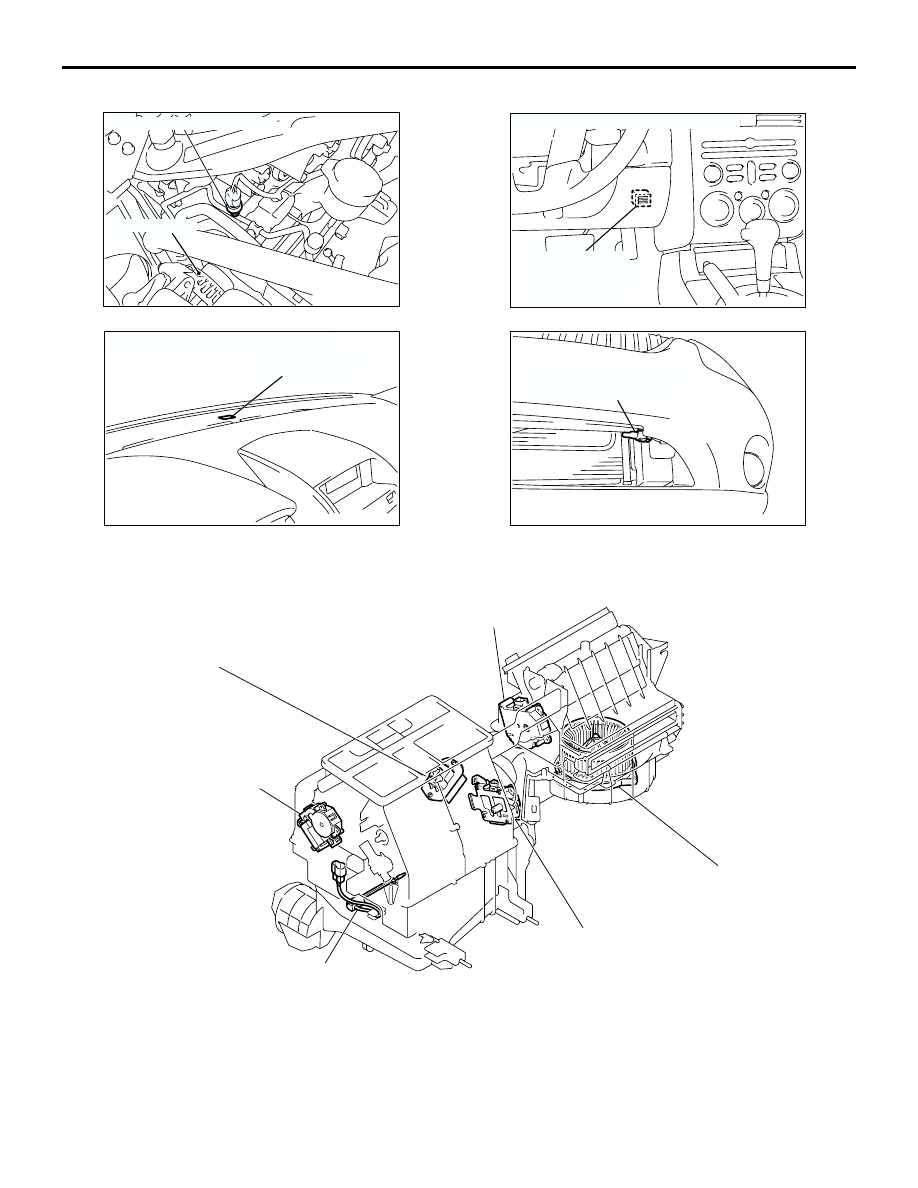

CONSTRUCTION DIAGRAM

AC305034 AC

A/C PRESSURE SENSOR

GENERATOR

AC305246

INTERIOR
TEMPERATURE
SENSOR

AC

<AUTOMATIC AIR CONDITIONING>

AC305245AC

<AUTOMATIC AIR CONDITIONING>

PHOTO SENSOR

AC305040AC

AMBIENT AIR
TEMPERATURE SENSOR

AC206365

AIR THERMO SENSOR

MODE SELECTION DAMPER
CONTROL MOTOR AND
POTENTIOMETER

AIR MIXING DAMPER CONTROL
MOTOR AND POTENTIOMETER

RESISTOR <MANUAL LOW TYPE>,
POWER TRANSISTOR <MANUAL MIDDLE TYPE AND AUTO A/C>

OUTSIDE/INSIDE AIR SELECTION
DAMPER CONTROL MOTOR

BLOWER MOTOR

AC

HEATER AND AIR CONDITIONING SYSTEM

HEATER, AIR CONDITIONING AND VENTILATION

55-4

HEATER AND AIR CONDITIONING SYSTEM

M2551001000283

AIR CONDITIONING SYSTEM

.

The following features improve maintenance, reduce vibration
transmissibility, and improve cooling and heating performance.

•

A scrolling compressor is used for greater compression effi-
ciency of the refrigerant and improvement of cooling perfor-
mance when idling.

•

The scrolling portion of the A/C compressor was made
more durable and longer lasting.

•

Air conditioner piping layout was simplified for fewer refrig-
erant leaks.

•

For better maintenance, one-shot coupling is used at the
joints of the flexible suction hose and suction pipe.

.

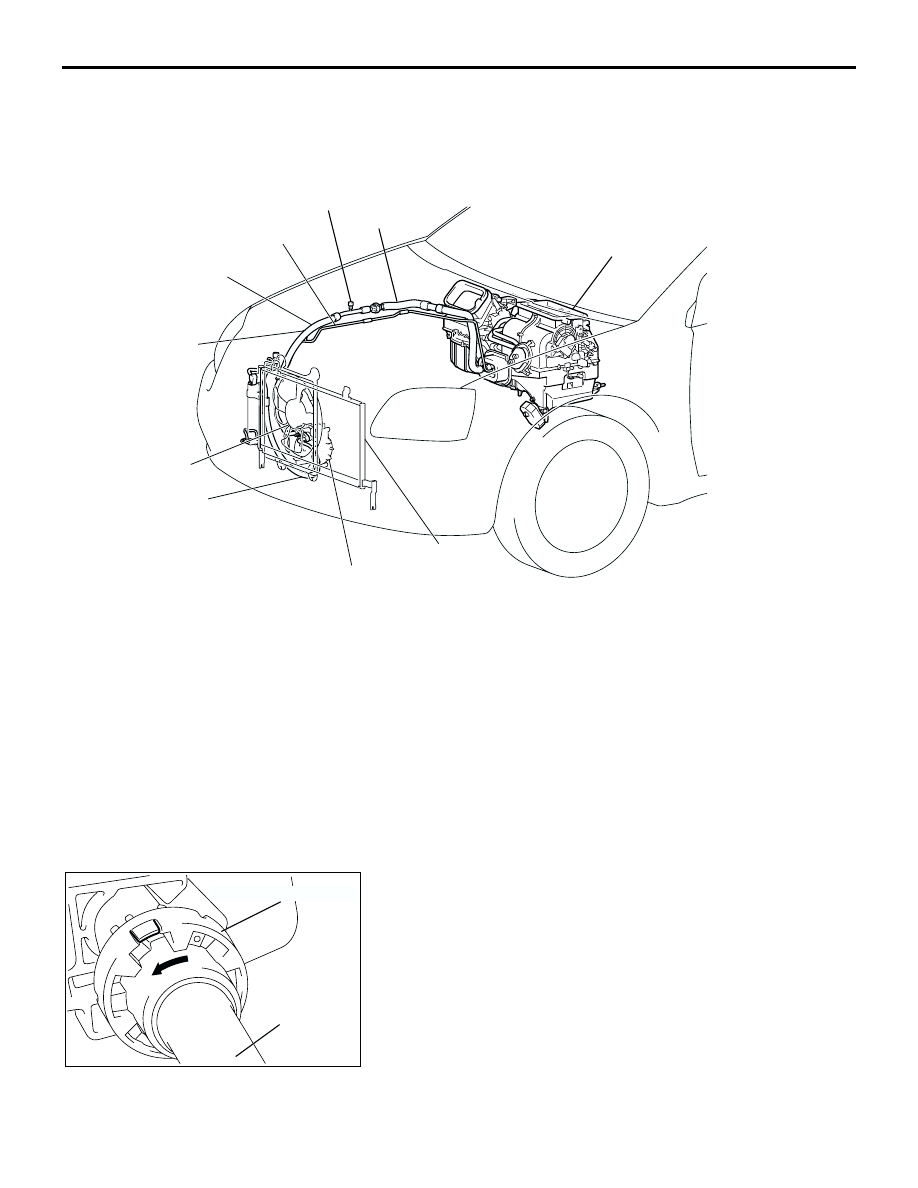

ONE-SHOT COUPLING
The refrigerant line maintenance was simplified by affixing the
points of pipe connection with polymer hooks.

AC305986

HEATER UNIT

LIQUID PIPE

SUCTION PIPE

SUCTION FLEXIBLE HOSE

DISCHARGE
FLEXIBLE HOSE

CONDENSER

A/C COMPRESSOR

AB

LOW-PRESSURE SIDE VALVE

HIGH-PRESSURE
SIDE VALVE

CONDENSER FAN

AC209788

SUCTION
FLEXIBLE HOSE

ONE-SHOT COUPLING

AC
