Mitsubishi Galant (2004+). Manual - part 1685





ECU FUNCTIONS AND CONTROLS IN THE SWS

SIMPLIFIED WIRING SYSTEM (SWS)

54B-11

TONE ALARM

.

Ignition key reminder tone alarm function
When the driver’s door is opened with the ignition key inserted
in the ignition key cylinder (ignition switch is in the OFF posi-
tion,) the tone alarm sounds intermittently to indicate that the
ignition key has not been removed.

.

Light reminder tone alarm function
When the taillights or headlights are ON, if the ignition key is
removed and the driver's door is opened, a tone alarm will
sound continuously to warn that the lights are on. However, if
the taillights or headlights have been turned off by the headlight
automatic-shutoff function, the tone alarm will not sound.

.

Flasher timer function

Turn-signal lights

ETACS-ECU, front-ECU,
column switch

P.54B-23

Hazard warning light

P.54B-23

Turn signal indicators

P.54B-23

Fog light function

Fog light

ETACS-ECU, front-ECU,
column switch

P.54B-23

Fog light indicator

P.54B-24

Interior light

Interior light control function

ETACS-ECU

P.54B-24

Interior light automatic-shutoff function

P.54B-24

Seat belt indicator

P.54B-25

Door ajar indicator

P.54B-26

Panic alarm system

ETACS-ECU

Refer to
Group 54A,
Panic Alarm
System

P.54

A-23

Configuration function

Adjustment by operating the multi
center display <vehicles with multi
center display (middle grade type)>

ETACS-ECU

P.54B-28

FUNCTION

CONTROL ECU

FUNCTION
DESCRIPTION

AC005427AB

ON

OFF

ON

 (Key removed)

OFF

 (Key inserted)

ON (Open)

OFF (Closed)

ON (Tone alarm

sounds)

OFF (Tone alarm

does not sound)

Ignition switch
(IG1)

Key
reminder
switch

Driver's
door
switch

Ignition key
inserted
reminder
tone alarm
output

AC005428

AB

ON

OFF

ON

(Key removed)

OFF

(Key inserted)

ON (Open)

OFF (Closed)

ON (Tone alarn

sounds)

OFF (Tone alarm

does not sound)

Tail light or
headlight

Key
reminder
switch

Driver's
door
switch

Light
reminder
tone
alarm output

ECU FUNCTIONS AND CONTROLS IN THE SWS

SIMPLIFIED WIRING SYSTEM (SWS)

54B-12

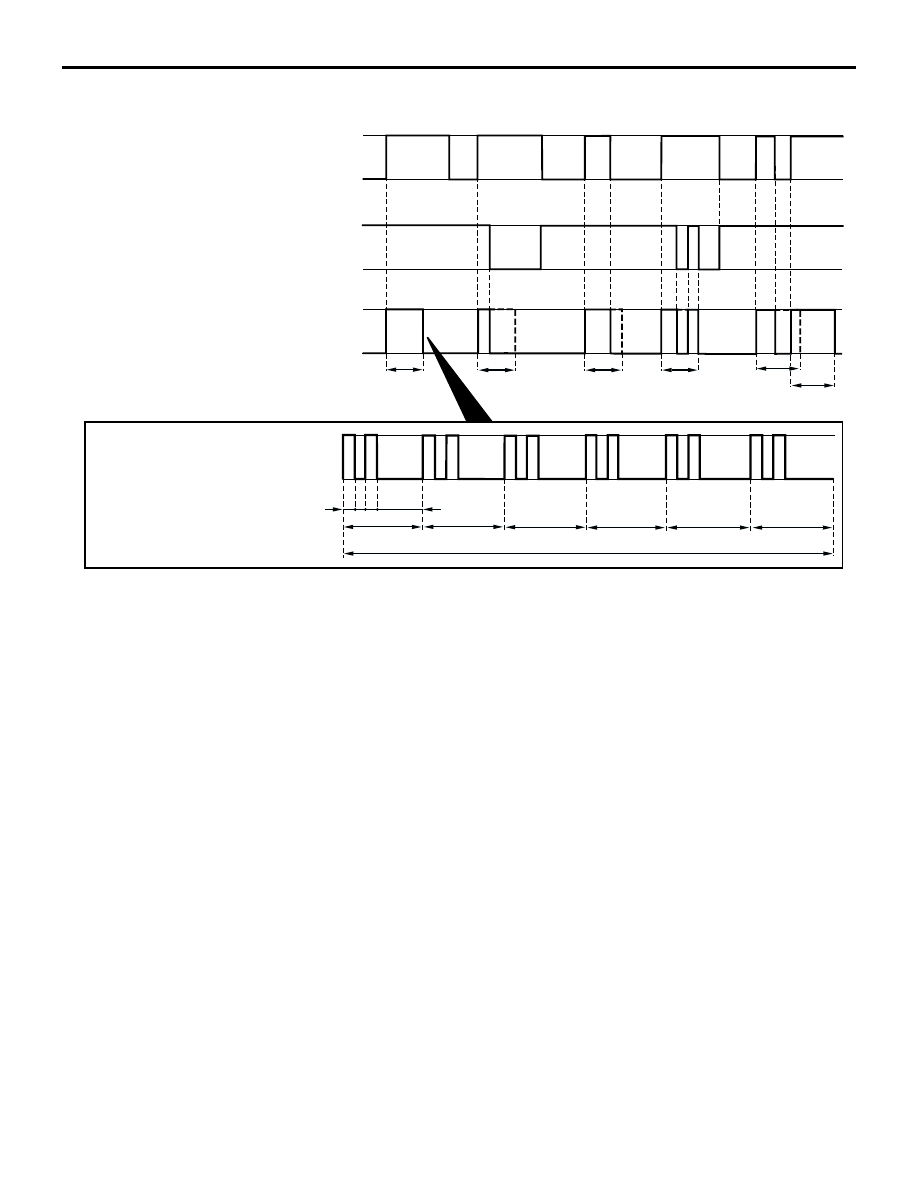

Seat belt tone alarm function

AC305326 AC

ON

OFF

ON (UNFASTENED)

OFF (FASTENED)

ON (TONE ALARM SOUNDS)

OFF (TONE ALARM DOES

NOT SOUND)

IGNITION SWITCH (IG1)

SEAT BELT
TONE ALARM
OUTPUT

T

T

T

T

T

T: 6 SECONDS

T1: 1 SECOND

T

T1

t t t

T1

T1

T1

T1

T1

t1

t: 0.16 SECOND

t1: 0.52 SECOND

SEAT BELT
TONE ALARM
OUTPUT

ON (TONE ALARM

SOUNDS)

OFF (TONE ALARM

DOES NOT SOUND)

SEAT BELT SWITCH
(DRIVER'S SIDE)

T

ECU FUNCTIONS AND CONTROLS IN THE SWS

SIMPLIFIED WIRING SYSTEM (SWS)

54B-13

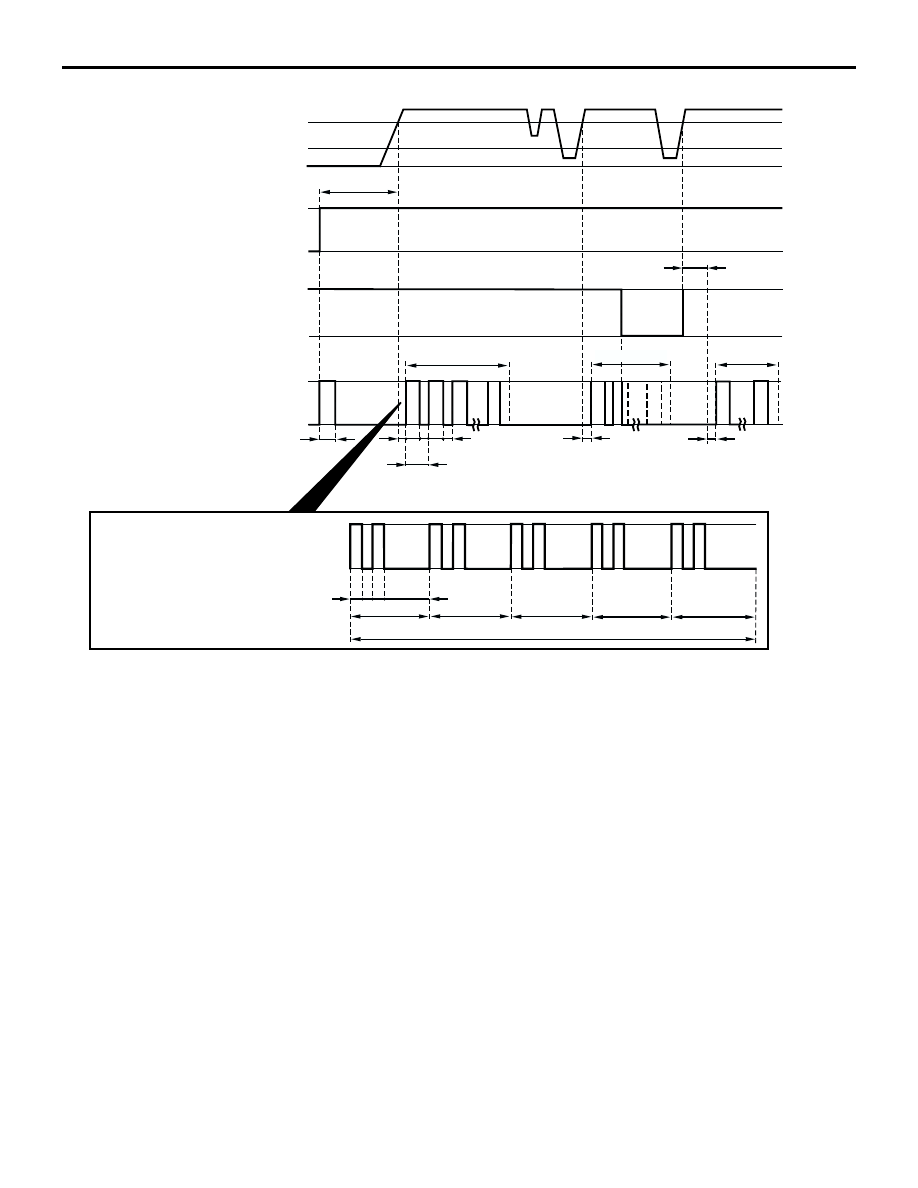

If any of the following conditions are met with the
ignition switch at "ON" or "ST", the ETACS-ECU
sounds the tone alarm by using the driver's seat belt
switch signal and the vehicle speed signal from the
combination meter.

Sounds the tone alarm for six seconds when the
ignition switch is turned "ON" with the seat belt
switch on (the driver's seat belt is not fas-
tened)(Timer function).

Sounds the tone alarm 12 cycles (after 0.5 sec-
onds) if any of the following conditions are met
when sixty seconds or more have elapsed since
the ignition switch is turned "ON". One cycle con-
sists of five-seconds "on" and then three-seconds
"off".

a. The vehicle speed has reached 8 km/h (5

mph) while the seat belt switch is turned on
(driver's seat belt is not fastened) with the
ignition switch "ON".

b. The seat belt switch has been turned on

(driver's seat belt has not been fastened) for
at least ten seconds while the ignition switch
has been turned "ON" and the vehicle speed
has been 8 km/h (5 mph) or more.

NOTE: Once the tone alarm has sounded 12

cycles, it does not sound again until the vehi-
cle speed reduces to 3 km/h (2 mph) or less
even if any of the following conditions is met.

The tone alarm stops sounding if the ignition
switch or the seat belt switch is turned off (the
driver's seat belt is fastened) while the timer
operation is active.

.

AC305374

ON

OFF

ON (UNFASTENED)

OFF (FASTENED)

ON (TONE ALARM

SOUNDS)

IGNITION SWITCH (IG1)

SEAT BELT
SWITCH
(DRIVER'S SIDE)

SEAT BELT
TONE ALARM
OUTPUT

a: 0.5 SECOND

b: 5 SECONDS

c: 3 SECONDS

d: 60 SECONDS  OR MORE

8 km/h (5 mph)

0 km/h (0 mph)

VEHICLE SPEED

d

e: 10 SECONDS

AC

3 km/h (2 mph)

T: 6 SECONDS

T1: 1 SECOND

t: 0.16 SECOND

t1: 0.52 SECOND

b

T1

t t t

T1

T1

T1

T1

t1

SEAT BELT
TONE ALARM
OUTPUT

ON (TONE ALARM

SOUNDS)

OFF (TONE ALARM

DOES NOT SOUND)

OFF (TONE ALARM

DOES NOT SOUND)

T

b

b

c

c

a

a

a

12 CYCLES

1 CYCLE

e

12 CYCLES

12 CYCLES

ECU FUNCTIONS AND CONTROLS IN THE SWS

SIMPLIFIED WIRING SYSTEM (SWS)

54B-14

Door ajar warning buzzer
The buzzer is sounded 4 times by the ETACS-ECU to warn the
driver if any door is open when the ignition is switched ON and
the vehicle speed reaches 8 km/h (5 mph) or faster. The buzzer
will continue to sound for 4 times even if the ignition, door sta-
tus, or vehicle speed requirements are not maintained.
NOTE: The warning buzzer can be customized on vehicles
equipped with a multi center display (middle grade type.) Refer
to

P.54B-28

.

.

Multi center display operation tone <vehicles with multi
center display (middle grade type)>
The ETACS-ECU sounds the buzzer when the buzzer signal is
sent from the center display.

.

Turn-signal light buzzer
The ETACS-ECU sounds the buzzer in sync with the turn sig-
nal lights or hazard warning lights.
NOTE: The turn-signal light buzzer can be customized on vehi-
cles equipped with a multi center display (middle grade type.)
Refer to

P.54B-28

.

CENTRAL DOOR LOCKING SYSTEM

.

Door unlocking by operating the driver’s door lock key cyl-
inder
When the ignition key is inserted in the driver’s door lock key
cylinder and turned clockwise to unlock the driver’s door, the
ETACS-ECU operates its door unlock relay and passes a cur-
rent through the door lock actuator of the driver’s door for 0.25
seconds to unlock only the driver’s door.
When the ignition key is turned clockwise again, the
ETACS-ECU operates its door unlock relay and passes a cur-
rent through the door lock actuators of all doors for 0.25 sec-
onds to unlock all doors.
NOTE: Vehicles with a multi center display (middle grade type)
can be customized so that a single unlock operation will unlock
all doors. (Refer to

P.54B-28

.).

.

AC305383 AB

ON

(UNLOCK)

OFF

DRIVER'S
DOOR LOCK KEY
CYLINDER SWITCH

t: 0.25 SECOND

OFF

ON

DRIVER'S DOOR
UNLOCK RELAY
OUTPUT

LOCK

UNLOCK

LOCK

UNLOCK

DRIVER'S DOOR
LOCK ACTUATOR

t

ALL DOOR'S
LOCK ACTUATOR

t

OFF

ON

t

OTHER DOOR
UNLOCK RELAY
OUTPUT
